Pentium HOT-541 Manuale utente
User's Manual 1
HOT-541
Pentium PCI MAIN BOARD
User's Manual
2 User's Manual
NOTICE
Copyright 1995.
All Right Reserved
Manual Ver 2.0 ( for 541V2.0, 2.1, 2.2)
All information, documentation, and specifications contained in this manual are subject to change
without prior notification by the manufacturer.
The author assumes no responsibility for any errors or omissions which may appear in this docu-
ment nor does it make a commitment to update the information contained herein.
TRADEMARKS
Intel is a registered trademark of Intel Corporation
PC/AT is a registered trademark of International Business Machine Corporation.
OS/2 is a registered trademark of IBM Corporation.
All other brand and product names referred to in this manual are trademarks or registered trade-
marks of their respective holders.
User's Manual 3
TABLE OF CONTENTS
PREFACE................................................................................... 5
CHAPTER 1 INTRODUCTION........................................................ 6
Specification ............................................................................................ 6
541 Mainboard Description ................................................................... 8
541 Mainboard Layout .........................................................................10
CHAPTER 2 JUMPER SETTING ....................................................11
System Clock Selection .........................................................................11
Pentium CPU Clock Multiplier..............................................................12
Onboard Regulator & VRM Selection...................................................13
Onboard Voltage Regulator Output Selection .....................................14
AT Bus Clock Selection .........................................................................15
Cache Type Selection............................................................................16
Standard Type Cache Size Selection ....................................................18
Cache Voltage Selection........................................................................19
I/O Port Setting & Parallel Port DREQ Selection ...................................20
Flash EPROM Jumper ............................................................................21
Clear CMOS...........................................................................................22
Clear Password ......................................................................................22
Connectors ............................................................................................23
CHAPTER 3 MEMORY CONFIGURATION......................................26
Memory Configuration Reference Table...............................................27
Chapter 4 Power management..............................................................28
Power Management Description ..........................................................28
EPMI Connector ....................................................................................29
CHAPTER 5 AMI BIOS SETUP ...................................................30
BIOS Setup Feature................................................................................31
Navigating with the keyboard in WinBIOS Setup.................................32
Standard Setup.......................................................................................34
Advanced Setup ....................................................................................36
Chipset Setup.........................................................................................40
Power Management Setup ....................................................................43
Peripheral Setup ....................................................................................45
WinBIOS Password Support .................................................................47
4 User's Manual
CHAPTER 6 AWARD BIOS SETUP ..............................................49
Entering Setup........................................................................................49
Using Control Keys................................................................................50
The Main Menu.....................................................................................51
Standard CMOS Setup ..........................................................................53
BIOS Features Setup ..............................................................................57
Chipset Features Setup ..........................................................................60
Power Management Setup ....................................................................64
PCI Configuration Setup........................................................................67
Password Setting....................................................................................69
IDE HDD Auto Detection ......................................................................70
APPENDIX A AMI BIOS REFERENCE .........................................73
APPENDIX B AWARD BIOS REFERENCE .....................................74
User's Manual 5
HOT-541 mainboard is a highly integrated IBM PC/AT compatible system
board. The design will accept Pentium processors operating in 75MHz,
90MHz, 100MHz, 120MHz, and 133MHz, and also features high-perfor-
mance asynchronous and pipelined burst secondary cache memory support
with size of 256KB and 512KB. The memory subsystem is designed to sup-
port up to 128 MB of EDO RAM or standard Fast Page DRAM in standard 72-
pin SIMM socket. A type 5 or type 7 Pentium CPU socket provides access to
future processor enhancements.
HOT-541 provides a new level of I/O integration. Intel's T-Chip 82430 PCISet
chip set provides increased integration and improved performance over other
chip set designs. The T-Chip chipset provides an integrated Bus Mastering
IDE controller with two high performance IDE interfaces for up to four IDE
devices.
The SMC Super I/O controller provides the standard PC I/O functions: floppy
interface, two FIFO serial ports, one SPP/EPP/ECP capable parallel port.
Up to four PCI local bus slots provide a high bandwidth data path for data-
movement intensive functions such as graphics, and up to four ISA slots com-
plete the I/O function.
The HOT-541 provides the foundation for cost effective, high performance,
highly expandable platforms, which deliver the latest in Pentium processor
and I/O standard
Preface
6 User's Manual
Chapter1 Introduction
Specification
CPU Function
CPU clock: 75/90/100/120/133 MHz
Fully supports Intel's 3.3V Pentium processors
Optional VRM socket for Intel's future P55C processors
Chipset
Intel T-Chip PCISet 82437FX, 82438FX, and 82371FB
Memory
Supports two banks of EDO RAM and Fast Page DRAM
ranging from 8MB to 128MB
Supports 1M x 32 (4MB), 2M x 32 (8MB), 4M x 32(16MB),
and 8M x 32 (32MB) 72-pins SIMMs
Cache Memory
Integrated L2 write-back cache controller
- Pipelined Burst or standard SRAM
- 256KB or 512KB Direct Mapped
Power Management Function
Provides four power management modes : Full on,
Standby, and Suspend
Supports Microsoft APM
Provides EPMI (External Power Management Interrupt)
pin
User's Manual 7
Expansions
32-bit PCI bus slot x 4
16-bit ISA bus slot x 4
2-channel PCI IDE port
- Support up to 4 IDE devices
- PIO Mode 4 transfers up to 16 MB/sec
- Integrated 8 x 32-bit buffer for PCI IDE burst transfers
One floppy port
One parallel port
- Supports SPP (PS/2 compatible bidirectional Parallel
Port), EPP (Extended Parallel Port), and ECP (Extended
Capabilities Port) high performance parallel port.
Two serial ports
- Supports 16C550 compatible UARTS.
One or two PS/2 mouse ports
Board Design
Dimension 22cm x 28cm
8 User's Manual

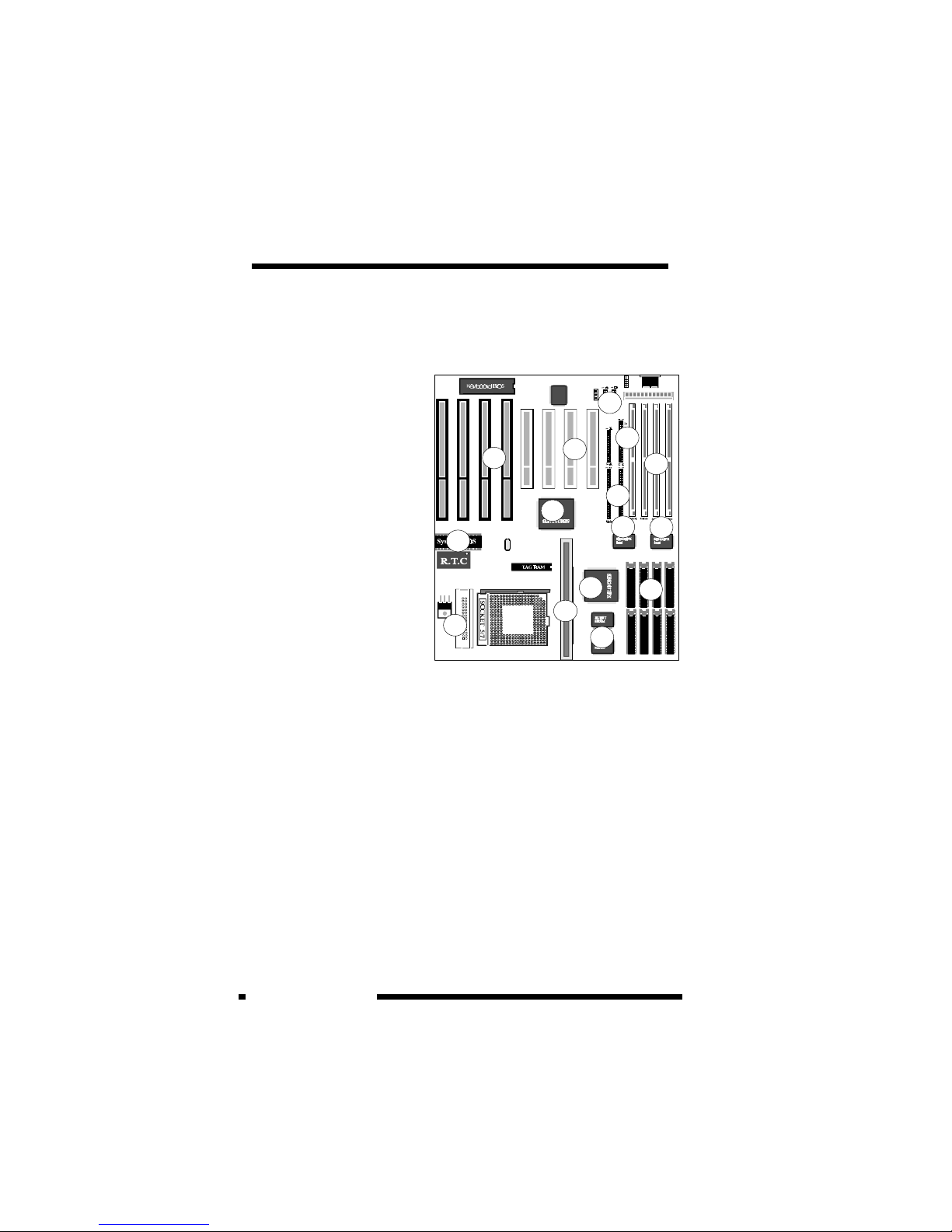

541MainboardDescription
4
5
6
8
9
10
Themajorcomponentsof
541 mainboard are illus-
tratedanddescribedright
andbelow. Please takea
minutetobecomefamiliar
withtheboarddesign.
1. ChipsetASIC
541mainboardisdesigned
arounda setof highlyinte-
gratedIntelT-ChipPCISet,
whichoffersoptimumper-
formanceonPCI and ISA
base system for a cache
controller, a local DRAM
controller, and an inte-
gratedPeripheralscontrol-
ler.
2.SystemMicroprocessor
541 mainboard accept member of the 3.3V Pentium family and future
P55C high performance 64-bit microprocessors in PGA package. The
mainboardis designedtorun ataclock speedfrom 50 to66MHz onCPU
bus clock, and 75 to 133 MHz on CPU core clock.
3.SecondaryCacheArchitecture
541 maniboard support pipelined burst or standard SRAM on external
cachememory with sizeof 256KBor512KB, andaCard EdgeLow Profile
(CELP)socket provides flexibilityforcache module options.
4.MemoryArchitecture
541 mainboard features four 72-pin SIMM (Single In-line Memory Mod-
ule)sockets organizedinto twobanks,which allowflexible memorycon-
figuration and expansion. It may use 4MB, 8MB, 16MB and 32MB EDO
orFast Page SIMMstoexpand memory from8MB to 128MB.
11
1
1
1 1
3
3
3
2
7
User's Manual 9
5.PCIExpansionSlots
541 mainboard provides four 32-bit PCI expansion slots, which may
accommodatemany third-partyexpansion cardsand increaseflexibility
indesigningcustomplatforms.
6.ISAExpansionSlots
541 mainboard provides four 16-bit ISA expansion slots, which may
accommodatemany third-partyexpansioncards andenormousflexibil-
ityin designingcustomplatforms.
7.VoltageRegulator&VRM
Theon-boardvoltregulatororVRM(VoltageRegulator Module)provides
powerfor thePentium process,PCISet andsecondary cache.It provides
3.3V range for Pentium P54C family and 3.3V/2.5V for P55C.
8.On-boardPCIIDEController
541 mainboard provides a on-board 2-channel IDE controller with high
speeddata transferrate. Itsupportup tofour IDEdevices.
9.On-boardFloppyController
541mainboardprovidesaon-boardfloppycontrollerthatsupport360KB,
1.2MB, 720KB, 1.44MB, and 2.88MB type floppy disk drives.
10.On-boardSerial/ParallelPort
541 mainboard provides two serial (COM) ports and one parallel port.
11.SystemBIOS
541mainboardprovides licensed AMI WinBIOSorAward system BIOS
which are particularly designed to offer optimise performance of the
mainboard.
12.AttachedAccessories
one40-pinhard disk driveflatcable
one 34-pin floppy disk drive flat cable
one9-pin and25-pinserial connectorwithcable
one25-pinparallel port connectorwithcable
10 User's Manual

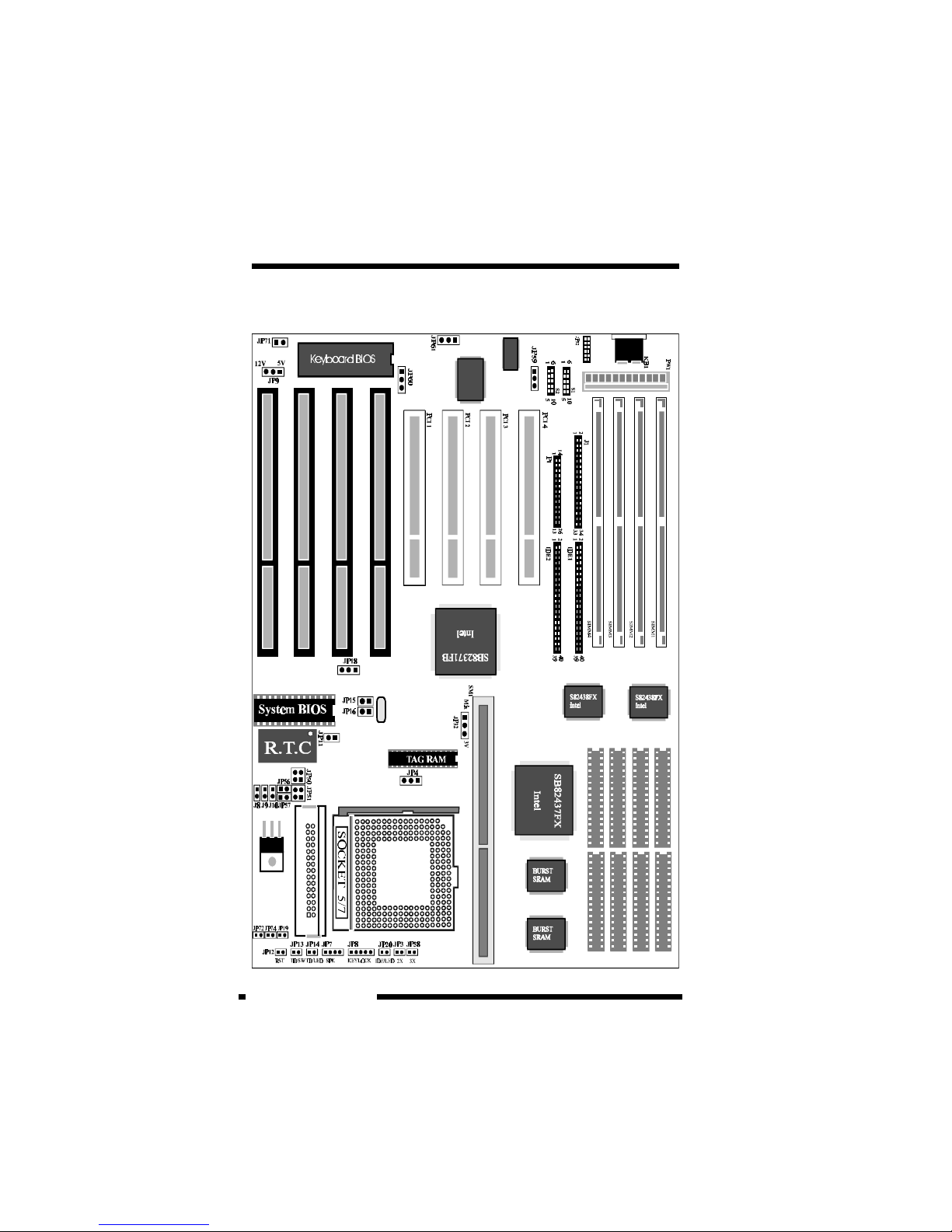

541MainboardLayout
