Phoenix 104 Vehicle and Forklift Computer

Installation Manual

Page 2

Phoenix 104 Vehicle and Forklift Computer Installation Manual

Percon Incorporated

28877 Fox Hollow Road

Eugene, OR 97405

U.S.A.

www.percon.com

The information contained herein is provided solely for the purpose of allowing customers to Install, operate, configure, and develop

applications for Percon-manufactured equipment and is not to be released, reproduced, or used for any other purpose without written

permission of Percon Incorporated.

Information and specifications contained in this document are subject to change without prior notice and do not represent a commitment

on the part of Percon Incorporated.

The word Percon, Phoenix, and the Percon logo, are either trademarks or registered trademarks of Percon Incorporated

Wi-Fi is a registered certification mark of the Wi-Fi Alliance.

Microsoft, WindowsCE, and the WindowsCE logo are registered trademarks of Microsoft Corporation in the United States and/or other

countries.

Bluetooth is a trademark of Bluetooth SIG, Inc., U.S.A.

FCC Class B

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

when the equipment is operated in a residential environment. This

equipment generates, uses and can radiate radio frequency energy. If not

installed and used in accordance with this user's manual, it may cause

harmful interference to radio communications. Note that even when this

equipment is installed and used in accordance with this user's manual,

there is still no guarantee that interference will not occur. If this equipment

is believed to be causing harmful interference to radio or television

reception, this can be determined by turning the equipment on and off. If

interference is occurring, the user is encouraged to try to correct the interference

by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and the receiver

• Connect the equipment to a power outlet on a circuit different from that

to which the receiver is connected

• Consult the dealer or an experienced radio technician for help

DP_P104_Inst Rev A

Page 3

Contents

Before You Begin ........................................................................................................................................4

Safety Information ...................................................................................................................................4

Service and Support .................................................................................................................................4

Web Support ........................................................................................................................................4

Related Documents ..................................................................................................................................4

Telephone Support...............................................................................................................................4

The Phoenix Vehicle Computer...................................................................................................................5

Features of the Phoenix 104.....................................................................................................................5

Additional Features of the Phoenix 104e Only.......................................................................................5

Connector Description .............................................................................................................................5

USB 1 and USB 2 ................................................................................................................................6

COM 1 & 2 ..........................................................................................................................................6

Ethernet (104E only)............................................................................................................................6

Power ...................................................................................................................................................6

Packing List..................................................................................................................................................6

Mounting the Phoenix..................................................................................................................................7

Add Mounting Base to Unit.....................................................................................................................7

Assemble the mounting arm.....................................................................................................................7

Mount the base to the vehicle...................................................................................................................8

Mount the unit to the vehicle ...................................................................................................................8

Mounting the Keyboard ...........................................................................................................................8

Attaching the Phoenix to Power...................................................................................................................9

Vehicle Connection..................................................................................................................................9

Fixed Mount Power Supply .....................................................................................................................9

Backup Power System .............................................................................................................................9

Status LED.................................................................................................................................................10

Installing an External Antenna...................................................................................................................10

Connecting a Scanner.................................................................................................................................10

Connecting a tethered Scanner...........................................................................................................10

Increasing Memory Storage.......................................................................................................................11

Cleaning the Screen....................................................................................................................................11

Contacting Product Support.......................................................................................................................11

Appendix A................................................................................................................................................12

Specifications.........................................................................................................................................12

Page 4

Before You Begin

Safety Information

Your safety is extremely important. Read and follow all warnings and cautions in this document before installing, handling,

and operating Percon equipment. You can be seriously injured, and equipment and data can be damaged if you do not

follow the safety warnings and cautions.

Warning: Warnings alert you to procedures that involve some amount of personal risk and may require special

training or tools.

Caution: A caution alerts you to an operating procedure, practice, condition, or statement that must be strictly

observed to prevent equipment damage or destruction, or corruption or loss of data.

ESD Sensitive: The operation requires an ESD safe working area and procedures to prevent equipment damage

and possible voiding of warranty.

Note: Notes either provide extra information about a topic or contain special instructions for handling a

particular condition or set of circumstances.

Service and Support

Web Support

Visit the Percon web site at www.percon.com and select Support on the menu bar at the top of the page. Our site has

details on how to Contact Us, Frequently Asked Questions and answers, and links to download our current manuals.

Related Documents

The Percon web site at www.percon.com contains our documents that you can download for free.

To download documents

1 Visit the Percon web site at www.percon.com.

2 Click Support>Documentation on the menu bar at the top opf the page.

3 Choose the Product documentation you want to download.

Telephone Support

In the USA and Canada call 888-465-6355

Outside the U.S.A. and Canada, contact your local Percon representative.

To search for your local representative, from the Percon web site, click Partners->Find Partner.

Page 5

The Phoenix Vehicle and Forklift Computer

The Percon Phoenix 104 is a rugged Vehicle and Forklift Computer designed for real-time data collection applications in

warehousing, distribution, work-in-process, time and attendance, and stationary applications.

Use this chapter to familiarize yourself with the Phoenix Vehicle and Forklift Computer.

Features of the Phoenix 104

The Phoenix 104/104e includes these standard features:

• 520 MHz Intel XScale PXA270 processor

• 128 MB Flash memory

• 64 MB RAM

• Two USB host ports

• Two serial ports

• Compact Flash (CF) socket for 802.11 b/g radio or memory expansion up to 2 GB

• Secure Digital (SD) socket for memory expansion up to 2 GB

Additional Features of the Phoenix 104e Only

• 128 MB RAM

• Ethernet port

• Bluetooth radio

• Extended temperature operation range (-30°C to 60°C)

These options are available for the Phoenix 104/104e:

• Summit CF10G 802.11b/g radio

• Secure Digital (SD) memory card for memory expansion

Connector Description

The Phoenix connectors are on the bottom of the unit.

USB 1

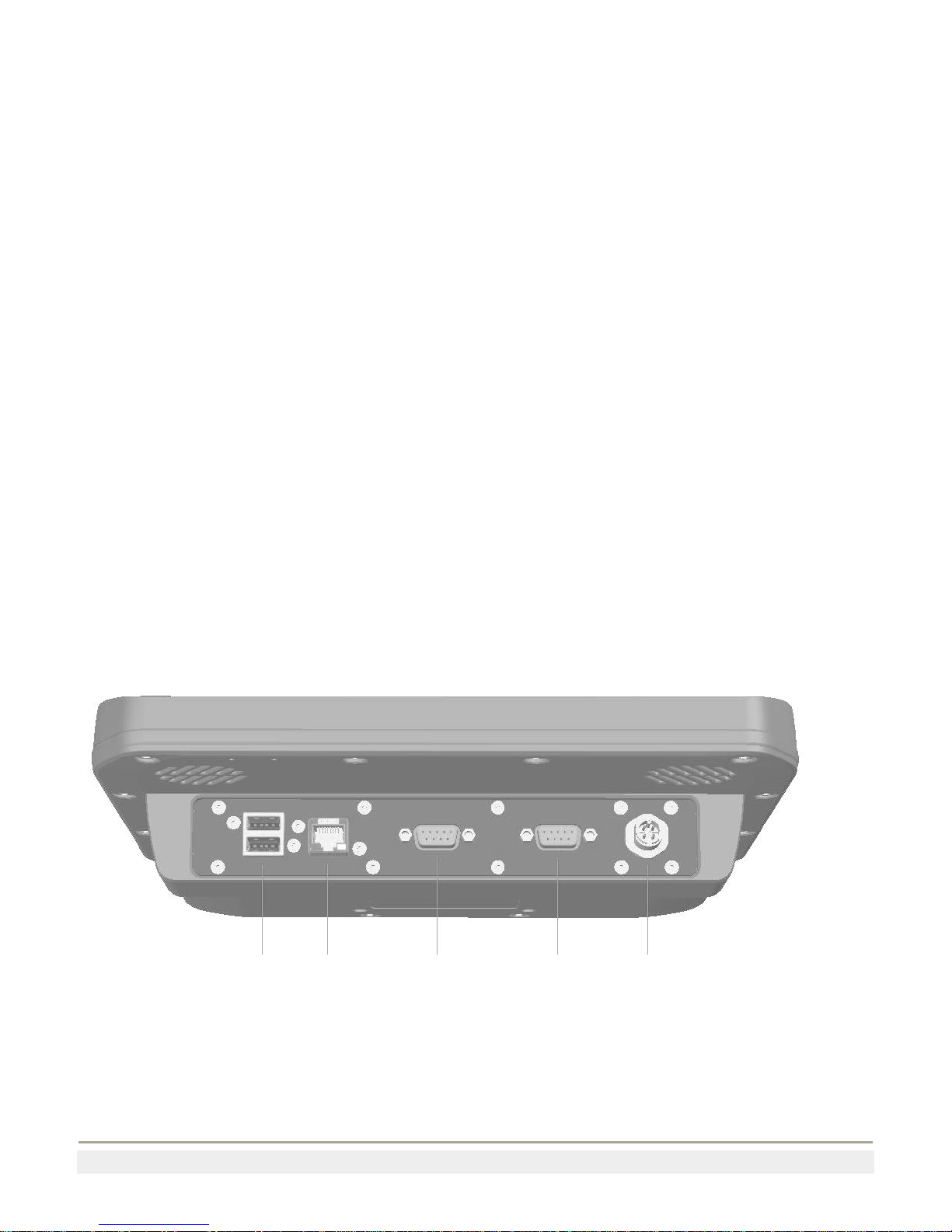

USB 2 Ethernet COM 2 COM 1 Power

(104e only) Figure 1

Page 6

USB 1 and USB 2

Provides two USB Host port to connect USB peripheral devices to the Phoenix. Power is provided on the USB ports

at 5VDC up to a maximum of 1 amp total for both connectors.

COM 1 & 2

The Phoenix connects to RS-232 devices such as Barcode scanners, RFID readers, PC’s or printers via two DB-9

male serial connectors with standard PC style pinout with the addition of power on Pin 9, either 5 VDC or 12 VDC,

up to a maximum or 1 amp total for both connectors. Factory default is 5V on COM1 and 12V on COM2.

Name

Dir

Description

Carrier Detect

RXD

Receive Data

TXD

OUT

Transmit Data

DTR

OUT

Data Terminal Ready

GND

------

System Ground

DSR

Data Set Ready

RTS

OUT

Request to Send

CTS

Clear to Send

SPWR

OUT

Power (None, +5V, +12V @ 1A max)

Note: Direction is DTE (Computer) relative DCE (Modem).

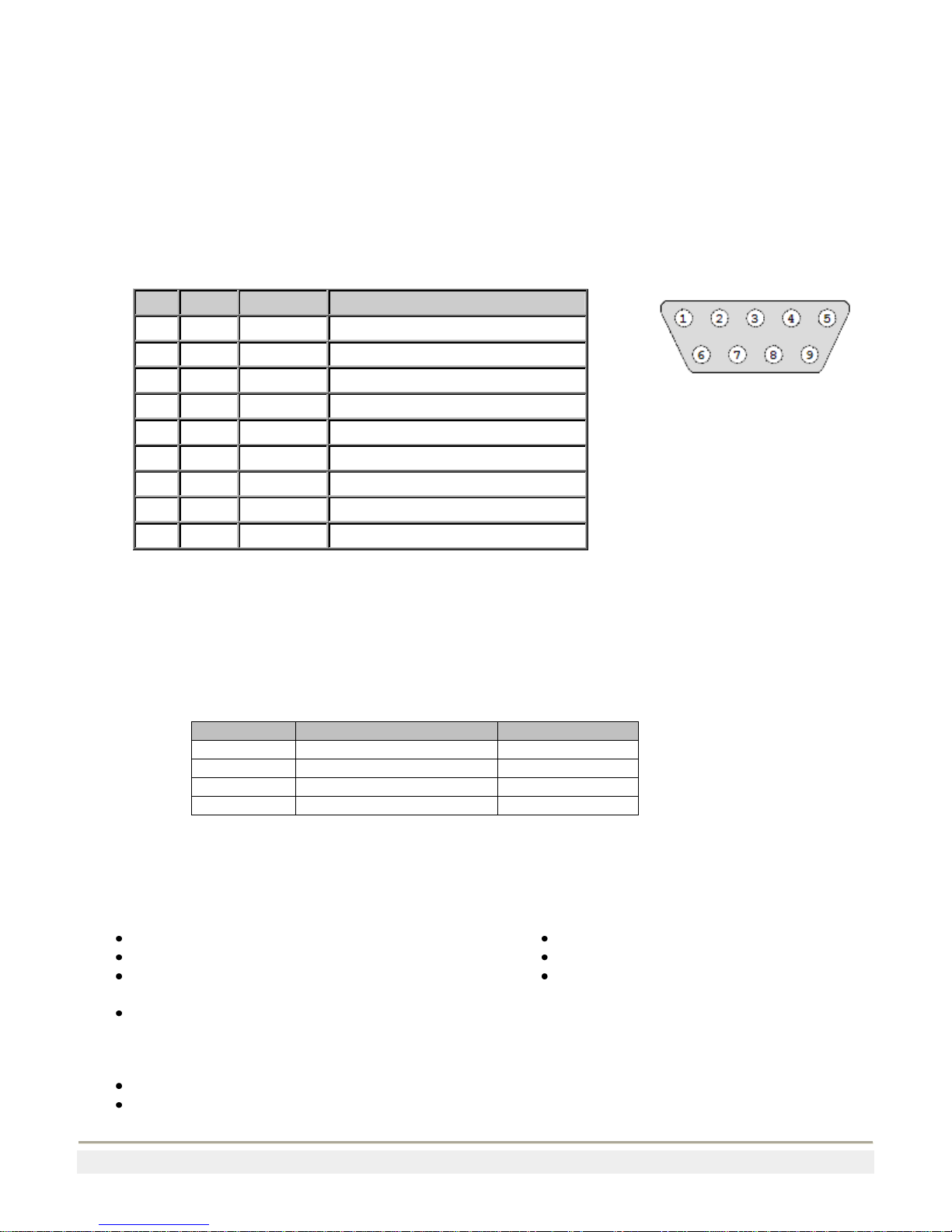

Figure 2

Ethernet (104e only)

Connects the Phoenix 104e to 10BaseT/100BaseT full duplex standard Ethernet interfaces.

Power

Connects the Phoenix to a vehicle’s power (9-60VDC) or an AC/DC power supply.

Pin #

Function

Cable Color

Chassis Ground

Brown

N/A

+ Power, 10-56V

Blue

Ground

Black

Figure 3

Packing List

Phoenix Unit Keyboad Option

1Phoenix

1Power Cable

1Package of four #8-32 x ½” screws and four #8

lock washers.

1Package containing:

ofuse holder/2A fuse

o5A fuse

o3 each ¼”, #10, #8 terminals

1RAM mount

1Installation Instructions

2External antennas (Optional)

1Keyboard

1Package containing:

o2 flanged mounting plates

o2 mount side arms

oPackage containing 12 #8-32 x ½” screws

and 12 #8 lockwashers

Mounting the Phoenix

Caution: The touchpanel consists of a plastic film covering glass. Use care when handling the Phoenix during

mounting to avoid damage to the touch panel. Physical damage to the panel is NOT COVERED BY THE

WARRANTY.

Add Mounting Base to Unit

Lay the Phoenix on a flat surface with padding to protect the touchpanel (the bag the unit is shipped in works well for this).

If you ordered a Keyboard mount, lay one of the flanged plates from the keyboard mount on the back of the unit with the

flanges bent towards the unit. The ball on the base is offset from the center of the base so consider which way the offset

should be arranged for the mounting distance needed. Use the four 1/4-20 x 1/2” screws included with the unit and using a

with a 5/32 hex driver (not included) tighten sedcurly.

Figure 4 without keyboard mount Figure 5 with keyboard mount

Assemble the mounting arm

The mounting arm comes unassembled. Put the parts together as shown in Figure xx and tighten the nut 2-3 turns. Then

place the arm on the ball of the base on the back of the unit with the spring side of the arm furtherest away from the unit

Figure 6 Figure 7

Page 8

Mount the base to the vehicle

Select the location on the vehicle for the mount base. For the rail base, insert one screw through the two base parts and turn

on the lock nut finger tight. Hold the base up to the post or rail selected, and insert the second bolt through the base. Swing

the back plate around and over the bolt. Turn the second lock nut on finger tight. Tighten the bolts with a 3/16” hex driver

(not included).

Mount the unit to the vehicle

Hold the Phoenix by the junction of the arm and the base on the back of the unit. Lift the assembly to the base on the

vehicle. Open the arm until the end slides over the ball on that base. Tighten the wing nut firmly.

Once the Phoenix is attached, it can adjusted by holding the bottom of the Phoenix, loosening the wing nut on the arm by 1

turn moving the Phoenix to the desired position and re-tightening the wing nut on the arm.

ALWAYS hold the Phoenix before loosening the arm. Failure to hold the Phoenix can cause it to swing down

suddenly and may cause injury or damage the unit !

Mounting the Keyboard

Attach the long end of the two flat side supports to the flanged base on the Phoenix using four of the 8-32 screws and lock

washers provided in the keyboard mount kit. A 3/32” hex driver is required (not included). Attach the second flanged plate

to the short end of the sides with the flanges down using the four 8-32 screws and lock washers. Attach the keyboard to the

mount using the four remaining 8-32 screws and lock washers. See Figure 8.

Plug the USB cable into the top USB port on the Phoenix. Slide the USB cable into the slot in the USB cable retainer.

Position the cable retainer on the underside of the Phoenix and loosely insert the two ¼-32” screws provided. Push the

retainer firmly against the USB connector and tighten the two screws. See Figure 9.

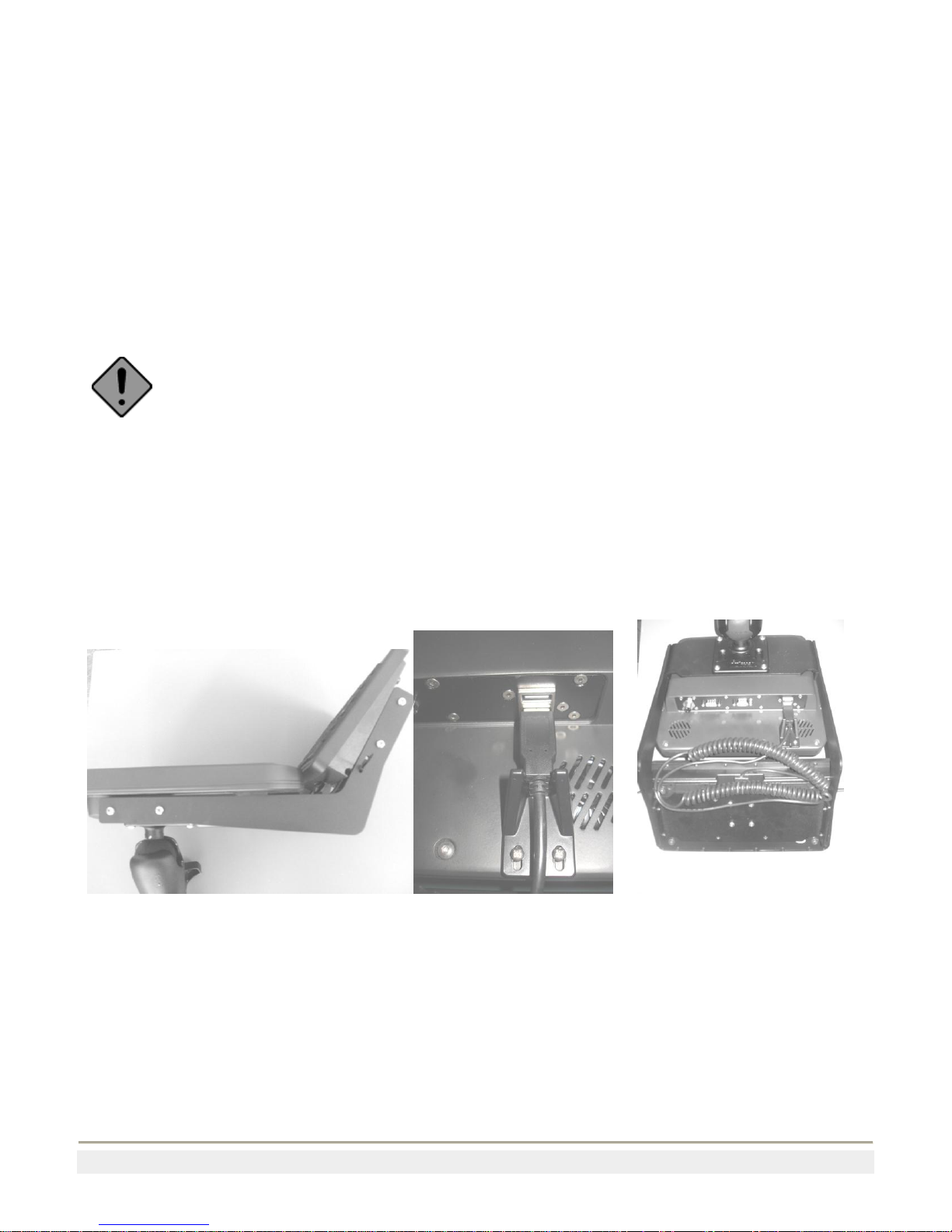

Figure 8 Figure 9 Figure 10

Secure the keyboard cable under the keyboard mount using the 2 wire ties provided. See Figure 10.

Page 9

Attaching the Phoenix to Power

For the Phoenix to operate, you must provide power from the vehicle DC power supply (12V –48V) or from an AC/DC

power supply.

Vehicle Connection

For vehicles with 12 to 48VDC power available, the Phoenix should be connected directly to the battery or to a main power

connection. Consult your vehicle manufacturer or local representative for the best location to connect to power.

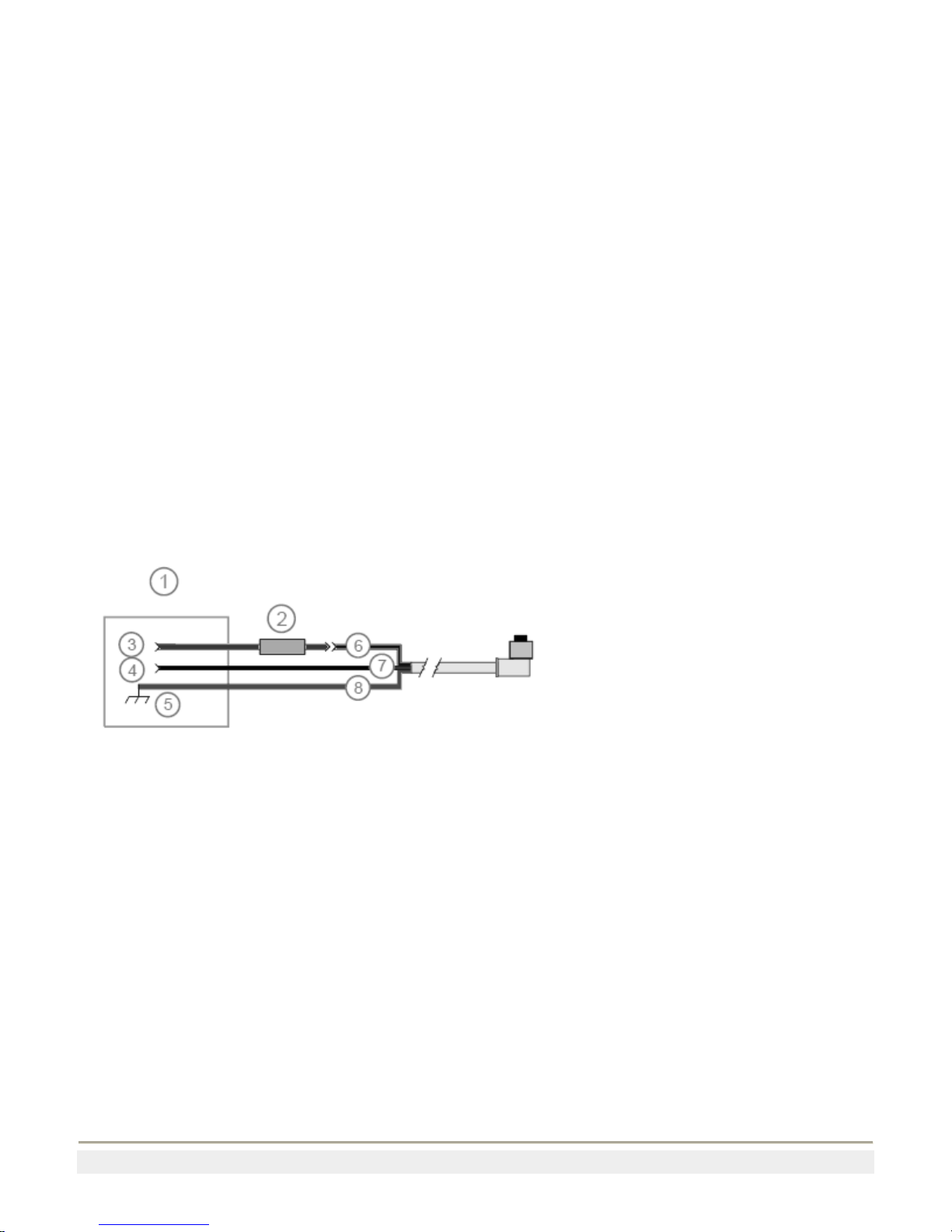

1. First run the cable from the Phoenix to the power connection location and secure the cable at several points with

wire ties. Leave a little slack at the Phoenix to allow for mount adjustment and for the cable to be disconnected

from the Phoenix.

2. Disconnect the power cable from the Phoenix.

3. Either cut off any excess cable or coil the excess in a convenient location and secure with wire ties.

4. Strip enough of the outside jacket to allow the positive and negative connections to reach.

5. Strip ¼” from the Black wire and crimp to a correct size wire lug to allow connection to the power source ground

terminal.

6. Strip ¼” from the Brown wire and crimp to a correct size wire lug to allow connection to the vehicle chassis.

7. Strip ¼” from the Blue wire and from both ends of the fuse holder.

8. Crimp the cable splice onto the Blue wire and one end of the fuse holder.

9. Select the correct size wire lug to allow connection to the positive terminal of the power source and crimp onto the

other end of the fuse holder.

10. Connect all wires to the proper source.

11. Connect the cable to the Phoenix. The unit will boot up at this point.

1. Vehicle Power Source

2. Fuse Holder

3. Positive Supply

4. Negative Supply

5. Chassis Ground

6. Blue wire

7. Black Wire

The fuse holder comes with a 2A fuse (Littlefuse 0312002.HXP) installed for use with 24/36/48 V vehicles. For installation

on a 12V vehicle, replace the 2A fuse with the 5A fuse (Littlefuse 0312005.HXP) provided.

Fixed Mount Power Supply

For desk or wall mount applications, order the AC power supply (P/N 91_18V_65W). Simply connect the power supply to

the unit.

Backup Power System

The Phoenix contains a backup battery that has enough capacity to support the suspend state for at least 30 minutes. When

power is restored to the Phoenix, it resumes the state it was in when the power was removed.

An internal charger automatically charges the backup battery within 4 hours when external power is supplied. When

installing the Phoenix leave it connected to power for 4 hours to recharge the backup battery.

Page 10

Status LED

The Phoenix uses three brightness levels on the green status LED to indicate the status of power and operation.

LED State

Status

OFF

Not connected to a power source or the power source is off.

Dim

Connected to a live power source, unit is in the suspend state.

Blinking

Unit running

Bright

Unit in configuration

Installing an External Antenna

If you purchased external dipole antennas, simply screw them onto the two connectors on the top of the unit.

If you purchased a roof mount external antenna, follow the instructions included with the antenna.

Connecting a Scanner

Connecting a tethered Scanner

You can attach a tethered scanner to one of the serial or USB ports on the Phoenix. Be sure to order your scanner with the

appropriate cable.

USB Scanner

1. Loosen the screws on the USB retainer and move the retainer away from the USB connector.

2. Plug the cable into one of the USB ports. Depending on the scanner you are attaching, you may hear a series of

beeps and the Good Read light may flash.

3. Slide the USB retainer toward the connector until it is firmly against the USB connector. Tighten the two screws.

Serial Scanner

1. The serial ports can supply either 5V or 12V power on pin 9 of the connector. The factory default is 5V on COM1

and 12V on COM2. Verify which voltage the scanner requires.

2. If necessary, attach the cable to the tethered scanner.

3. Attach the scanner RS-232 cable to one of the COM connectors on the Phoenix. Depending on the scanner you are

attaching, you may hear a series of beeps and the Good Read light may flash. Tighten the screws to make sure the

cable stays attached during use.

4. See the Users guide to configure the serial ports to work with the scanner.

You can also use Bluetooth scanners with the Phoenix. For more information, see the Phoenix Users Manual.

Altri manuali per Phoenix 104

Indice

Altri manuali Percon Accessori per automobili

Percon

Percon Falcon 655 Manuale utente

Manuali Accessori per automobili popolari di altre marche

James Baroud

James Baroud Odyssey Manuale utente

Motorola

Motorola i50sx Manuale utente

Yakima

Yakima 9MM STANDARD BIKE MOUNT Manuale utente

Feniex

Feniex T3 Manuale utente

Renault

Renault 77 11 423 180 Manuale utente

Kia

Kia E8300-4D000 Manuale utente

Brink

Brink 756843 Manuale utente

Whispbar

Whispbar K085W Manuale utente

v.link

v.link CI-VL2-PC-HSD Manuale utente

Viking

Viking Stack-Rack Guida rapida alla configurazione

Aries

Aries 203015 Manuale utente

Choetech

Choetech AT0005 Manuale utente

ZZ2

ZZ2 ZZAIR-PRO Manuale utente

Holman

Holman 4A80L Manuale utente

Thule

Thule 2075 Manuale utente

Motorola

Motorola T325 Manuale utente

TAUBENREUTHER

TAUBENREUTHER 16-3950 Guida all'installazione

DV8

DV8 FBJL-02 Manuale utente
