Percussion Play Surface Fixed Manuale utente

Surface Fixed

Djembes

Page 1 of 2

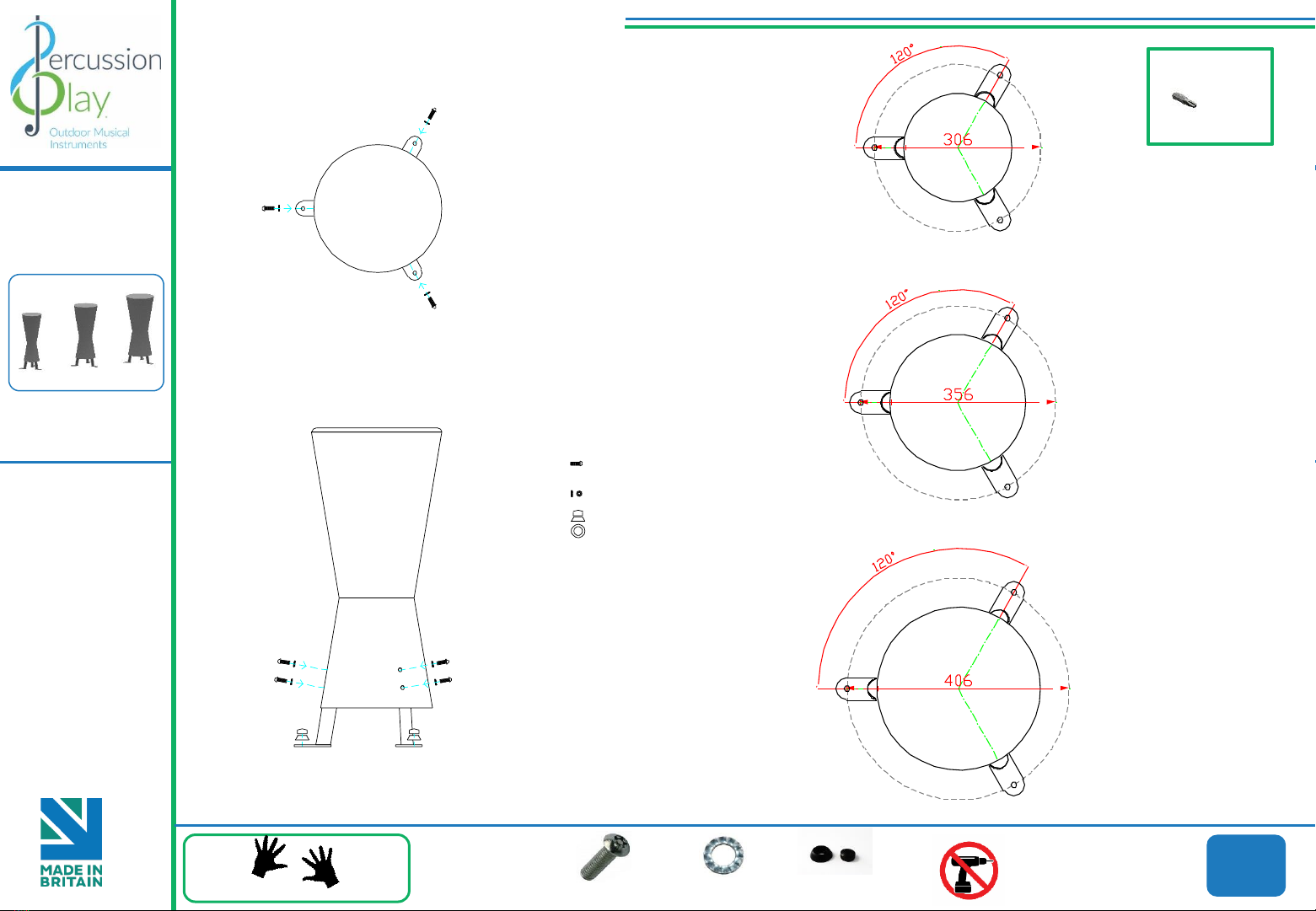

1. Assemble Ground Fixing

Posts to base of sambas using

M8x25mm security screws

and lock washers. (1.1)( See

Assembly Guide)

Ground Surface

Installation Instructions

Djembes will arrive

on site in pre set

heights.

(1.1)

48 Kg

1.5m

Install Instrument

with 1.5m free space

(from widest point)

around it.

Played with hands

Surface Fix

Components:

M8x25 Security Screw

x18

M8 Lock Washer

x18

Weight of heaviest part 23kg (Large Djembe)

BS EN 1176

500mm 500mm

Spares available from

percussionplay.com or from your

local distributor

860mm-710mm

2 Part

Cover Cap

2.Arrange Djembes in

desired location and mark

holes to fix to desired surface.

3. Fix to Surface using

recommended ground

anchors (Ground Anchors are

not supplied)

4. Make sure all fixings are

covered and secure using

cover caps provided

Instrument

Components:

Djembes

are pre-

assembled

CAUTION: Drum

surface can get hot

in direct sunlight, if

possible install in

shaded areas.

Surface Fixed

Surface Fix

Components:

Assembly Guide PPDJEM

44 Kg

Played with hands

Djembes

Page 2 of 2

TX 40 Driver Bit

Tools:

BS EN 1176

Spares available from

percussionplay.com or from your

local distributor

M8x25 Security Screw

x18

M8 Lock Washer

x18

2 Part

Cover Cap

Instrument

Components:

Djembes

are pre-

assembled

M8x25 Pin torx X18

M8 Lock washer X18

COMPONENTS LIST:

2 Part Cover Cap X9
