Perel LEDS12CWW Manuale utente

LEDS12CWW

FLEXIBLE LED STRIP, CONTROLLER AND POWER SUPPLY

LEDSTRIP, CONTROLLER EN VOEDING

FLEXIBLE LED, CONTRÔLEUR ET ALIM

CINTA DE LEDs FLEXIBLE, CONTROLADOR Y ADAPTADOR

FLEXIBLER LED-LEISTE, CONTROLLER UND NETZTEIL

FAIXA LED FLEXÍVEL, CONTROLADOR E ALIMENTAÇÃO

USER MANUAL 4

GEBRUIKERSHANDLEIDING 9

MODE D'EMPLOI 14

MANUAL DEL USUARIO 19

BEDIENUNGSANLEITUNG 24

MANUAL DO UTILIZADOR 29

LEDS12CWW

V. 03 –22/11/2017 2 ©Velleman nv

LEDS12CWW

V. 03 –22/11/2017 3 ©Velleman nv

LEDS12CWW

V. 03 –22/11/2017 4 ©Velleman nv

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that

disposal of the device after its lifecycle could harm the

environment. Do not dispose of the unit (or batteries) as

unsorted municipal waste; it should be taken to a

specialized company for recycling. This device should be

returned to your distributor or to a local recycling service. Respect

the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly

before bringing this device into service. If the device was damaged in

transit, do not install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children and unauthorized

users.

There are no user-serviceable parts inside the device. Refer

to an authorized dealer for service and/or spare parts.

Warning: Do not puncture the batteries or throw them in

fire as they may explode. Do not attempt to recharge non-

rechargeable (alkaline) batteries. Dispose of batteries in

accordance with local regulations. Keep batteries away from

children.

Indoor use only. Keep this device away from rain,

moisture, splashing and dripping liquids.

LEDS12CWW

V. 03 –22/11/2017 5 ©Velleman nv

Keep at a distance of at least 0,5 m from any illuminated

object.

This is a Safety Class 3 device.

3. General Guidelines

Refer to the Velleman®Service and Quality Warranty on the last

pages of this manual.

Keep away from dust and extreme temperatures.

Protect form shocks and abuse. Avoid brute force when operating.

Familiarise yourself with the functions of the device before actually

using it.

All modifications of the device are forbidden for safety reasons.

Damage caused by user modifications to the device is not covered

by the warranty.

Only use the device for its intended purpose. Using the device in

an unauthorised way will void the warranty.

Damage caused by disregard of certain guidelines in this manual

is not covered by the warranty and the dealer will not accept

responsibility for any ensuing defects or problems.

Keep this manual for future reference.

4. Features

flexible PCB (white)

contains 300 high brightness LEDs (type 3528)

controller with different programs:

ocold white and warm white mixing

oanimated programme

controlled through infrared remote (incl.)

can be cut every 6 LEDs (10 cm)

power supply included

for illuminated advertising and marking

self-adhesive

LEDS12CWW

V. 03 –22/11/2017 6 ©Velleman nv

5. Remote Control Overview

Refer to illustration [B2] on page 3 of this manual.

on/off

reset cold and warm white to 100 % intensity

colour temperature adjustment

quick colour temperature adjustment

dimming

cold and warm white flash function

speed setting

6. Installation

Guidelines

Avoid installing the LED strips near heat sources such as ovens,

toasters, etc.

Never use the LED strip when it is coiled up as this can cause

overheating.

Before mounting, ensure the desired surface is flat and clean of

any grease, dirt or debris.

Avoid tight bends in the LED strip.

Observe the correct polarity when re-joining cable sections. The

polarity is marked at regular intervals along the LED strip.

Cut the strip using sharp scissors or a craft knife with a fresh

blade. Cut directly on the marked line. Never cut the LED strip

when it is pugged in.

Installation

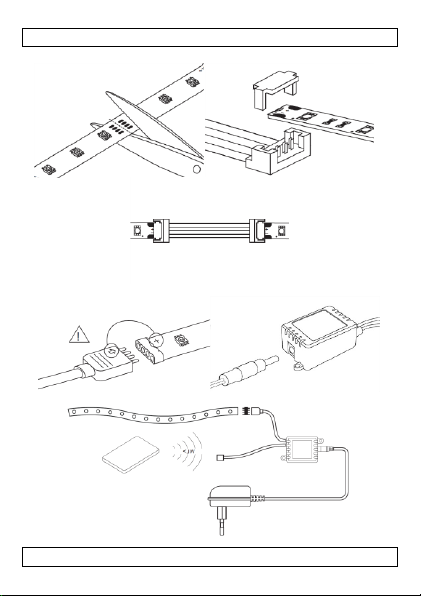

Refer to the illustrations on page 2 of this manual.

1. Mount the LED strip in the desired location. The LED strip can be

cut every 10 cm (see [A1]). Protect the cut ends to avoid short-

circuits.

2. Connect the LED strips to the controller (see [A2]). Make sure

to connect matching wire colours and do not short-circuit any

wires. Connecting tools are not included.

LEDS12CWW

V. 03 –22/11/2017 7 ©Velleman nv

3. Connect the included power adapter to the controller (see

[A3]).

4. Plug the adapter into the mains. Refer to illustration [A4] for a

general connection scheme.

7. Remote Control

Battery

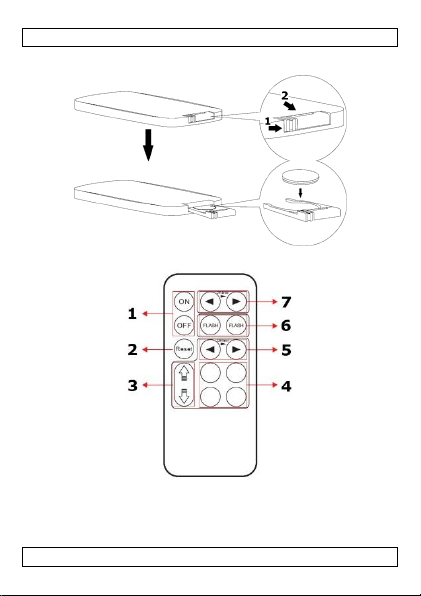

Refer to illustration [B1] on page 3 of this manual.

The remote control uses 1 battery type 3 V lithium CR2025

(included). Remove the tag from the battery compartment before

use.

1. To (re)place a battery, press on the side of the battery cover

and pull to slide open.

2. Insert the battery with the correct polarity and close the battery

compartment by pushing back into the housing of the remote

control until it snaps into place.

Operation

1. Aim the remote control towards the IR LED of the controller to

control the output of the LED strip.

2. Switch on the LED strip with the ON button on the remote

control. To switch it off again, press the OFF button.

3. Refer to chapter 5. Overview for more information about

operating the remote control.

8. Technical Specifications

IP rating

IP61

coating

silicone

colour

warm white/cold white

viewing angle

120°

LED spacing

16,5 mm

LEDS12CWW

V. 03 –22/11/2017 8 ©Velleman nv

power supply

12 VDC 24 W (adapter incl.)

dimensions

5 m x 8 mm

weight

420 g

Use this device with original accessories only. Velleman nv

cannot be held responsible in the event of damage or injury

resulting from (incorrect) use of this device. For more info

concerning this product and the latest version of this manual,

please visit our website www.perel.eu. The information in this

manual is subject to change without prior notice.

The copyright to this manual is owned by Velleman nv. All

worldwide rights reserved. No part of this manual may be copied,

reproduced, translated or reduced to any electronic medium or

otherwise without the prior written consent of the copyright holder.

LEDS12CWW

V. 03 –22/11/2017 9 ©Velleman nv

GEBRUIKERSHANDLEIDING

1. Inleiding

Aan alle ingezetenen van de Europese Unie

Belangrijke milieu-informatie betreffende dit product

Dit symbool op het toestel of de verpakking geeft aan dat,

als het na zijn levenscyclus wordt weggeworpen, dit toestel

schade kan toebrengen aan het milieu. Gooi dit toestel (en

eventuele batterijen) niet bij het gewone huishoudelijke

afval; het moet bij een gespecialiseerd bedrijf

terechtkomen voor recyclage. U moet dit toestel naar uw verdeler of

naar een lokaal recyclagepunt brengen. Respecteer de plaatselijke

milieuwetgeving.

Hebt u vragen, contacteer dan de plaatselijke autoriteiten

betreffende de verwijdering.

Dank u voor uw aankoop! Lees deze handleiding grondig voor u het

toestel in gebruik neemt. Werd het toestel beschadigd tijdens het

transport, installeer het dan niet en raadpleeg uw dealer.

2. Veiligheidsinstructies

Houd dit toestel buiten het bereik van kinderen en

onbevoegden.

Er zijn geen onderdelen in het toestel die door de gebruiker

gerepareerd kunnen worden. Voor onderhoud of

reserveonderdelen, contacteer uw dealer.

Waarschuwing : U mag batterijen nooit doorboren of in het

vuur gooien (explosiegevaar). Herlaad geen

alkalinebatterijen. Gooi batterijen weg volgens de

plaatselijke milieuwetgeving. Houd batterijen buiten het

bereik van kinderen.

LEDS12CWW

Gebruik het toestel enkel binnenshuis. Bescherm

dit toestel tegen regen, vochtigheid en

opspattende vloeistoffen.

Houd op een afstand van minstens 0,5 m van het belichte

object.

Dit toestel valt onder beschermingsklasse 3.

3. Algemene richtlijnen

Raadpleeg de Velleman® service- en kwaliteitsgarantie

achteraan deze handleiding.

Bescherm tegen stof en extreme temperaturen.

Bescherm tegen schokken en voorkom misbruik. Vermijd brute

kracht tijdens de bediening.

Leer eerst de functies van het toestel kennen voor u het gaat

gebruiken.

Om veiligheidsredenen mag u geen wijzigingen aanbrengen aan

het toestel. Schade door wijzigingen die de gebruiker heeft

aangebracht aan het toestel, valt niet onder de garantie.

Gebruik het toestel enkel waarvoor het gemaakt is. De garantie

vervalt automatisch bij ongeoorloofd gebruik.

De garantie geldt niet voor schade door het negeren van bepaalde

richtlijnen in deze handleiding en uw dealer zal de

verantwoordelijkheid afwijzen voor defecten of problemen die hier

rechtstreeks verband mee houden.

Bewaar deze handleiding voor verdere raadpleging.

4. Eigenschappen

flexibele printplaat (wit)

300 zeer heldere leds (type 3528)
