Perfect Prime IR0280 Manuale utente
1
Table of Contents:
Overview………………………………………………………………….…. 2-3
Safety & Considerations…………………………………………….………….. 3
Product Features………………………………………….…………………….. 4
Product Specifications
1. Product Specifications………………………………….…….…………. 5
2. Thermal Image Specifications……………………………….……….…. 5
3. Software Features…………………………………………….…………. 5
Operation Flow
1. Power On………………………………………………..………………. 6
2. Power Off……………………………………………….………………. 6
3. Display Off (Sleep Mode)……………………………….…………….... 6
4. Menu Screen………………………………………………………...…... 7
5. Measurement Screen……………………………………………….…. 8-9
6. Display Brightness……………………………………………………... 10
7. Date and Time………………………………………………………….. 10
8. Auto-off Timer…………………………………………………..……... 10
9. Hi-Low Temperature Alarm…………………………………...…… 10-11
10. Auto-monitor Alarm………………..……………………………….... 11
11. Temperature Unit……………………...……………………………… 11
12. Image Format……………………………………………………….… 12
13. Factory Reset……………………………………………………..…... 12
14. Min/Max Crosshair.………………………...……………………..….. 12
15. Color Palette…………………………………...……………………... 13
16. Color Palette Guide ………………………………………………….. 13
17. View Images/Videos………………………………….…………… 13-14
18. Delete Images/Videos…………………………………….…………... 15
19. Emmisivity………………………………………………..…………... 16
2
Overview
IR0280 is a thermal imaging camera that integrates surface temperature measurement and
real-time thermal image. With this product, the potential problems can be identified on the
color display screen which is helpful for users to locate problems, take readings and solve
the issue.
The product has a visual camera integrated to increase the differentiation degree. The
thermal and full vision images and videos can be stored in the internal memory card or an
additional detachable SD card. The image or video can be stored in PC to generate a report
and print.
The following are the major features of IR0280:
1. High accuracy: The adjustable radiation coefficient increases the measurement
accuracy of reflective surfaces.
2. Time-saving: The traditional infrared thermometer needs to measure every component
one by one, this is not necessary for the IR0280.
3. Easy to use: Turn on the device and start measuring temperature right away.
4. Image & Video: The IR0280 has the capabilities to take both images and videos,
making it easier for users to analyze the situation.
5. Adjustable: 9 types of color palettes and wide range of emissivity values provided.
The product can be utilized in many fields, for instance:
1. Detect spills and leaks of chemicals which have different thermal signatures to
the surroundings.
2. Fire fighting: Vision can be obscured by smoke and debris in the event of a fire,
thermal imaging can see through this and locate victims or re spots.
3. Locate the source of abnormal leaking of heat of a house or a machine, find out the
problem area and fix it.
4. Enable drug-enforcement units to locate cannabis plants by detecting abnormal
amount of heat spot in buildings.
3
5. Moisture detection: Areas with lower temperatures to its uniform surroundings can
be a source of moisture staining or damage.
6. Measure body temperatures: Point the thermal imaging camera at a person to find
their surface body temperature.
7. Night vision: Measuring the electromagnetic energies given off when objects emit
heat, the IR0280 translates those energies into visible light for users to see them in the
dark.
8. Building inspection: Check that heat is retained uniformly in a building.
IR0280 is the ideal selection for electrician, maintenance personnel, technicians and even
the emergency personnel.
Safety & Considerations
Please read the instructions carefully so as to ensure accurate measurement
results and safety:
1. Do not use device in explosive, flammable or corrosive environment.
2. Since the product is a precision electronic and sensitive optical device. Do not drop it or
allow impacts to occur to prevent damage.
3. Do not dismantle the product, doing so can damage it and revoke the warranty.
4. It is suggested to used the attached USB cable.
5. Please use a damp cloth or gentle soap to clean the enclosure of the device. Do not use
abradant, isopropanol or solvent to clean. Special optical lens cleaner should be used to
clean the screen.
4
Product Features
5
Product Specifications
Model no.: IR0280
Product Specifications
1
Power Supply
3.7V Li-ion rechargeable battery, 2500mAh, Size 18650
2
Panel
2.8” color LCD display
3
Touch Panel
Resistive type Touch Panel
4
Keys
7 keys (Power, Up/Down/Left/Right, Menu, Measure)
5
Sensors
32 x 32 Thermal Array, Humidity Sensor, CMOS sensor
6
Internal memory
1GB memory
7
External memory (micro SD slot)
16GB SD card included
8
USB connection
Photo upload to PC, and USB charging battery
9
Battery life
6hrs
10
Auto Power-off time
5min
11
Operating temperature
-10°C … +50°C
12
Storage temperature
-20°C … +60°C
13
Dimensions
215 x 55 x 62 mm
14
Weight
230g
15
Warranty
2 years
Thermal Image Specification
1
Resolution of infrared image
32*32(1024) pixel
2
Resolution of visible image
0.2 megapixels
3
Field angle/shortest focal distance
33°x33°/0.1m
4
Thermal sensitivity
0.15°C
5
Range of temperature measurement
-30°C … +1000°C (-22°F~1832°F)
6
Measure accuracy
-30-300°C ±1% or ±1°C
300-1000°C ±2% or ±2°C
7
Emissivity
0.01 – 1.0
8
Image capturing frequency
9Hz
11
Range of wave length
8-11.5µm
12
Focal distance
Fixed
14
Vision option
5 variants
16
Image format
BMP, JPG
17
Video format
MP4
Software Features
1
Blending mode
Hue blending
2
Temperature Alert
High or Low Temperature Alert
3
Image & Video recording
BMP/JPG (Image), MP4 (Video)
4
Brightness
Adjustable Brightness
5
Auto off function
Adjustable Auto-off function
6
Operation Flow
1) Power ON: Press & Hold Power button for 2 sec
Opening Screen (wait for initialization) Measurement Screen
2) POWER OFF: Press & Hold Power button for 2sec.
A pop-up menu appears for Power Off or Reboot selection
Use Up/down button to select, and press Measure button to confirm.
3) Display OFF (Sleep Mode): Press Power button once to turn off display. Press Power
button again to turn on it.
Remark:
a. The Measurement screen is the default screen when turn on the display.
7
4) Menu Screen: Press the Menu button to enter Menu mode
The default selection is first icon (i.e. Display brightness)
-Use Up/Down/Left/Right button to select the icon. Then, press Measure button to
open the selected item.
-Press Menu button to back to Measurement Screen
The summary of Menu icons:
Display Brightness
-To set the brightness of display
Date and Time
-To set time and date
Auto-Off Timer
-To set the auto-off timer for the Display
Hi-Low Temperature Alarm
-To set the high or low temperature alarm
Auto-monitor Alarm
-To capture the thermal image when over the
Temperature Alarm over a period of time
Temperature Unit
-To set temperature unit degree C / degree F
Emissivity
-To adjust the emissivity from 0.01 to 1.0
View Image
-To view the captured thermal image/video
Image format
-To set the image output format (Bitmap or JPEG)
Factory Reset
-To reset factory setting
Color Palette
-To select the thermal image color palette
Color palette guide
-To turn on/off the color palette reference guide
Trash
-To delete image/video permanently
Max/Min
-To show/ not show the maximum and minimum points
8
5) Measurement Screen
-Press Menu button to enter Menu mode.
-Press Up/Down to select image mode: Thermal Image, Visual Image, Overlay Image
Thermal Image Visual Image Overlay Image
-Press Left button to select filter mode: Temporal filter, Wide Gaussian filter, No filter
Temporal filter Wide Gaussian No filter
-Press Right button to select zoom in or zoom out.
Image View Area
Object Temperature mark
Palette guide bar included
min/max object temperature
Time & Emissivity
9

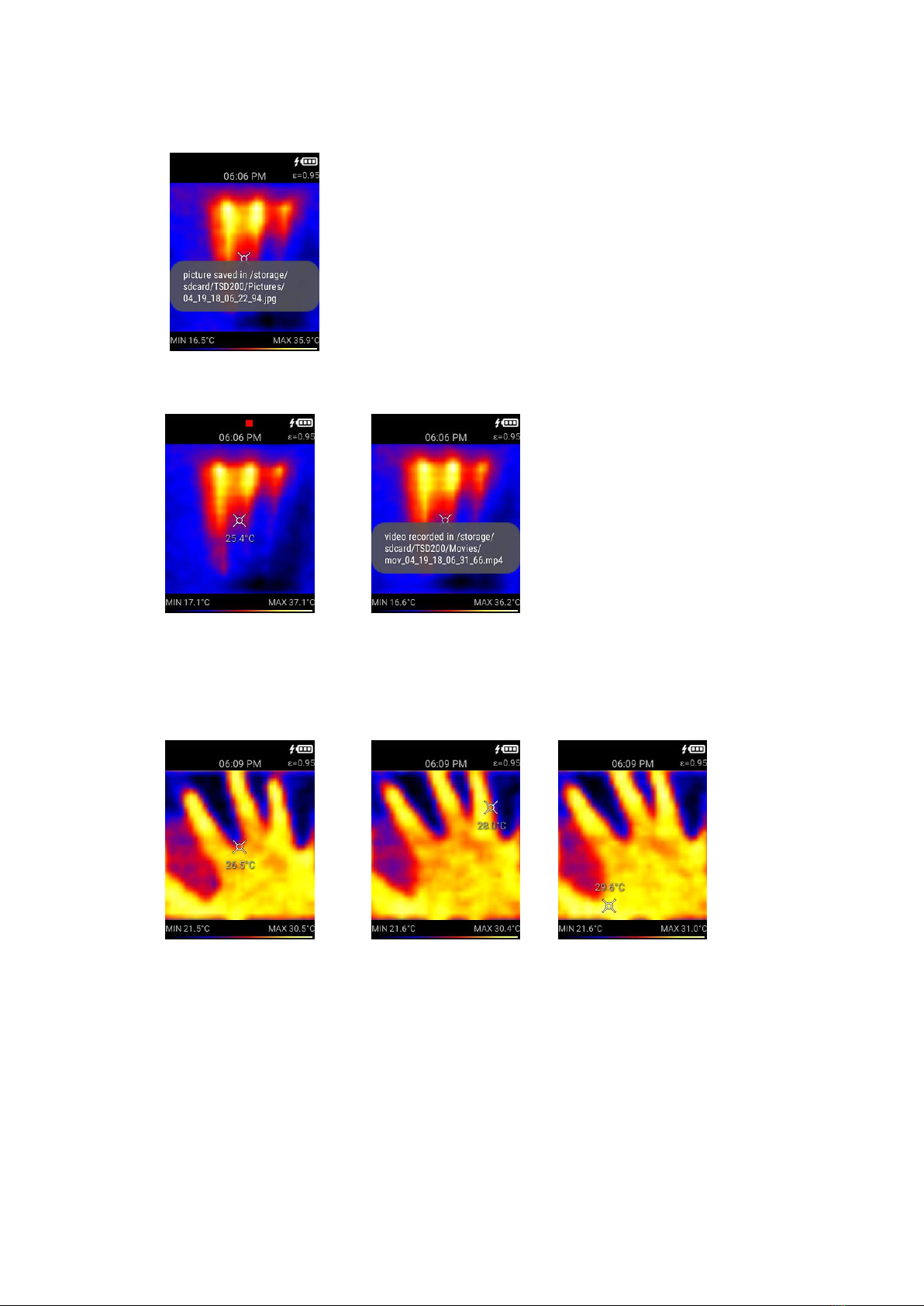

-Press Measure button to capture image; Press & Hold Measure button to take video.
If external SD card is not present, the image will be saved to the internal memory.
If external SD card is present, the image will be saved to the SD card.
The recording icon appear to indicate the video recording. The video is saved in mp4
format. When the Measure button release, the recording will be stopped and will be
saved in the memory.
-Touchable object temperature mark
Touch the screen to move the object temperature mark, and show the temperature of
that location.
