Perle IDS-409G Manuale

IDS-409G Hardware Installation Guide

Managed Industrial Ethernet Switches

Updated: October 2019

Version: A.2.1.10.2019

Document Part#:5500379-10

www.perle.com

IDS-409-SFP Hardware Installation Guide

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS GUIDE ARE SUBJECT TO CHANGE

WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS GUIDE ARE BELIEVED TO BE

ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE

FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC

rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in

accordance with this hardware guide may cause harmful interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own

expense.

Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product.

Perle reserves the right to make changes without further notice, to any products to improve reliability, function, or design.

Perle, the Perle logo, and IDS Switch are trademarks of Perle Systems Limited.

Table of Contents

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Switch Models Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Port Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Terminal Block Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

DIP Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Cautions and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Terminal Block-Power Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Grounding the IDS switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Connecting Power to the IDS Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Wiring the Relay Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Wiring Digital Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Connecting the Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Connecting Data Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Resetting the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Configuring the IDS Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Appendix A - Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Appendix B - Sample Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Appendix C - Mechanical Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Appendix D - DIN Rail and Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Appendix E - IDS Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Appendix F - Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

IDS-409G Hardware Installation Guide

Preface

Audience

This guide is for the network or computer technician responsible for installing Perle IDS

series switches. Familiarity with the concepts and terminology of Ethernet and local area

networks is required.

Purpose

This document describes the hardware and physical characteristics of the Perle IDS

switch. It covers hardware features as well as installation and operation of the switch. This

document does not cover how to configure your Perle IDS switch. Information to config-

ure your Perle IDS switch can be found in the User’s Guide

Package Contents

• IDS switch with attached DIN rail mounting bracket

• Quick Start Guide

Document Conventions

This document contains the following conventions:

Most text is presented in the typeface used in this paragraph. Other typefaces are used to

help you identify certain types of information. The other typefaces are:

Note: Means reader take note: notes contain helpful suggestions.

Caution: Means reader be careful. In this situation, you might perform an action that

could result in equipment damage or loss of data.

Warning: IMPORTANT SAFETY INSTRUCTIONS

Means danger. You are in a situation that could cause bodily injury. Before you work on

any equipment, be aware of the hazards involved with electrical circuitry and be familiar

with standard practices for preventing accidents. Only qualified personnel should connect

power to this unit.

Overview 3

IDS-409G Hardware Installation Guide

Overview

This chapter discusses the following topics:

• LED Indicators

• Switch Model View

• Ports

• Port Status Indicators

The table below gives a brief overview of the models covered in this guide. For more

details and for the most up-to-date list of models, please refer to the product pages at

www.perle.com.

XXXXXXX - represents fiber ports of different wavelengths, distances and connectors

Standard Models 10/100/1000Base-T

Ports

Fiber

Ports Temp

IDS-409G-XXXXXXX 8 1 Standard

IDS-409G2-XXXXXXX 7 2 Standard

IDS-409G3-XXXXXXX 6 3 Standard

IDS-409G-XXXXXXX-XT 8 1 Industrial

IDS-409G2-XXXXXXX-XT 7 2 Industrial

IDS-409G3-XXXXXXX-XT 6 3 Industrial

Overview 4

IDS-409G Hardware Installation Guide

Switch Models Views

IDS-409G-xxxxxxx

IDS-409G-xxxxxxx-XT

1 – Terminal Block for Power 1, 2 8 – Terminal Block – Relay, I/O

2 – Status LEDs 9 – Fiber Status LED

3 – Console Port – serial 10 - 1000Base-X Fiber port

4 – Console Port – USB 11 - Reset / FS (Fast Setup)

5 – DIP switches 12 - Wall Mount Bracket Screw Holes

6 – 10/100/10100 Base-T Ports 13 - DIN Rail Clip

7 – SD Card Slot

Overview 5

IDS-409G Hardware Installation Guide

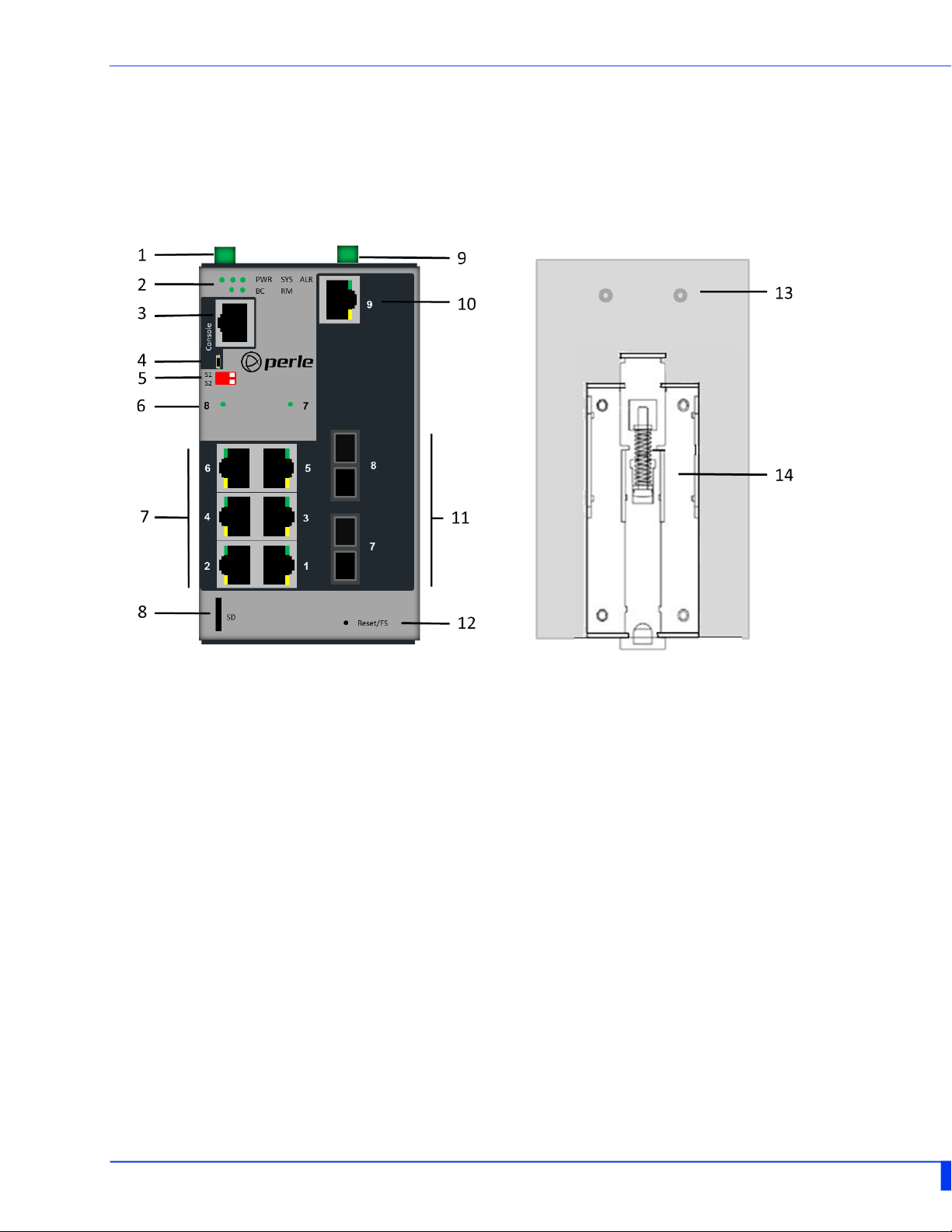

IDS-409G2-xxxxxxx

IDS-409G2-xxxxxxx-XT

1 – Terminal Block for Power 1, 2 8 - SD Card Slot

2 – Status LEDs 9 – Terminal Block – Relay, I/O

3 – Console Port – serial 10 – 10/100/1000 Base-T Port

4 – Console Port – USB 11 - 1000Base-X Fiber Ports

5 – DIP switches 12 - Reset / FS (Fast Setup)

6 – Fiber Port Status LEDs 13 - Wall Mount Bracket Screw Holes

7 – 10/100/1000 Base-T Ports 14 - DIN Rail Clip

Overview 6

IDS-409G Hardware Installation Guide

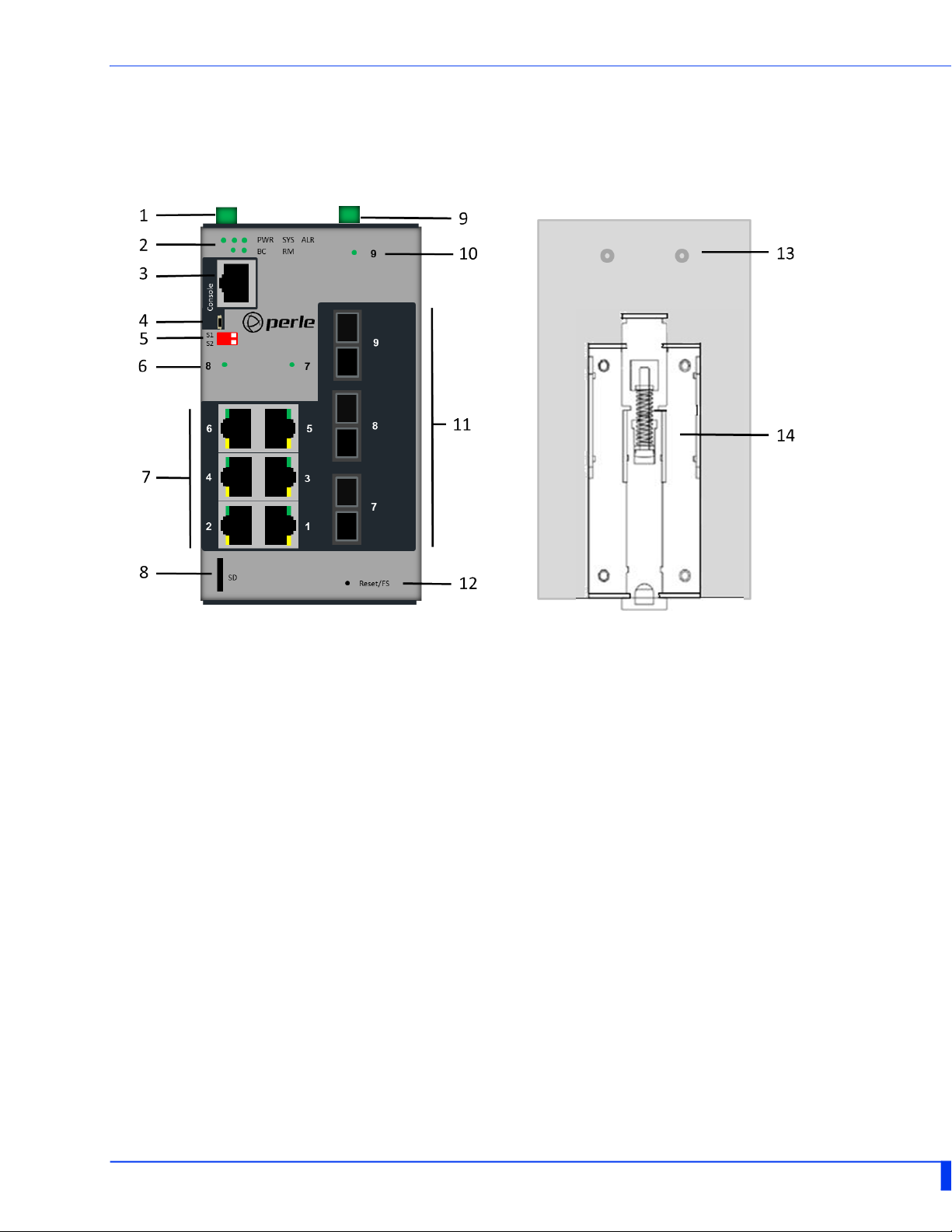

IDS-409G3-xxxxxxx

IDS-409G3-xxxxxxx-XT

1 – Terminal Block for Power 1, 2 8 - SD Card Slot

2 – Status LEDs 9 – Terminal Block – Relay, I/O

3 – Console Port – serial 10 - Fiber Port Status LED

4 – Console Port – USB 11 - 1000Base-X Fiber Port

5 – DIP switches 12 - Reset / FS (Fast Setup)

6 – Fiber Port Status LEDs 13 - Wall Mount Bracket Screw Holes

7 – 10/100/1000 Base-T Ports 14 - DIN Rail Clip

Overview 7

IDS-409G Hardware Installation Guide

LED Indicators

P (Power Inputs)

Sys (System Status)

Alr (Alarm)

BC (Backup Coupling)

State Description

Green P1 and P2 Power inputs within specifications

Yellow P1 or P2 Providing power within specifications

Red Neither P1 or P2 providing power within specifications

State Description

Green - blinking (after power on) System booting

Green - solid System ready/operating normally

Green - blinking slowly Fast Setup Mode activated/port available

Green - blinking fast Fast Setup Mode activated/no port avail-

able

Red Hardware fault or firmware load error

State Description

Off No alarms configured

Green - solid Alarms configured, but no alarms detected

Red - solid Alarm condition detected

Red - blinking Alarm condition detected and Alarm Relay activated

State Description

Off Backup Coupling not enabled

Green - solid Backup Coupling Link enabled

Overview 8

IDS-409G Hardware Installation Guide

RM (Ring Master)

State Description

Off Ring Master not activated

Green - solid Ring Master Active, redundant port blocked. Coupling

Link enabled

Green - flashing Ring Master unable to establish a ring due to missing

link on one of the Ring ports

Yellow - solid Ring Master Active, redundant port unblocked - indi-

cates a break in the Ring
