Perle CM-10G-STS Manuale utente

P/N 5500326-10

Perle 10G

Media Converter

Modules

Installation Guide

CM-10G-STS

C-10G-STS

CM-10G-XTS

C-10G-XTS

CM-10G-XTX

C-10G-XTX

CM-10G-XTSH

C-10G-XTSH

CM-10G-XTXH

C-10G-XTXH

Perle 10G Media Converter module Installation Guide

Overview

This document contains instructions necessary for the installation

and operation of the Perle 10G Media Converter modules that are

used in conjunction with a Perle Media Converter chassis. Each

module contains two pluggable transceiver ports that permit

connections of SFP+ fiber, XFP fiber and copper modules. The C

model modules are the unmanaged modules and the CM models

are the managed modules. For information on the management

options of the CM modules refer to the Perle MCR-MGT User’s

Guide that came with your Perle Management Module. The Cx-

10G modules support low power transceivers, whereas the Cx-

10G-XTSH and Cx-10G-XTXH support high power (power level 4)

transceivers. The high power modules take two slots within a Perle

Media Converter chassis. All combination of modules within the

chassis cannot exceed the chassis power input consumption. The

full power consumption for Perle Media Converter chassis can be

found on the Perle website.

Note: The Cx-10G media converter modules can be populated

with two 1G fiber/copper modules to operate at 1G. However with

1G modules the Cx-10G does not support the Loopback Auto

Detect feature.

Models Port 1 Port 2

CM-10G-STS SFP+ SFP+

C-10G-STS SFP+ SFP+

CM-10G-XTS XFP SFP+

C-10G-XTS XFP SFP+

CM-10G-XTX XFP XFP

C-10G-XTX XFP XFP

High Power

Models Port 1 Port 2

CM-10G-XTSH XFP SFP+

C-10G-XTSH XFP SFP+

CM-10G-XTXH XFP XFP

C-10G-XTXH XFP XFP

Perle 10G Media Converter module Installation Guide

Getting to know your Cx-10G Media

Converter Module

Your Cx-10G Media Converter module package includes:

•A Cx-10G Media Converter module with two pluggable

transceiver ports

•This guide

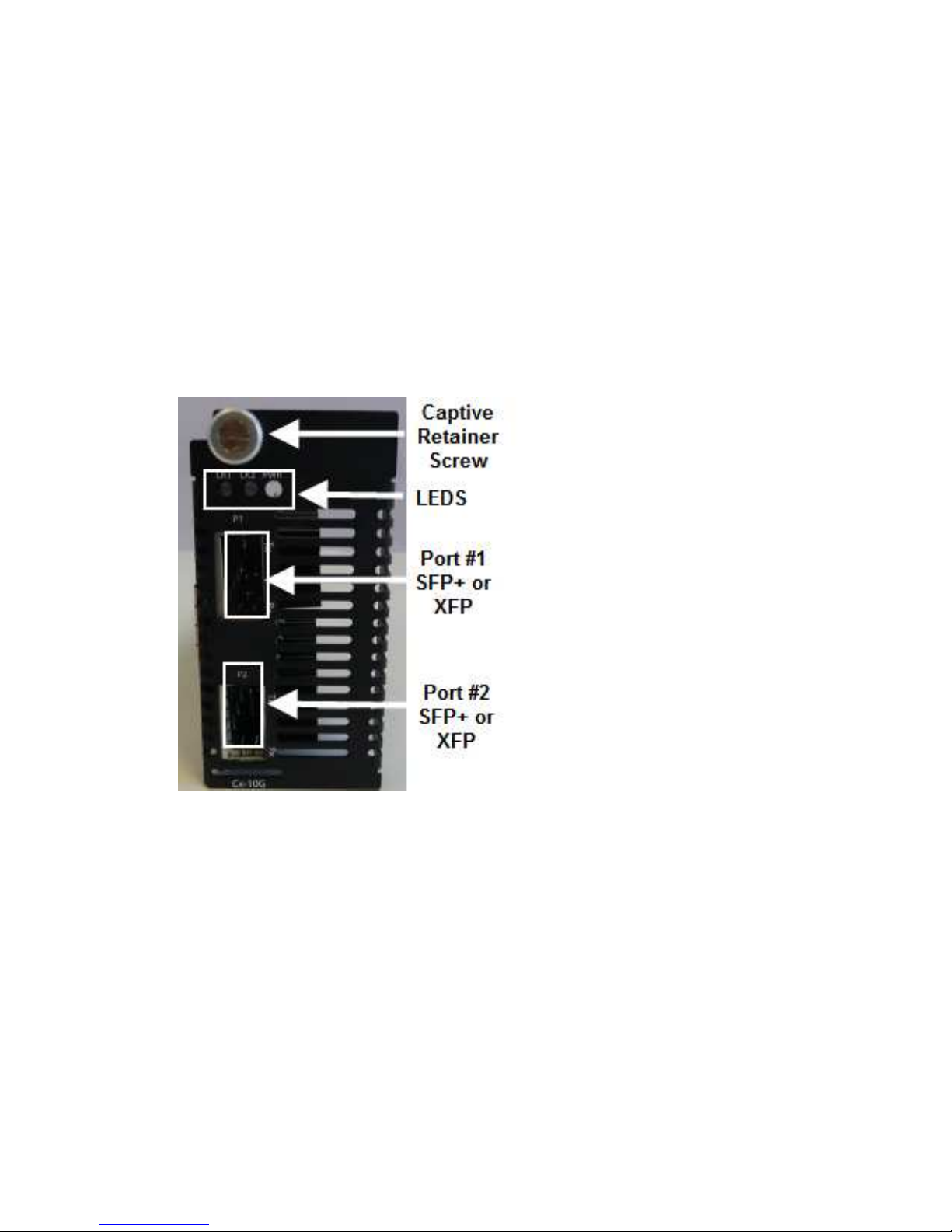

Cx-10G Front View

Installation

The default switch settings (all switches in the UP position) will

work for most installations. The default Auto-Jumper is set to Auto.

These are the steps required to configure the Perle 10G Media

Converter module:

1. Set the Auto-Jumper switch. (optional)

2. Set the DIP switch settings. (optional)

3. Install the module into the chassis. (See Installing Modules)

Perle 10G Media Converter module Installation Guide

4. Insert appropriate modules into the pluggable transceiver

ports.

5. Connect fiber or copper cables to the installed modules.

6. The Media Converter module is automatically powered up.

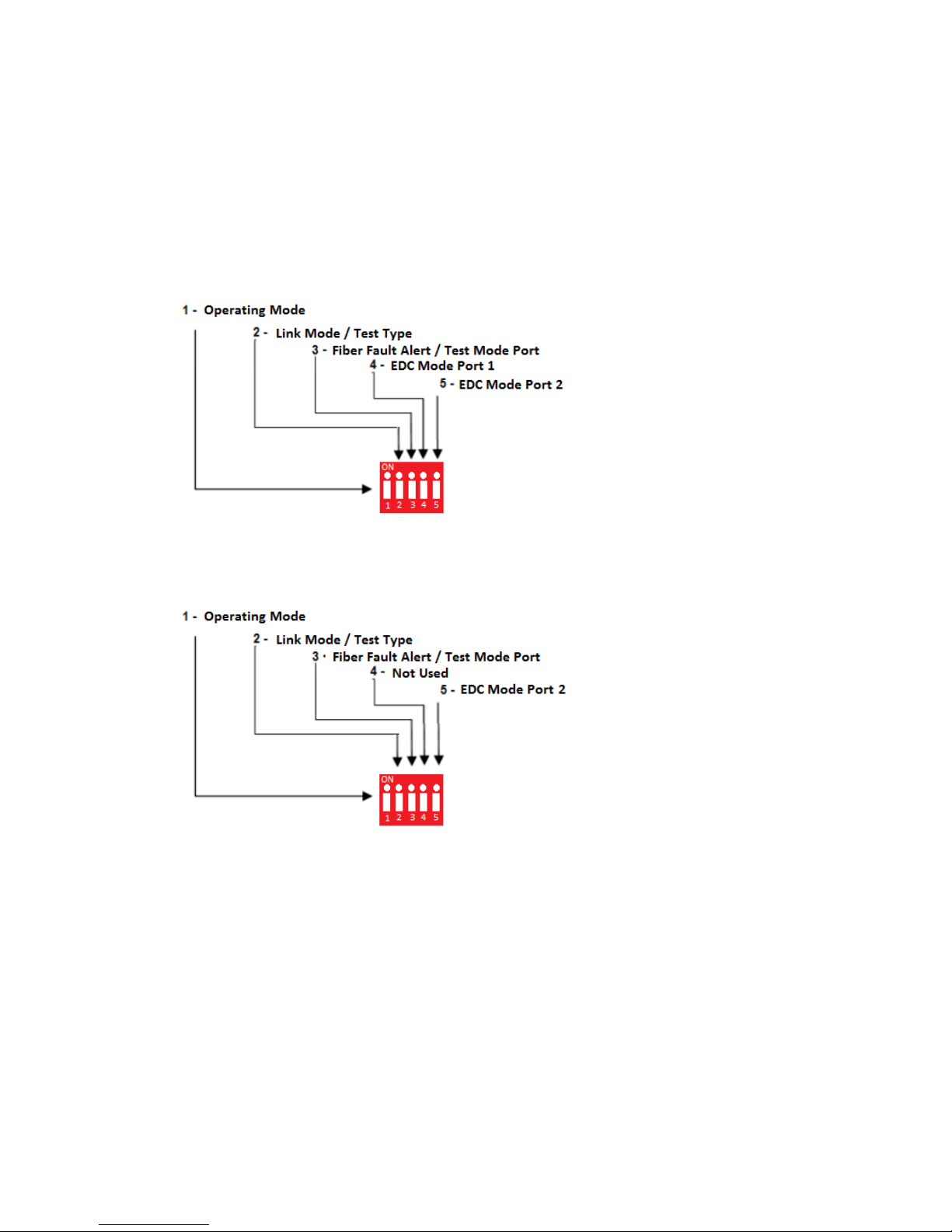

Cx-10G-STS

Cx-10G-XTS, Cx-10G-XTSH

Perle 10G Media Converter module Installation Guide

Cx-10G-XTX, Cx-10G-XTXH

Installing Modules

Set any jumpers and/or DIP switches on the module to the

desired operating mode.

Gently slide the module into the slot until it becomes flush with

the front of the chassis. Light pressure may be needed to seat

the module. Do not force the module as you might damage the

module. If there is resistance, remove the module and check

the module’s backplane connector for damage to the pins. If

the module’s backplane connector is not damaged, try to

reinsert the module again

Tighten the Captive retainer screw to ensure the module is

locked in place.

Caution:Observe electrostatic discharge precautions when

installing or removing the module(s) from the Chassis. Failure to

observe this caution could result in damage to the module(s)

and/or chassis.

Perle 10G Media Converter module Installation Guide

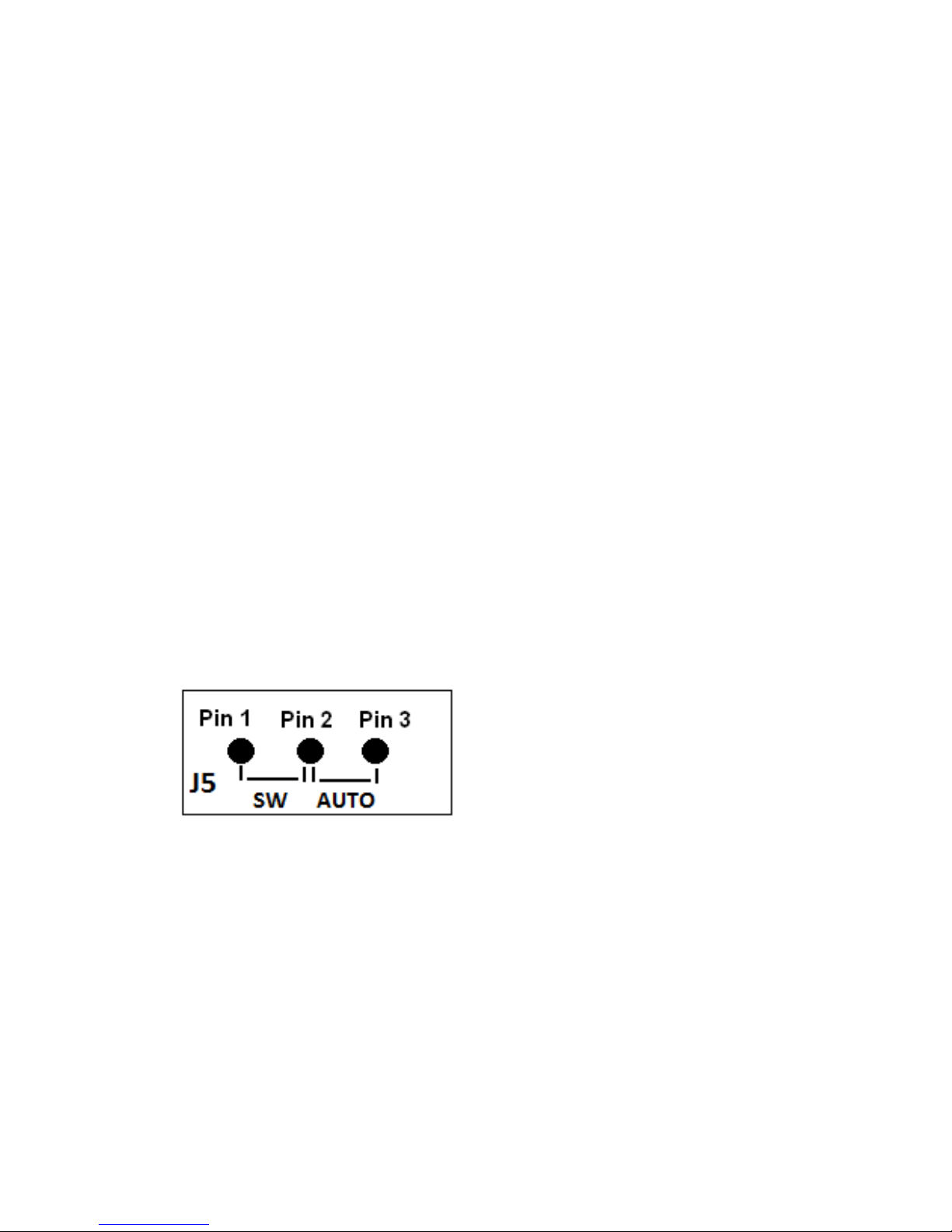

Auto-Config Jumper (CM models only)

The Auto-Config jumper (J5) is located on the upper edge, at the

midpoint of the module.

Strapping pins 1 and 2 of the jumper will set the module in SW

mode and strapping pins 2 and 3 will set it in Auto-Config mode.

Auto: When set to Auto the module will, at power-up, check its

internal flash memory to see if configuration information has been

downloaded to it from a management module. If so it will use this

configuration as its running configuration. If there is no

configuration in flash it will read the settings of the DIP switches

and use those as its running configuration.

SW: When set to SW (Switch), the module will, at power-up, read

the settings of the DIP Switches and use those as its running

configuration. It will ignore any configuration information in its flash

memory.

NOTE: The default jumper setting is Auto

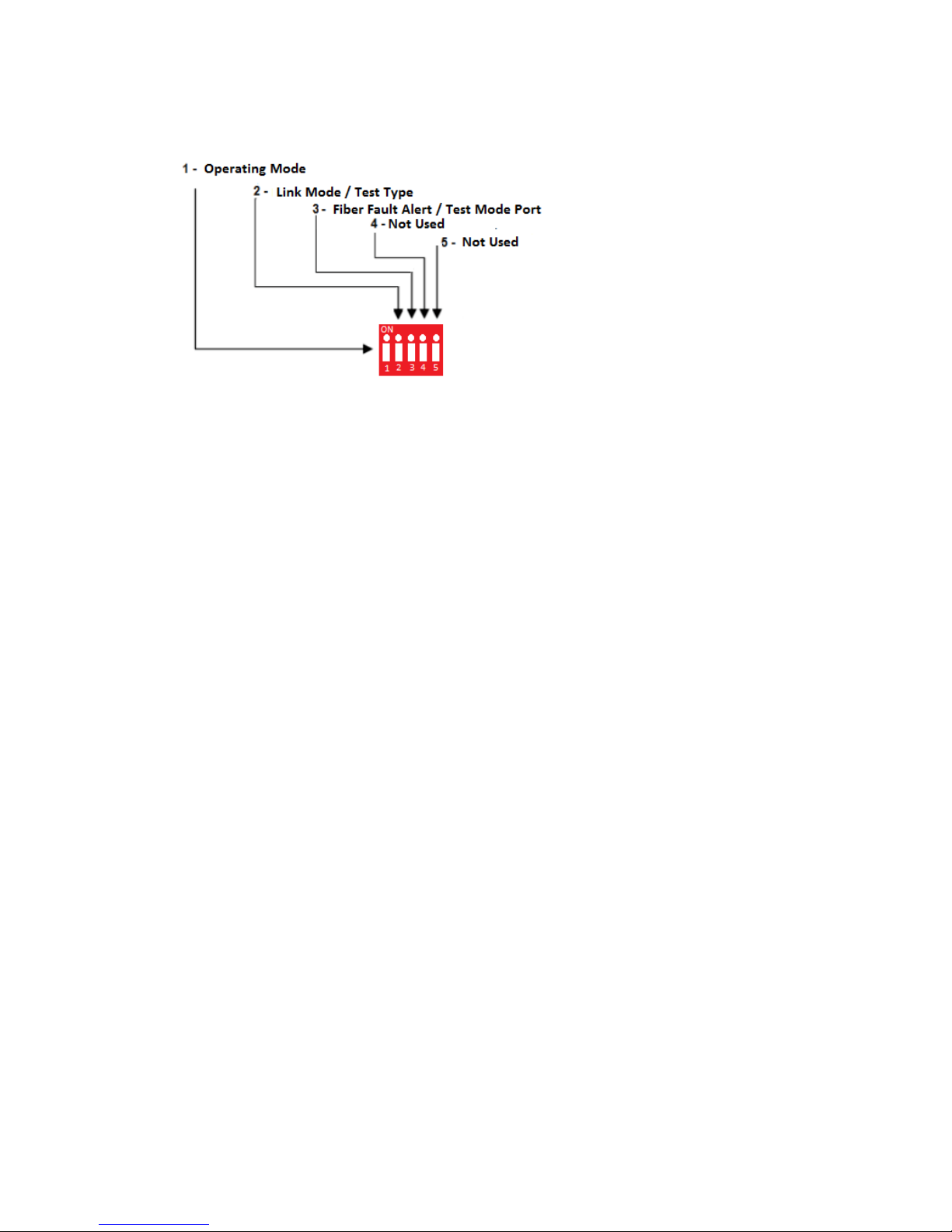

DIP Switch Settings

The DIP switches are located on the side of the module. The

function of the DIP switches vary by model, so please refer to the

appropriate model.

Note: Switch changes made when the product is powered up take

effect immediately and will result in a link reset on both ports.

Perle 10G Media Converter module Installation Guide

Operating Mode (Switch 1)

Switch Position Mode

Up (default) Data

Down Test

Data: In Data mode, data will flow between the two fiber

connections.

Test: Test Mode is used to run diagnostics, enable loopback and

for running the Built In Link Tests.

Note: The Operation Mode (Switch 1) affects the function of DIP

Switches 2 and 3.

Link Mode (Switch 2 – Data Mode)

Switch Position Mode

Up (default) Smart Link Pass-Through Mode

Down Standard Mode

Smart Link Pass-Through: In this mode, the link state on one

connection is directly reflected through the Media Converter

module to the other connection. If fiber link is lost on one of the

connections, then the other fiber link will be brought down by the

Media Converter module

Standard Mode: In this mode, the links can be brought up and

down independently of each other. A loss of link on either fiber

connection can occur without affecting the other fiber connection

Perle 10G Media Converter module Installation Guide

Test Function (Switch 2 – Test Mode)

Switch Position Type

Up (default) Built In Link Test

Down Loopback

Built In Link Test: Switch 2 causes the Cx-10G media converter

module to initiate the Built In Link Tests on the specified port.

Switch 3 determines the specified port for the Built In Link Tests. If

Switch 3 is Up, the tests will be run on Port 1. If the Switch is

Down the tests will be run on Port 2. The other port will be

disabled during these tests.

These tests consist of the media converter module generating test

patterns to be sent out the selected port to the remote media

converter module. If the remote media converter module is a

supported Perle media converter/module, the port will

automatically be put into loopback mode.

Loopback: If Switch 2 is down, the specified port will be put into

loopback mode. In this mode, the port will be ready to receive the

test patterns generated by another Perle media converter/module

running the Built In Link Test. Switch 3 determines which port with

be put into loopback mode. If the remote device is a supported

Perle media converter/module, this unit does not need to be put

into test mode and there is no need to set the loopback switch.

This will be taken care of by the Auto Loopback Detect feature.

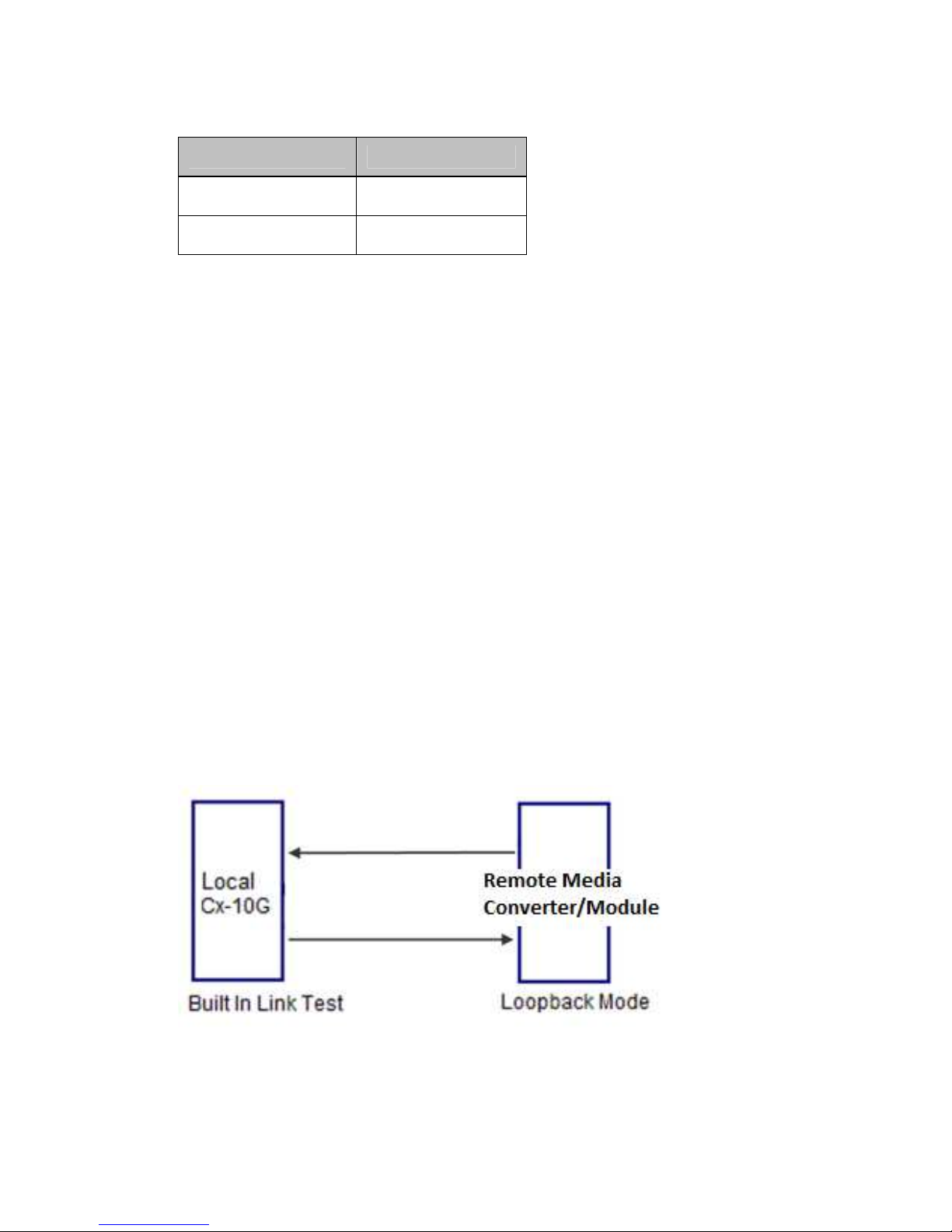

Illustration of the Built In Link Test / Loopback

Perle 10G Media Converter module Installation Guide

Local Cx-10G Configuration

Test Mode (Switch 1 – Down)

Test Function (Switch 2 –Up)

Remote-Cx-10G Configuration

All switches in the Up position

Note: If the remote Media Converter module is not a supported Perle

media converter/ module then the remote Media Converter /module will

need to be put into loopback mode. See the documentation that came

with that Media Converter module.

Sequence of Events

1. The Local Cx-10G Media Converter module sends the remote

media converter/ module a signal to go into loopback mode.

2. The remote media converter/module turns on loopback mode.

3. Built In Test Data is sent from the Local Cx-10G media

converter module to the Remote media converter/ module

4. The Remote media converter module loops the received data

back to the Local Cx-10G Media Converter module.

5. Any test errors detected are displayed with the LEDs on the

front of the Local Cx-10G Media Converter module

6. The Built in Link Tests continue to run until Switch 1 on the

Local Cx-10G Media Converter module is set to Data mode

Port Selection (Switch 3 – Test Mode)

Switch Position Port

Up (default) 1

Down 2

When in Test Operating mode (Switch 1- down), this switch

determines the port number.

Fiber Fault Alert (Switch 3 – Data Mode)

Switch Position Mode

Up (default) Enabled

Perle 10G Media Converter module Installation Guide

Down Disabled

Enabled: If the media converter module detects a loss of fiber, the

media converter module will immediately notify the fiber link

partner that an error condition exists.

If the remote Media Converter module is set up for Fiber Fault

Alert (FFA) Enabled and the local media converter is set up with

Smart Link Pass-Through, a loss of fiber link on either the transmit

or receive line will be passed through to the other fiber connection.

Disabled: The Media Converter will not monitor for fiber fault.

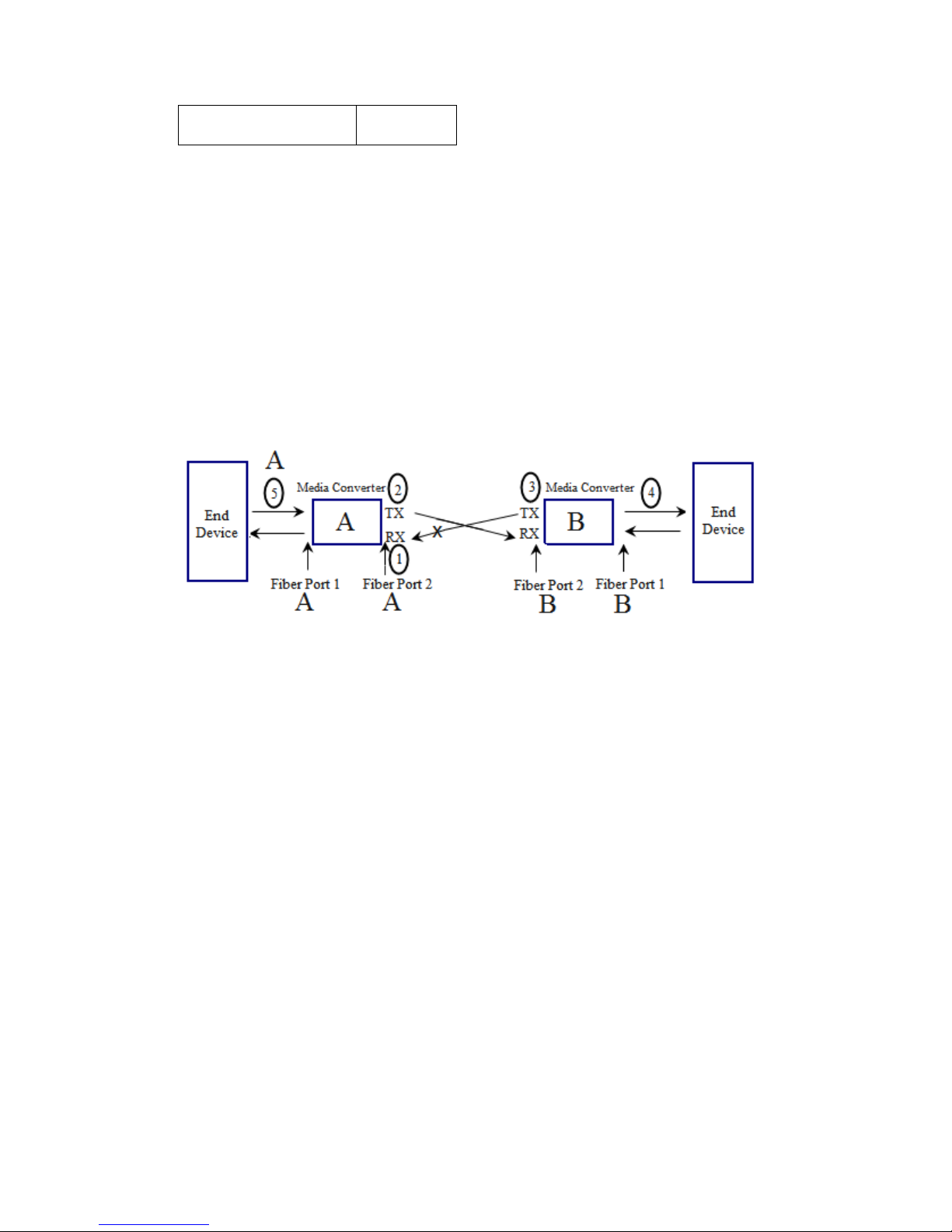

Illustration of the FFA feature

Media Converter A Configuration

Link Mode–Standard Mode

Fiber Fault Alert

Media Converter B Configuration

Link Mode–Smart Link Pass through Mode

Fiber Fault Alert

Sequence of Events

1. Media Converter Aloses fiber connection (RX).

2. Media Converter Anotifies the remote Media Converter that

there is a fault on the Link.

3. Media Converter Bdetects loss of fiber link on receiver RX.

4. Media Converter Bturns off transmitter (TX).
