Perle PoE/PoE+ Ethernet Media Converter

Installation Guide

Overview

This document contains instructions necessary for the installation

and operation of the Perle Standalone PoE/PoE+ 10/100/1000

rate converting Media Converters (S-1110P). These products have

the ability to convert 10/100/1000Base-T cable connections

(copper) to 100/1000Base-X connections (fiber). The Perle media

converters function as a PoE switch, and support a variety of port

configurations, including single or dual UTP and fiber ports. These

media converters function as Power Sourcing Equipment (PSE)

and can power either one or two Powered Devices (PDs) using

standard UTP cables that carry Ethernet data. The S-1110P

models are compatible with Powered Devices that comply with the

IEEE 802.3af standard and the S-1110PP models are compatible

with Powered Devices that comply with both the IEEE 802.3af and

the 802at-2009 standard. The fiber connection can be either single

mode (SM) or multimode (MM) and can operate over different

wavelengths and distances, depending on the model selected

(see table below).

2 Port Models

PoE (P)

PoE+ (PP)

Connector

(xx) Mode

Distance Wavelength

(TX/RX)

S-1110P-M2xx05

S-1110PP-M2xx05 SC/ST MM

550 m/1804 ft. 850 nm

S-1110P-S2xx10

S-1110PP-S2xx10 SC/ST SM

10 km/6.2 mi. 1310 nm

S-1110P-S1SC10U

S-1110PP-S1SC10U SC SM

10 km/6.2 mi. 1310/1490 nm

S-1110P-S1SC10D

S-1110PP-S1SC10D SC SM

10 km/6.2 mi. 1490/1310 nm

S-1110P-S1SC20U

S-1110PP-S1SC20U SC SM

20 km/12.4 mi. 1310/1490 nm

S-1110P-S1SC20D

S-1110PP-S1SC20D SC SM

20 km/12.4 mi. 1490/1310 nm

S-1110P-S2xx40

S-1110PP-S2xx40 SC/ST SM

40 km/25 mi. 1310 nm

S-1110P-S1SC40U

S-1110PP-S1SC40U SC SM

40 km/25 mi. 1310/1490 nm

S-1110P-S1SC40D

S-1110PP-S1SC40D SC SM

40 km/25 mi. 1490/1310 nm

S-1110P-S2xx70

S-1110PP-S2xx70 SC/ST SM

70 km/43.5 mi. 1550 nm

Perle PoE/PoE+ Ethernet Media Converter

Installation Guide

PoE (P)

PoE+ (PP)

Connector

(xx) Mode

Distance Wavelength

(TX/RX)

S-1110P-S1SC80U

S-1110PP-S1SC80U SC SM

80 km/50 mi. 1510/1590 nm

S-1110P-S1SC80D

S-1110PP-S1SC80D SC SM

80 km/50 mi. 1590/1510 nm

S-1110P-S2xx120

S-1110PP-S2xx120 SC/ST SM

120 km/74.6 mi. 1550 nm

S-1110P-S1SC120U

S-1110PP-S1SC120U SC SM

120 km/74.6 mi. 1510/1590 nm

S-1110P-S1SC120D

S-1110PP-S1SC120D SC SM

120 km/74.6 mi. 1590/1510 nm

S-1110P-S2xx160

S-1110PP-S2xx160 SC/ST SM

160 km/100 mi. 1550 nm

S-1110P-SFP

S-1110PP-SFP SFP Note 1

Note 1: Fiber characteristics will depend on the SFP fiber

module selected.

3 Port Models

Dual Copper / PoE (DP)

Dual Copper / PoE+ (DPP)

Connector

(xx) Mode

Distance Wavelength

(TX/RX)

S-1110DP-M2xx05

S-1110DPP-M2xx05 SC/ST MM

550 m/1804 ft. 850 nm

S-1110DP-S2xx10

S-1110DPP-S2xx10 SC/ST SM

10 km/6.2 mi. 1310 nm

S-1110DP-S1SC10U

S-1110DPP-S1SC10U SC SM

10 km/6.2 mi. 1310/1490 nm

S-1110DP-S1SC10D

S-1110DPP-S1SC10D SC SM

10 km/6.2 mi. 1490/1310 nm

S-1110DP-S1SC20U

S-1110DPP-S1SC20U SC SM

20 km/12.4 mi. 1310/1490 nm

S-1110DP-S1SC20D

S-1110DPP-S1SC20D SC SM

20 km/12.4 mi. 1490/1310 nm

S-1110DP-S2xx40

S-1110DPP-S2xx40 SC/ST SM

40 km/25 mi. 1310 nm

S-1110DP-S1SC40U

S-1110DPP-S1SC40U SC SM

40 km/25 mi. 1310/1490 nm

S-1110DP-S1SC40D

S-1110DPP-S1SC40D SC SM

40 km/25 mi. 1490/1310 nm

S-1110DP-S2xx70

S-1110DPP-S2xx70 SC/ST SM

70 km/43.5 mi. 1550 nm

S-1110DP-S1SC80U

S-1110DPP-S1SC80U SC SM

80 km/50 mi. 1510/1590 nm

Perle PoE/PoE+ Ethernet Media Converter

Installation Guide

Dual Copper / PoE (DP)

Dual Copper / PoE+ (DPP)

Connector

(xx) Mode

Distance Wavelength

(TX/RX)

S-1110DP-S1SC80D

S-1110DPP-S1SC80D SC SM

80 km/50 mi. 1590/1510 nm

S-1110DP-S2xx120

S-1110DPP-S2xx120 SC/ST SM

120 km/74.6 mi. 1550 nm

S-1110DDP-S1SC120U

S-1110DDPP-S1SC120U SC SM

120 km/74.6 mi. 1510/1590 nm

S-1110DP-S1SC120D

S-1110DPP-S1SC120D SC SM

120 km/74.6 mi. 1590/1510 nm

S-1110DP-S2xx160

S-1110DPP-S2xx160 SC/ST SM

160 km/100 mi. 1550 nm

S-1110DP-SFP

S-1110DPP-SFP SFP Note 1

3 Port Models - SPF

Model

PoE (P) / Dual SFP

PoE+ (PP) / (Dual SFP)

Connector

(xx) Mode

Distance Wavelength

(TX/RX)

S-1110P-DSFP SFP Note 1.

S-1110PP -DSFP SFP Note 1

4 Port Models - SFP

Model

Dual copper / PoE / Dual

SFP

Dual copper / PoE+/ Dual

SFP

Connector

(xx) Mode

Distance Wavelength

(TX/RX)

S-1110DP-DSFP SFP Note 1.

S-1110DPP-DSFP SFP Note 1

Note 1: Fiber characteristics will depend on the SFP fiber

module selected.

Perle PoE/PoE+ Ethernet Media Converter

Installation Guide

Extended Temperature Models

PoE (P)

PoE+ (PP)

Connector

(xx) Mode

Distance Wavelength

(TX/RX)

S-1110P-M2xx05-XT

S-1110PP-M2xx05-XT SC/ST MM

550 m/1804 ft. 850 nm

S-1110P-S2xx10-XT

S-1110PP-S2xx10-XT SC/ST SM

10 km/6.2 mi. 1310 nm

S-1110P-S1SC10U-XT

S-1110PP-S1SC10U-XT SC SM

10 km/6.2 mi. 1310/1490 nm

S-1110P-S1SC10D-XT

S-1110PP-S1SC10D-XT SC SM

10 km/6.2 mi. 1490/1310 nm

S-1110P-SFP-XT SFP Note 1.

S-1110PP-SFP-XT SFP Note 1

Note 1: Fiber characteristics will depend on the SFP fiber

module selected.

Please visit Perle’s website for the most up to date

Installation guides models and specifications.

http://www.perle.com/

Perle PoE/PoE+ Ethernet Media Converter

Installation Guide

Installation

The default DIP switch settings (all switches in the UP position)

will work for most installations.

These are the steps required to configure the Perle S-1110P

Ethernet media converter:

1. Insert SFP Module (SFP Model only).

2. Set the Auto-MDIX jumper setting (optional).

3. Set the DIP switch settings (if required).

4. Set the Powering Option Jumpers (if required).

5. Install and connect the fiber cable(s).

6. Install and connect the copper cable(s).

7. Power up the media converter.

Auto-MDIX Jumper Settings

Note: The factory settings for Auto-MDIX will work for most

installations, but in the rare case that you need to modify the

settings, the procedure is below.

For dual copper media converters, each copper interface has an

Auto-MDIX jumper bank. To access the Auto-MDIX jumper

settings, unscrew the six side screws on the case and remove the

cover plate. Locate the MDIX AUTO jumper set as detailed below.

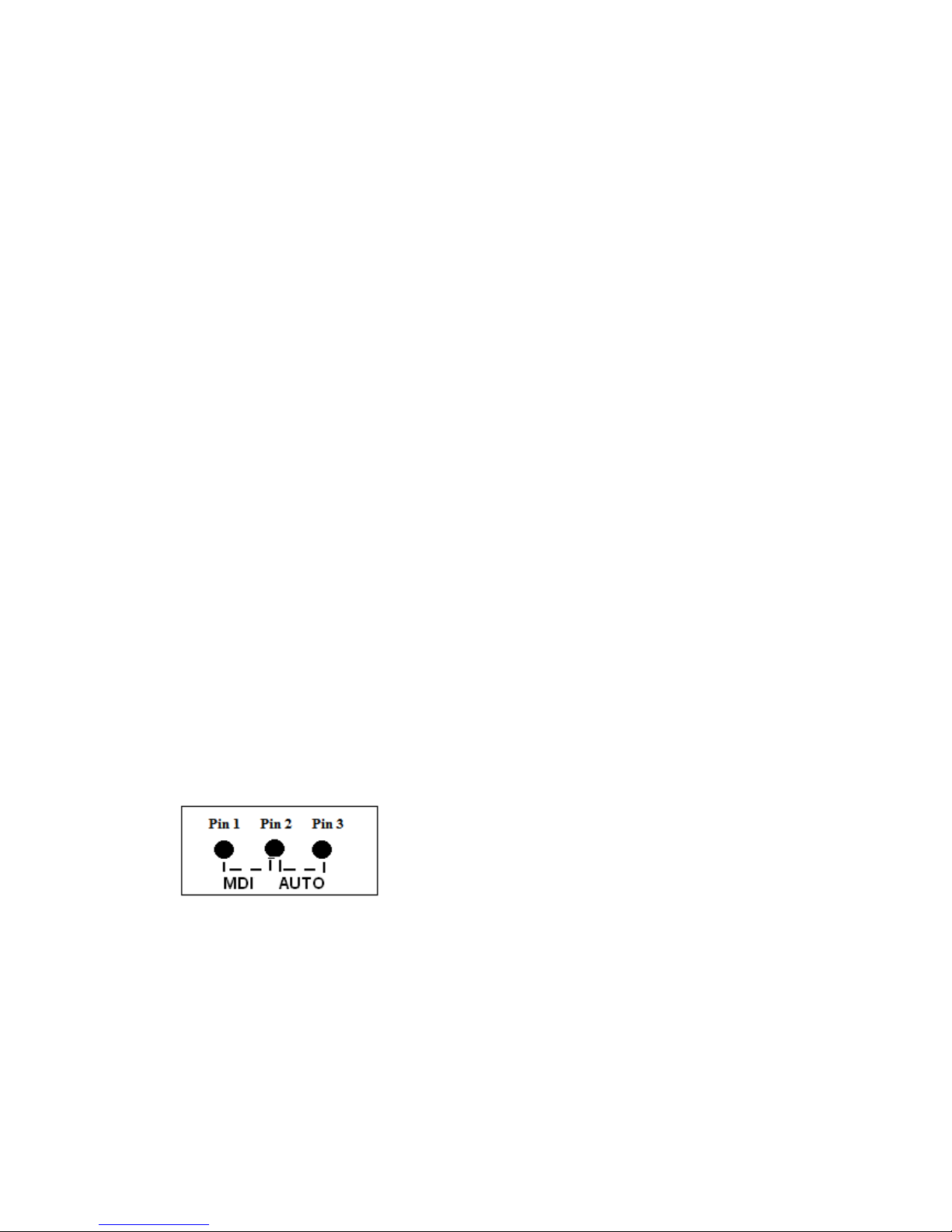

By covering or strapping pins 1 and 2, the S-1110P will operate as

an MDIX device. By covering or strapping pins 2 and 3, the S-

1110P will automatically detect the Ethernet cable’s polarity.

Removing the strapping is the same as AUTO.

Note: The default jumper setting is AUTO

Perle PoE/PoE+ Ethernet Media Converter

Installation Guide

Power Sourcing Pinouts

Note: The factory settings for Power Sourcing Pinouts will

work for most installations as 802.3a and 802at-2009 (

POE/POE+) devices will detect and sync to the correct POE

option. However, in the rare case that you need to modify the

settings, the procedure is below.

When Power Sourcing is enabled on a copper port, the S-1110P

will provide power to the connected PD device over the Ethernet

cable (see PSE function on Dip Switch configurations). The

wire pairs on the cable used for delivering power will depend on

the device. The following options are available.

PoE Option

RJ-45 Alternative A Alternative B Legacy

1 positive

2 positive

3 negative

4 positive negative

5 positive negative

6 negative

7 negative positive

8 negative positive

UTP (copper) Power

PoE •IEEE 802.3af (PoE) up to 15.4 Watts per UTP port.

PoE+

•IEEE 802at-2009 (PoE+)

•Up to 30 Watts on a single UTP port model and up to

25.5 Watts per port on a dual UTP port model

•PoE+ models will also support 802.3af PDs (Type 1)

and PoE+ PDs (Type 2)

Perle PoE/PoE+ Ethernet Media Converter

Installation Guide

Powering Options Jumper Settings

Note: In most cases the Power Option Jumper will not need to

be changed, in the rare case that you need to modify the

Power Option Jumper settings, the procedure is below.

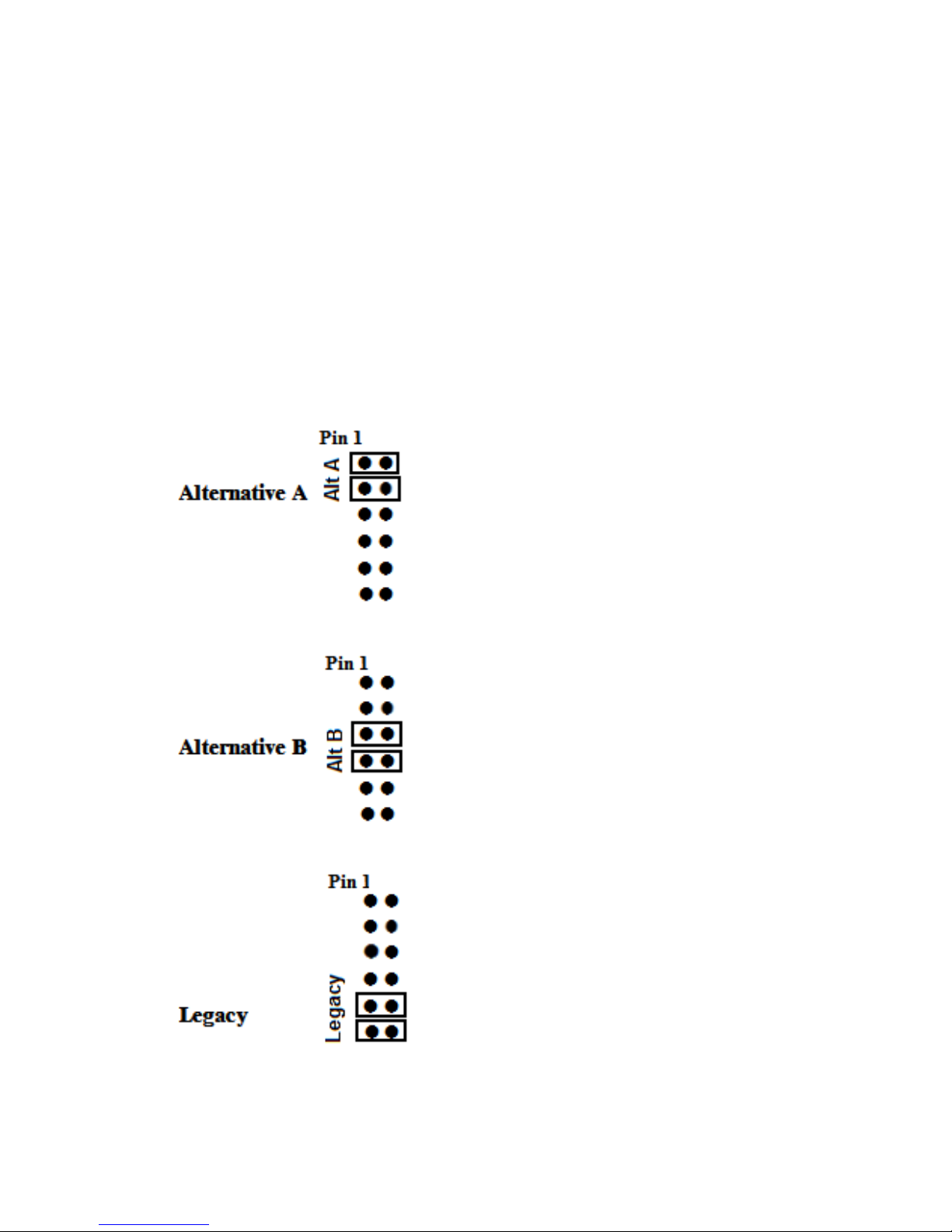

In order to select a powering option, the Power Options Jumper

settings must be set. Each copper port has a set of Power Option

jumpers. To access the Powering Options Jumper settings,

unscrew the six side screws on the case and remove the cover

plate. Locate the Power Option jumper set and strap the option

pins as detailed below.

Perle PoE/PoE+ Ethernet Media Converter

Installation Guide

DIP Switches

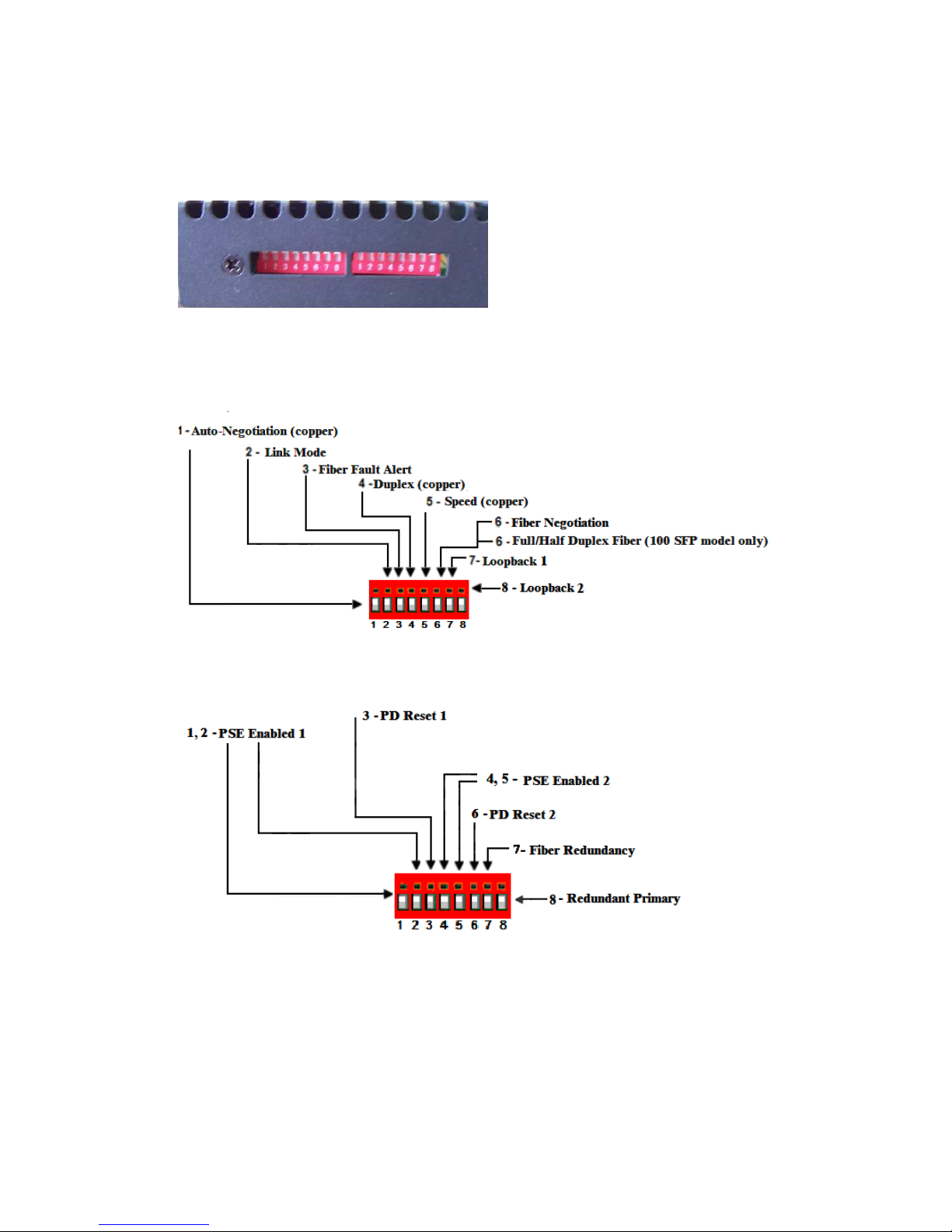

The DIP switches are accessible through the opening in the side

of the enclosure.

Bank 1 Bank 2

Bank 1

Bank 2

Note: All switch changes take effect immediately. Switch

changes will cycle power to the PD only if the PD Reset

switch is set to On or you make changes to the PSE Power

switches.

Perle PoE/PoE+ Ethernet Media Converter

Installation Guide

DIP Switch Settings

Bank 1

Auto Negotiation copper (Switch 1)

Switch Position Copper 1

Copper 2

Up (default) Auto Auto

Down Off Auto

Note: Auto negotiation should only be turned off, if the copper link

partner does not support Auto Negotiation and fixed settings are

required by the copper link partner.

Auto: When enabled, the media converter will negotiate with its

link partner to determine the most optimal parameters for this

connection. The S-1110P will advertise capabilities of 10,100 and

1000 Mbps, full and half duplex as well as pause, and remote fault

capabilities to the link partner.

If the copper link partner does not support Auto negotiation, the S-

1110P will parallel detect to 10 or 100 Mbps and force Half Duplex

mode as per IEEE specifications.

Off: When the Auto Negotiation switch is set to the OFF position,

the media converter will not negotiate the Ethernet parameters

with the copper link partner. The parameters used by the media

converter will be determined by the Duplex (switch 4) and Speed

(switch 5) DIP switch settings.

Note: This switch affects the behaviour of copper port 1 only;

copper port 2 is always set to Auto.

Link Mode (Switch 2)

Switch Position Mode

Up (default) Standard Mode

Down Smart Link Pass-Through

Standard Mode: In this mode, link on the fiber and copper sides

can be brought up and down independently of each other. A loss

Altri manuali per S-1110P

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Perle Convertitore multimediale

Perle

Perle S-1110-XT Manuale utente

Perle

Perle S-110-P Manuale utente

Perle

Perle C-1110-M2SC05 Manuale utente

Perle

Perle S-1110-M2 05 Series Manuale utente

Perle

Perle S-100-XXXXX Manuale utente

Perle

Perle C-100-XXXXX Manuale utente

Perle

Perle MCR1900 Manuale utente

Perle

Perle S-1110HP-XT Manuale utente

Perle

Perle C-110-XXXXX Manuale utente

Perle

Perle S-110-P Manuale utente

Perle

Perle MCR1900 Manuale utente

Perle

Perle S-1110-M2xx05 Manuale utente

Perle

Perle S-110 series Manuale utente

Perle

Perle C-1000MM Series Manuale utente

Perle

Perle SMI Media Converter Manuale utente

Perle

Perle SMI-10GT Manuale utente

Perle

Perle S-100MM-XXXXX Manuale utente

Perle

Perle C-1000-XXXXX Manuale utente

Perle

Perle S-1110HP Manuale utente

Perle

Perle C-10GRT-SFP Manuale utente

Perle

Perle S-1110-XT 10 Manuale utente

Perle

Perle S-10G-XTXH Manuale utente

Perle

Perle S-10GR-STS Manuale utente

Perle

Perle S-1000MM-XXXXXX Manuale utente

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
