perma PRO C LINE

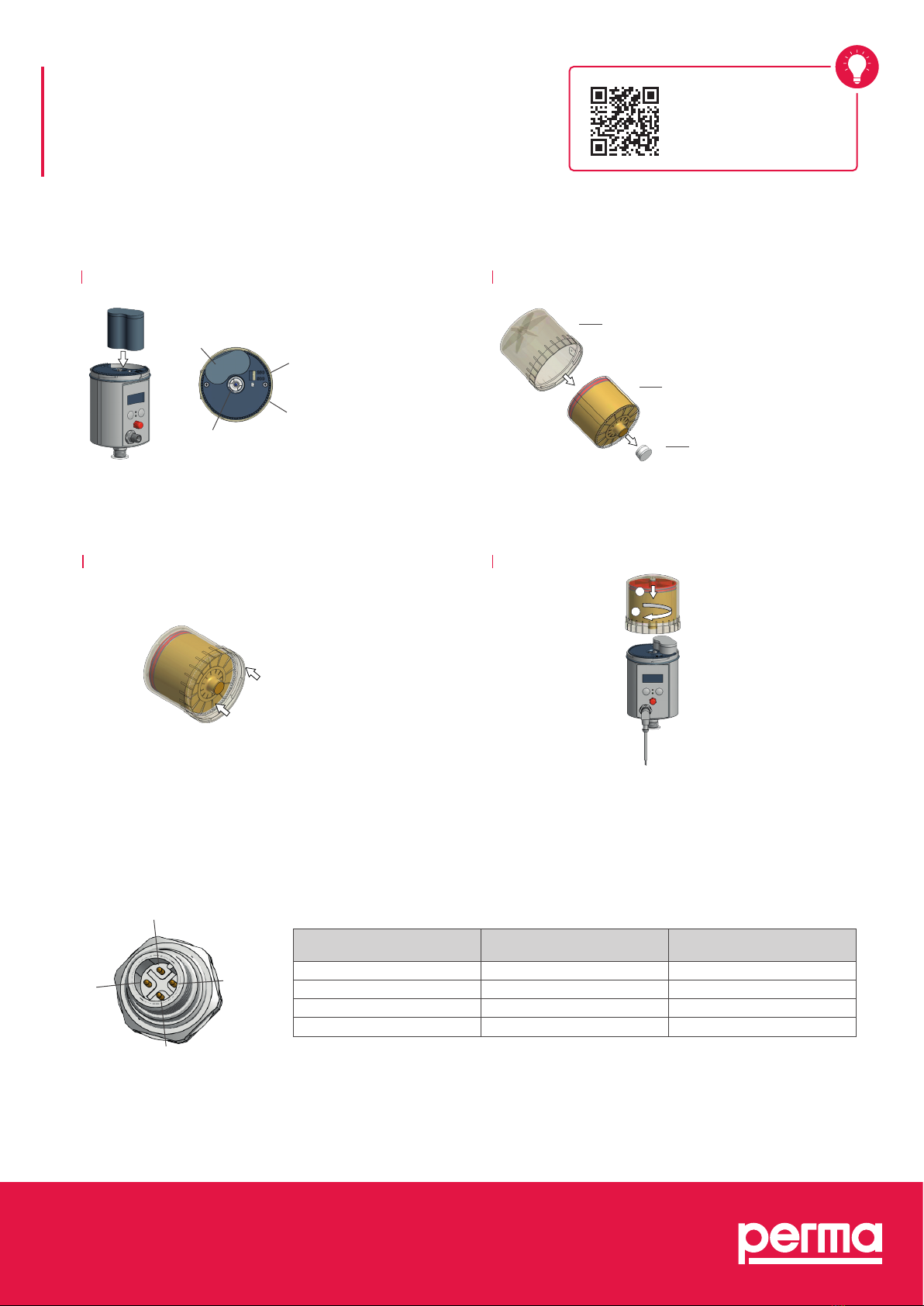

Quick Start Guide

Anschließen des Anschlusskabels

Push the PRO LC into the protection cover until

lubricant comes out of the opening

Place the PRO LC inside the protection cover and remove

the plug of the PRO LC.

INSERT BATTERY

1COVER FOR PRO LC & PLUG2

DISCHARGE OPENING

3 4

Insert the battery PRO B into the drive unit (according to

the direction of the arrow on the label).

The Expert in Lubrication Solutions

No function!

Setting of PRO LC size

is done via menu on

the display.

Battery PRO B

(Back-up battery)

Catch

Gear theeth

Protection cover for PRO LC

PRO LC

Plug

DRIVE

Assembly

Connect the four strands of the connecting cable to the control system of your equipment. Pay attention to the pin assignment of

the connector on the lubricator. Insulate the connected strands correctly. Insert the 4-pole connecting cable into the connector

of the PRO C LINE Drive. Screw tight the connector socket of the connecting cable to the connector of the PRO C LINE Drive.

Pin no. of the connector

on the lubricator Strand color of the

standard cable Function

1 brown Not assigned

2 white Malfunction*

3 blue Ground

4 black Voltage (15 V to 30 V - DC)

*Error signal is low-active! (negative logic)

Scan the QR code

for a video tutorial.

Place the PRO LC with its protection cover on the drive unit.

Turn the cover clockwise until the bayonet catch locks.

perma-tec GmbH & Co. KG

Hammelburger Str. 21

97717 Euerdorf

GERMANY

Tel.: +49 9704 609 - 0

[email protected]om

www.perma-tec.com

Settings and Display

Display

MODE

SAVE Display

SELECT

Meaning / Description

Display at delivery with

attached PRO LC

MODE

SAVE

Display: Discharge time

remaining PIN-reset

Info

MODE

SAVE

Enter rst digit of current PIN

PIN “00” at delivery

PIN-Entry

MODE

SAVE

Enter second digit

of current PIN

MODE

SAVE

Set PRO LC size

MODE

SAVE

Activate outlets:

Activate outlet 1 Outlets only

displayed if MP-6 is connected

Outlets

Outlet 1 activated

MODE

SAVE

Outlet 2 activated

(if desired, other outlets may be

turned On / Off the same way)

MODE

SAVE

Enter number of strokes for outlet 1

Strokes

MODE

SAVE

Pause time conguration

for outlet 1:

Changing the rst digit

Pause time

MODE

SAVE

MODE

SAVE

Pause time conguration

for outlet 1:

Changing the second digit

MODE

SAVE

PIN (rst digit) enter for initial

conguration or after a PIN-reset

– otherwise, setting is complete

MODE

SAVE

PIN (second digit) enter for initial

conguration or after a PIN-reset

MODE

SAVE

Conguration nished

INTRO

Repeat for each outlet:

Conguration of strokes and

pause time

Total discharge period

Lubrication system turned off (OFF)

Lubrication system turned on (ON)

Display shows „remaining

discharge period“

Change rst digit

SELECT

Change second digit

SELECT

Change rst digit

SELECT

Change second digit

SELECT

Change from LC500 to LC250

SELECT

Outlet 1 On / Off

SELECT

Outlet 2 On / Off

SELECT

Changing the number of strokes

SELECT

Control Buttons

Press Short Short

Long > 4 sec.

until the display

content changes

completely

Long > 4 sec.

until the display

content changes

completely

Button

Function Selection in

current display

Changing of

values

Moves to new

menu and saves

selected values

Returns to original

menu without

saving changes

MODE

SAVE SELECT MODE

SAVE SELECT

short push

long push

blinking display

go to

CONFIGURATION MENU
