PERMASTEEL PS-207 Manuale utente

Permasteel 80QT Cooler

Use & Care Guide

Model number: PS-207, PS-207-80PE

Thank you for purchasing your new patio cooler from Permasteel.

We hope you enjoy your product.

If you have any questions, please call us 1-888-287-0735

or visit www.permasteel.life

Table of content

Important Information 2

Parts List 3

Hardware 4

Assembly Steps 5

Care & Maintenance 11

Limited Warranty Information 11

Important

Information

Thank you for your purchase of our Patio Cooler.

We sincerely hope you will enjoy using our fine

products.

•Please take time to read these instructions

thoroughly and follow each step carefully for

safe and easy operation.

•Please contact our customer service at

1-888-287-0735 if you have any questions.

•Please keep this manual for future reference.

CAUTION

1. Hand tools only, use of power tools could

damage product.

2. Remove all components, hardware and tools

from box before assembly. Inventory and

separate each of the hardware and

components included.

3. Please consider recycling all applicable

packaging material.

Parts List

Key Description Qty

A Lid Knob 2

B Lid 1

C Body Handle 2

D Body (Basin) 1

E Bottle Opener 1

F Bottle Cap Catcher 1

G Leg Frame 2

H Bottom Shelf 1

I Caster 2

J Caster with Brake 2

AA M6 x 13 Bolt 22

BB M6 x 15 Shoulder Bolt 2

CC M4 x 32 Screw 2

DD Flat Washer 4

EE Hex Nut 2

If you are missing any parts or have damaged

parts, please call 1-888-287-0735 M-F 8:00-5:00

Pacific Time. For replacement, visit us at

www.permasteel.life

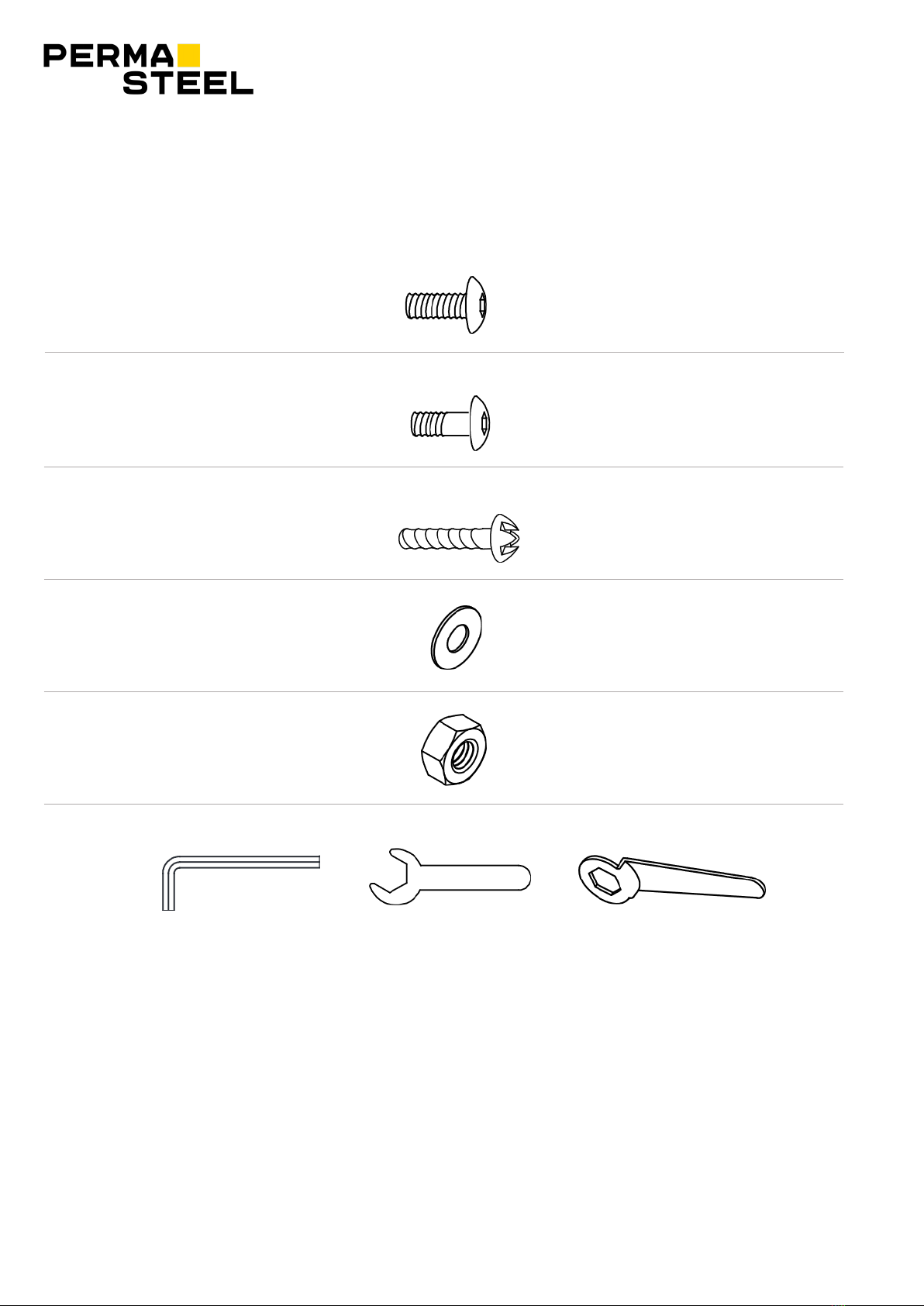

Hardware

The following hardware is provided in a poly bag.

M6x13mm Bolt: 22 pcs

M6x15mm Shoulder Bolt: 2 pcs

M4X32mm Screw: 2 pcs (Note: Attached to lid knobs)

Flat Washer: 4 pcs

Hex Nut: 2 pcs

Tools Included:

Tools

The following tools are required for assembly:

•Allen wrench (provided)

•Open end wrench (provided)

•Hex wrench (provided)

•Phillips screwdriver (not provided)

Assemble Steps

Step 1

•Turn body (basin) upside down, place it on a clean, soft surface and attach 2 leg frames (G) to body (D)

with (6) M6x13mm bolts (AA), 3 bolts for each leg frame, with the provided Allen wrench.

Note: Do not fully tighten the bolts. Leg frames should be loose so that it can be aligned with the holes

on the bottom shelf.

Allen Wrench

Step 2:

•Attach the bottom shelf (H) to the leg frames (G) with (2) M6x13mm bolts (AA), (4) flat washers (DD),

and (2) hex nut (EE) with the provided hex wrench.

Note: Do not fully tighten the bolts. Leg frames and bottom shelf should be loose so that it can be

aligned with the holes for the casters.

Hex Wrench

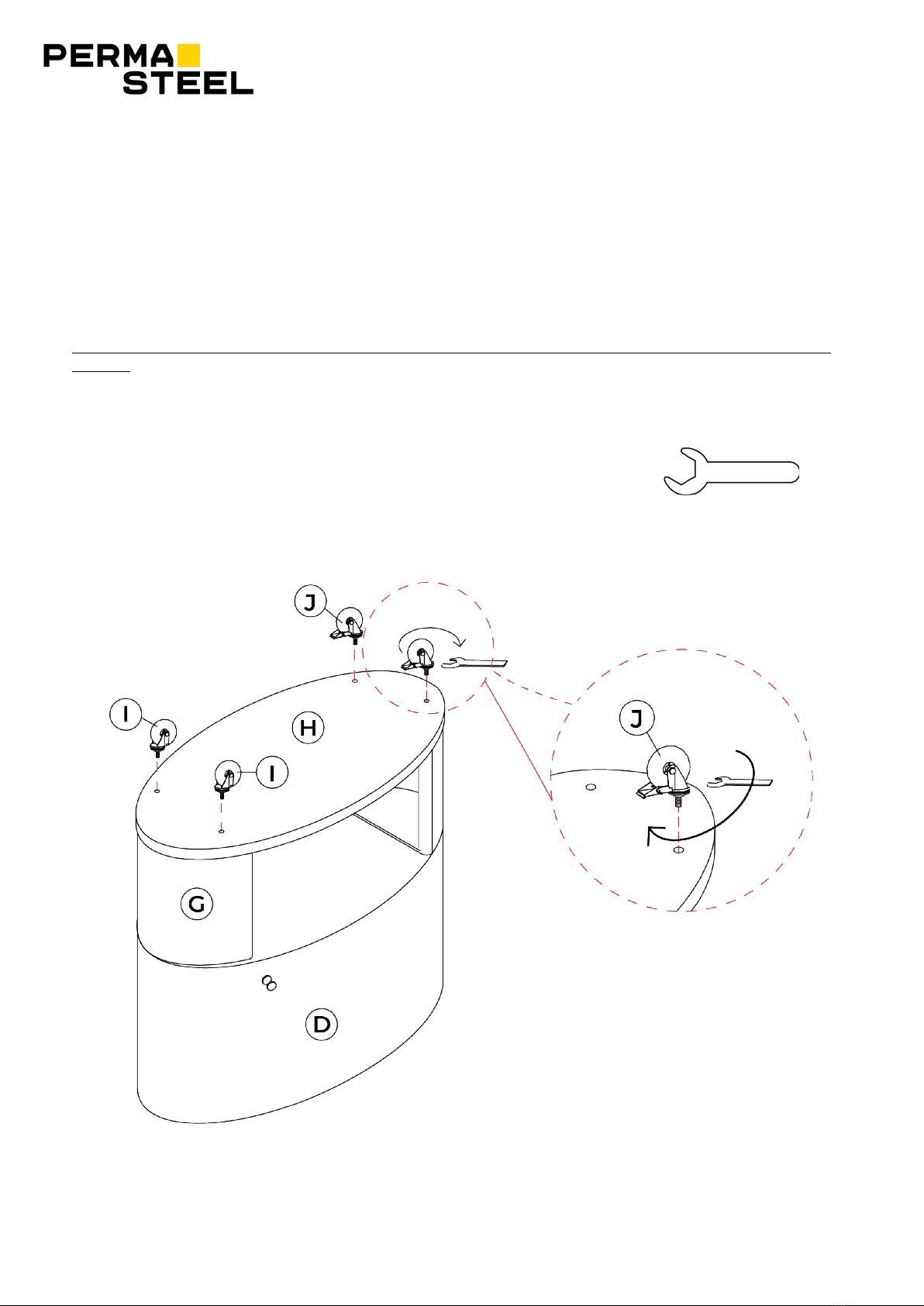

Step 3

•Insert and thread casters (I) through the bottom panel holes and into leg frame using the provided

open end wrench.

•Insert and thread casters (J) through the bottom panel holes and into other leg frame using the

provided open end wrench.

Note: Leg frames and bottom shelf should be loose so that it can be aligned with the holes for the

casters.

•Now, tighten all the bolts left loose from step 1 & 2.

Open End Wrench

Step 4

•Attach the body handles (C) to body (D) using (12) M6x13mm bolts (AA), 6 bolts for each handle, and

tighten with the provided Allen wrench.

Allen Wrench

Step 5

•Attach the bottle opener (E) to body (D) using (2) M6x13mm bolts (AA) and tighten with the Allen

wrench.

•Attach the cap catcher (F) to body (D) using (2) M6x15mm shoulder bolts (BB).

Allen Wrench

Step 6

•Note: The lid knobs (A) are pre-attached to the lid (B). They are upside down.

•Please remove the knobs using a Phillips head screwdriver and re-assemble them on the lid

right-side up.
