Permobil FAST MOVERS' Manuale utente
FAST MOVERS'
QUICK START GUIDE
EN
CONTENTS
Introduction
1Speed setting and steering box options
2Driving technique
3Adjusting arm and leg supports
4Charging batteries
5Disengage the brakes (Freewheeling)
6Support for a hollow back
7Construction & operation
8For wheelchairs with STAND ASSIST
9For wheelchairs with reversible steering box
10 Headrest (accessory)
1
3
6
7
8
9
11
12
17
18
19
For a more detailed description see the user's manual
that came with the wheelchair.
1
FAST MOVERS'
QUICK START GUIDE
Introduction
Permobil stresses solutions above products. These solutions
can be for complicated customer needs or for specific
seating and mobility needs.
Our products consist of a chassis and several seating systems
that meet simple and complex mobility and seating needs.
The seamless integration of the correct chassis and seating
components results in an electric wheelchair perfectly adapted
to the user.
2
Function keys

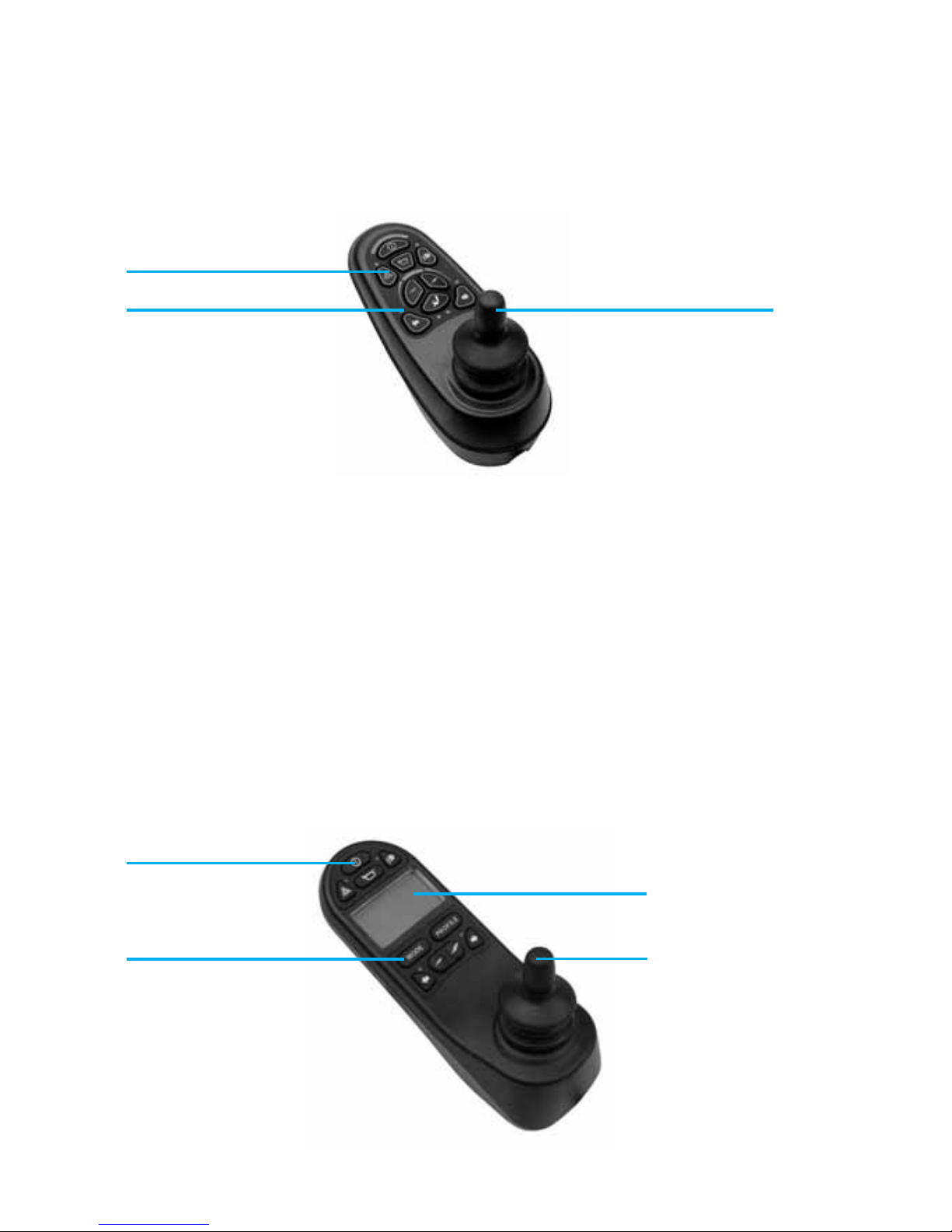

Explanation of the VR2 control panel
Indicator lights Control lever (joystick)
The number of function keys/indicator lights differs depending
on your chair's equipment, such as with/without lighting and
seat functions.
Explanation of the R-Net control panel
On / off button
Function keys Joystick
Display
3
This wheelchair is suitable for indoor and outdoor use.
When using indoors, you must use it with normal caution.
When outdoors you must ensure that you go very slowly on
hills and do not go over edges greater than 7 - 8 cm.
Take someone along on your first test trip. A test trip is
intended to determine how best to handle the wheelchair;
you may need some help with this.
1. SPEED SETTINGS AND
STEERING BOX OPTIONS
4
VR-2 CONTROL PANEL
*) Only applicable to chairs with lights.
**) Only applicable to chairs with electric seat functions.

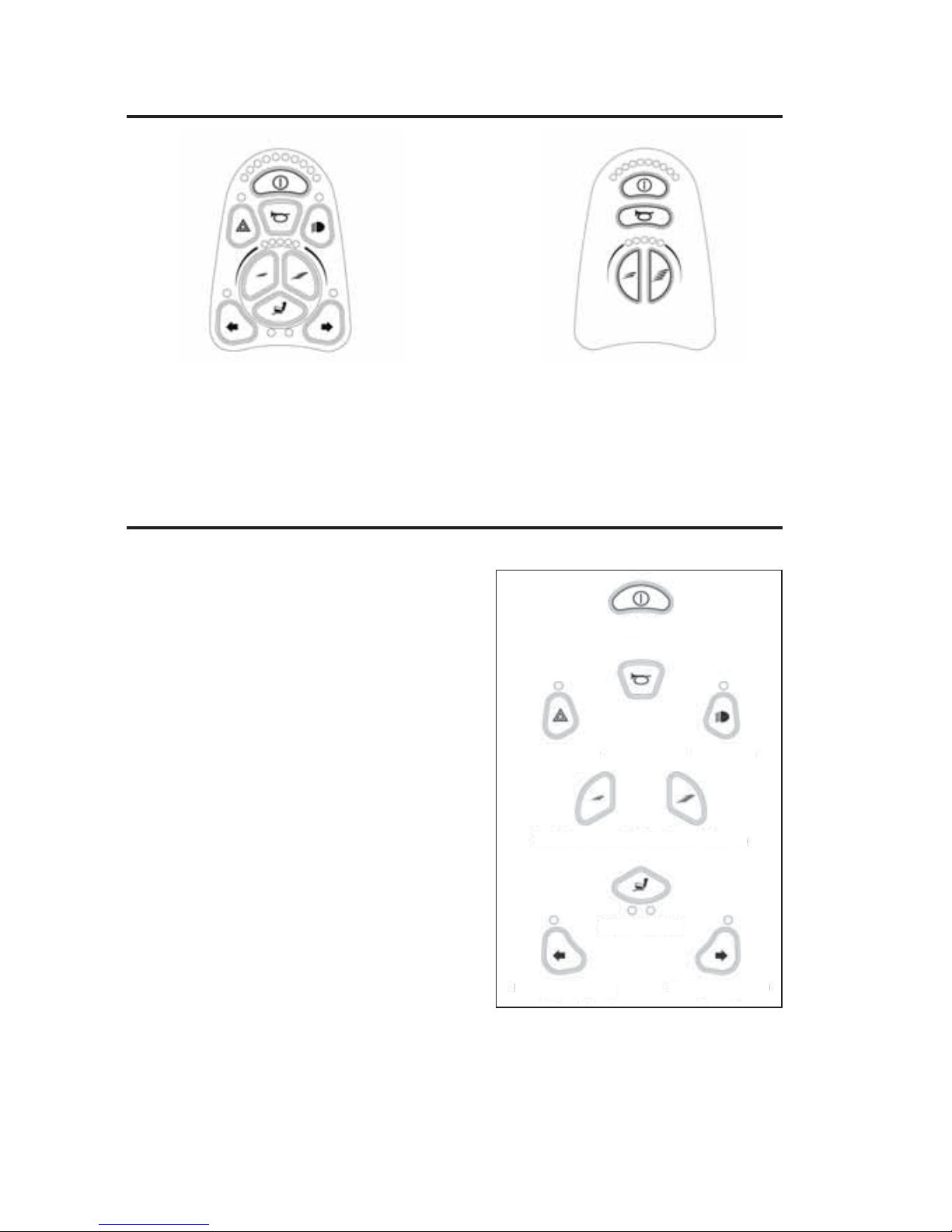

VR-2
Control panel with lighting
and seat functions.
Control panel without
lighting and seat functions.
On / Off
Horn
Lighting *)Warning Lights *)
Seat functions**)
Directional lights*) Directional lights*)
Increase / decrease max. speed setting
Function keys
There are up to 10 function
keys on the control panel.
The number of function keys /
indicator lights differs depending
on your chair's equipment level.
5
R-NET

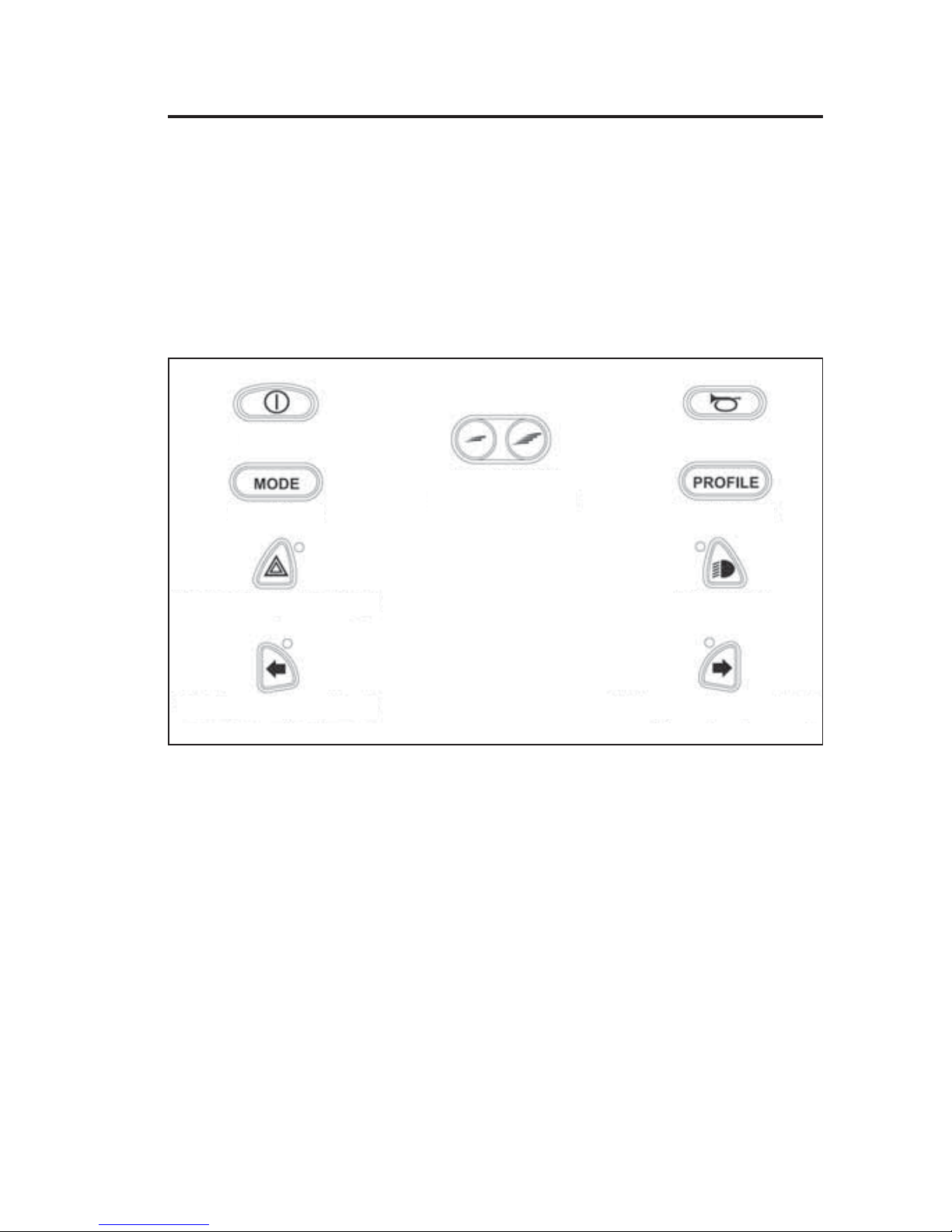

On / Off
Profile / Side view
Horn
Warning lights*) Lighting*)
Mode / Level
Directional lights, left*) Directional lights*)
Increase / decrease
max. speed
There are a total of 10 function keys on the control panel.
6
The electronics in the control panel "interprets" the joy-
stick's movements and directs the motions the operator
wants the wheelchair to make. There are no complicated
user techniques for normal riding, which is an advantage for
an inexperienced user. A good way to start is simply to
move the joystick in the direction in which you want to
move. The wheelchair then rolls where the joystick points.
2. DRIVING TECHNIQUE
WATCH OUT!
Always remember to move slowly and to avoid hard
braking and abrupt sideways movements.

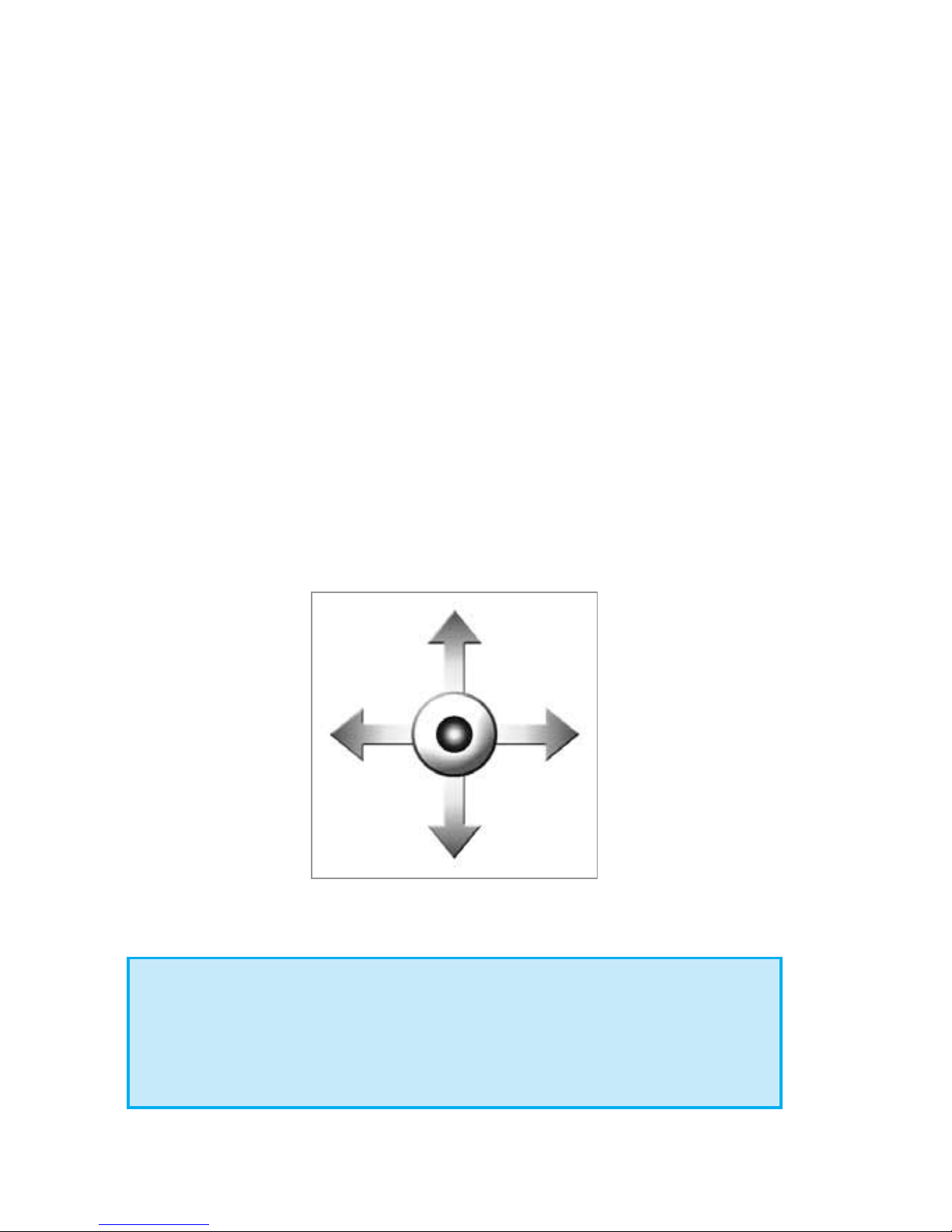

Going forward
Backing up
Turning rightTurning left
7
Permobil does its best to adjust the arm and leg supports to
suit the user. Your dealer is responsible for making the
definitive adjustments upon delivery.
3. ADJUSTING ARM AND
LEG SUPPORTS
1. Setting the height 2. Setting the angle /depth

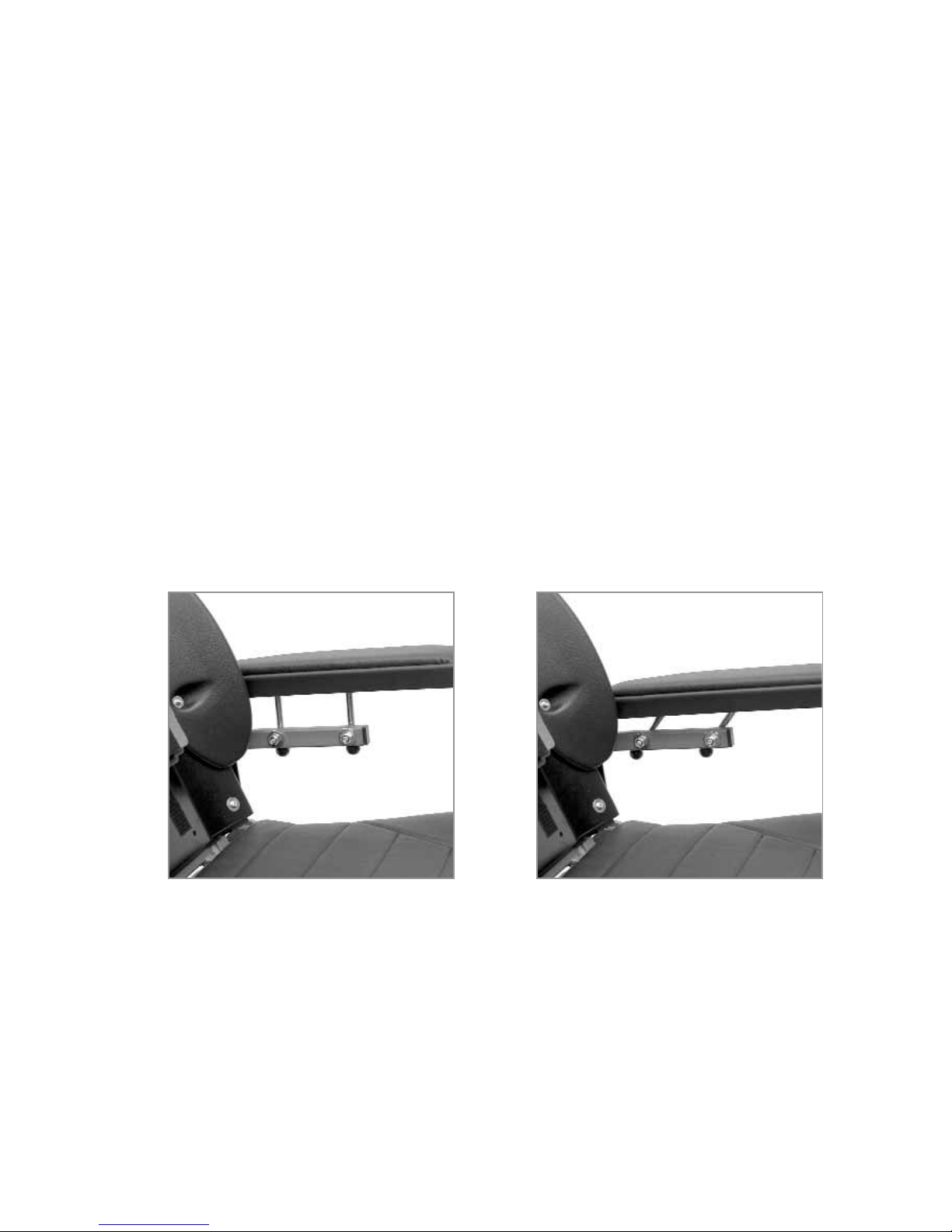

Adjusting the armrests
8
Batteries must be charged regularly to obtain the best possible
riding time per charge and to ensure long operational life.
Always turn off the wheelchair when not in use and do not
empty the batteries completely. Make a habit of charging the
batteries whenever you are not using the wheelchair.
You can tell whether the batteries need charging by looking
at the battery voltage on the control panel. Should your
batteries become completely empty it is important to recharge
them right away because being fully discharged shortens the
batteries' operational life. The charger connection point is
right above the batteries on most of our wheelchairs.
4. CHARGING THE BATTERIES
The charger connection
point for C500 + C400
WATCH OUT!
Do not put anything on the charger, it can get hot!
There should be free space around the charger on
all sides.

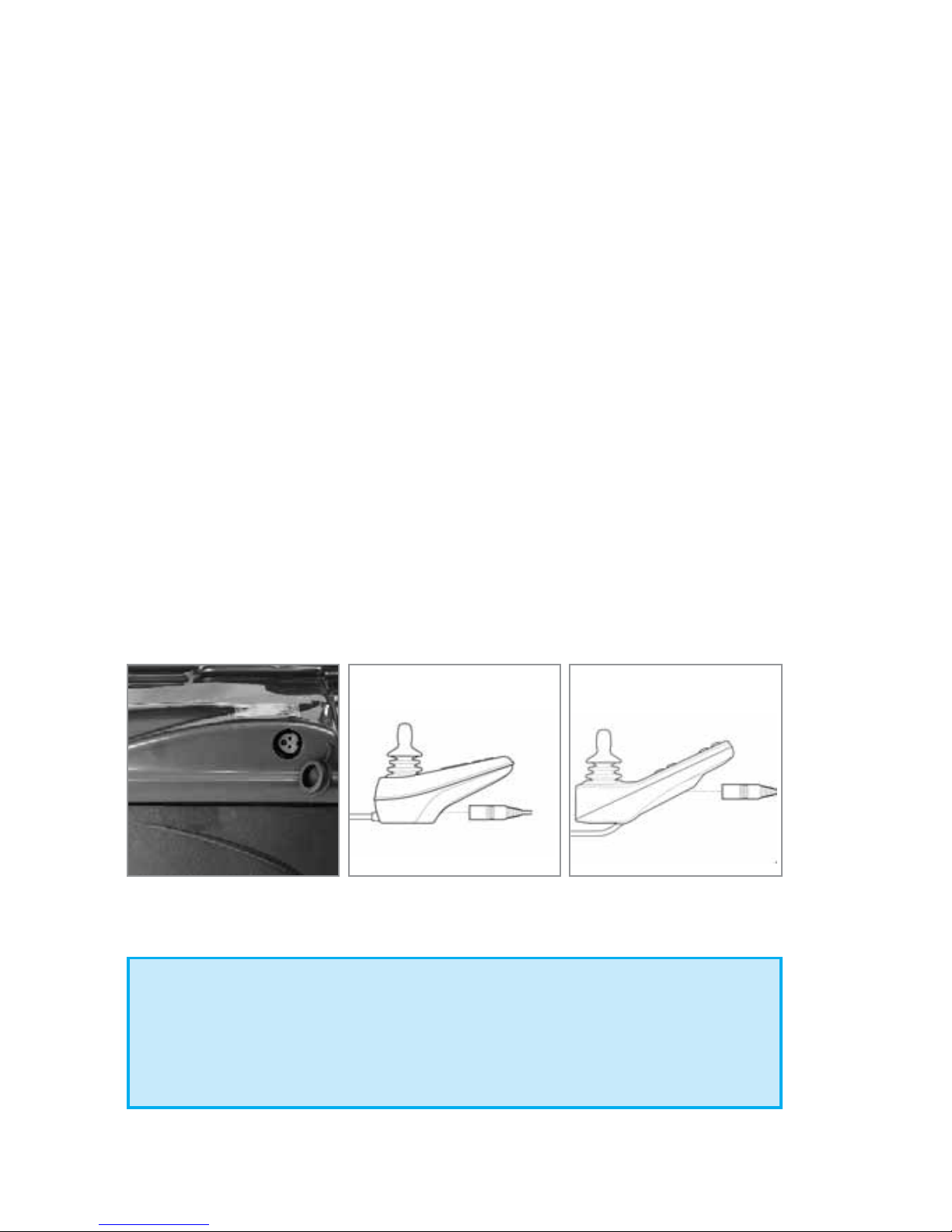

Connection point for the
VR2 control panel
Charger connection point
for the R-Net control panel
