Pettec Modular Spray Trainer Manuale utente

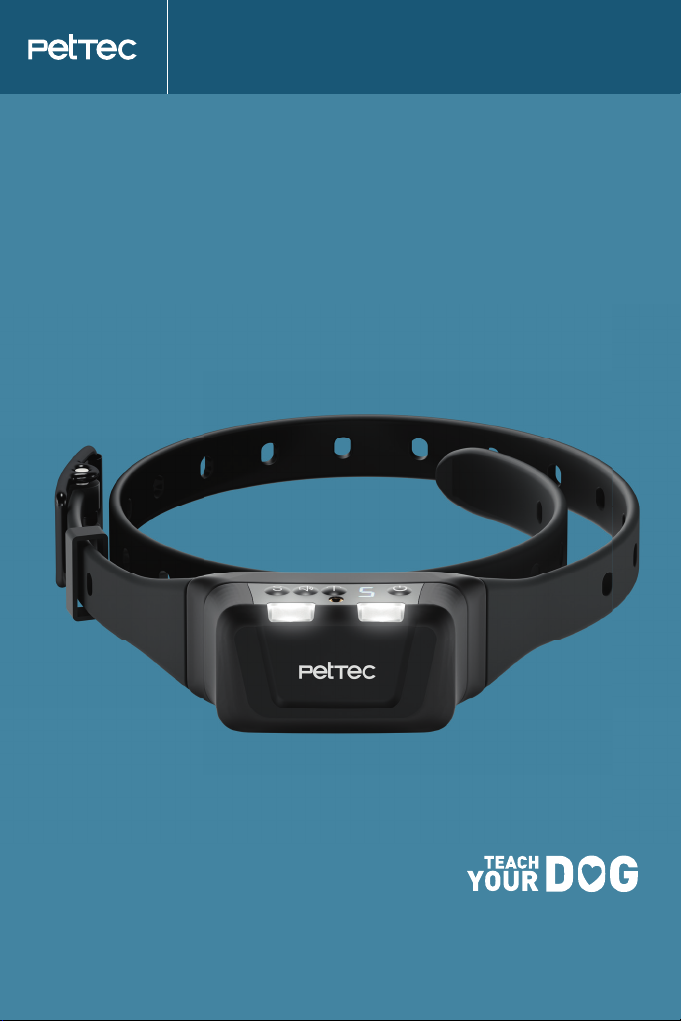

Modular Spray Trainer
Sprayhalsband für Anti-Bell- und Ferntraining | Spray collar for anti-bark and
remote training1 | Collier spray pour dressage anti-aboiements et distance1
1Durch Zukauf einer Modular Remote Fernbedienung
1By purchasing a Modular Remote | En achetant une télécommande Modular Remote
For a rewarding
relationship
2
3
Table of contents
4
5
6
8
10
11
12
13
16
16
17
Introduction
Product overview
Initial operation
Application
Charging the battery
Charging the Modular Spray Trainer
Proper dog training
Connecting the remote and trainer
FAQ’s
Customer Service
Explanation of symbols and terms
4
Introduction
Thank you for choosing our product. The Modular Spray Trainer is a brand
new effective aid for correcting unwanted behaviour of your dog.
Important
• Read the instructions and safety instructions before using the product.
• The Modular Spray Trainer can also be used as a remote trainer in
conjunction with a Modular Remote (sold separately). Without this
remote control, it automatically reacts to your dog’s barking (anti-bark
mode) and emits a spray signal.
Good to know
• In the following, the Modular Spray Trainer means the training collar
and the Modular Remote the remote control.
• In the following, we will talk about remote training if the training collar
is operated manually using the separately available remote control.
• The anti-bark mode describes the function in which the collar
responds to a dog’s barking.
Safety information
For safe initial operation, please note the following:
• Our products are designed exclusively for training dogs.
• Only suitable for targeted training units and not for continuous use
(max. 1-2 h per day).
• Keep away from children.
• Do not unscrew or modify the device yourself.
• Do not expose the device to hot sources such as fire or prolonge
direct sunlight.
• Do not immerse the device in water or other liquids.
5
Übersicht des Trainers
Search lights
Spray nozzle
On/off switch
Display
Adjustment buttons
Microphone (for barking detection)
Micro USB charging port
Device Overview
Package contents
• Modular Spray Trainer + collar
• Micro USB charging cable
• Instructions
• Spray refill
4
1
6
1
2
5
3
6
4
7
7
3
2
Note: The full range of functions of the product can only be obtained with the
Modular Remote, which is available separately.
5
Technical specifications
Single Modular Spray Trainer with anti-bark function
Modular Spray Trainer in combination with Modular Remote
5 spray levels
5 sound signals
5 levels of sensitivity
≤120 sprays/filling
IP65 water protection
< 2h charging time
Training at a distance of 600m
2 dogs can be trained in parallel*
Up to 10 days of battery life
Incl. spray
Microphone (barking detection)
Weight: 144 g
Neck size: 20-67cm
Dimensions: 79 x 33 x 36 mm
Searchlight at the push of a button
*Control 2 collars simultaneously via the remote control.
6

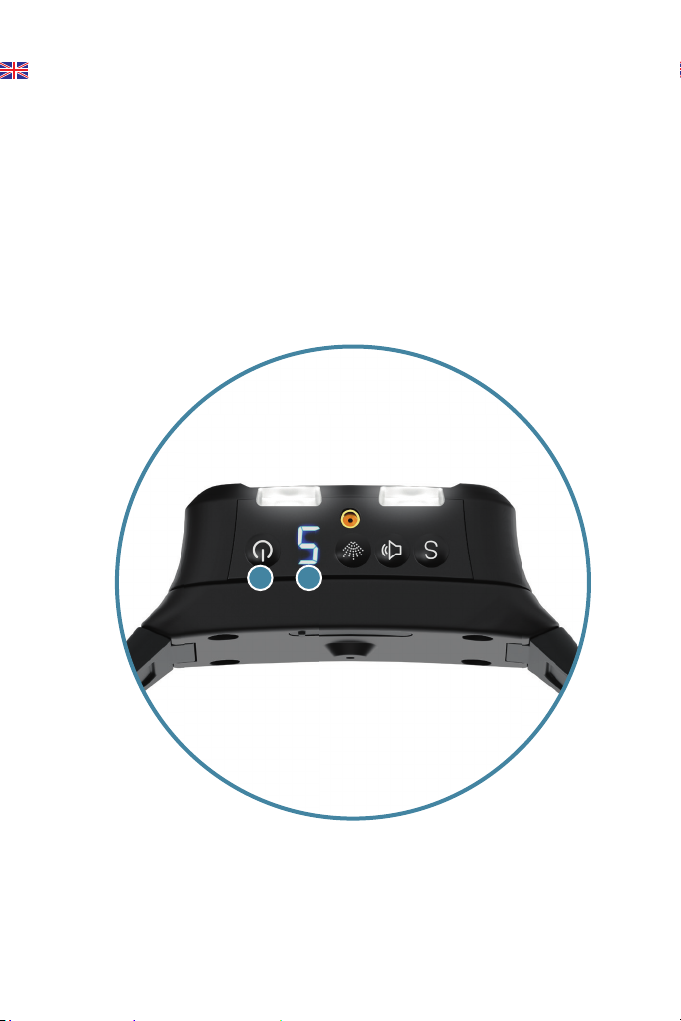

Initial operation
To switch off the Modular Spray Trainer, the switch-off button must be
pressed for several seconds until you hear a beep.
The trainer is activated by pressing the power button (about 3 seconds)
and a number in blue can be seen on the display. This number represents
the current battery level and can vary between 0 and 5. A »0« indicates
the weakest battery level, whereas a »5« means that the battery is fully
charged.
1 2
7

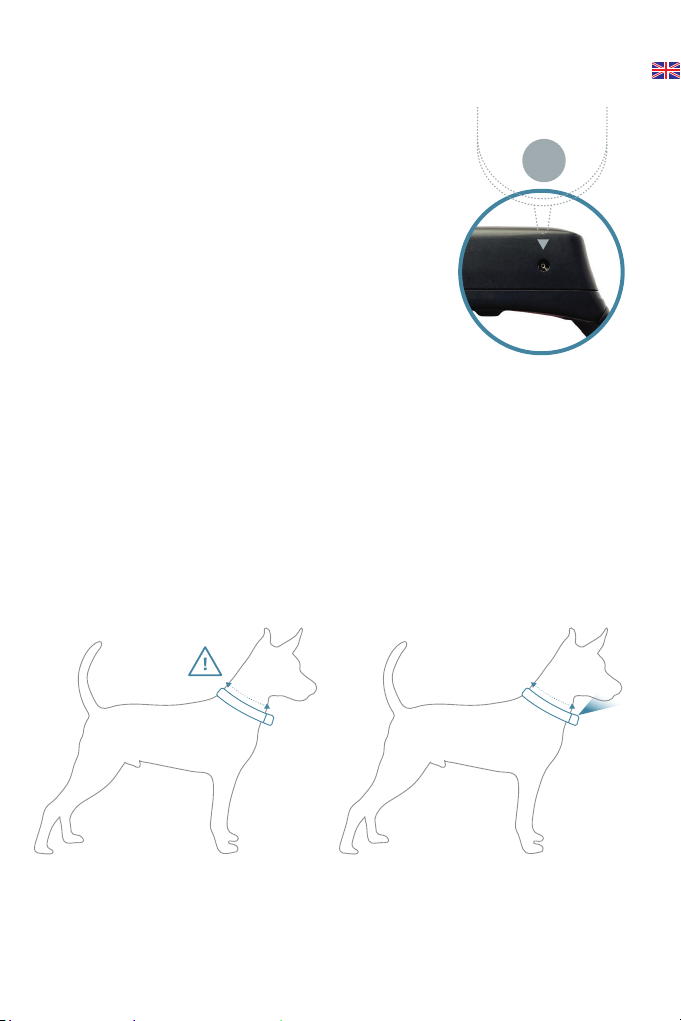

Filling the training collar
The Modular Spray Trainer must be turned off
before filling with spray. Place the filling spout
positioned vertically on the filling valve. When the
filling spout is positioned correctly, fill the trainer
by pressing it down lightly for 15 seconds.
Note: To completely empty the tank of the PetTec
Modular Spray Trainer, press down lightly on the
filling valve with a screwdriver.
Attaching the collar
The collar must be properly secured so that the spray signal will be effective.
You can test for a proper fit by ensuring that you can fit one or two fin-
gers beneath the collar. The optimal position of the PetTec Modular Spray
Trainer is directly under the dog’s nose.
Be careful that the collar is not too tight, but do not allow it to slip; otherwise
the spray signal will not be effective.
15 Sec.
8
Application
Microphone sensitivity adjustment button
The Modular Spray Trainer has 5 different sensitivity levels, which
can be adjusted with the help of the setting button. At level 5, the
trainer is most sensitive to barking, whereas level 1 is the least
sensitive setting.
Tone level setting button
The Modular Spray Trainer offers 5 different tone levels. Level
1
is
the shortest tone signal, while
5
is the most intense and longest
tone level. If level 0 is selected, the training signal is switched off.
Spray strength setting button
Overall, the Modular Spray Trainer offers exactly 5 different spray
intensities. 1 is the lowest spray intensity, level 5 the strongest
spray level. If level 0 is selected, the training signal is switched off.
12 3
1
2
3
9
Individually suitable training signal strengths
The Modular Spray Trainer offers 5 different training signal levels, with
level 1 being the weakest signal and level 5 being the strongest. The
right training signal level for your dog, whether sound or spray signal,
depends on the temperament and the sensitivity to the respective signal.
Therefore, always start with the weakest level and work your way up until
you have found the right strength. Your dog shows a slight reaction when
the appropriate training signal level has been found. One of these reactions
can be seen, for example, by the tension in the neck muscles. If the training
signal remains unnoticed, a higher level is necessary.
Maximum range in connection with the separately available Modular
Remote* control
The Modular Spray Trainer in conjunction with the Modular Remote can
transmit training signals over a distance of 600 m. The range may vary
depending on the environment. To maximise the range, the remote control
can be held up higher. In conjunction with the remote control, the Modular
Spray Trainer no longer reacts to your dog’s barking, but only to the push of
a button on the remote control.
*Modular Remote is sold separately.
10
Charging the battery
• Charge the battery fully before the first use; this can take up to 4 hours.
• Do not charge the battery near flammable substances.
• The device’s battery must be fully charged if it was last used more than
three months ago.
The battery requires charging when:
• a »1« can be seen on the display of the trainer during operation.
• the spray is weaker than usual (unless you need to refill spray).
• the trainer can no longer be switched on.
• a »1« or »0« can be seen on the display.
The charge status of the battery can be tracked using the display. The hig-
her the number on the display, the more fully the battery is charged. The
Modular Spray Trainer is thus fully charged when a »5« can be seen on the
display.
Important notes
• The Modular Spray Trainer is only partially charged when shipped. The
first full battery charge takes up to 4 hours.
• The trainer can be used with any commercially available micro USB
charger.
012345
Battery
empty Battery
low Battery
full
