PEUGEOT PARTNER Tepee Manuale utente

PARTNER TEPEE ELECTRIC

PARTNER ELECTRIC

HANDBOOK – SUPPLEMENT

Access to the Handbook online

The Handbook is available on the PEUGEOT website, in

the "Personal space" section or at the following address:

http://public.servicebox.peugeot.com/ddb/

This symbol indicates the latest information

available.

Direct access to the Handbook.

Select:

-the language,

-the vehicle, its body style,

-the print edition of your handbook appropriate for the date

of 1st registration of your vehicle.

Contents

Instrument panel 3

Indicators 3

Warning and indicator lamps 6

Displays 7

Starting procedure 8

Eco-driving 10

Eco-comfort 11

Manual air conditioning and heating 12

Charging the traction battery 14

Normal charging procedure 20

Fast charging procedure 22

Other information 24

Ancillaries battery 27

Fuses 30

Towing the vehicle 30

Motor and traction battery 31

Identication markings 32

Presentation

Instruments and controls

Eco-comfort

Charging the traction battery

Supplement for electric mode

Ancillaries battery

This supplement is specific to the electric

drive mode. For any other information, refer

to the vehicle's handbook and the warranty

and maintenance guide. You can also visit

the manufacturer's website for the latest

information.

The driver must be particularly vigilant

when driving the electric vehicle as it

makes very little noise when moving.

Key

Safety warning

Additional information

Warning of safety issues for people

and equipment.

For any work on your vehicle, go to a qualified

workshop that has the technical information,

competence and equipment required, which

the Manufacturer's dealer network is able to

provide.

Contents

Presentation

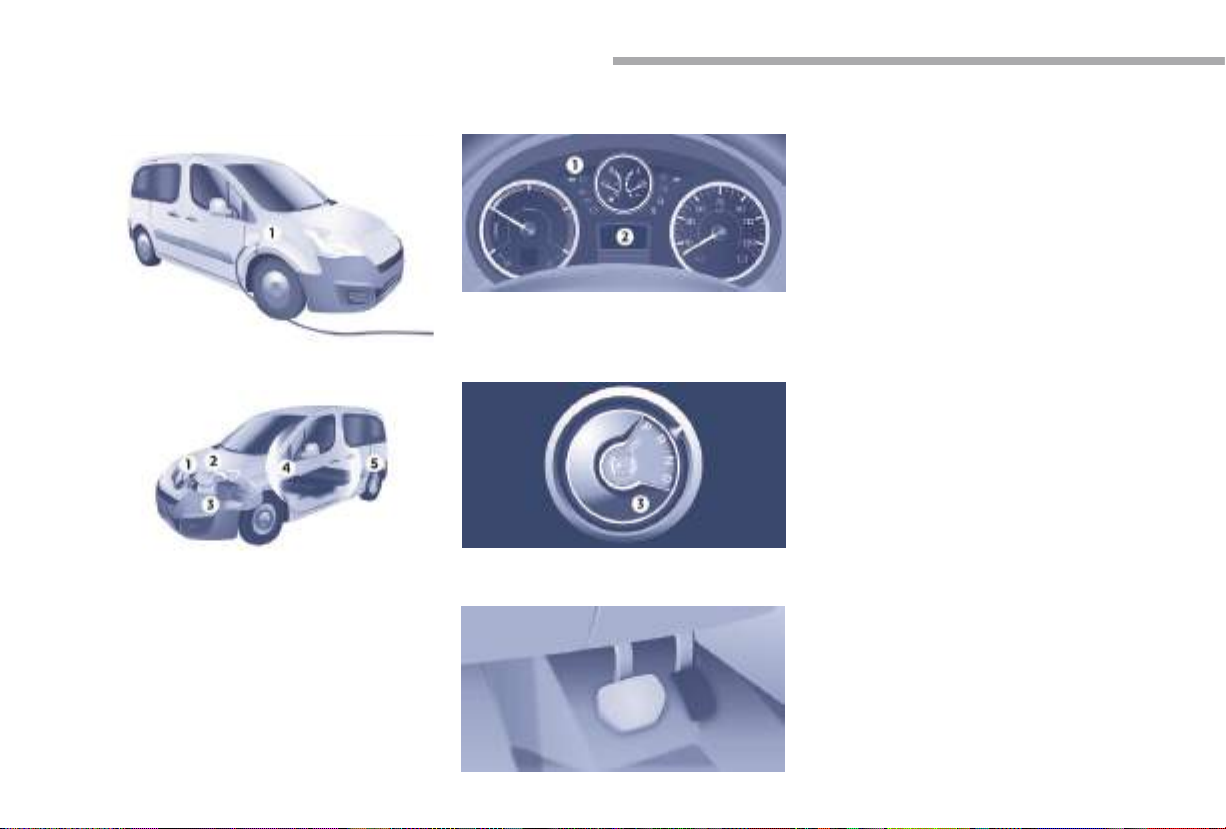

Electrical system

1. Normal charging socket

2. 300 Volt electrical system

3. 12 Volt ancillaries battery

4. Traction battery

5. Fast charging socket

Instruments and controls

1. Instrument panel

2. Display screens

3. Drive selector

Instruments and controls

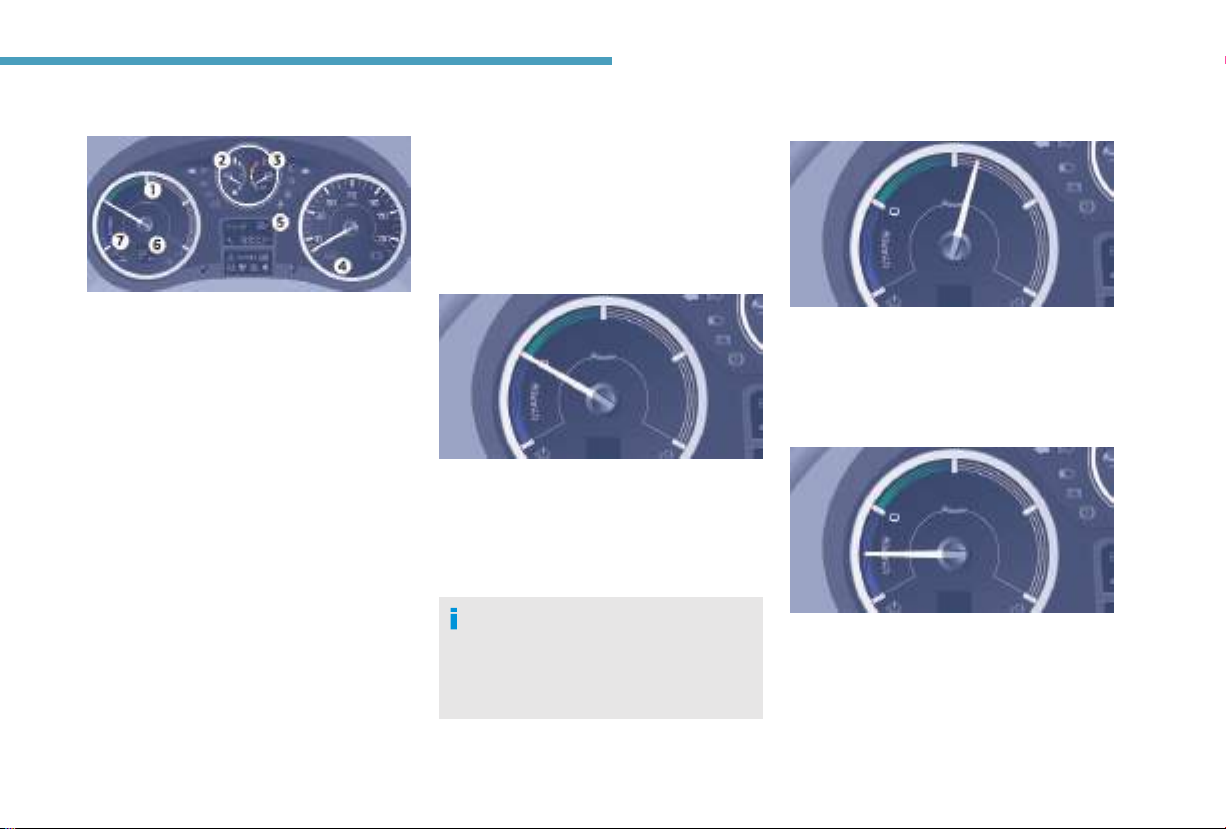

Instrument panel

1. Current energy consumption and

generation indicator

2. Traction battery state of charge indicator

3. Heating and air conditioning systems

energy consumption indicator

4. Ready lamp

5. Estimated remaining range

6. Drive selector position

7. Warning lamps specific to the electric

motor

Indicators

Traction battery – Energy

consumption and

generation indicator

Neutral position

With the motor stopped and the ignition

off, opening the driver's door activates the

energy indicator, which places itself in the

"neutral" position.

Energy consumption

"Charge" zone

On switching on the ignition, your vehicle

neither consumes nor generates energy

through its electric drive train: after sweeping

over its range, the needle settles in the

"neutral" position.

The needle moves to the right, in proportion to

the consumption of energy by the drive train.

The needle moves to the left, in proportion

to the level of charge going into the traction

battery, during periods of deceleration and

braking.

Instruments and controls

"Optimum" zone

The needle is in this zone when the vehicle is

used in a way that moderates the consumption

of electric energy and optimises its range.

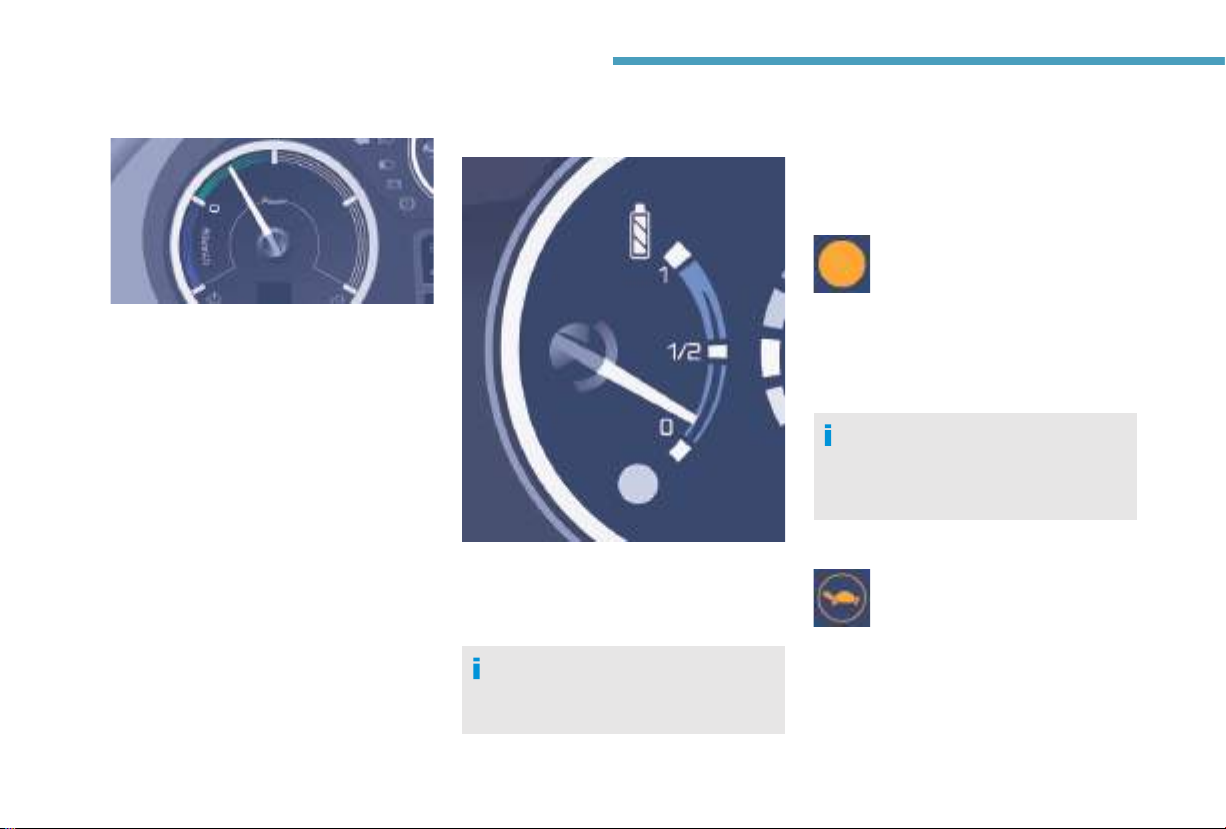

Traction battery – State of

charge indicator

With the motor stopped, ignition off,

opening the driver's door activates the

indicator.

The state of charge of the traction battery is

displayed continuously when the vehicle is

switched on.

Low energy alerts

Two successive energy level alerts indicate that

the energy available has dropped to a low level:

1st level: Reserve

This warning lamp comes on when

the state of charge of the traction

battery is low. Illumination of this

warning lamp is accompanied by an

audible signal.

Check the remaining range indicated in the

instrument panel screen.

Put the vehicle on charge as soon as possible.

From this state of charge of the battery,

the level of heating or air conditioning is

progressively reduced.

2nd level: Critical

This warning lamp, associated with

the reserve warning lamp, comes

on in the instrument panel when

the state of charge of the traction

battery is critical. Illumination of this

warning lamp is accompanied by a

repetitive audible warning.

Put the vehicle on charge.

Instruments and controls

The remaining range is no longer

calculated. The power of the drive train is

progressively reduced.

The heating and air conditioning are

stopped (even if the needle that indicates

consumption is not in ECO mode).

Heating and air

conditioning systems

energy consumption

indicator

Excessive use, particularly at low speeds,

can reduce the range of your vehicle

considerably.

Remember to optimise their use and

check their settings at each start so as to

maximise the range of the vehicle.

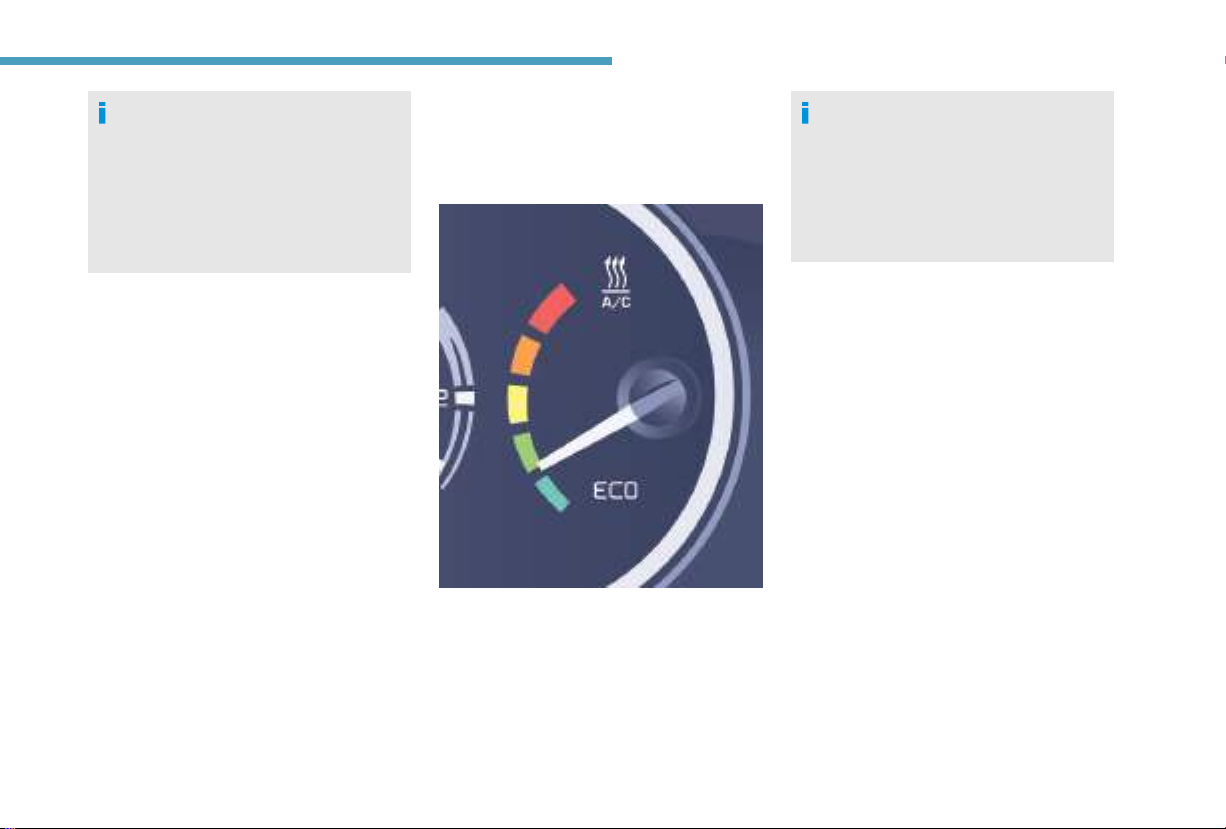

This gauge represents the consumption of

electrical energy related to the heating and air

conditioning.

Instruments and controls

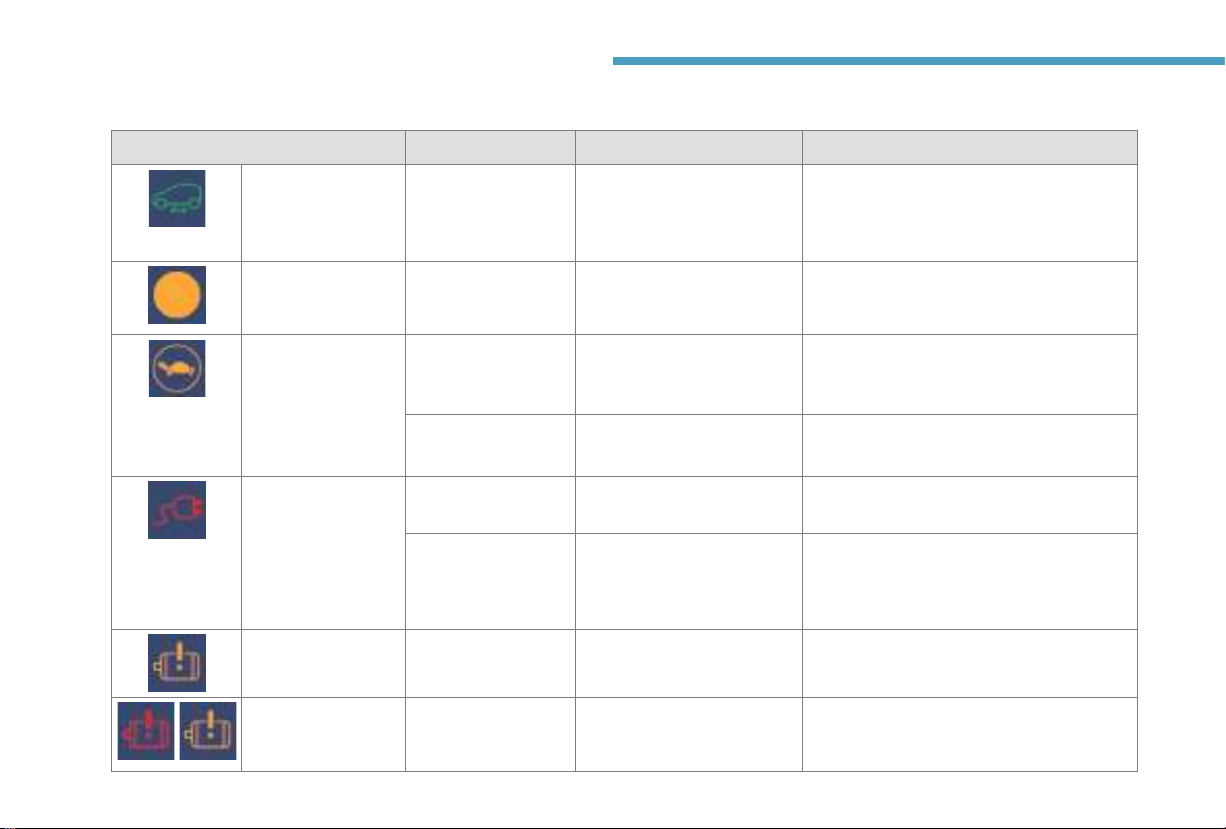

Warning and indicator lamps

Lamp State Cause Actions/Comments

Ready On, accompanied by

an audible signal when

it comes on.

The vehicle is ready to drive. The lamp is on while the vehicle is powered up.

You can press the accelerator and use the air

conditioning or heating.

Reserve On, accompanied by

an audible signal. The state of charge of the

traction battery is low. Check the remaining range.

Put the vehicle on charge as soon as possible.

Traction battery

protection On, accompanied by

a repetitive audible

signal.

The state of charge of the

traction battery is critical. In the event of the battery level becoming

critical, motor power is gradually reduced.

You must put the vehicle on charge.

On. Maximum motor power is not

available. If the warning lamp does not go off, contact a

dealer or a qualified workshop.

Traction battery

charge On. The traction battery is on

charge. The lamp goes off once charging is complete.

Flashing. The vehicle cannot be started

as the charging cable is still

connected to the vehicle's

socket.

Check the charging cable connection.

Disconnect the charging cable.

Main electric

system auto-

diagnostics

On. Fault detected in the main

electrical system. Have it checked by a dealer or a qualified

workshop as soon as possible.

Incident in the drive

train On. You must stop as soon as it is safe to do so.

Have it checked by a dealer or a qualified

workshop as soon as possible.

Instruments and controls

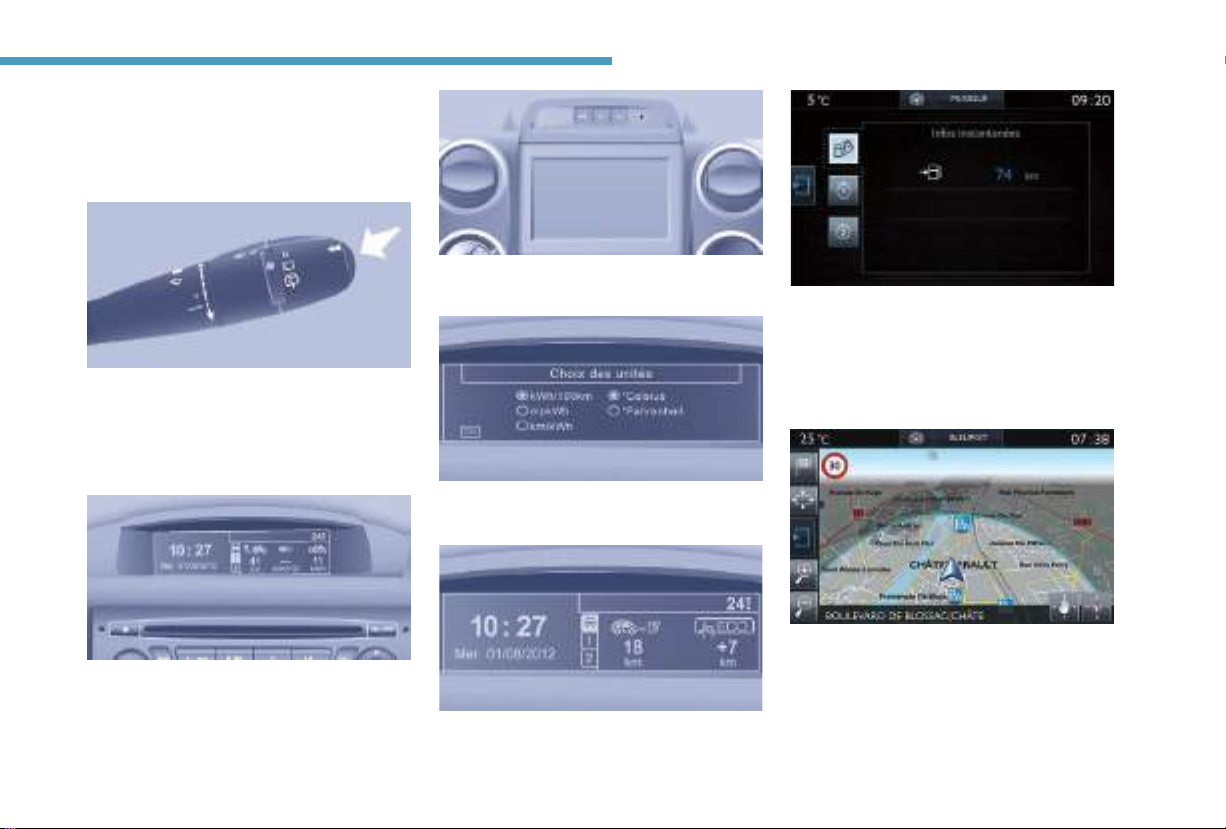

Displays

Screen (depending on

equipment level)

Setting the units

Range

Each press of the button on the end of the

windscreen wiper stalk allows you to scroll

through the various trip computer information

displays, depending on the screen.

The screen shows:

- the estimated range remaining,

-the additional range available by using

the ECO mode on the heating and air

conditioning control panel,

With navigation, the driving range area is

displayed on the map.

Instruments and controls

Starting procedure

Starting the vehicle

- To start the vehicle, the drive

selector must be in position P,

- press the brake pedal,

-turn the ignition key in the

switch.

Ready

This indicator lamp comes on when

the vehicle is ready to drive.

-Press the brake pedal,

-select Ror D,

-release the brake pedal and press the

accelerator pedal to move off.

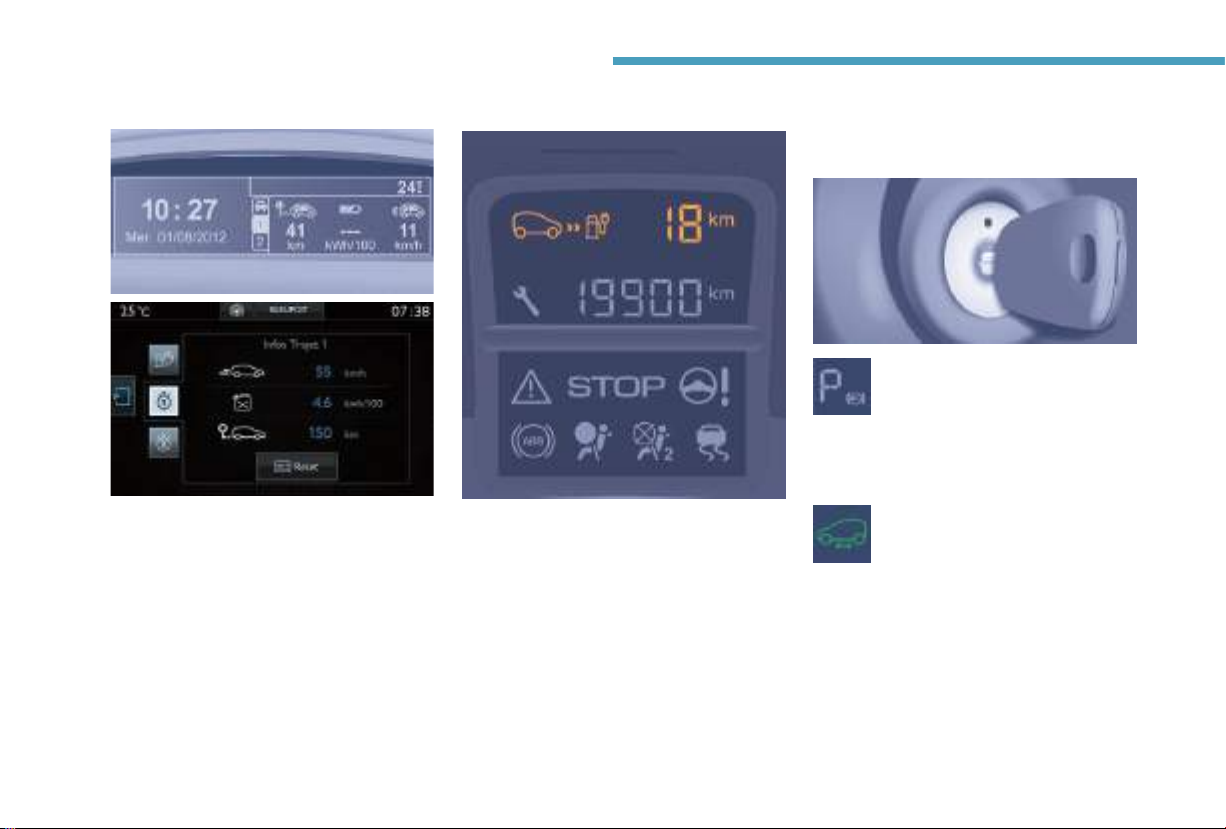

Instrument panel

The screen shows:

-a trip distance recorder (choice of trip 1 or 2),

-the average energy consumption from the

battery (over 62 miles (100 km)),

-The average speed since the start of the

trip.

This screen displays an estimated driving

range in miles or kilometres before the battery

has to be charged.

Trips (1 and 2)
