Pfeiffer Vacuum ES 25S Manuale utente

OPERATING INSTRUCTIONS

Translation of the Original

ES 25S

External Silencer

Disclaimer of liability

These operating instructions describe all models and variants of your product. Note that your

product may not be equipped with all features described in this document. Pfeiffer Vacuum

constantly adapts its products to the latest state of the art without prior notice. Please take

into account that online operating instructions can deviate from the printed operating

instructions supplied with your product.

Furthermore, Pfeiffer Vacuum assumes no responsibility or liability for damage resulting from

the use of the product that contradicts its proper use or is explicitly defined as foreseeable

misuse.

This document is the intellectual property of Pfeiffer Vacuum and all contents of this

document are protected by copyright. They may not be copied, altered, reproduced or

published without the prior written permission of Pfeiffer Vacuum.

We reserve the right to make changes to the technical data and information in this document.

2/18

Table of contents

1 About this manual 4

1.1 Validity 4

1.1.1 Applicable documents 4

1.1.2 Products concerned 4

1.2 Target group 4

1.3 Conventions 4

1.3.1 Pictographs 4

1.3.2 Instructions in the text 4

1.3.3 Abbreviations 5

1.3.4 Labels 5

2 Safety 6

2.1 General safety information 6

2.2 Precautions 6

2.3 Safety instructions 7

2.4 Intended use 7

2.5 Foreseeable misuse 7

3 Product description 8

3.1 Product identification 8

3.1.1 Scope of delivery 8

3.1.2 Function 8

3.2 Storage 8

4 Installation 9

4.1 Assembly direction 9

4.2 Installation on the pump 10

5 Use 12

6 Maintenance 13

6.1 Maintenance safety instructions 13

6.2 Disassembly 13

6.3 Cleaning 13

6.4 Disposal 14

6.5 Reassembly 14

7 Spare parts 15

8 Technical data and dimensions 16

8.1 Technical characteristics 16

8.2 Dimensions 16

Table of contents

3/18

1 About this manual

IMPORTANT

Read carefully before use.

Keep the manual for future consultation.

1.1 Validity

This operating instructions is a customer document of Pfeiffer Vacuum. The operating instructions de-

scribe the functions of the named product and provide the most important information for the safe use of

the device. The description is written in accordance with the valid directives. The information in this op-

erating instructions refers to the product's current development status. The document shall remain valid

provided that the customer does not make any changes to the product.

1.1.1 Applicable documents

Operating instructions Part Number

Dry compact multi-stage Roots pump ACP 15 123884 1)

Dry compact multi-stage Roots pump ACP 15 V2 128853 1)

Dry compact multi-stage Roots pump ACP 28-40 112369 1)

Dry compact multi-stage Roots pump ACP 28-40 V2 128852 1)

1) also available at www.pfeiffer-vacuum.com

1.1.2 Products concerned

This document applies to products with the following part numbers:

Part Number Description

109873 ES 25S External silencer

1.2 Target group

This user manual is intended for all persons in charge of transport, installation, commissioning/decom-

missioning, use, maintenance or storage of the product.

The work described in this document must only be carried out by persons with suitable technical training

(specialized staff) or persons who have undergone Pfeiffer Vacuum training.

1.3 Conventions

1.3.1 Pictographs

Pictographs used in the document indicate useful information.

Note

Tip

1.3.2 Instructions in the text

Usage instructions in the document follow a general structure that is complete in itself. The required ac-

tion is indicated by an individual step or multi-part action steps.

About this manual

4/18

Individual action step

A horizontal, solid triangle indicates the only step in an action.

►This is an individual action step.

Sequence of multi-part action steps

The numerical list indicates an action with multiple necessary steps.

1. Step 1

2. Step 2

3. ...

1.3.3 Abbreviations

EMC Electromagnetic Compatibility

ES External Silencer

Exh. Exhaust

IN Inlet flange

1.3.4 Labels

P/N :

Qty : 1 PM

Manufactured : 21-Aug-2022

SILENCIEUX EXTER ES

109873

109873DFSEF

Product signage plate (example)

FLOW

PUMP PORT

RESPECT PARTS ASSEMBLING ORDER

(CARTRIDGE - VALVE - SPRING)

This label indicates:

● the ES direction of assembly.

● that the assembly order of parts should be respected.

FLOW

PUMP PORT

RESPECT PARTS ASSEMBLING ORDER

(CARTRIDGE - VALVE - SPRING)

Fig. 1: Location of safety labels

About this manual

5/18

2 Safety

2.1 General safety information

The following 4 risk levels and 1 information level are taken into account in this document.

DANGER

Immediately pending danger

Indicates an immediately pending danger that will result in death or serious injury if not observed.

►Instructions to avoid the danger situation

WARNING

Potential pending danger

Indicates a pending danger that could result in death or serious injury if not observed.

►Instructions to avoid the danger situation

CAUTION

Potential pending danger

Indicates a pending danger that could result in minor injuries if not observed.

►Instructions to avoid the danger situation

NOTICE

Danger of damage to property

Is used to highlight actions that are not associated with personal injury.

►Instructions to avoid damage to property

Notes, tips or examples indicate important information about the product or about this docu-

ment.

2.2 Precautions

Duty to provide information on potential dangers

The product holder or user is obliged to make all operating personnel aware of dangers

posed by this product.

Every person who is involved in the installation, operation or maintenance of the product

must read, understand and adhere to the safety-related parts of this document.

Infringement of conformity due to modifications to the product

The Declaration of Conformity from the manufacturer is no longer valid if the operator

changes the original product or installs additional equipment.

●Following the installation into a system, the operator is required to check and re-evalu-

ate the conformity of the overall system in the context of the relevant European Direc-

tives, before commissioning that system.

Installation and maintenance procedures described in this manual must be performed by qualified tech-

nicians trained in the relevant health and safety aspects (EMC, electrical safety, chemical pollution). Our

service centers can provide the necessary training.

►Do not expose any part of the human body to the vacuum.

►Comply with all safety and risk prevention instructions in accordance with local safety standards.

►Regularly check compliance with all precautionary measures.

►The protections provided by the pump are not guaranteed if the pump is used in a manner not

specified in this manual.

Safety

6/18

►Do not remove the blanking plates sealing the inlet and exhaust ports if the product is not con-

nected to the pumping line.

►Do not operate the product unless the inlet and exhaust are connected to a vacuum and exhaust

pumping line.

2.3 Safety instructions

All safety instructions in this document are based on the results of the risk assessment carried out in

accordance with Machinery Directive 2006/42/EC Annex I and EN ISO 12100 Section 5. Where applica-

ble, all life cycle phases of the product were taken into account.

DANGER

Risk to the health in the event of contact with toxic substances

During pump disconnection, operator could be in contact with process residues on the exhaust that

could cause severe injury or death.

►Take the appropriate safety measures to prevent injury. Consult the department manager for in-

structions and safety information.

►Wear gloves, goggles, a respirator or other appropriate safety equipment.

►Ventilate well the premises or work under an extract hood.

►Do not dispose of residues in the usual network and, if necessary, seek a competent agency for

their destruction.

►Do not discard the used filter element in the usual network, seek a competent agency for its de-

struction.

►Set up the blanking plates at the inlet and exhaust of the pump (supplied with the product).

2.4 Intended use

The ES is used only to reduce the noise from the exhaust of multi-stage Roots pumps.

●The ES is only used with air-cooled multi-stage Roots pumps (ACP), with which it is compatible.

●The ES is installed at the exhaust of multi-stage Roots pumps, standard ACP type, SD, G models.

2.5 Foreseeable misuse

Misuse of the product will render the warranty and any claims void. Any use, whether intended or not,

that diverges from the uses already mentioned will be treated as non-compliant; this includes but is not

limited to:

●the connection of ACP multi-stage Roots pumps, CV model,

●connection of the pumps and devices for which it is not intended,

●connection of devices that are not electrically insulated,

●accessories or spare parts that are not mentioned in this manual,

●the use of an ES on the pumping applications of corrosive products,

●pumping applications for flammable products such as oxygen or silane,

●microelectronic applications, LPCVD, LTO because of the incompatibility of the filtration element,

●drying applications, lyophilization, pumping of condensable substances, impregnation using poly-

merizable resins, debubbling of monomers

Safety

7/18

3 Product description

3.1 Product identification

To correctly identify the product when communicating with our service center, always have the informa-

tion from the product rating plate available.

3.1.1 Scope of delivery

Delivered with Part Number

1 DN 25 ISO-KF centering ring -

1 DN 25 ISO-KF nitrile O-ring -

1 DN 25 ISO-KF quick-connect clamp -

1 DN 16 ISO-KF centering ring -

1 DN 25 ISO-KF nitrile O-ring -

1 DN 16 ISO-KF quick-connect clamp -

1 elbow fitting 104113

1 DN 25 ISO-KF / DN 16 ISO-KF straight reducer -

1 operating instruction manual -

3.1.2 Function

The ES, fitted to the exhaust of an ACP pump, significantly reduces the sound level when the pump

operates at high pressures on clean applications. Noise reduction reaches -12 dBA when the pump is at

atmospheric pressure.

The ES includes a safety valve calibrated at 500 relative hPa which prevents any overpressure in the

pump tank when the filtration element is saturated.

3.2 Storage

The filtration element inserted in the ES can absorb humidity.

If the new product is to be stored:

►Store the product in its original packaging in a clean, dry, and unpolluted environment.

►Store the product within the storage temperature range (+5 – +65 °C).

►Make sure the filtration element is not crushed during storage.

Before using the ES, ensure that the valve is not stuck to the filtration element.

If the product has been unpacked, used, or stored for a long duration (> 1 year):

►Proceed with replacing the filtration element.

Product description

8/18

4 Installation

WARNING

Outlet of toxic substances through the exhaust

Risk of poisoning by the gases or vapors released which, depending on the application, can be harm-

ful to health and/or pollute the environment.

►Comply with the regulations for handling toxic substances.

►Use only filtration devices authorized by public authorities to separate these substances.

General instructions for installing the pump in the pumping line in accordance with industry

best practices

1. Carry out installation on a stopped and switched off pump.

2. Use the connecting accessories supplied with the ES.

3. Only use accessories on the pumping line, for the inlet and exhaust lines, with materials and seal-

ing properties that are compatible with the gases being pumped. Refer to the connection accesso-

ries catalog available at the Pfeiffer-Vacuum website

4. When assembling the pumping line, include accessories for isolating the pump from the pumping

line and making maintenance easier to carry out (pump inlet and exhaust isolation valves, purge

valves, etc.).

5. Remove the blanking plates used to seal the inlet and exhaust ports.

4.1 Assembly direction

Install the ES at the pump exhaust, following the assembly direction (see label).

►Use the ES with the separator fitted with a DN 25 ISO-KF square end for the ACP 15 model.

If the ES is connected to a chimney or to an exhaust pipe, care must be taken that the pressure drop for

this equipment does not exceed 500 hPa.

Exh.

ACP15

Exh.

ACP28 / ACP 40

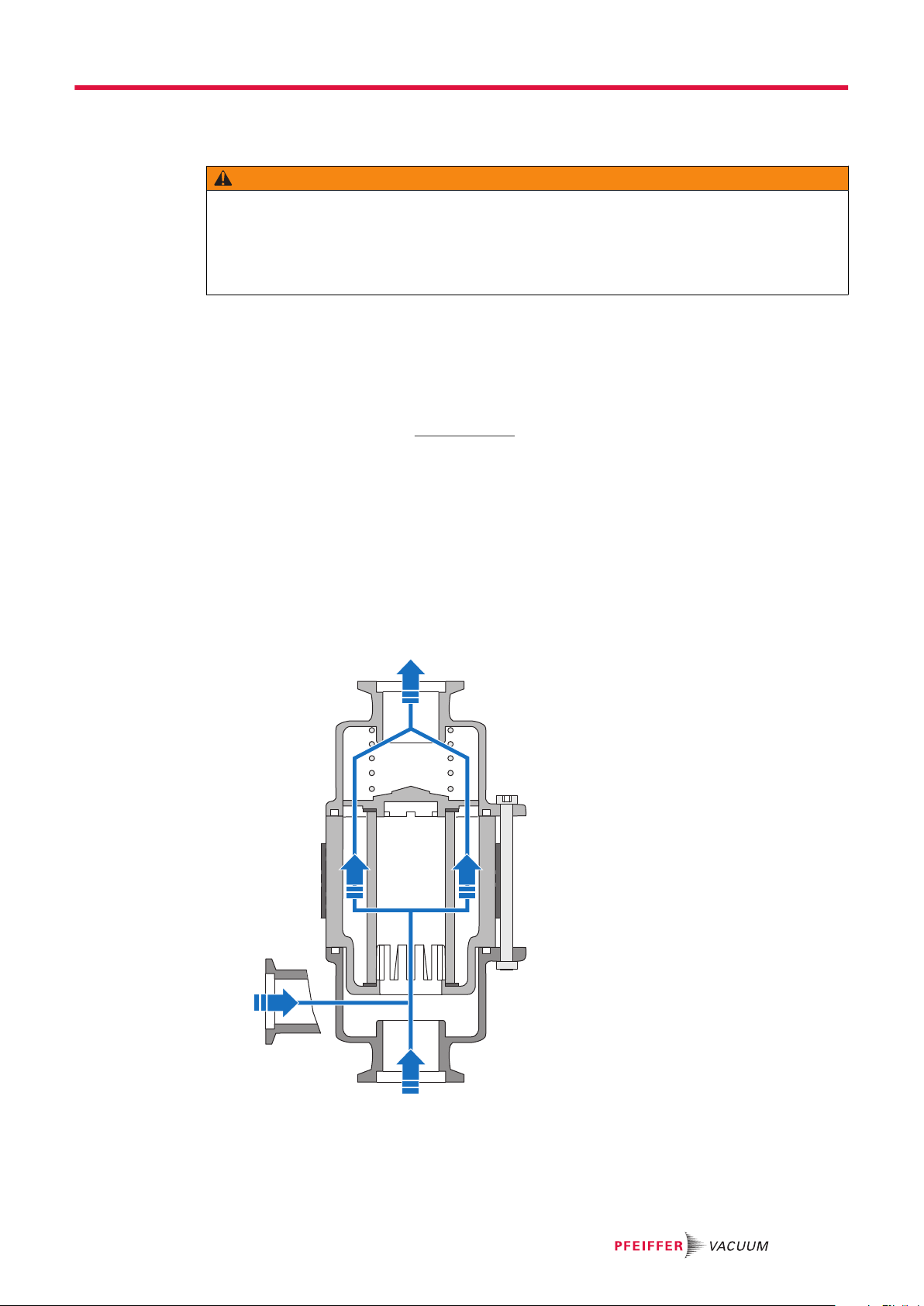

Fig. 2: Orientation of the external silencer

Installation

9/18

4.2 Installation on the pump

ACP 15

ACP 28 / ACP 40

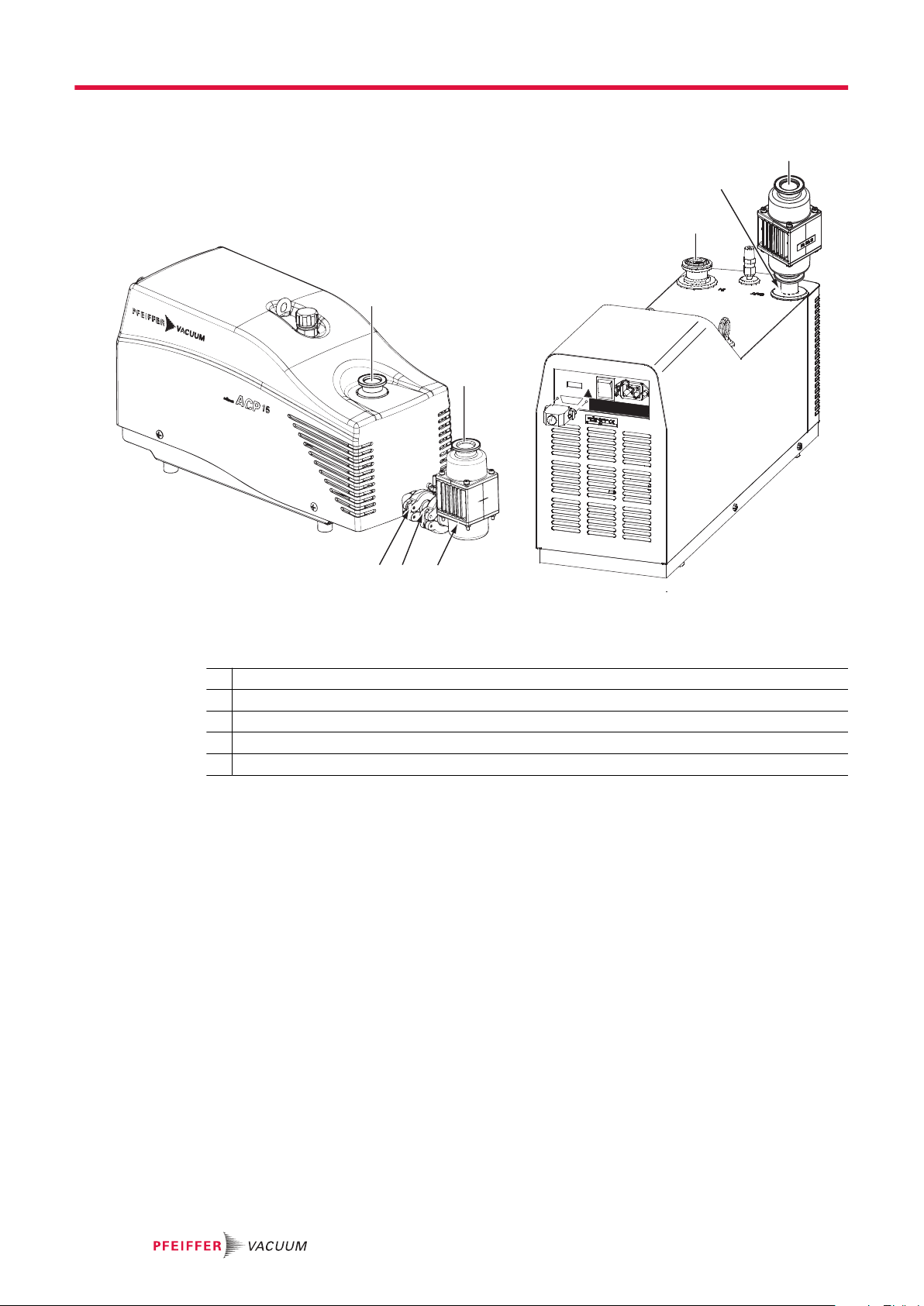

Fig. 3: Installing the ES 25S on the ACP 15 / ACP 28 / ACP 40 pumps

1 Pump inlet connection

2 Silencer exhaust

3 Separator fitted with a DN 25 ISO-KF square end (for adaptation on the ACP 15 model)

4 DN 25 ISO-KF / DN 16 ISO-KF straight reducer

5 Pump exhaust

Square end assembly procedure for installation on the ACP 15 pump

For assembly on the ACP 15, a square end must be used on the ES 25S and the DN 25 ISO-KF / DN

16 ISO-KF reducer.

1. Unscrew the 4 nuts of the 4 HSHC screws while pressing manually at each end of the ES 25S

(this is to avoid the sudden relaxation of the spring), and remove the 4 HSHC screws (see chapter

"Spare parts").

2. Remove the lower right end (side opposite the spring).

3. Replace the lower right end with the square end.

4. Assemble everything using the HSHC screws, washers, nuts, and apply a tightening torque of 2

N.m.

5. Assemble the DN 25 ISO-KF / DN 16 ISO-KF reducer, using the connection accessories supplied

with the ES 25S (see chapter "Scope of delivery").

6. Ensure the assembly is properly sealed.

Installation

10/18

Indice

Altri manuali Pfeiffer Vacuum Pompa dell'acqua

Pfeiffer Vacuum

Pfeiffer Vacuum DUO 11 DC Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum MVP 015-2 Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum HEPTA 450 L Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum HiCube Classic Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum OKTA 18000 Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum DUO 1.6 Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum TSH 071 E Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum MVP 160-3 Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum MVP 035-2 Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum SMARTVANE 55 Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum ACP 28R Manuale del proprietario

Pfeiffer Vacuum

Pfeiffer Vacuum OKTA 1000 ATEX Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum HEPTA DRY 400 P Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum ATP 1603 M Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum Pascal Series Specifiche tecniche

Pfeiffer Vacuum

Pfeiffer Vacuum OKTA 2000 ATEX Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum ACP 120G Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum UNO Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum HIPACE 300 PLUS Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum HEPTA DRY 100 Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum MVP 006-4 Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum adixen DRYTEL 1025 Series Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum Hipace 80 Manuale utente

Pfeiffer Vacuum

Pfeiffer Vacuum HiPace 2300 Manuale utente

Manuali Pompa dell'acqua popolari di altre marche

Neptun

Neptun NPHW 5500 Manuale utente

Sensidyne

Sensidyne Gilian BDX-II Istruzioni per l'installazione e il funzionamento

Draper

Draper 47808 Manuale utente

Trolla

Trolla 12820 Manuale utente

Sunfab

Sunfab SVH Series Manuale utente

WilTec

WilTec 50740 Manuale utente

Fieldmann

Fieldmann FVC 5015 EK Manuale utente

Everbilt

Everbilt EFSUB5-122HD Manuale utente

Graco

Graco Husky 3300e Manuale utente

esotec

esotec 101018 Manuale utente

moyno

moyno 2000 CC Manuale utente

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuale utente

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guida alla risoluzione dei problemi

DUROMAX

DUROMAX XP WX Series Manuale utente

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuale utente

Franklin Electric

Franklin Electric IPS Manuale utente

Xylem

Xylem e-1532 Series Manuale utente

Milton Roy

Milton Roy PRIMEROYAL Manuale utente
