K01-3101000-01
INSTALLATION GUIDE
4. Connect an Ethernet cable to the
Ethernet port of the Power
Management Card.
3. Insert and tighten the retaining
screws.
2. Install the Power Management
Card into the expansion slot.
1. Remove the two retaining
screws of the expansion slot,
and then remove the cover.
Definitions for LED Indicators
Step 2. Configure the IP address for the Power
Management Card
Method 1: Using the Power Device Network Utility
1. Install the Power Device Network Utility available for download on the
Network Power Management product web page at
http://www.powermonitor.software/#PowerDeviceSoftware.
2. After installation completes, run the “Power Device Network Utility”.
3. The main dialog of the Power Device Network Utility program is shown
in Figure 1. The configuration tool will display all Power Management
devices present on the same network subnet. The "Refresh" button is
used to search the local network subnet again.
4. Select the Power Management Card you are setting up. Click on the
Tools menu and select “Device Setup” or double click the Power
Management Card you want to configure.
5. You can modify the IP Address,
Subnet Mask, and Gateway
address for the Device MAC
Address listed in the Device
Network Settings window, as
shown in Figure 2. The factory
default IP Address is
192.168.20.177 and the default
Subnet Mask is 255.255.255.0.
6. Modify the IP, subnet mask or
gateway address. Enter the new
addresses into the corresponding
fields and then click “Save”.
Link LED color
Off
On(Yellow)
Tx/Rx LED color
Off
On(Green)
Flash
Condition
The Power Management Card is not
connected to the Network/ or the Power
Management Card power is off
The Power Management Card is connected to
the Network
The Power Management Card power is off
The Power Management Card power is on
- Receiving/transmitting data packet
- Reset finished
Step 1. Hardware Installation
Figure 1. The main window of the “Power Device Network Utility” program.
Figure 2. The Device Network setting window.
Tx/Rx
Link
Universal
PMCARD
Universal
Tx/Rx
PMCARD
LINK Indicator Tx/Rx Indicator
Ethernet PortUniversal Port
Tx/RxLinkUniversal
PMCARD
NOTE: The Power Management Card is hot-swappable, so you do not
need to turn off the device to install it.
(1
POWER MANAGEMENT CARD
PMCARD - PH 7690
Compatible with PH 9210, PH9220, PH 9230
The Power Management Card allows a UPS/ATS
system and environmental sensor to be managed,
monitored, and configured.
Quick Start Guide
Method 2: Using a command prompt
1. Obtain the MAC address from the label on the Power Management
Card. Each Management Card has a unique MAC address.
2. Use the ARP command to set the IP address.
Example:
To assign the IP Address 192.168.10.134 for the Power Management
Card, which has a MAC address of 00-0C-15-00-FF-99 you will type in
the following in the command prompt from a PC connected to the same
network as the Power Management Card.
(1) Type in “arp -s192.168.10.134 00-0C-15-00-FF-99” then press
Enter.
3. Use the Ping command to assign a size of 123 bytes to the IP.
(1) Type in “ping 192.168.10.134 -l 123” then press Enter.
(2) If the replies are received, your computer can communicate with the
IP address.
7. You will need to enter a User Name
and Password for the Power
Management Card in the
authentication window, as shown in
Figure 3.
- Default user name: admin
- Default password: admin
8. If the IP address change is
successful, you will see a message
confirming the IP set up is OK, as
shown in Figure 4.
WEB INTERFACE Login User Account
You will need to enter a User Name and Password to login to the interface.
There are two user account types.
1. Administrator
- Default username: admin
- Default password: admin
2. View only
- Default username: device
- Default password: device
The administrator can access all functions, including enable/disable the view
only account. The viewer can access read only features but cannot change
any settings.
Troubleshooting
Problem
Unable to configure
the Power
Management Card
by method 1 or
method 2
Unable to ping the
Power Management
Card
•Check the LED status, the condition is normal
when the yellow and green LEDs are both on.
If green LED is off :
►Check if the Power Management Card is
properly seated in the device and the device
power is turned on.
If yellow LED is off :
►Ensure the network connection is good.
•Ensure the PC being used is on the same network
subnet as the device you are trying to
communicate with.
•Use method 1 and/or method 2 to get/set a correct
IP address for the Power Management Card.
•If the PC being used is on a different network
subnet from the Power Management Card, verify
the setting of subnet mask and the IP address of
gateway.
CONFORMANCE APPROVALS
FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.

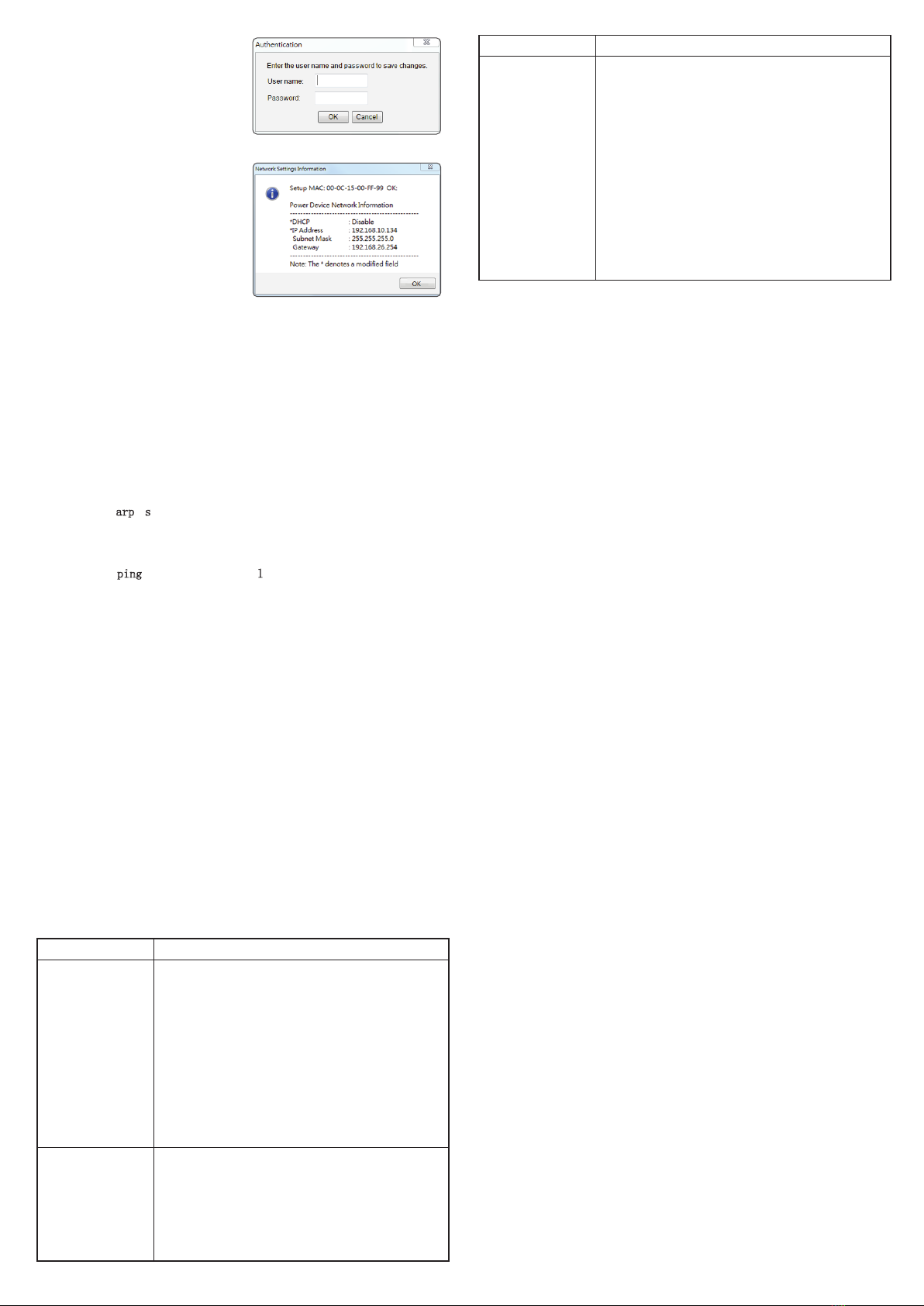

Figure 3. Authentication window.
Figure 4. Setup IP Address successfully message.
Solution
Problem
Lost the user name
and password
Solution
•Follow below steps to reset to the default setting.
1. Remove the card from the UPS without turning
the UPS off.
2. Remove the jumper from the reset pins. Do not
dispose of the jumper.
3. Insert the card into the expansion port.
4. Wait until the Green LED is flashing (the
frequency of the ON/OFF flashing is once per
second).
5. Remove the card again.
6. Place the jumper back onto the Reset pins.
7. Install card into the expansion port again and
tighten the retaining screws.
