PheeNet WLn-301 Manuale utente
802.11n Wireless
USB Adapter
User Manual WLn-301
Ver : 1.0
COPYRIGHT
Copyright ©2005/2006 by PheeNet. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in any form or
by any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of PheeNet
PheeNet makes no representations or warranties, either expressed or implied,
with respect to the contents hereof and specifically disclaims any warranties,
merchantability or fitness for any particular purpose. Any software described in
this manual is sold or licensed "as is". Should the programs prove defective
following their purchase, the buyer (and not PheeNet, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any
incidental or consequential damages resulting from any defect in the software.
Further, PheeNet reserves the right to revise this publication and to make
changes from time to time in the contents thereof without obligation to notify
any person of such revision or changes.
C A T A L O G
CHAPTER I: PRODUCT INFORMATION
1-1 Introduction and safety information
1-2 Safety Information
1-3 System Requirements
1-4 Package Contents
1-5 Familiar with Your New Wireless Network Card
CHAPTER II: DRIVER INSTALLATION AND
CONFIGURATION
2-1 Network Card and Driver Installation
2-2 Connect to Wireless Access Point
2-2-1 Using Ralink Utility
2-2-2 Using Windows Zero Configuration
2-3 Connection Profile Management and 802.1x Settings
2-3-1 Make a Profile for an Access Point or Wireless Device
2-3-2 Using 802.1x - Certification
2-3-3 Using 802.1x - CA Server
2-4 View Network Statistics and Link Status
2-4-1 Network Statistics
2-4-2 Link Status
2-5 Advanced Settings
2-6 QoS Setting
2-7 WPS Configuration
2-8 About
CHAPTER III: APPENDIX
3-1 Hardware Specification
3-2 Troubleshooting
3-3 Glossary
3-4 FCC and Other Compliance Statements
Chapter I: Product Information
1-1 Introduction and safety information
Thank you for purchasing this high-speed 802.11b/g/Draft-N wireless
network card! Excepting common wireless standards 802.11b/g, this
wireless network card is also 802.11 Draft-N compatible - data transfer
rate is 300Mbps, and that’s six times faster than 802.11g wireless network!
802.11 Draft-N also provides wider wireless coverage, so you don’t have
to worry if your computer is far from your wireless access point. This
wireless network card also supports MIMO (Multi-In, Multi-Out)
technology, which uses two different radio channels to enhance data
transfer rate and wireless coverage.
With easy-to-install USB 2.0 interface - a very common expansion port of
computers - plug this wireless network card into any empty USB port of
your computer, just that simple!
Other features of this router including:
High-efficiency antenna, expands the scope of your wireless
network.
QoS function: control the bandwidth required for different
applications.
802.11b/g/Draft-N compatible.
Supports major encryption methods like WEP, WPA, and WPA2
encryption.
USB 2.0 interface - you can get it installed on your computer in
just few seconds!
Wireless access control - prevent unauthorized network access to
your network and computer.
1-2 Safety Information
In order to keep the safety of users and your properties, please follow the
following safety instructions:
1. This USB wireless network card is designed for indoor use only. DO
NOT expose this network card to direct sun light, rain, or snow.
2. DO NOT put this network card at or near hot or humid places, like
kitchen or bathroom. Also, do not left this wireless network card in the
car in summer.
3. This network card is small enough to put in a child’s mouth, and it
could cause serious injury or could be fatal. If they throw the network
card, the card will be damaged. PLEASE KEEP THIS NETWORK
CARD OUT THE REACH OF CHILDREN!
4. This network card will become hot when being used for long time
(This is normal and is not a malfunction). DO NOT put the network
card on a paper, cloth, or other flammable objects after the network card
has been used for a long time.
5. There’s no user-serviceable part inside the network card. If you found
that the network card is not working properly, please contact your dealer
of purchase and ask for help. DO NOT disassemble the network card by
your self, warranty will be void.
6. If the network card falls into water, DO NOT USE IT AGAIN
BEFORE YOU SEND THE CARD TO THE DEALER OF PURCHASE
FOR INSPECTION.
7. If you smell something strange or even see some smoke coming out
from the network card, switch the computer off immediately, and call
dealer of purchase for help.
1-3 System Requirements
An empty USB 2.0 port (May not work on USB 1.1 port, and
performance will be greatly reduced)
Windows 2000, 2003, XP, or Vista operating system
CD-ROM drive
At least 100MB of available disk space
1-4 Package Contents
Before you starting to use this wireless network card, please check if
there’s anything missing in the package, and contact your dealer of
purchase to claim for missing items:
□USB wireless network card (1 pcs) ……………………………… 1
□ Quick installation guide (1 pcs) ………………………………… 2
□ User manual CDROM (1 pcs) ………………………………….. 3
1-5 Familiar with your new wireless network card

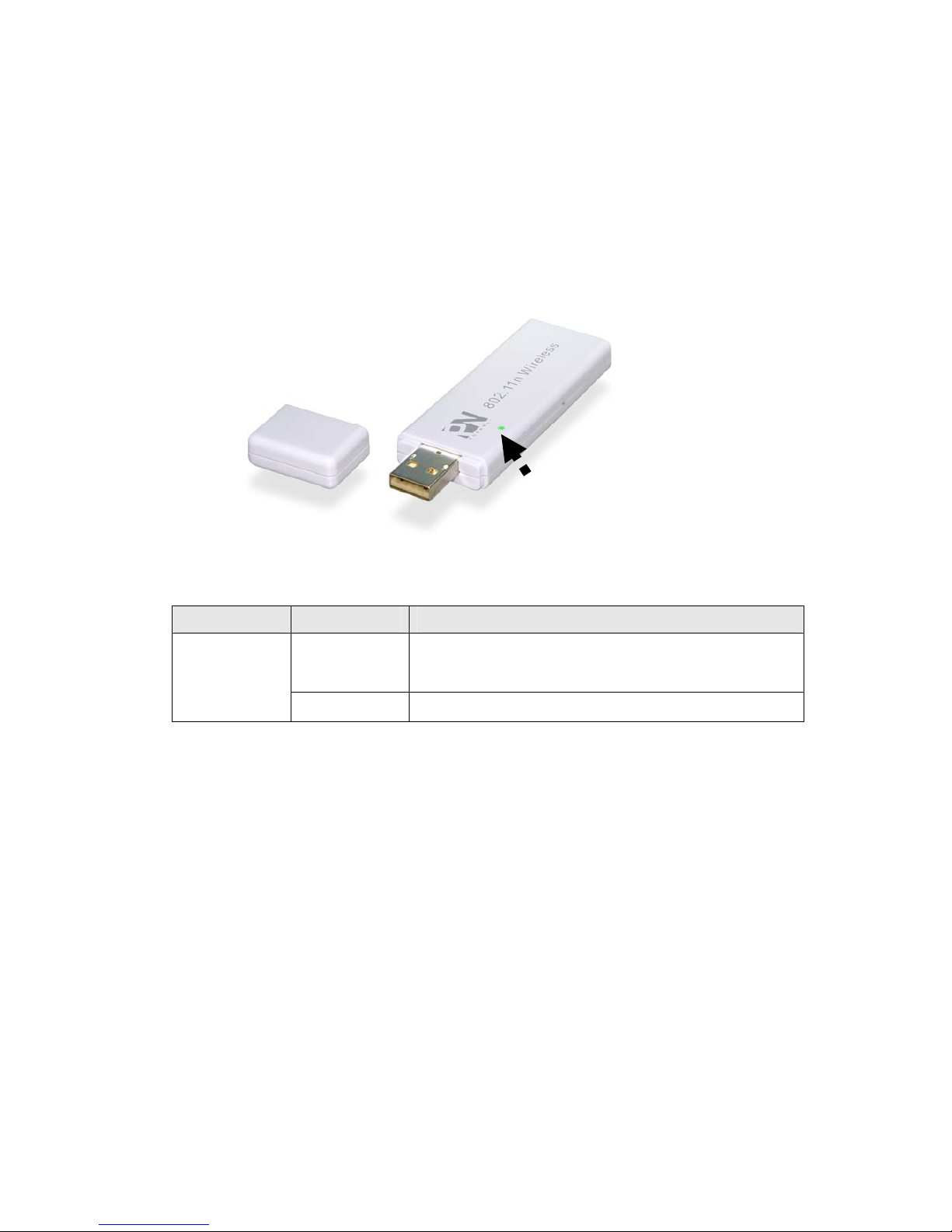

1. USB Connector
2. Connector Cap (To protect USB connector when not in use)
3. Link/Activity LED
LED Name Light Status Description
On Linked to a wireless access point /
Transferring data
Link/
Activity
Off No wireless activity
1
2
3
CHAPTER II: DRIVER INSTALLATION AND
CONFIGURATION
2-1 Network Card Installation
Please follow the following instructions to install your new wireless
network card:

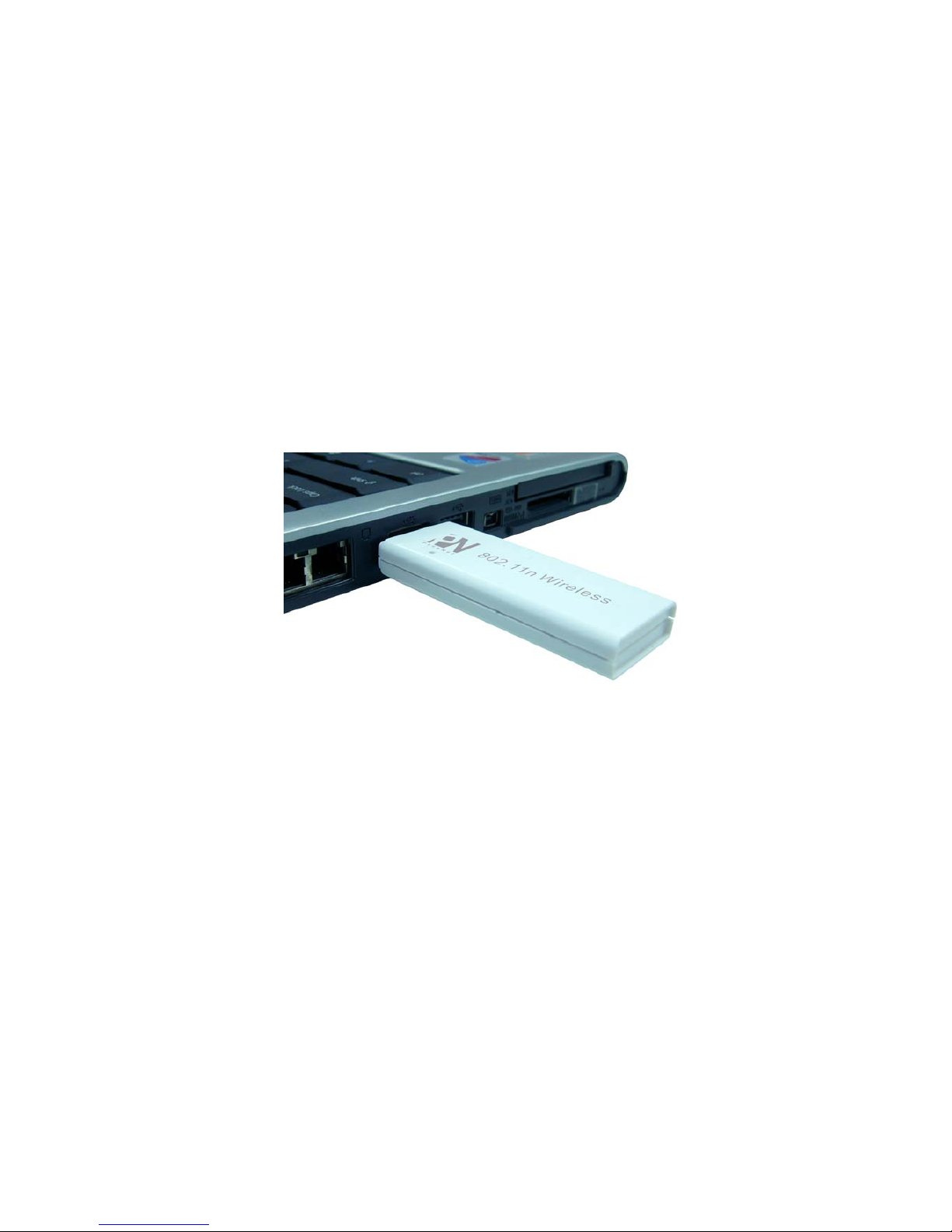

1. Insert the USB wireless network card into an empty USB 2.0 port of
your computer when computer is switched on. Never use force to
insert the card, if you feel it’s stuck, flip the card over and try again.
