Philco AB600TX Manuale utente
AB600TX
Automatic Drum Washing Machine
Table of Contents
Before using
Names of Parts-----------------------------1
Matters Needing Attention------------2-4
Installation--------------------------------5-6
Control Panel-------------------------------7
Operational Functions-------------------8
During using
Program Selection------------------------9
Preparation---------------------------------10
Washing Methods--------------------11-12
Maintenance
Maintenance -----------------------------13
Trouble Shooting------------------------14
Technical Specification----------------15
Wiring Circuit-----------------------------16
Operation Manual
PHILCO
Names of Parts
Top
Program knob
Operation button
Drainage hose clip
Back plate
Packing bolt (3)
Temperature knob
Detergent distributor
Door
Porthole
Drainage hose
Earth terminal
Power supply cable
Back plate screw (3)
Caution and Warning symbols
For your safety and to prevent damages to the washing machine, any
instructions in this manual with this"Stop"sign shall be strictly followed.
For your safety, any instructions in this manual with this"Warning"sign
shall be strictly followed.
This diagram may vary slightly with the layout of the washing machine you have just purchased due
to technical improvements.
1
PHILCO

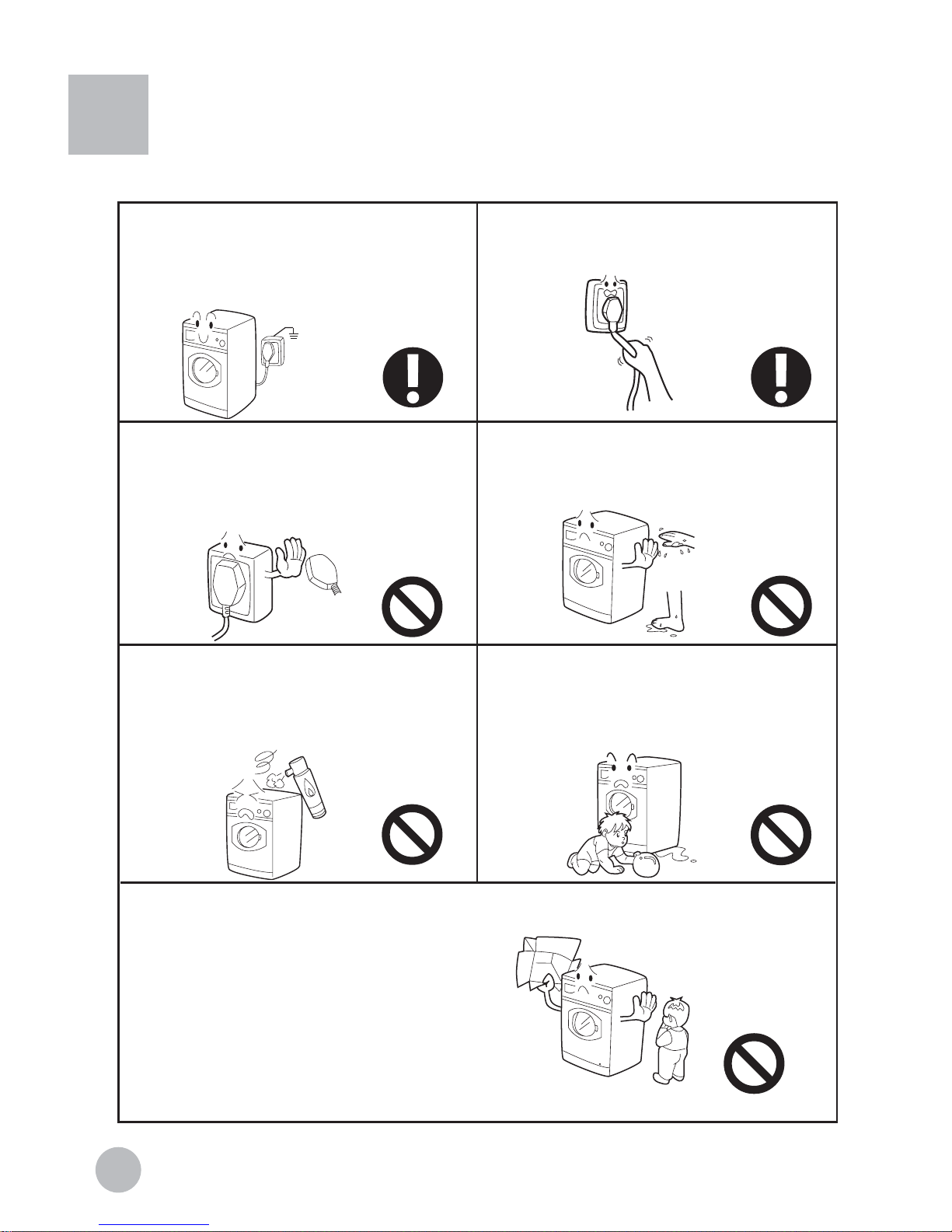

Safety
1. A separate earthed socket is required
for the power supply. After installation of
the washing machine,the power plug
should be accessible during the normal
wash.
3. Fuses in the power circuit should be rated
for 15A. Refer to a washing machine techni-
cian or a Haier designated service point for
power cable replacement.
5. Do not use flammable detergent or dry
cleaning agent; do not use flammable
spray in close vicinity to the washing
machine; do not remove or insert the plug
in the presence of flammable gas.
2. Hold the plug and not the electric cable
when unplugging the washing machine.
4. For your safety, dry hands before touch-
ing the washing machine and wear appropri-
ate footwear .
6. The door of the washing machine will be-
come hot during the water heating process.
Avoid contact with the door during the heat-
ing process. For safety, keep children away
from the washing machine.
7. Do not allow children play with the packing materials after unpacking.
Matters Needing Attention
2
9. The washing machine should be place in
a well ventilated area maintaing a space
between walls or furniture.
10. Keep away from heat sources and direct
sunlight to prevent plastic and rubber com-
ponents from aging.
8. The washing machine must not be used in
the open or in area of high moisture as water
droplets may form on electrical components,
Air dry the appliance if the washing machine
components become wet.
1. Make sure that the washing machine is
securely connected to the water supply,
take the necessory precautions or contact
the local service center if the connection
is poor or there is a water leakage.
2. After turning the power off, turn the pro-
gram knob clockwise to set washing
program.
11. During installation, ensure that the electric
cable is not trapped by the washing machine and
avoid damage to the electric cable.
Dear customer, For the machine and your own
security, DO NOT REPAIR IT BY YOURSELF!
DO NOT USE THE WASHING MACHINE
WHICH SOME PARTS ARE LOST!
Use
Matters Needing Attention
3
9. Keep the door slightly open when the washing machine is not being used. Never cover the
machine with a plastic sheet.
4. Do not wash foam rubber or similar sponge
materials.
5. Before washing, do up zippers, buttons ,
laces and repair damaged areas,under-
wear or small articals should be placed
in the laundry bag or a pillowslip.
Do not wash clothes containing wire
frames.
6. Do not open the detergent box during
the wash cycle.
7. The door is fitted with a self-lock device and
will not open until 2~3 minutes after the wash-
ing machine stops. Do not force the door
open. Do not open the door when water level
reaches the port hole.
8. After washing, turn off the tap to prevent
leakage; unplug the washing machine
and wipe the lower part of the port hole.
3. Never place heavy objects ,a heating
applianceor a water container on the top panel
of the washing machine.
4
Matters Needing Attention
As shown in figure1 remove all the packing materials
(including the foam base).
Fig 1
Check attachments and materials.
3
Name
Qu'ty
Model
Operational
manual
Quality
certificate
Water
hose
Drainage
holder
Plastic
plugs
11
1
AB600TX 1
Remove the packing screws as shown in figure 2.
The packing bolts protect the appliance from shock during trans-
portation The steps below should be followed before using the
appliance,
1. Remove the rear panel of the washing machine;
2. Remove the three packing bolts from the rear panel of the wash-
ing machine,the rubber hose and then the shock absorption chan-
nel steel;
3. Reinstall the back plate;
4. Fill the holes left by the packing bolts with plastic plugs.
(Attention: the packing bolts and rubber hose should be kept in a
safe place for later use)
Adjusting the position of the washing machine .There are ad-
justable feet under the bottom of the washing machine. Before use,
the washing machine should be adjusted, as shown in figure 3, so
that it is level.
5
Installation
Fig 2
Fig 3
Water drainage hose
Connection of power supply
ʎThe height of the terminal of the water drainage hose should
be between 80cm-100cm, the water drainage hose must be se-
curely placed on the clip on the back of the washing machine.
ʎUse the water drainage support supplied as an accessory for
proper installation of the water drainage hose .fix the water drain-
age hose support with waterproof sring.Do not use an excessively
long water drainage hose and contract the authorized technician
if the water drainage hose needs to be extended.the water drain-
age hose should not be extended more than250cm.(longer ex-
tension will result in concurrent water inflow and outflow).The
diameter of the extension hose should be the same as the origi-
nal hose.
caution:water drainage hose must not be immersed in water.the
original and extension hoses should be tightly connected .
Installation
Check the following items before connection to the power supply.
ʎThe socket conforms to the maximun power load(The maximum current load of the socket and
power supply cable should not be less than 15A)K
ʎPower supply voltage conforms to the required value.
ʎThe power supply socket and the plug of the washing machine compatible,if they are compat-
ible ,Refer to a washing machine technician or a Haier designated service point for power cable
replacement.The washing machine should be connected to an earth before use.
ʎSupplementary earth cable should not be necessary if the socket is connected to the earth.
ʎSupplementary earth cable should be installed on the upper back of the washing machine
andconnected to an earth if the power supply socket has no earth connection.
80cm
100cm
6
A Washing program
Turn the knob clockwise to set the desired wash program .
Caution: Turn off the power and turn the program knob clockwise
for setting desired wash program.
B Washing temperature
Turn the knob clockwise to set the desired temperature.
Temperatures between 30OC-max can be setted , No
heating wash is selected when the knob is set at *.
C Detergent distributor
Program discription are printed on the handle of the detergent
distributor,there are three detergent compartments numbered 1,2,3
Box 1: Pre-washing detergent
Box 2: Standard washing - extra-fast washing
Box 3: Softening agent, adjusting agent, perfume
1
3
2
7
Control Panel
ANTI-CREASE SOAK
ON
OFF
NO SPIN
TEMPERATURE
DOOR LOCK
PROGRAM SETTING with power off喈喉
Normal wash
Quick wash
Super quick wash
Delicate wash
Normal wash
Quick wash
Super quick wash
Rinse
Soften
Spin
End
Soften
Spin
End
Spin
End
Strong action-main for cotton
Middle action-main for synthetic Delicate action-main for wool
1
2
3
4
A
B
C
D
E
F
G
G
5
6
7
Delicate wash
Rinse
Soften
Prewash Rinse D
E
F
PD[
AB600TX
PD[
8
G Power light
The light will illuminates when the power supply is connected.
F Power button
Press the button ,washing machine will working;release the
button,the washing machine will stop.
ON
OFF
Operational Functions
D No spin button
When this button is pressed, the spin cycle will be spared
but water drain is still available. This function is useful for
hard ironing fabrics, such as chemical fiber and wool fabrics.
E Anti-crease soak button
For the synthetics cycle and the wool cycle, press the button,the
anti-crease soak fuction will work. Release the button ,the anti-
crease function will be skiped and enter into the next step
automatically.
H Door lock warning light
When the light is on, the door is locked. It goes off when
the machine is switched off or 2-3 minutes after the fin-
ish of a washing program. When the machine is switched
off, the door cannot be opened until 2-3 minutes later.
