Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

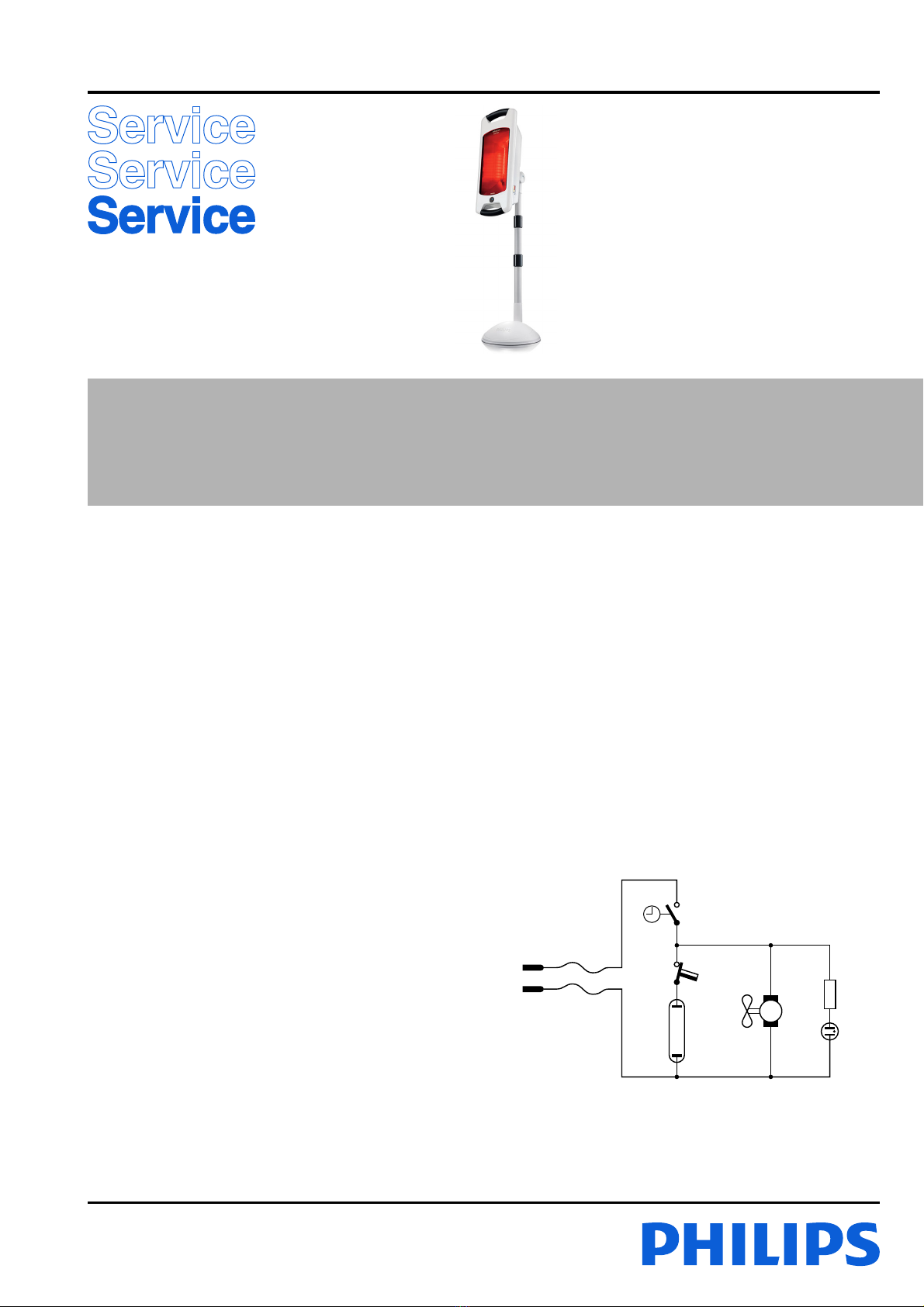

ServiceManual

Philips Consumer Lifestyle

Infra Care

HP3643

15/10

ASO switch

15 min. / 17 min.

IR lamp

TCO

PRODUCT INFORMATION

• Use the original spare parts only

Safety

• This product meets the requirements regarding

interference suppression on radio and TV.

• After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

• Input voltage : 220 - 230 V / 50 - 60 Hz

: 115 V / 60 Hz

• Input consumption : Approx. 650 W

• IR source : Sylvania IR 650 W / 230 V

: Sylvania IR 650 W / 115 V

• Timer : 15 minutes for 50 Hz

: 17 minutes for 60 Hz

• Weight : 7,9 kg

HP3643

2-3

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

How to exchange a lamp and/or fuse

• Undo and remove the 8 screws at the back of the lamp

housing.

• The lamp holders and the fuse are now accessible.

• Be aware you keep the wiring in place.

Exchanging the lamp:

• Unscrew the lamp holder at one end and let the lamp

slide out of the housing between the reflector and the

glass pane.

• Put the reflector with the glass pane in vertical position,

i.e. with its narrow end pointing downwards, and slip the

lamp through the opening next to the lamp holder.

Make sure the contact point of the lamp rests properly

on the contact point of the lower lamp holder.

• Tighten the lamp holder and make sure the contact

points are seated properly.

Exchanging the fuse:

• Unscrew the cap from the fuse holder which is mounted

on the shield in the backhousing.

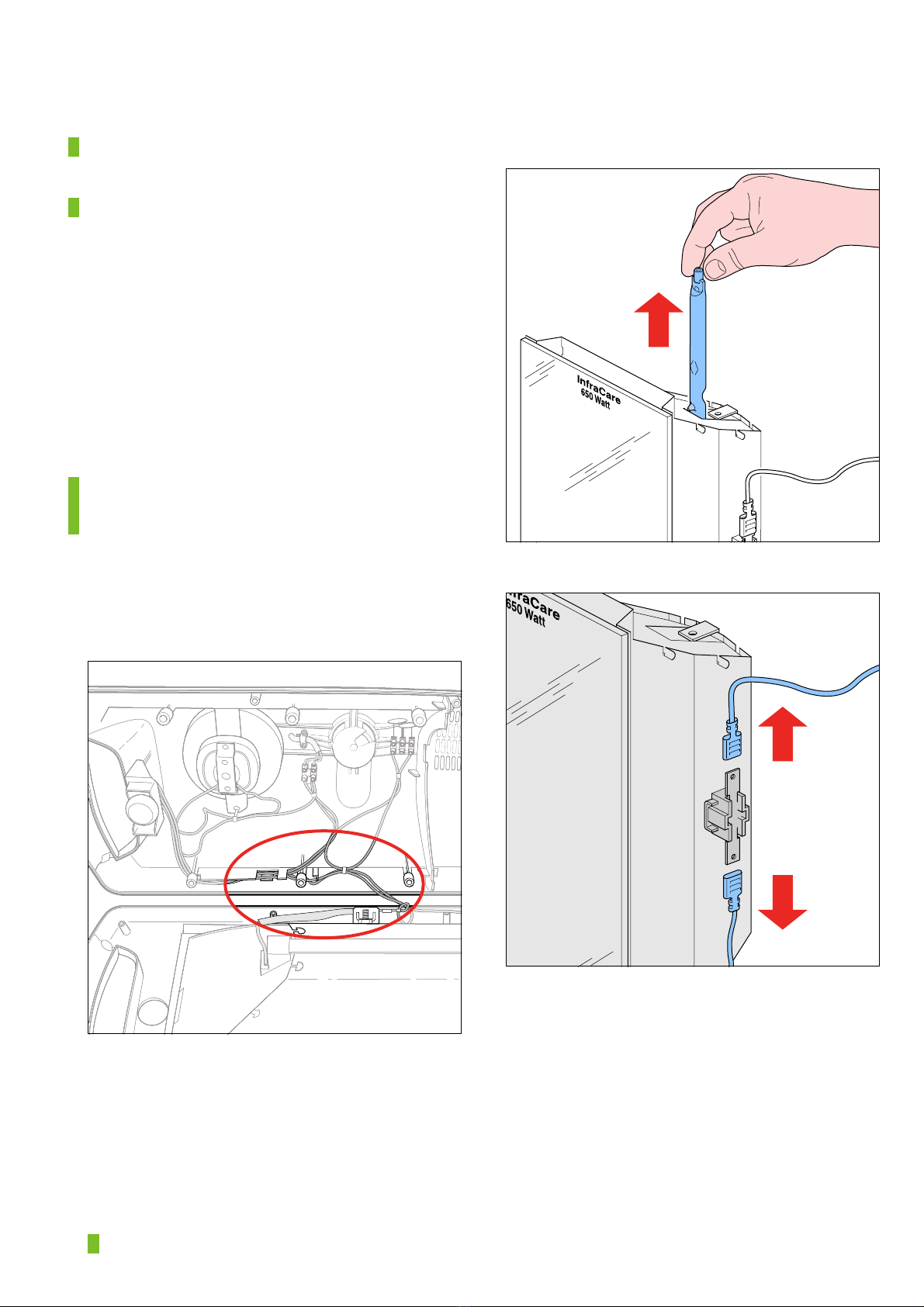

REPAIR INSTRUCTION

To replace the lter:

1. Open the device.

Be aware you keep the wiring in place.

2. Unscrew one lamp holder.

3. Lift up the lamp out of the re ector.

4. Remove the other lamp holder and unplug the wires.

5. Replace the whole reector unit.

OPTIONAL (accessories)

• No specific issues

= changed

HP3643

3-3

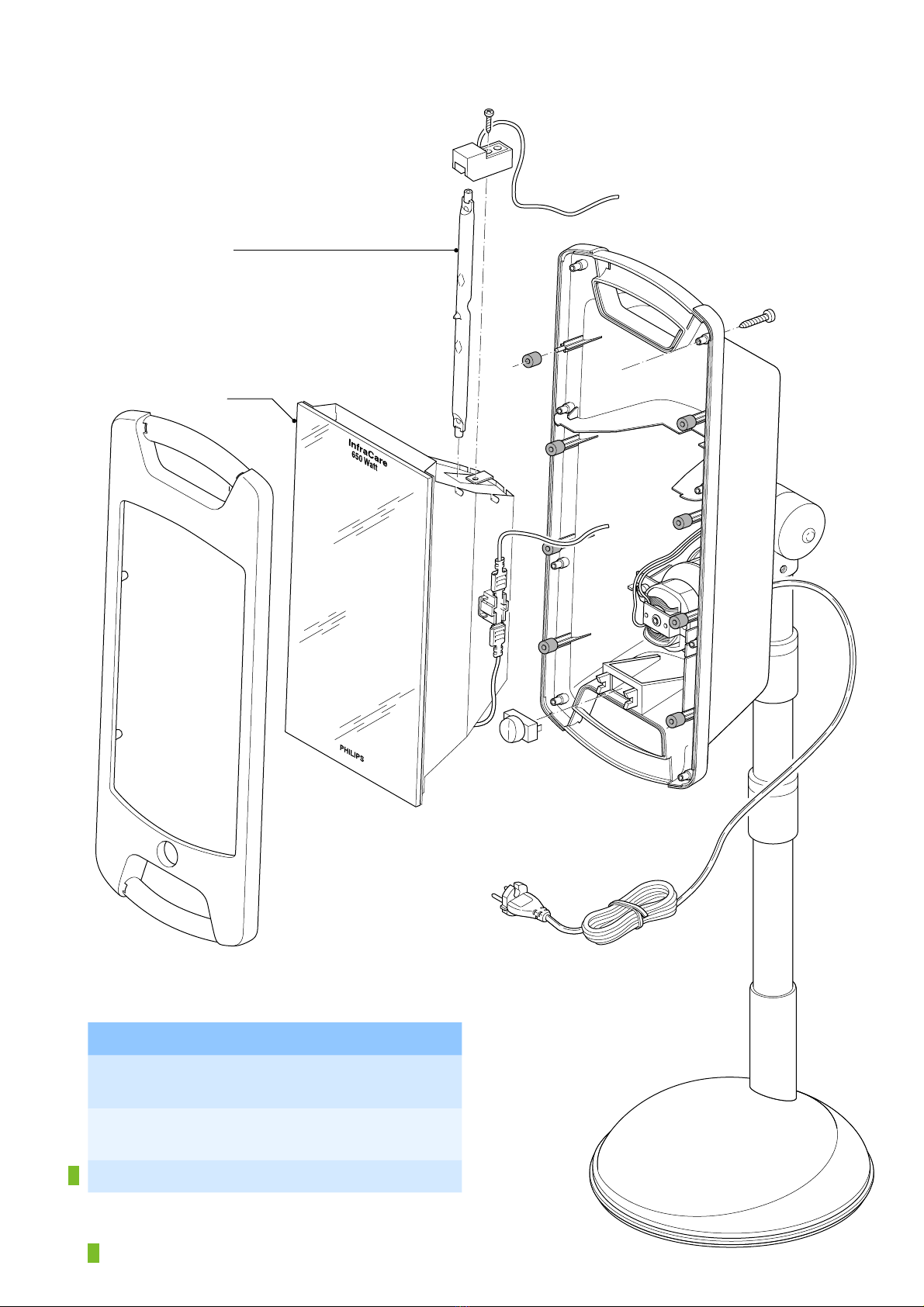

EXPLODED VIEW & PARTS LIST

Pos Service code Description

1* 4222 062 97030

4222 062 97040

Lamp 650 W / 230 V

Lamp 650 W / 115 V

2 4222 036 17440 Glass plate 650 W printing

+ Reector unit

4222 100 53551 Fuse for Korean version

* Place the pinch to the front when assembling

= changed
