Mounting Plates and Accessories

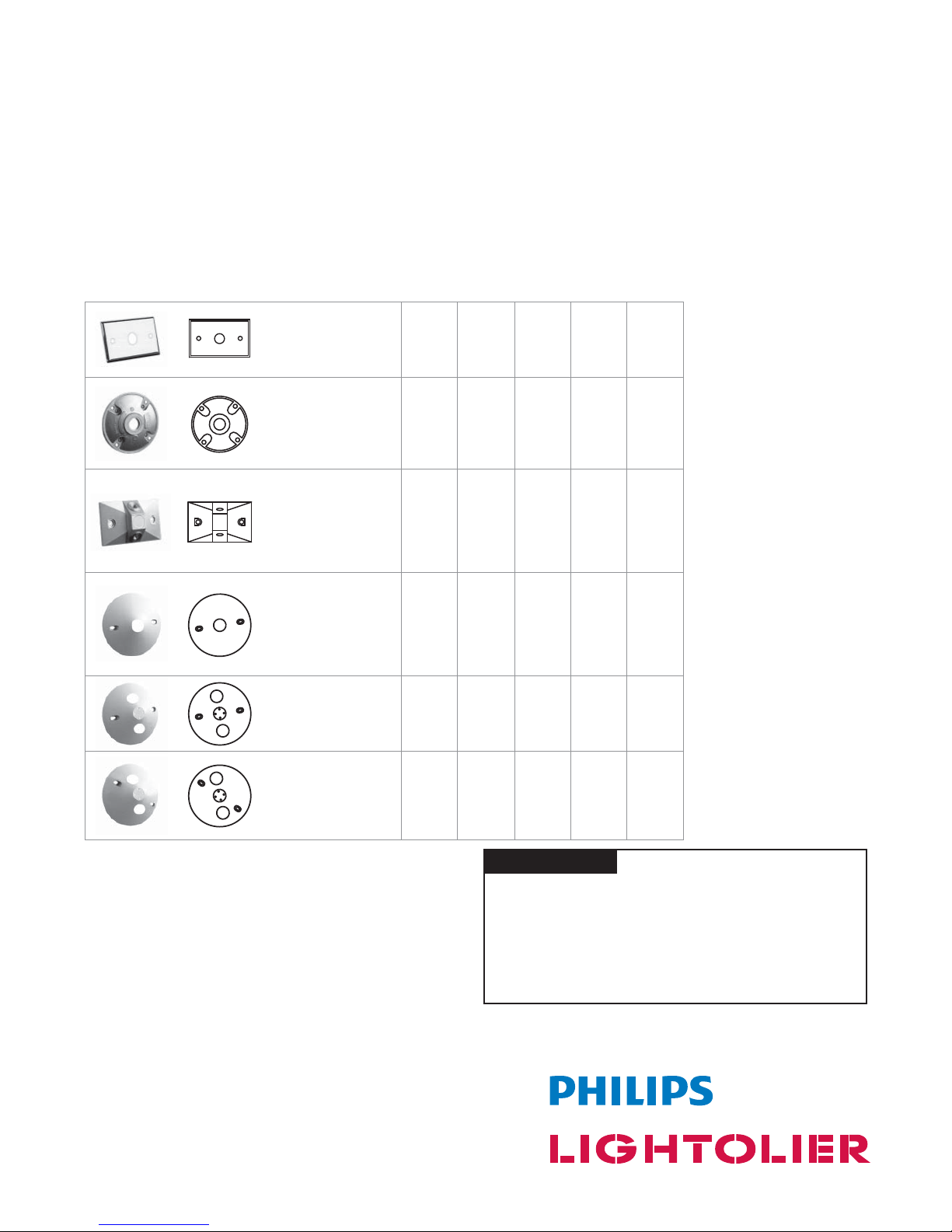

WIRE GUARDS, MOUNTING SHELVES, AND REMOTE LAMPS

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

Chrome Single Head Fits

Single Gang Wall Box

Double Head Fits Three

Gang Wall Box

MP1

MP3

MP1

MP3

MP1

MP3

MP1S

MP3S

MP1

MP3

Cast Aluminum

Weatherproof Single Head

Fits 3” or 4” round box

Double Head

Fits 3” or 4” round box

CRMP1

CRMP2

CRMP1

CRMP2

CRMP1

CRMP2

MP1WP

MP2WP

CRMP1

CRMP2

Cast Aluminum

Weatherproof

Fits Single Gang Box

Single Head

Double Head

CSMP1

CSMP2

CSMP1

CSMP2

CSMP1

CSMP2

MP1R

MP2

CSMP1

CSMP2

Thermoplastic 5” Diameter

Mounts Dir. to Single Gang

Wall Box

Single Head, Gray

Single Head, White

Single Head, Black

Weatherproof Option

MW1

MBLK1

-WP

MW1

MBLK1

-WP

MW1

MBLK1

-WP

MG1WP

included*

Double Head, Gray

Double Head, White

Double Head, Black

Weatherproof Option

MW2

MBLK2

-WP

MW2

MBLK2

-WP

MW2

MBLK2

-WP

MG2WP

included*

Same As Above With 45º

Mounting Holes, Fits 3.5”

octagonal box

Double Head, Gray

Double Head, White

Weatherproof Option

MW2S

-WP

MW2S

-WP

MW2S

-WP

MG2SWP

included*

Thermoplastic Wedge

Base Round

Polycarbonate Rectangular

Wedge Base

Thermoplastic Sealed

Beam Par 36

Metal Chrome Sealed

Beam Par 36

Heavy Industrial Duty

Sealed Beam Par 36

Remote Lamp Head - Mounting Plates

* Mounting plates include weatherproof gasket.

Mounting Plates and Accessories

WIRE GUARDS, MOUNTING SHELVES, AND REMOTE LAMPS

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

MP-ACC July 23, 2012

Specifications are subject to change without notice.

Job Information Type:

20.0"

(50.8 cm)

Shown: PCS1

WG3

WG4

WG5

WG8

WG10

PCS1

CAT #

ES2 Series (200-450 W), ES3 Series (300 & 450 W),

IE Series, HE Series, LX Series - Combination

S1 Series

Wall Mount Thermoplastic, Die Cast, Steel &

Tritium Standard Exits, S1 Series (fully recessed)

WE Series, E3 Series, ES1 Series (25-100 W), HX

Series, HE Series, EN Series, E1 Series, LL Series,

ES2 Series (25-150 W), ES3 Series (100 W)

C1 Series, Top and Back Mount NEMA Standard

Exits

LWL2 Series, LD2 Series, LX Series and TE Series

Exits

All Standard Exits, WE Series, E3 Series, C1 Series

FOR USE WITH: A AA BBB C

26.0"

(66.0 cm)

20.0"

(50.8 cm)

26.0"

(66.0 cm)

11.0"

(27.9 cm)

10.0"

(25.4 cm)

12.0"

(30.5 cm)

10.0"

(25.4 cm)

12.0"

(30.5 cm)

5.5"

(14.0 cm)

12.5"

(31.8 cm)

14.5"

(36.8 cm)

15.0"

(38.1 cm)

17.0"

(43.2 cm)

5.5"

(14.0 cm)

12.5"

(31.8 cm)

14.5"

(36.8 cm)

15.0"

(38.1 cm)

17.0"

(43.2 cm)

5.5"

(14.0 cm)

12.0"

(30.5 cm)

14.0"

(35.6 cm)

12.0"

(30.5 cm)

14.0"

(35.6 cm)

13.0"

(33.0 cm)

8.8"

(22.4 cm) N/A N/A 15.0"

(38.1 cm)

15.0"

(38.1 cm)

19.4” (W) X 12.3” (H) X 9.0” (D) Outside

19.2” (W) X 12.1” (H) X 8.9” (D) Inside

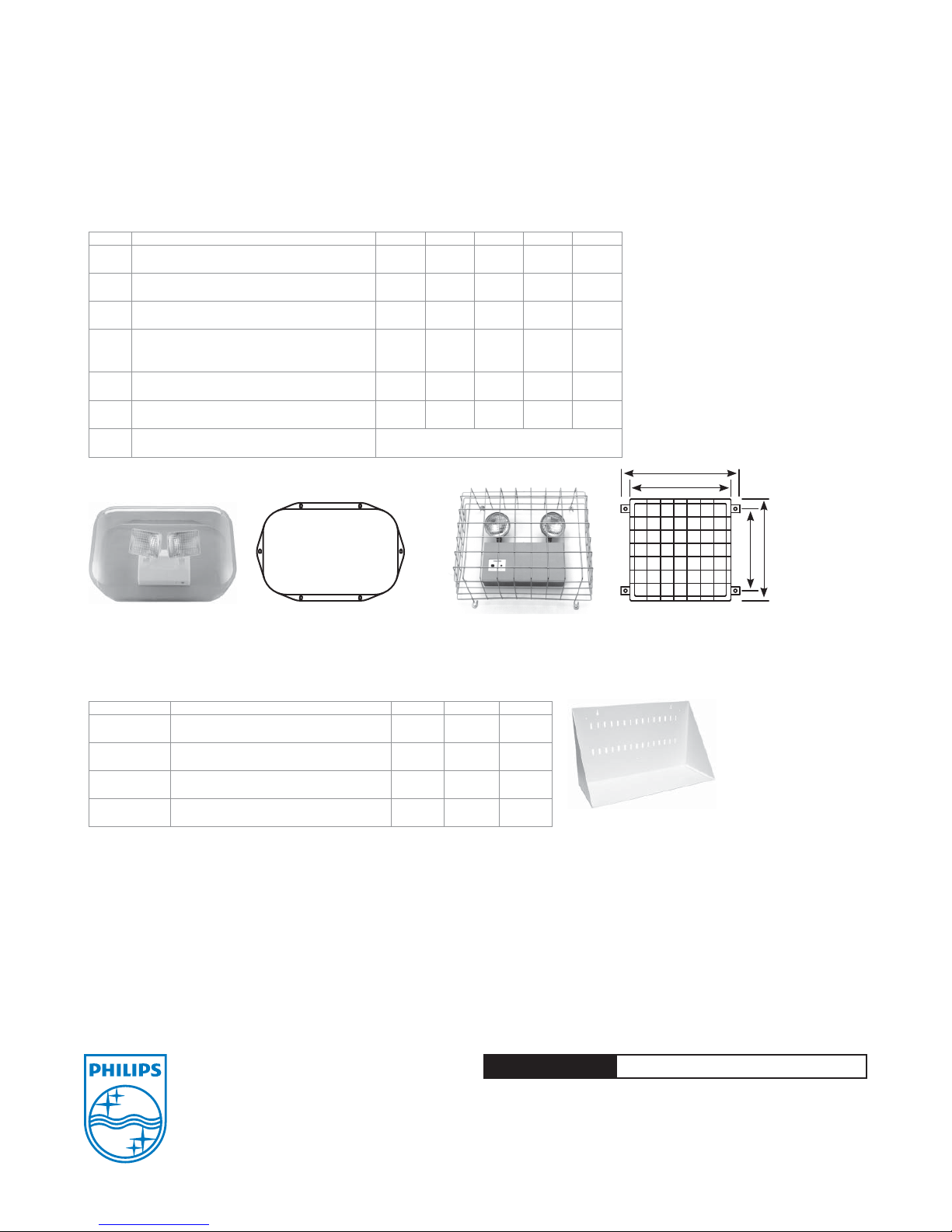

Wire Guards and Polycarbonate Vandal Shield

Shown: WG5

BBB

C = Depth

13.0"

(33.02 cm)

SSMP

SMMP

SLMP

MSSHELFW

CAT #

ES1 Series (25-50 W), ES2 Series (25-50 W)

ES1 Series (75-100 W), ES2 Series (75-150 W),

ES3 (100 W)

ES2 Series (200-450 W)

ES3 Series (300 W, 450 W)

E3 Series

FOR USE WITH: LENGTH HEIGHT WIDTH

8.0"

(20.32 cm)

2.75"

(6.98 cm)

15.25"

(38.73 cm)

9.0"

(22.86 cm)

6.0"

(15.24 cm)

19.0"

(48.26 cm)

11.0"

(27.94 cm)

7.5"

(19.05 cm)

14.6"

(37.1 cm)

5.5"

(14.0 cm)

5.3"

(13.5 cm)

Mounting Shelves

Shown: SLMP
