EN Quick start guide

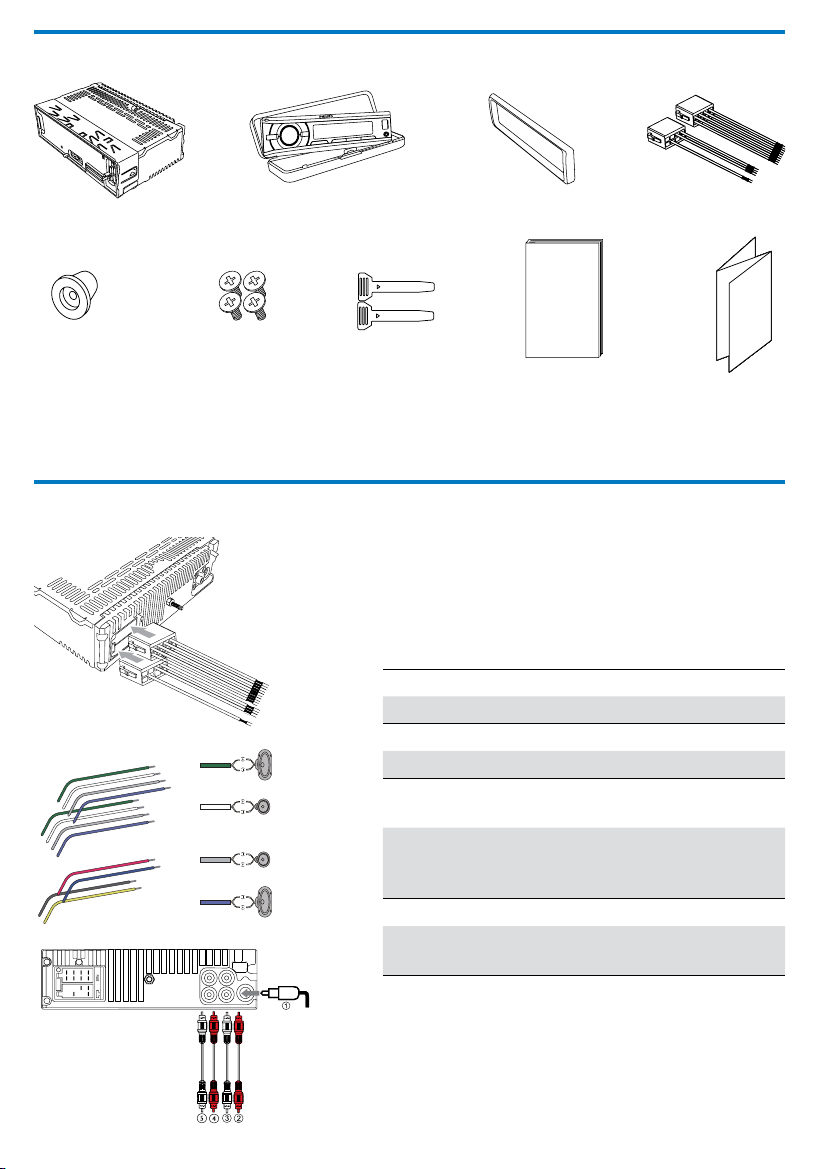

What’s in the box

Connect wires

Main unit

(with a sleeve)

Rubber cushion

Carrying case

(includes the front panel)

Screws

x 4 pcs

Disassembly tools

x 2 pcs

Trim plate

User manual

ISO male connector

Quick start guide

bcd

Rear Front

1Connect the supplied male connector to the unit.

2Check the car’s wiring carefully and connect them

to the supplied male connector.

1 Green/black strip Left speaker (Rear)

2 White/black strip Left speaker (Front)

3 Gray/black strip Right speaker (Front)

4 Purple/black strip Right speaker (Rear)

eRed Ignition key +12V DC when

ON/ACC

fBlue Motor/electric antenna relay

control lead/Amplifier relay

control lead

gBlack Ground

hYellow To t he +12V c ar bat ter y

which is energized at all times

3 Connecttheantennaandamplierasillustrated,if

applicable.

Mount into the dashboard

183mm

53mm

Tu rn on

1Press to turn on the unit.

Toturnofftheunit,press• for over 3 seconds.

Set clock

1Press MENU.

2Press / repeatedly until the current time is displayed.

3Rotate clockwise to set hour.

4Press toconrm.

5Rotate counterclockwise to set minute.

6Press toconrm.

Listen to radio

1Press SOURCE repeatedly to select radio mode.

2Press BAND/ to select band: [FM1],[FM2],[FM3],[AW1] or [AW2] .

3Press or to tune to a radio station manually.

The radio station is broadcast.

Tosearchforaradiostationautomatically,press

»or for over 3 seconds.

Store stations automatically

1Press OPTIONS repeatedly until [AUTO-STORE] displays.

2Press toconrm.

The six strongest stations of the selected band are saved in preset channel automatically.

Store stations manually

1Tune to a station that you want to store. (see ‘Tune to a preset station’ on page 14)

2Press and hold +/PRESET or -/RRESET to enter storing mode.

The preset number starts to blink..

3Press +/PRESET or -/RRESET to select radio channel.

4Press toconrm.

The station is saved in the selected channel.

The preset number on LCD screen lights up and remains on.

Play from USB

1Slide the USB socket cover marked to the left.

2Insert the USB device into the USB socket.

The unit starts to play from the USB device automatically.

Insert a card

1Press to release the panel.

2 Pushtheleftsideofthepanelrightward,thenpullthepanel

towards you to disengage it from the chassis.

3Insert the card into the card slot.

The unit starts playing from the card automatically.

Reset

You can reset the unit to its default setting.

1Detach the front panel.

2Press the reset button by using a ball-point pen or a similar tool.

Preset adjustments such as preset channels and sound

adjustments are erased.

CE130_78_QSG_V1.0

RESET
