Philips CID3290/00 Manuale utente

www.philips.com/welcome

ENG Quick Start Guide

CID3290

Yellow Green Blue

Red

Black

Yellow

Blue/white

Pink

Green/white

White/

brown

Orange/

white

Brown/

black

Gearbox a

Red

White

Yellow

Red

White

Yellow

Amplifier

White

Red

Brown

Optional accessory

GPS antenna

Yellow

Radio antenna

Rear display

AV system

AUX

English

Install the car audio 1

1If the car does not have an on-board drive

or navigation computer, disconnect the

negative terminal of the car battery.

2Take out the original car audio and keep

the screws.

3Take off the mounting brackets from the

original car audio and mount them onto

this car audio system. a

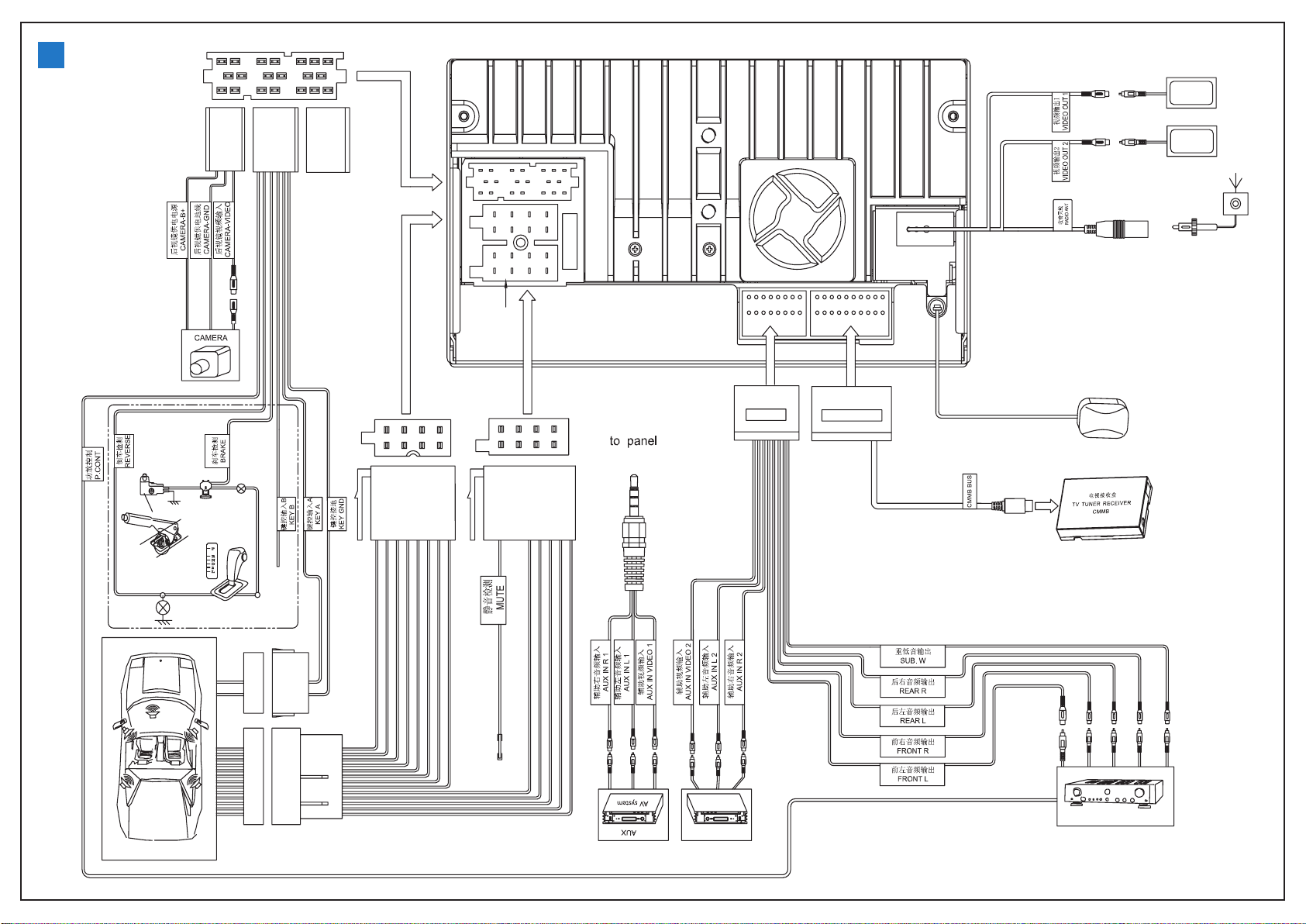

4Connect wires 2.

5Slide the unit into the dashboard until a

click sound is heard. b

6Fix the unit onto the dashboard with

screws. c

7Reconnect the negative terminal of the car

battery.

Turn on

Caution

Risk of road accidents! Never watch video or

•

adjust settings while you drive.

1Press to turn on the unit.

The available OSD (On-Screen Display)»

languages are displayed.

2Tap a language to select.

The OSD language is changed to the»

selected language immediately.

Set date and time

1Press MENU.

The main menu is displayed.»

2Tap [Settings].

3Tap [Time].

The date/time setup menu is displayed.»

Set date

1Tap [Date].

2Tap the displayed date information.

A submenu is displayed.»

3Tap or to set year, month and day.

Set clock mode

1Tap [Clock mode].

2Tap [12Hr] or [24Hr] to select clock mode.

Set time

1Tap [Time].

2Tap the displayed time.

A submenu is displayed.»

3Tap or to set hour and minute.

Adjust screen

To turn off the screen

1Press DISP for over 2 seconds.

To adjust screen brightness

1Press DISP.

2Tap VOL - or VOL + to adjust value.

3Press DISP to conrm.

Use map

Note

You may need to upgrade the map (sold

•

separately) before using it (see “Upgrade the

map” section)

1Tap the upper left corner to display home

menu.

2Tap [Navigation].

The navigation menu is displayed in a»

few seconds.

3Refer to the map manual to operate the

navigation tool.

Listen to Radio

1Tap to display home menu.

2Tap [Radio].

Band and frequency information is»

displayed.

3Tap on FM or AM to select band:

4 Briey tap or to tune to a radio station

by step.

Play disc 3

You can play video, audio or images stored on the

following discs:

DVD video, DVD-R, DVD-RW•

VCD•

Audio CD, CD-R, CD-RW•

1Insert the disc into the disc slot with label

side facing up.

Play starts automatically.»

To remove the disc, press the»button.

Connect USB device 4

1Open the USB door.

2Insert the USB device to the USB socket.

»Play starts automatically.

Note

To remove the USB device, switch to disc,•

radio or other source rst.

Insert USB or SD/MMC card 5

1Insert the SD/MMC card into the SD/MMC

card slot.

Play starts automatically.»

Remove the SD/MMC card

1Switch to another source.

2Press the card until you hear a click sound.

The card is now disengaged.»

3Remove the SD or MMC card.

Play with Bluetooth device

Pair the Bluetooth-enabled devices

To connect your Bluetooth device to the unit, you

need to pair the device to the unit. Pairing needs

only to be done once.

You can pair up to eight devices.

1Search for Bluetooth device with the device.

2Select “CID3290” in the pairing list.

3Enter default password “0000”.

if pairing succeeds. phone call record is»

displayed.

Make a call

1Pair the phone with the unit.

2Tap to display the home menu.

3Tap [Bluetooth].

The Bluetooth menu is displayed.»

4Tap or to select the paired phone, then

tap .

5Tap or to search for phone number

from the following list:

Or tap to dial number directly, then tap

to dial.

Receive call

By default, all incoming calls are received

automatically.

1If there is incoming call, [Incoming call...]

ashes on the screen. Speak into the

Bluetooth microphone.

2When conversation ends, tap (red) to

terminate the call.

CID3290_00_QSG_V1.0
