Philips AZ1040/17 Manuale utente

CD Radio Cassette Recorder AZ 1040

AZ1040

CDRADIOCASSETTERECORDER

PROG

BAND

BATT

LOW

MODE

STOP

PLAY•PAUSE

DIGITALTUNER

CD SYNCHRO START RECORDING

PRESET

PROG

AZ1040

CDRADIOCASSETTERECORDER

BAND

BATT

LOW

MODE

PRESET

STOP

PLAY•PAUSE

DIGITALTUNER

CD SYNCHRO START RECORDING

RECORD

PLAY

STOP-OPEN

PAUSE

SHUFFLE ALL

DBB

POWER

TUNER

DYNAMIC BASSBOOST

TAPE

OFF

DIGITAL

TUNER

Toll Free Help Line

Ligne d'assistance en service libre

Linea de ayuda telefónica sin cargo

800-531-0039

XP AZ 1040/17 02-02-2000 11:50 Pagina 1

AZ 1040 /17 page 3

AZ1040

CD RADIO CASSETTE RECORDER

PROG

BATT

LOW

MODE

STOP

PLAY•PAUSE

RECORD

PLAY

STOP-OPEN

PAUSE

SHUFFLEALL

DBB

POWER

TUNER

DYNAMICBASSBOOST

TAPE

OFF

DIGITALTUNER

CDSYNCHROSTARTRECORDING

BAND

PRESET

DIGITAL

TUNER

21 3 4 65 789

(

! @ $# %^

XP AZ 1040/17 02-02-2000 11:50 Pagina 3

English

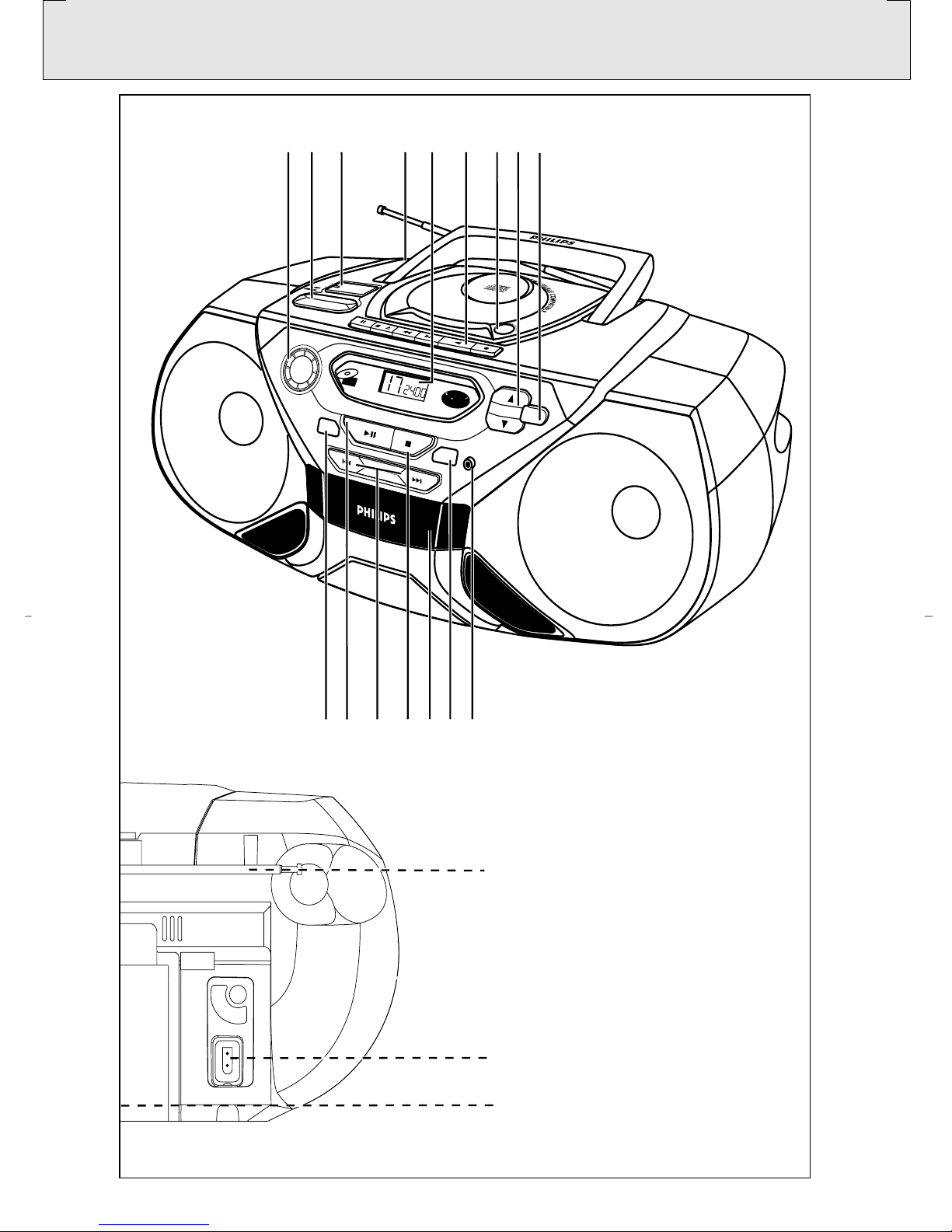

CONTROLS

TOP AND FRONT PANELS

1VOLUME - adjusts the volume level

2DBB (Dynamic Bass Boost) -

enhances the bass

3POWER slider -

selects the sound source for CD/ TUNER/

TAPE and also switches the set off

4p- 3.5 mm stereo headphone jack

Note: Connecting headphones will switch off

the speakers.

5Display - shows the status of the set

6CASSETTE RECORDER keys:

PAUSE ;- pauses recording or playback

STOP•OPEN 9/

- stops the tape;

- opens the cassette compartment

SEARCH 5/ 6- fast winds/rewinds the

tape

PLAY 1- starts playback

RECORD 0- starts recording

7OPEN•CLOSE - opens/ closes the CD door

8PRESET 3,4(up, down) -

selects a tuner preset station

9BAND - selects waveband

0MODE - selects a different play mode for CD

playback e.g. repeats tracks or

SHUFFLE, plays tracks in random

order

!PLAY•PAUSE 2; -

starts/ pauses CD playback

@SEARCH ∞/ §-

Tuner: - (down, up) tunes to radio stations;

CD: - searches back and forward within a

track;

- skips to the beginning of a current

track/ previous/ later track

#STOP 9- stops CD playback or erase a CD

program

$Cassette door

%PROG -

Tuner: programs preset radio stations;

CD: programs tracks and reviews the

program

^BATT LOW - indicates when battery power

is running low

BACK PANEL

&Telescopic antenna - improves FM

reception

*AC MAINS - inlet for power cord

(Battery compartment

AZ 1040 /17 page 8

Environmental information

All unnecessary packaging material has been omitted. We have done our utmost to make the

packaging easy to separate into three mono-materials: cardboard (box), expandable polystyrene

(buffer), polyethylene (bags, protective foam).

Your set consists of materials which can be recycled if disassembled by a specialized

company. Please observe the local regulations regarding the disposal of packing

materials, dead batteries and old equipment.

XP AZ 1040/17 02-02-2000 11:50 Pagina 8

English

POWER SUPPLY

Whenever convenient, use the power supply if you want to

conserve battery life. Make sure you remove the plug from the

set and wall outlet before inserting batteries.

BATTERIES (NOT INCLUDED)

1. Open the battery compartment and insert six batteries, type

R-20, UM-1 or D-cells, (preferably alkaline) with the correct

polarity as indicated by the "+" and "-" symbols inside the

compartment.

2. Replace the compartment door, making sure the batteries are

firmly and correctly in place. The set is now ready to operate.

–If BATT LOW lights up, battery power is running low.

– The BATT LOW indicator eventually goes out if the

batteries are too weak.

Incorrect use of batteries can cause electrolyte leakage and will

corrode the compartment or cause the batteries to burst.

Therefore:

•Do not mix battery types: e.g. alkaline with carbon zinc.

Only use batteries of the same type for the set.

• When inserting new batteries, do not try to mix old batteries

with the new ones.

• Remove the batteries if the set is not to be used for a long

time.

Batteries contain chemical substances, so they should

be disposed of properly.

Using AC POWER

1. Check if the power voltage as shown on the type plate on

the bottom of the set, corresponds to your local power

supply. If it does not, consult your dealer or service center.

2. If your set is equipped with a voltage selector, adjust the

selector so to match with the local power supply.

3. Connect the power cord to the wall outlet and the set is now

ready for use.

4. To disconnect the set from the power supply completely,

remove the plug from the wall outlet.

AZ 1040 /17 page 9

6 x R20 • UM-1 • D-CELLS

XP AZ 1040/17 02-02-2000 11:50 Pagina 9

English

BASIC FUNCTIONS GENERAL INFORMATION

Switching on and off

• Adjust the POWER slider to the desired sound source: CD,

TUNER or TAPE.

• The set is switched off when the POWER slider is in the

TAPE/OFF position and the keys on the tape deck are

released.

™The tuner presets will be retained in the set's memory.

Adjusting sound and volume

1. Turn VOLUME to the desired level.

2. Adjust the DBB control to select dynamic bass boost on or off.

PHILIPS demo mode

1. Press the CD STOP 9button for 5 seconds.

™After about 30 seconds, PH..IL ..IPS scrolls across the display.

2. To return to the current display you can either:

• press any function button on the front panel. This interrupts

the demo mode for 30 seconds;

• press the CD STOP 9button for 5 seconds. PH..IL ..IPS

scrolls once before the demo mode is cancelled.

GENERAL INFORMATION

General maintenance

• Do not expose the set, batteries, CDs or cassettes to humidity,

rain, sand or excessive heat caused by heating equipment or

direct sunlight.

• To clean the set, use a soft, slightly dampened chamois

leather. Do not use any cleaning agents containing alcohol,

ammonia, benzene or abrasives as these may harm the

housing.

Safety information

• Place the set on a hard and flat surface so that the system

does not tilt. Make sure there is adequate ventilation to

prevent the system from overheating.

• The mechanical parts of the set contain self-lubricating

bearings and must not be oiled or lubricated.

AZ 1040 /17 page 10

STOP-OPEN

PAUSE

DBB

POWER

TUNER

DYNAMICBASSBOOST

TAPE

OFF

STOP-OPEN

PAUSE

SHUFFLE

DBB

POWER

TUNER

DYNAMICBASSBOOST

TAPE

OFF

PROG

BATT

LOW

MODE

STOP

PLAY•PAUSE

SHUFFLEALL

PRESET

DIGITAL

TUNER

XP AZ 1040/17 02-02-2000 11:50 Pagina 10

English

DIGITAL TUNER

TUNING TO RADIO STATIONS

1. Select TUNER source.

™is displayed briefly and then the radio station

frequency is shown.

2. Press BAND once or more to select your waveband.

3. Press SEARCH ∞or §and release when the frequency in

the display changes.

™The radio automatically tunes to a station of sufficient

reception. Display shows during automatic tuning.

™If a FM station is received in stereo, STEREO is shown.

4. Repeat step 3if necessary until you find the desired station.

• To tune to a weak station, press SEARCH ∞or §briefly and

repeatedly until you have found optimal reception.

5. Adjust the power slider to TAPE/OFF position to switch off the

set.

To improve radio reception

– For FM, pull out the telescopic antenna. Incline and turn the

antenna. Reduce its length if the signal is too strong (very

close to a transmitter).

– For AM, the set is provided with a built-in antenna so the

telescopic antenna is not needed. Direct the antenna by

turning the whole set.

Programming radio stations

You can store up to a total of 30 radio stations in the memory.

1. Tune to your desired station (see Tuning to radio stations).

2. Press PROG to activate programming.

– Display: PROGRAM flashes.

3. Press PRESET 4or 3once or more to allocate a number from

1 to 30 to this station.

4. Press PROG again to confirm the setting.

– Display: PROGRAM disappears, the preset number and the

frequency of the preset station are shown.

5. Repeat the above four steps to store other stations.

– You can overwrite a preset station by storing another

frequency in its place.

Tuning to preset stations

Press PRESET 4or 3until the desired preset station is displayed.

AZ 1040 /17 page 11

PROG

BATT

LOW

MODE

STOP

PLAY•PAUSE

TUNER

STEREO

PROG

BATT

LOW

STOP

AY•PAUSE

SHUFFLEALL

BAND

PRESET

DIGITAL

TUNER

PROG

BATT

LOW

RECORD

SHUFFLEALL

BAND

PRESET

DIGITAL

TUNER

XP AZ 1040/17 02-02-2000 11:50 Pagina 11

English

CD PLAYER

Playing a CD

1. Select CD source.

™is displayed briefly.

2. Press OPEN•CLOSE to open the CD door.

™Display: when you open the CD door.

3. Insert a CD or CD-R(W) with the printed side facing up and

press OPEN•CLOSE to close the CD door.

™Display: flashes as the CD player scans the contents of

a CD. The total number of tracks and playing time are then

shown.

4. Press PLAY•PAUSE 2; to start playback.

™Display: Current track number and elapsed playing time of the

track during CD playback.

5. To pause playback press PLAY•PAUSE 2;.

Press PLAY•PAUSE 2; again to resume play.

™The display freezes and the elapsed playing time flashes when

playback is paused.

6. To stop CD playback, press STOP 9

Note: CD play will also stop when:

– the CD door is opened;

– the CD has reached the end

(unless you have selected REPEAT or REPEAT ALL);

– you select another source: TAPE / TUNER.

Selecting a different track

• Press SEARCH ∞or §once or repeatedly until the desired

track number appears in the display.

• If you have selected a track number shortly after loading a CD or

in the PAUSE position, you will need to press

PLAY•PAUSE 2; to start playback.

Finding a passage within a track

1. Press and hold down on SEARCH ∞or §.

™The CD is played at high speed and low volume.

2. When you recognize the passage you want,

release SEARCH ∞or §.

– Normal playback continues.

Note:

During a CD program or if SHUFFLE/ REPEAT active, searching is

only possible within a track.

AZ 1040 /17 page 12

AZ1040

CDRADIOCASSETTERECORDER

RECORD

PLAY

STOP-OPEN

PAUSE

DBB

TUNER

BOOST

APE

PROG

BATT

LOW

MODE

STOP

PLAY•PAUSE

SHUFFLEALL

DIGITAL

TUNER

PROG

BATT

LOW

MODE

STOP

PLAY•PAUSE

ALL

DIGITAL

TUNER

PROG

BATT

LOW

MODE

STOP

PLAY•PAUSE

DIGI

XP AZ 1040/17 02-02-2000 11:50 Pagina 12

English

CD PLAYER

Different play modes: SHUFFLE and REPEAT

You can select and change the various play modes before or during

playback. The play modes can also be combined with PROGRAM.

SHUFFLE - tracks of the entire CD/ program are played in random

order

SHUFFLE and REPEAT ALL - to repeat the entire CD/ program

continuously in random order

REPEAT ALL - to repeat the entire CD/ program continuously

REPEAT - repeats the current track continuously

1. To select your play mode, press the MODE button before or

during playback until the display shows the desired function.

2. Press PLAY•PAUSE 2; to start playback if in the STOP

position.

3. To return to normal playback, press the MODE button

repeatedly until the various SHUFFLE / REPEAT modes are no

longer displayed.

– You can also press STOP 9to cancel your play mode.

Programming track numbers

Program in the STOP position to select and store your CD tracks in

the desired sequence. If you like, store any track more than once.

Up to 20 tracks can be stored in the memory.

1. Use the SEARCH ∞or §to select your desired track number.

2. Press PROG.

™Display: PROGRAM and the selected track number

appears briefly.

™If you attempt to program without first selecting a track

number, is shown.

3. Repeat steps 1-2 to select and store all desired tracks.

™is displayed if you attempt to program more than

20 tracks.

4. Press PLAY•PAUSE 2; to start playback of your CD program.

Reviewing the program

In the STOP position or during playback, press and hold down

PROG for a while until the display shows all your stored track

numbers in sequence.

AZ 1040 /17 page 13

PROG

BATT

LOW

MODE

STOP

PLAY•PAUSE

SHUFFLEALL

DIGITAL

TUNER

PROG

BATT

LOW

MODE

STOP

PLAY•PAUSE

DIGITAL

TUNER

PROGRAM

XP AZ 1040/17 02-02-2000 11:50 Pagina 13

English

CD PLAYER CASSETTE RECORDER

Erasing a program

You can erase the program by:

– pressing STOP 9once in the STOP position or twice during

playback. The display shows ' ' briefly;

– pressing the CD door open;

– switching to another source: TUNER/TAPE.

CD player and CD handling

• The lens of the CD player should never be touched!

• If the CD player cannot read CDs correctly, use a commonly

available cleaning CD to clean the lens before taking the set to

repair. Other cleaning methods may destroy the lens.

• Sudden changes in the surrounding temperature can cause

condensation to cloud over on the lens of your CD player.

Playing a CD is then not possible. Do not attempt to clean the

lens but leave the set in a warm environment until the

moisture evaporates.

• Always keep the CD compartment closed to avoid dust on the

lens.

• To take a CD out of its box, press the center spindle while

lifting the CD. Always pick up the CD by the edge and return

the CD to its box after use to avoid scratching and dust.

• To clean the CD, wipe in a straight line from the center

towards the edge using a soft, lint-free cloth. Do not use

cleaning agents as they may damage the disc.

•Never write on a CD or attach any stickers to it.

CASSETTE PLAYBACK

1. Select TAPE source.

™The display shows throughout tape operation.

2. Press STOP•OPEN 9/ to open the cassette door.

3. Insert a recorded cassette and close the cassette door.

4. Press PLAY 1to start playback.

5. To pause playback, press PAUSE ;. To resume, press the key

again.

6. By pressing SEARCH 5or 6fast winding of the tape is

possible in both directions.

7. To stop the tape, press STOP•OPEN 9/.

–The keys are automatically released at the end of the tape and

the indication goes out, except if PAUSE ;has been

activated.

AZ 1040 /17 page 14

AZ1040

CDRADIOCASSETTERECORDER

RECORD

PLAY

STOP-OPEN

PAUSE

DBB

POWER

TUNER

DYNAMICBASSBOOST

TAPE

OFF

XP AZ 1040/17 02-02-2000 11:50 Pagina 14

RECORDING

GENERAL INFORMATION ON RECORDING

• Recording is permissible insofar as copyright or other rights of

third parties are not infringed.

• This deck is not suitable for recording on CHROME (IEC II) or

METAL (IEC IV) type cassettes. For recording, use only

NORMAL type cassettes (IEC I) on which the tabs have not

been broken.

• The best recording level is set automatically. Altering the

VOLUME and DBB controls will not affect the recording in

progress.

• At the very beginning and end of the tape, no recording will

take place during the 7 seconds, when the leader tape passes

the recorder heads.

• To protect a tape from accidental erasure, have the tape in

front of you and break out the left tab.

Recording on this side is no longer possible. To record over this

side again, cover the tabs with a piece of adhesive tape.

SYNCHRO START CD RECORDING

1. Select CD source.

2. Insert a CD and if desired, program track numbers.

3. Press STOP•OPEN 9/ to open the cassette door.

4. Insert a suitable cassette into the cassette deck and close the

cassette door.

5. Press RECORD 0to start recording.

– Playing of the CD program starts automatically from the

beginning of the program. It is not necessary to start the CD

player separately.

To select and record a particular passage

• Press and hold down on SEARCH ∞or §.

• When you recognize the passage you want, release SEARCH

∞or §.

• To pause CD playback press PLAY/PAUSE 2;.

– Recording will begin from this exact point in the track when

you press RECORD 0.

6. For brief interruptions during recording, press PAUSE ;. To

resume recording, press PAUSE ;again.

7. To stop recording, press STOP•OPEN 9/.

AZ 1040 /17 page 15

English

AZ 1040 /17 page 15

AZ1040

CDRADIOCASSETTERECORDER

RECORD

PLAY

STOP-OPEN

PAUSE

DBB

POWER

TUNER

DYNAMICBASSBOOST

TAPE

OFF

PROG

BATT

LOW

MODE

STOP

PLAY•PAUSE

DIGITAL

TUNER

XP AZ 1040/17 02-02-2000 11:50 Pagina 15

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Philips Lettore CD

Philips

Philips AZ1833 Manuale operativo

Philips

Philips AZ1150 - annexe 1 Manuale utente

Philips

Philips AZ1065 Manuale utente

Philips

Philips CDC735 Manuale utente

Philips

Philips FW-R88FW-R88 Manuale utente

Philips

Philips eXpanium EXP325 Manuale utente

Philips

Philips AZ1560/11 Manuale utente

Philips

Philips AZ-2050 Manuale utente

Philips

Philips AZ9141 Manuale utente

Philips

Philips Soundmachine AZ3831 Manuale utente

Philips

Philips AZ8052 Manuale utente

Philips

Philips AZ 8060 Manuale utente

Philips

Philips AZ2605 Manuale utente

Philips

Philips FW898W/34 Manuale utente

Philips

Philips AZ6834 - Portable Radio Cass Rec Manuale utente

Philips

Philips AZ1027/96 Manuale utente

Philips

Philips AZ1150 - annexe 1 Manuale di servizio

Philips

Philips AX5312 Manuale utente

Philips

Philips ND 5500 Manuale utente

Philips

Philips AZ101 Manuale utente

Philips

Philips AZ1856 Manuale utente

Philips

Philips AX5011 Manuale utente

Philips

Philips AX5211 Manuale utente

Philips

Philips AZ1033 Manuale utente

Manuali Lettore CD popolari di altre marche

RCA

RCA RP-7923 Manuale utente

Pioneer

Pioneer DEH-P3550MP XM Manuale utente

Lasonic

Lasonic MSU-2020 Manuale utente

THOMSON

THOMSON RCD150 Manuale utente

Denon

Denon DCD-1420 Manuale utente

Panasonic

Panasonic SJ-MR100 Manuale utente

Onkyo

Onkyo DX-7210 Manuale utente

Sony

Sony MZ-R3 Manuale utente

Denon

Denon DVM-4800 Manuale utente

JBL

JBL MR-32 Manuale utente

RCA

RCA RCD152 Manuale utente

Technics

Technics SL-PS770A Manuale utente

Clarion

Clarion compact disc Manuale utente

Sony

Sony MZ-M10 Manuale utente

Rotel

Rotel RCD 975 Manuale utente

Pioneer

Pioneer CLD-D790 Manuale utente

Optimus

Optimus CD-8250 Manuale utente

Audiovox

Audiovox CE101A - annexe 1 Manuale utente
