AZ 7372

Portable Compact Disc Player

PLAY

PAUSE

Guarantee and Service..........................................................................................page 60

Guarantee and Service..........................................................................................page 61

Es necesario que lea cuidadosamente su instructivo de manejo. 2

Garantía..................................................................................................................pág. 62

Mexico

New Zealand

Australia

English

Español

English

Français

Español

Controls ............................4-5

Accessories .........................6

Power Supply.......................7

Connections......................8-9

Operation......................10-14

General Information ..........15

Troubleshooting............16-17

Commandes..................18-19

Accessoires .......................20

Alimentation......................21

Branchements ..............22-23

Fonctionnement............24-28

Généralités ........................29

Recherche de pannes...30-31

Mandos ........................32-33

Accesorios .........................34

Suministro de energía.......35

Conexiones...................36-37

Funcionamiento............38-42

Información general ..........43

etección de anomalías

44-45

Français

∑

Controls ........................46-47

Accessories .......................48

Power Supply.....................49

Connections..................50-51

Operation......................52-56

General Information ..........57

Troubleshooting............58-59

English

DSP

PROGRAM

MODE

RESUME / HOLD

VOLUME

LINE OUT / p

BATTERIES

4.5 V DC

DISPLAY

ESA

PLAY / PAUSE

OPEN

STOP

TYPEPLATE

CONTROLS

English

DISPLAY......................

Window for showing the different playing modes, tracks and times

§.................................Button for selecting the next music track or, if held down, for

searching forward for a particular passage on the CD

∞.................................Button for selecting the previous music track or, if held down,

for searching·backward for a particular passage on the CD

VOLUME......................Control for adjusting the volume at the headphone output

RESUME/HOLD ..........Switch for activating the RESUME function (resuming CD play)

and/or HOLD (blocking all buttons) function

MODE 00......................Button for selecting the different playing modes:

SHUFFLE™SHUFFLE REPEAT ALL™REPEAT 1™REPEAT ALL

™SCAN™off

PROG P........................Button for storing tracks in a program and for reviewing the

program

DSP..............................Digital Sound Processing: Button for selecting the different

sound settings at the headphone output:

ROCK™POP™CAR™INCREDIBLE SURROUND™off

STOP 9........................Button for stopping CD play, deleting various settings,

switching off the CD player and activating charging.

OPEN ...........................Slide control for opening the lid of the CD player

2; ................................Button for starting and pausing CD play

ESA ..............................Electronic Shock Absorption: Switch for activating the

electronic buffer memory for an undisturbed sound

LINE OUT / p..............Headphone socket (3.5 mm)

4,5 V DC.......................Socket for external power supply

Battery compartment for inserting batteries

Note: In case of power supply via the DC jack (mains adapter or cigarette lighter in

your car) the display is backlighted. In battery mode, the illumination is

activated for 10 seconds after key operations.

ACCESSORIES

English

Accessories for power supply

AY 3160 mains adapter 4.5 V/400 mA Direct current, plus-pole to the center pin

Note: Use only the AY 3160 adapter, other products may damage the set.

AY 3361 - NiCad battery pack for recharging on board

Accessories

TECHNICAL DATA

Frequency range .......................................................................................20 - 20000 Hz

Signal-to-noise ratio ....................................................................................typ. 95 dBA

Channel separation ......................................................................................typ. 70 dBA

Total harmonic distortion .............................................................................typ. 0.05 %

Conversion...............................................................................Bitstream D/A Converter

Batteries........................................................................2 x 1.5 V, type AA / LR6 / UM3

Dimensions (wx hx d).................................................................134 x 30.5 x 154 mm

Weight (without/with batteries) ..................................................approx. 250/290 gms

POWER SUPPLY

English

1Make sure that the local voltage corresponds

to the voltage of the adapter (see

accessories).

2Connect the mains adapter to the player's

4.5 V DC socket and to the wall outlet.

• Always disconnect the adapter when you are

not using it.

• Open the battery compartment and insert the

rechargeable battery pack or 2 alkaline

batteries.

Typical playing times under normal conditions:

Alkaline batteries: 5.5 hours (ESA off)

4.5 hours (ESA on)

• Remove the batteries if they are empty or the

CD player is not to be used for a long period

of time.

Note: In the right-hand corner of the display the battery condition will be indicated:

-Full batteries: no indication.

-Weak batteries: -symbol lights up. This symbol is not available when

rechargeable batteries are used.

-Empty batteries: -symbol flashes and the message bAtt appears. Replace

the batteries or connect the mains adapter.

Batteries contain chemical substances, therefore they should be disposed of

properly.

Batteries, type LR6, UM3 or AA

(supplied or optional available)

Mains adapter

CONNECTIONS

English

The battery pack will be recharged if the mains adapter is connected, the set is

switched off and you press the STOP 9button.

yyDisplay indication during charging: CHARGE and

Approx. charging time: 5.5 hours.

yyDisplay indication if fully charged: FULL and

Notes:

- When using rechargeable batteries, we advise the use of the Philips battery pack

only, as conventional separate Nickel-Cadmium batteries cannot be recharged on

board.

- To ensure a long life for your battery pack, charging will automatically be

interrupted at high ambient temperatures (Display indication: HOt).

Recharging of Philips battery pack on board

CONNECTIONS

English

• Connect the supplied headphones (16 ohms/

3.5mm jack plug) with the LINE OUT / pjack.

Note : Use this jack also for connecting your HiFi system

(signal lead) or your car radio (adapter cassette or

signal lead). In both cases, the volume of the CD

player has to be set to maximum position (10).

Use your head when using headphones

Hearing safety: Do not play your headphones at a high volume. Hearing experts

advise that continuous use at high volume can permanently damage hearing.

Traffic safety: Do not use headphones while driving a vehicle. It may create a

hazard and it is illegal in many countries. Even if your headphones are an open-air

type designed to let you hear outside sounds, do not turn up the volume so high

that you cannot hear what is going on around you.

Connecting headphones

(supplied)

OPERATION

English

1Open the lid by pushing the OPEN slide control to the side.

2Insert an audio CD, printed side up.

3Close the lid by pushing down on the right-hand side.

yyDisplay indication of: (example)

17 = total number of tracks / 51:06 = total playing time

4Press the 2; button to start CD play.

yyDisplay indication of: (example)

4 = current track / 2:56 = elapsed time of current track

5Adjust the sound using the controls VOLUME and DSP.

6You can interrupt CD play by pressing the 2; button. Continue CD play by pressing

the 2; button again.

yyDisplay indication of: time of the current position (flashing).

7Press the STOP 9button to stop CD play.

yyDisplay indication of: total number of tracks / the total playing time.

• If you press the STOP 9button again, you will switch off the set.

Note: If no button is pressed for 90 seconds, the set will switch off automatically.

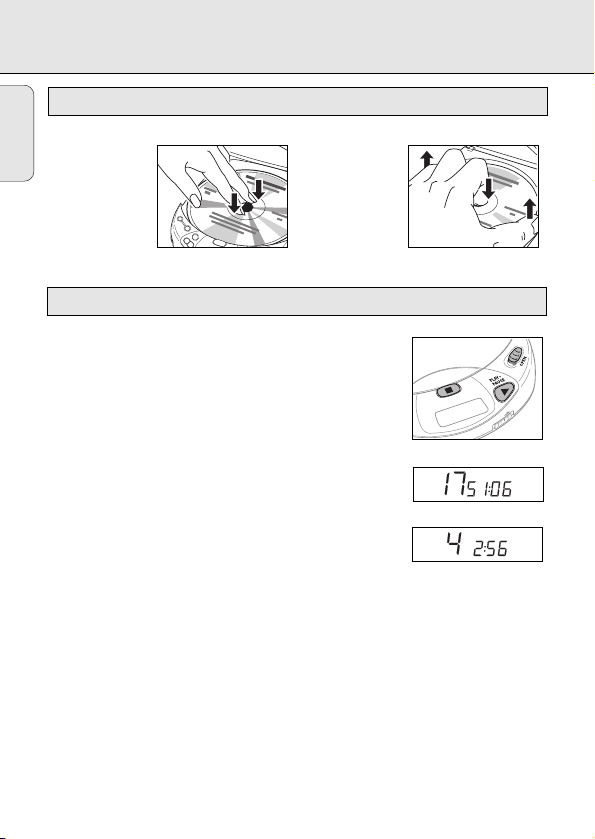

Playing a CD

• Push gently on

the CD center

so that it fits

onto the hub.

• Hold the CD

by its edge

and press the

hub gently.

Inserting the CD Removing the CD
