Philips AZ7374 Manuale utente

Instructions for Use

Mode d’emploi

Instrucciones de manejo

Bedienungsanleitung

Gebruiksaanwijzing

Istruzioni per l’uso

Bruksanvisning

Brugsanvisning

Käyttöohje

Manual de utilização

O‰ËÁ›Â˜ ¯Ú‹ÛÂˆ˜

AZ 7372

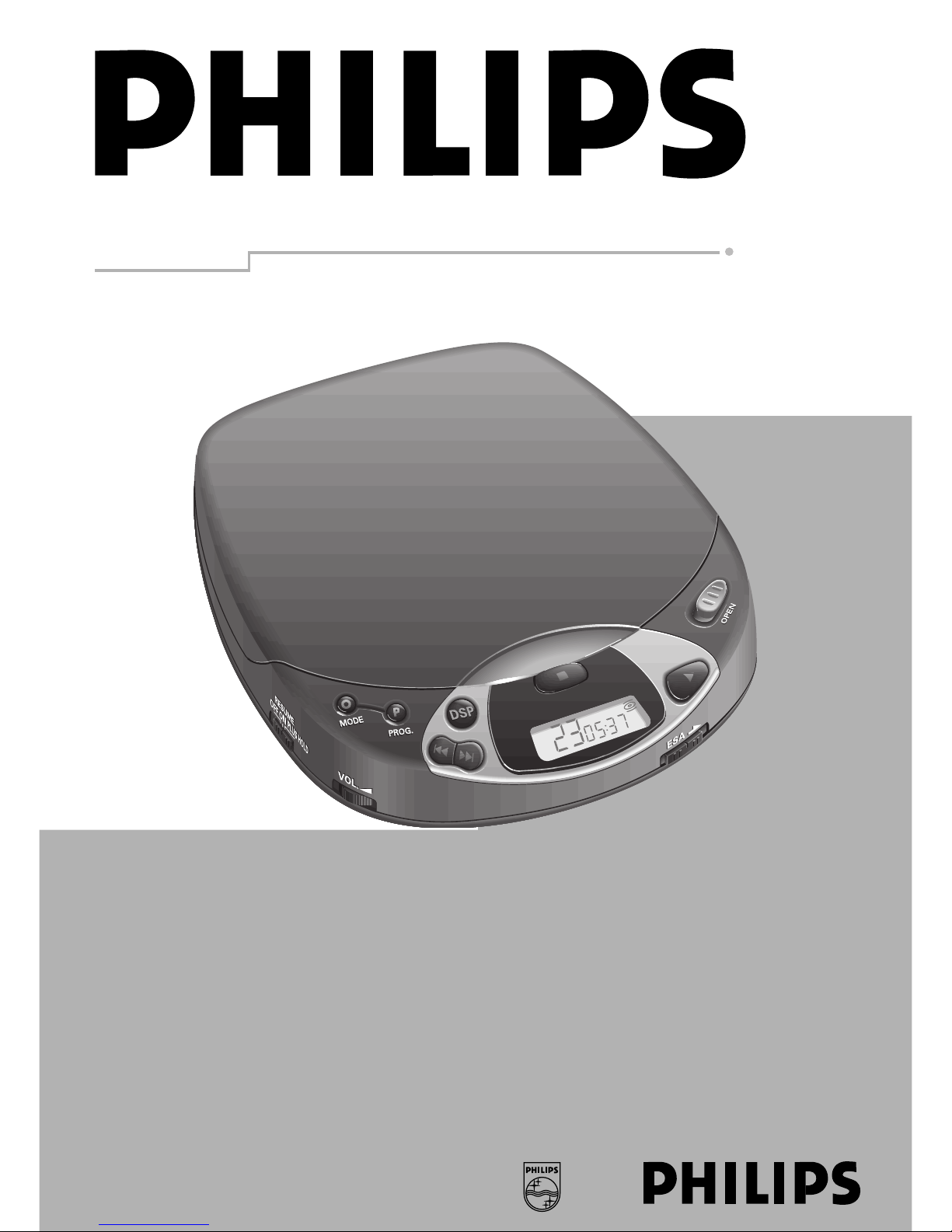

Portable Compact Disc Player

PLAY

PAUSE

English

Français

Español

Deutsch

Nederlands

Italiano

English Controls........................6-7

Accessories.....................8

Power Supply ..................9

Connections .............10-11

Operation .................12-16

General information......17

Troubleshooting .......18-19

Français Commandes ............20-21

Accessoires...................22

Alimentation..................23

Branchements..........24-25

Fonctionnement .......26-30

Généralités ...................31

Recherche des

pannes .....................32-33

Deutsch Bedienungselemente48-49

Zubehör .........................50

Stromversorgung...........51

Anschlüsse...............52-53

Bedienung................54-58

Allg. Informationen .......59

Fehlersuche..............60-61

Nederlands

Bedieningstoetsen...62-63

Accessoires...................64

Voeding..........................65

Aansluitingen...........66-67

Bediening.................68-72

Algemene informatie .....73

Problemen

oplossen...................74-75

Español Mandos....................34-35

Accesorios.....................36

Alimentación.................37

Conexiones...............38-39

Funcionamiento........40-44

Información general......45

Detección de

anomalías.................46-47

Italiano Comandi...................76-77

Accessori.......................78

Alimentazione ...............79

Collegamenti............80-81

Funzionamento.........82-86

Informazioni generali......87

Ricerca guasti ..........88-89

Hiermit wird bescheinigt, daß dieses Gerät in Übereinstimmung mit den Be-

stimmungen der Amtsblattverfügung 1046/1984 funkentstört ist.

Der Deutschen Bundespost wurde das Inverkehrbringen dieses Gerätes angezeigt und

die Berechtigung zur Überprüfung der Serie auf Einhaltung der Bestimmungen einge-

räumt.

Typeskilt finnes på apparatens underside.

Norge

Deutschland

ŒÏÏËÓÈÎ¿ XÂÈÚÈÛÙ‹ÚÈ·...........146-147

EÍ·ÚÙ‹Ì·Ù·..................148

TÚÔÊÔ‰ÔÛ›· .................149

™˘Ó‰¤ÛÂÈ˜ ............150-151

§ÂÈÙÔ˘ÚÁ›·............152-156

°ÂÓÈÎ¤˜

ÏËÚÔÊÔÚ›Â˜ ...............157

¢ÈﬁÚıˆÛË

‚Ï·‚ÒÓ.................158-159

Português Comandos ............132-133

Acessorios...................134

Alimentação................135

Ligações...............136-137

Funcionamento.....138-142

Informações gerais.......143

Avarias .................144-145

Dansk Betjeningsknapper104-105

Tilbehør........................106

Strømforsyning............107

Tilslutninger .........108-109

Anvendelse ..........110-114

Generel information ......115

Fejlfinding ............116-117

Svenska Reglage....................90-91

Tillbehör.........................92

Strömförsörjning ...........93

Anslutningar.............94-95

Bruksanvisning.......96-100

Allmänna

upplysningar................101

Felsökning............102-103

Suomi Käyttöpainikkeet..118-119

Tarvikkeet ....................120

Virransyöttö.................121

Kytkennät.............122-123

Käyttö...................124-128

Yleistä .........................129

Tarkistusluettelo ..130-131

Suomi

ŒÏÏËÓÈÎ¿ Português Dansk Svenska

English

DSP

PROGRAM

MODE

HOLD / RESUME

VOLUME

LINE OUT / p

BATTERIES

4.5 V DC

DISPLAY

ESA

PLAY / PAUSE

OPEN

STOP

TYPEPLATE

This set complies with the radio interference requirements of the

European Community.

CONTROLS

English

DISPLAY......................Window for showing the different playing modes, tracks and

times

§.................................Button for selecting the next music track or, if held down, for

searching forward for a particular passage on the CD

∞.................................Button for selecting the previous music track or, if held down,

for searching·backward for a particular passage on the CD

VOLUME......................Control for adjusting the volume at the headphone output

RESUME/HOLD ..........Switch for activating the RESUME function (resuming CD play)

and/or HOLD (blocking all buttons) function

MODE 00......................Button for selecting the different playing modes:

SHUFFLE™SHUFFLE REPEAT ALL™REPEAT 1™REPEAT ALL

™SCAN™off

PROG P........................Button for storing tracks in a program and for reviewing the

program

DSP..............................Digital Sound Processing: Button for selecting the different

sound settings at the headphone output:

ROCK™POP™CAR™INCREDIBLE SURROUND™off

STOP 9........................Button for stopping CD play, deleting various settings,

switching off the CD player and activating charging.

OPEN ...........................Slide control for opening the lid of the CD player

2; ................................Button for starting and pausing CD play

ESA ..............................Electronic Shock Absorption: Switch for activating the

electronic buffer memory for an undisturbed sound

LINE OUT / p..............Headphone socket (3.5 mm)

4,5 V DC.......................Socket for external power supply

Battery compartment for inserting batteries

Note: In case of power supply via the DC jack (mains adapter or cigarette lighter in

your car) the display is backlighted. In battery mode, the illumination is

activated for 10 seconds after key operations.

ACCESSORIES

English

Accessories for power supply

AY 3160 mains adapter 4.5 V/400 mA Direct current, plus-pole to the center pin

Note: Use only the AY 3160 adapter, other products may damage the set.

AY 3361 - NiCad battery pack for recharging on board

Accessories

POWER SUPPLY

English

1Make sure that the local voltage corresponds

to the voltage of the adapter (see

accessories).

2Connect the mains adapter to the player's

4.5 V DC socket and to the wall outlet.

• Always disconnect the adapter when you are

not using it.

• Open the battery compartment and insert the

rechargeable battery pack or 2 alkaline

batteries.

Typical playing times under normal conditions:

Alkaline batteries: 5.5 hours (ESA off)

4.5 hours (ESA on)

• Remove the batteries if they are empty or the

CD player is not to be used for a long period

of time.

Note: In the right-hand corner of the display the battery condition will be indicated:

-Full batteries: no indication.

-Weak batteries: -symbol lights up. This symbol is not available when

rechargeable batteries are used.

-Empty batteries: -symbol flashes and the message bAtt appears. Replace

the batteries or connect the mains adapter.

Batteries contain chemical substances, therefore they should be disposed of

properly.

Batteries, type LR6, UM3 or AA

(supplied or optional available)

Mains adapter

CONNECTIONS

English

• Connect the supplied headphones (16 ohms/

3.5mm jack plug) with the LINE OUT/ pjack.

Note : Use this jack also for connecting your HiFi system

(signal lead) or your car radio (adapter cassette or

signal lead). In both cases, the volume of the CD

player has to be set to maximum position (10).

Use your head when using headphones

Hearing safety: Do not play your headphones at a high volume. Hearing experts

advise that continuous use at high volume can permanently damage hearing.

Traffic safety: Do not use headphones while driving a vehicle. It may create a

hazard and it is illegal in many countries. Even if your headphones are an open-air

type designed to let you hear outside sounds, do not turn up the volume so high

that you cannot hear what is going on around you.

Connecting headphones

(supplied)
