Philips AZ7376/01 Manuale utente

Instructions for use

Mode d’emploi

Instrucciones de manejo

√

AZ 7376

Portable Compact Disc Player

PLAY

PAUSE

Guarantee and Service..........................................................................................page 60

Guarantee and Service..........................................................................................page 61

Es necesario que lea cuidadosamente su instructivo de manejo. 2

Garantía..................................................................................................................pág. 62

Mexico

New Zealand

Australia

English

Español

English

Français

Español

Controls ............................4-5

Accessories .........................6

Power Supply.......................7

Connections......................8-9

Operation......................10-14

Genaral Information ..........15

Troubleshooting............16-17

Commandes..................18-19

Accessoires .......................20

Alimentation......................21

Branchements ..............22-23

Fonctionnement............24-28

Généralités ........................29

Recherche de pannes...30-31

Mandos ........................32-33

Accesorios .........................34

Suministro de energía.......35

Conexiones...................36-37

Funcionamiento............38-42

Información general ..........43

etección de anomalías

44-45

Français

∑

Controls ........................46-47

Accessories .......................48

Power Supply.....................49

Connections..................50-51

Operation......................52-56

Genaral Information ..........57

Troubleshooting............58-59

English

DSP

PROGRAM

MODE

RESUME / HOLD

VOLUME

LINE OUT / p

BATTERIES

4.5 V DC

DISPLAY

ESA

PLAY / PAUSE

OPEN

STOP

TYPEPLATE

CONTROLS

English

DISPLAY......................Window for showing the different playing modes, tracks and

times.

§.................................Button for selecting the next music track or, if held down, for

searching forward for a particular passage on the CD.

∞.................................Button for selecting the previous music track or, if held down,

for searching·backward for a particular passage on the CD.

VOLUME......................Control for adjusting the volume of the headphones.

RESUME/HOLD ..........Switch for activating the RESUME function (resuming CD play)

and/or HOLD (blocking all buttons) function.

MODE 00......................Button for selecting the different playing modes:

SHUFFLE™SHUFFLE REPEAT ALL™REPEAT 1™REPEAT ALL

™SCAN™off

PROG P........................Button for storing tracks in a program and for reviewing the

program.

DSP..............................Digital Sound Processing: Button for selecting the different

sound settings at the headphone output:

ROCK™POP™CAR™INCREDIBLE SURROUND™off.

STOP 9........................Button for stopping CD play, deleting various settings,

switching off the CD player.

OPEN ...........................Slide control for opening the lid of the CD player.

PLAY PAUSE 2;........Button for starting and pausing CD play.

ESA ..............................Electronic Shock Absorption: Switch for activating the

electronic buffer memory for an undisturbed sound.

LINE OUT / p..............Headphone and LINE OUT jack (3.5 mm).

4,5 V DC.......................Socket for external power supply.

Battery compartment for inserting batteries.

Note: If you use the DC jack (power adapter or car cigarette lighter) the display and

the play button are backlighted. If you use battery power, the display is lighted

for 10 seconds after key operations.

ACCESSORIES

English

Accessories for power supply

AY 3160 power adapter 4.5 V/400 mA Direct current, plus-pole to the center pin

Note: Use only the AY 3160 adapter, other products may damage the set.

Car accessories

AY 3545 - car voltage converter (4.5 V/600 mA, Direct Current, plus-pole to the

center pin)

AY 3501 - car adapter cassette

Accessories

Frequency range .......................................................................................20 - 20000 Hz

Signal-to-noise ratio ....................................................................................typ. 95 dBA

Channel separation ......................................................................................typ. 70 dBA

Total harmonic distortion .............................................................................typ. 0.05 %

Conversion...............................................................................Bitstream D/A Converter

Batteries........................................................................2 x 1.5 V, type AA / LR6 / UM3

Dimensions (wx hx d).................................................................134 x 30.5 x 154 mm

Weight (without/with batteries) ..................................................approx. 250/290 gms

Technical Data

POWER SUPPLY

English

1Make sure that the local voltage corresponds

to the voltage of the adapter (see

accessories).

2Connect the power adapter to the player's

4.5 V DC socket and to the wall outlet.

• Always disconnect the adapter when you are

not using it.

• Open the battery compartment and insert 2

alkaline batteries.

Typical playing times under normal conditions:

Alkaline batteries: 5.5 hours (ESA off)

4.5 hours (ESA on)

• Remove the batteries if they are dead or if the

CD player is not to be used for a long time.

Note: In the right-hand corner of the display the battery condition will be indicated:

-Full batteries: no indication.

-Weak batteries: -symbol lights up. This symbol is not available when

rechargeable batteries are used.

-Dead batteries: -symbol flashes and the message bAtt appears. Replace

the batteries or connect the power adapter.

Batteries contain chemical substances, therefore they should be disposed of

properly.

Batteries, type LR6, UM3 or AA

(supplied or optional available)

Power adapter

CONNECTIONS

English

• Connect the supplied headphones (16 ohms/

3.5mm plug) at the LINE OUT / pjack.

Note : Use this jack also for connecting your HiFi system

(signal lead) or your car radio (adapter cassette or

signal lead). In both cases, the volume of the CD

player has to be set to maximum position (10).

Use your head when using headphones

Hearing safety: Do not play your headphones at a high volume. Hearing experts

advise that continuous use at high volume can permanently damage hearing.

Traffic safety: Do not use headphones while driving a vehicle. It may create a

hazard and it is illegal in many countries. Even if your headphones are an open-air

type designed to let you hear outside sounds, do not turn up the volume so high

that you cannot hear what is going on around you.

Connecting headphones

(supplied)

CONNECTIONS

English

1Find a safe place for the

CD player on a horizontal,

vibration-free and stable

surface that is not

dangerous or in the way of

the driver or passengers.

2Connect the DC plug of the

voltage converter

to the DC

socket of your CD player

(

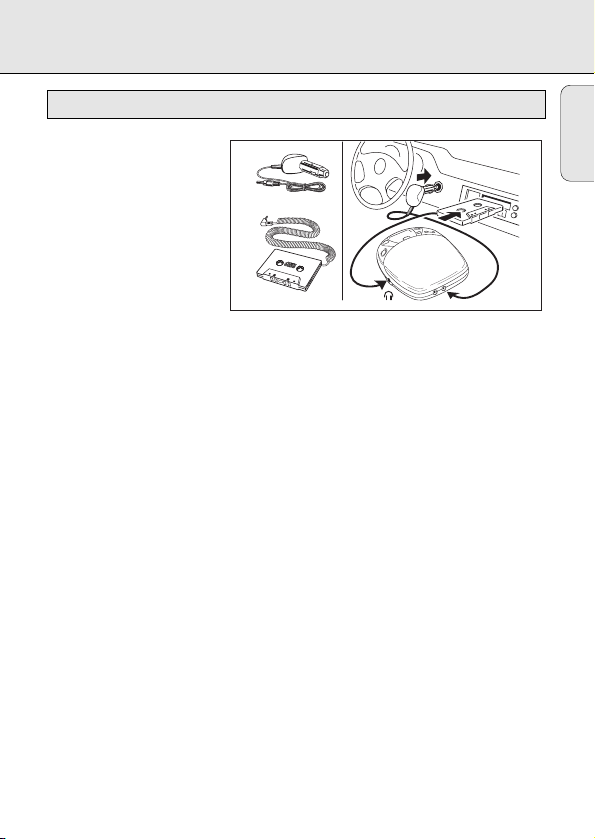

only for a 12 V car battery, negative grounding

Insert the voltage converter into the cigarette

lighter socket. If necessary, clean the

cigarette lighter socket to obtain a good electrical contact.

4Turn down the volume and

switch off the autoreverse function (if present) of

your car radio cassette player.

5Connect the adapter cassette plug to the LINE OUT / psocket of the CD player.

6Slide the adapter cassette carefully into the car radio’s cassette compartment.

7Make sure that the cord does not hinder your driving.

8Start the CD player, turn its volume to maximum position (10) and adjust the sound

with the car radio controls.

• To remove the adapter cassette press the eject button of the car radio.

• Always remove the voltage converter from the

cigarette

lighter socket when the CD

player is not in use.

Notes on In-car Use:

- Avoid excessive heat from the car heating or from direct sunlight (e.g., in a parked

car in the summer).

- If your car radio has a LINE IN jack, it is best to use it for the car radio connection

instead of the adapter cassette. Connect the signal lead to this LINE IN jack and

the LINE OUT /

jack of the CD player.

4,5 V DC

Connections for in-car use

OPERATION

English

1Open the lid by pushing the OPEN slide control to the side.

2Insert an audio CD, printed side up.

3Close the lid by pushing down on the right-hand side.

yyDisplay indication of: (example)

17 = total number of tracks / 51:06 = total playing time

4Press the 2; button to start CD play.

yyDisplay indication of: (example)

4 = current track / 2:56 = elapsed time of current track

5Adjust the sound using the controls VOLUME and DSP.

6You can interrupt CD play by pressing the 2; button. Continue CD play by pressing

the 2; button again.

yyDisplay indication of: time of the current position (flashing).

7Press the STOP 9button to stop CD play.

yyDisplay indication of: total number of tracks / the total playing time.

• If you press the STOP 9button again, you will switch off the set.

Note: If no button is pressed for 90 seconds, the set will switch off automatically.

Playing a CD

• Push gently on

the CD center

so that it fits

onto the hub.

• Hold the CD

by its edge

and press the

hub gently.

Inserting the CD Removing the CD
