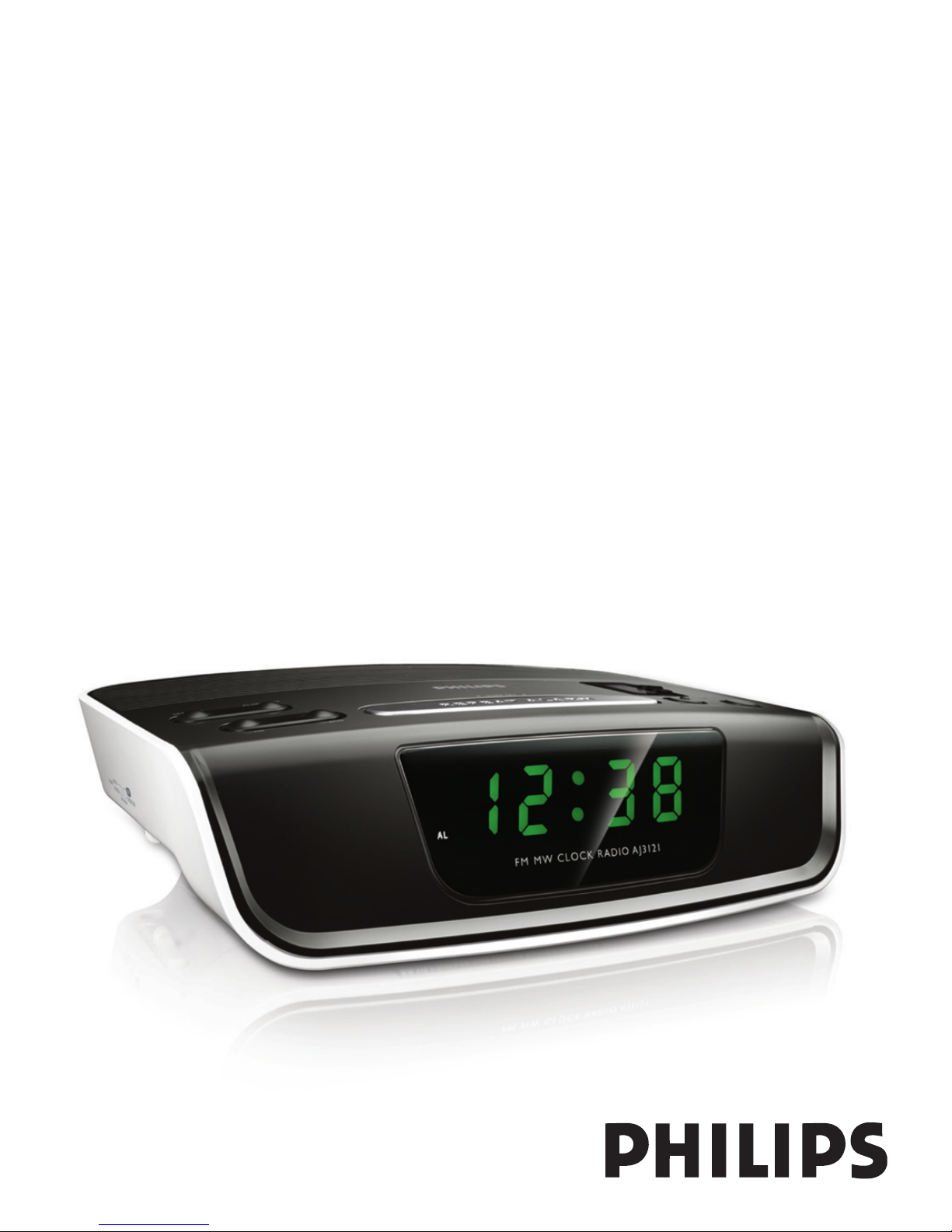

Philips AJ3121 Manuale utente

Clock Radio

www.philips.com/welcome

User manual

AJ3121

AJ3121_79_ASDA_CCR_ENG 2008.3.6 3:58 PM Page 1

AJ3121_79_ASDA_CCR_ENG 2008.3.6 3:58 PM Page 2

English

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, reg-

ister your product at www.philips.com/welcome.

CONTROLS (see fig. 1)

1SET TIME /ALARM SET

- sets the clock time

- sets the alarm time

2HR / MIN

- adjusts the hours / minutes for clock / alarm / sleep time

3REPEAT ALARM / SLEEP OFF

- switches off the active alarm for a 9 minutes period

- switches off the radio sleep function

4ALARM RESET

- stops the active alarm for 24 hours

5SLEEP

- activates the radio for sleep function

- adjusts the sleep period

6TUNING - tunes to radio stations

7ALARM indicator - lights up when alarm is activated.

8FM/MW - selects FM/MW waveband

9VOLUME - adjusts the sound level

0RADIO / ALARM

OFF: switches off the radio/alarm

RADIO ON: switches on the radio

ALARM - RADIO: activates the radio for alarm

ALARM - BUZZER: activates the buzzer for alarm

!Power cord -

connects to wall outlet

@Pigtail - improve FM reception

#Battery door - opens to store a 9 volts 6F22 battery (not included) for clock

memory backup.

AJ3121_79_ASDA_CCR_ENG 2008.3.6 3:58 PM Page 3

INSTALLATION

POWER SUPPLY

Check if the power supply, as shown on the type plate located on the bot-

tom of the set, corresponds to your local power supply. If it does not, consult

your dealer or service center.

Connect the power cord to the wall outlet.

To disconnect the set from the power supply completely, remove the

plug from the wall outlet.

For users in the U.K.: please follow the instructions on the left

CLOCK MEMORY BACKUP

The clock memory backup allows your alarm and clock time settings to be stored

for up to a day when there is a power interruption e.g. power failure. The com-

plete clock radio and display illumination will be switched off. As soon as the

power supply returns, the display will indicate the correct time.

Remove the battery door to insert a 9 volts 6F22 type battery (not included)

for backup.

Replace the battery door.

NOTE:

If no backup battery is installed or the power interruption is prolonged, you

will need to set the clock and alarm times again.

Batteries contain chemical substances so they should be disposed of

properly.

AJ3121_79_ASDA_CCR_ENG 2008.3.6 3:58 PM Page 4

RADIO

You can use this set solely as a radio!

Adjust

RADIO / ALARM

RADIO ON

to switch on the radio.

Select your waveband by adjusting the

FM/MW

switch

Adjust TUNING to tune to your desired station

Turn the VOLUME control to adjust the volume level

Adjust

RADIO / ALARM

to OFF to switch off the radio.

•

When sleep function is activated, to switch off the radio, you also need to

press

SLEEP OFF

button.

To improve reception:

FM:

Extend and position the pigtail fully to obtain optimal reception.

MW:

uses a built-in antenna inside the set. Direct the antenna by adjust-

ing the position of your set

SETTING THE CLOCK / ALARM TIME

The time is displayed using the 24-hour clock.

Hold down SET TIME / ALARM SET.

Press

MIN

repeatedly, or hold down

MIN

to adjust minute

and/or hour.

Release SET TIME / ALARM SET and

MIN

when you reach the correct

setting.

™The set clock time will show on the display and start to run.

AJ3121_79_ASDA_CCR_ENG 2008.3.6 3:58 PM Page 5

SELECTING THE ALARM MODE

To use the alarm, you must set the alarm time first. You can choose from two dif-

ferent alarm modes to wake you up: by radio or buzzer.

Select your choice of alarm mode by adjusting

RADIO / ALARM

RADIO

BUZZER

™

The alarm indicator (AL) will light up.

Helpful Hint:

•

If you have selected the radio mode, make sure you have adjusted the volume

loud enough to wake you.

•

The buzzer is set at a fixed volume and cannot be adjusted.

SWITCHING OFF THE ALARM

There are three ways of switching off the alarm. Unless you cancel the alarm

completely, the 24 hour alarm reset option will be automatically selected after

59 minutes, from the time your alarm time first goes off.

24 HOUR ALARM RESET

If you want the alarm mode to be stopped immediately but also wish to retain the

same alarm setting for the following day:

•

Press ALARM RESET during the alarm call.

™

The alarm indicator (AL) will remain on.

CANCELING THE ALARM COMPLETELY

To cancel the set alarm time before it goes off, or during the alarm call:

•

Adjust

RADIO / ALARM

to OFF position.

™

The alarm indicator (AL) will light off.

AJ3121_79_ASDA_CCR_ENG 2008.3.6 3:58 PM Page 6

REPEAT ALARM

This repeats your alarm call at 9-minute intervals.

During the alarm call, press

REPEAT ALARM

Repeat if desired for up to 59 minutes.

™

The alarm indicator (AL) will remain on.

SLEEP

This set has a built-in timer which enables the set to be automatically switched

off during radio playback after a set period of time. This allows you to lie back, lis-

ten and fall asleep. The maximum sleep time is 1 hour and 59 minutes.

Setting SLEEP

Set

RADIO / ALARM

to OFF position.

Set the sleep time to activate sleep function by selecting on the following

ways:

•

Simply press

SLEEP

to set your sleep time to 59 minutes.

•

Hold down

SLEEP

, and press

MIN

repeatedly to adjust sleep time from 59

minutes downward.

•

Hold down

SLEEP

and press

to get one more hour sleep time (1:59)

™

To cancel sleep, press SLEEP

OFF

ENVIRONMENTAL INFORMATION

We have reduced packaging to the minimum for easy separation into two

materials: paper and cardboard.

Your set consists of materials which can be recycled if disassembled by a special-

ized company. Please observe local regulations on the disposal of packing materi-

als and old equipment.

AJ3121_79_ASDA_CCR_ENG 2008.3.6 3:58 PM Page 7

SAFETY INFORMATION

•

Install the unit near the AC outlet and where the AC power cord plug can be

easily reached.

•

Where the MAINS plug or an appliance coupler is used as the disconnect

device, the disconnet device shall remain readily operable.

•

Place the set on a hard and flat surface so that the system does not tilt.

•

If you do not intend to use the set for a long time, withdraw the power plug

from the wall outlet. In addition to this, it is advisable to remove the battery

from the clock radio. This will prevent any danger of leakage and the clock

radio will not be damaged.

•

Do not expose the set, batteries to humidity, rain, sand or excessive heat

caused by heating equipment or direct sunlight.

•

The apparatus shall not be exposed to dripping or splashing.

•

Adequate ventilation with a minimum gap of 15cm between the ventilation

holes and surrounding surfaces is necessary to prevent heat build-up.

•

The ventilation should not be impeded by covering the ventilation openings

with items, such as newspapers, table-cloths, curtains, etc..

•

No objects filled with liquids, such as vases, shall be placed on the appartus.

•

No naked flame sources, such as lighted candles, should be placed on the

apparatus.

•

To clean the set, use a soft, slightly dampened chamois leather. Do not use any

cleaning agents containing alcohol, ammonia, benzene or abrasives as these

may harm the housing.

CAUTION

- High voltage! Do not open.You run the risk of getting an electric shock.

The machine does not contain any user-serviceable parts.

- Modification of the product could result in hazardous radiation of EMC

or other unsafe operation.

This set complies with the radio interference requirements of the

European Union.

AJ3121_79_ASDA_CCR_ENG 2008.3.6 3:58 PM Page 8

TROUBLESHOOTING

If a fault occurs, first check the points listed below before taking the set for repair.

If you are unable to remedy a problem by following these hints, consult your dealer or

service center.

WARNING: Under no circumstances should you try to repair the set yourself, as this

will invalidate the warranty. Do not open the set as there is a risk of

electric shock.

Problem

–Possible Cause

•Remedy

No sound/power

–Volume not adjusted

•Adjust the volume

Occasional crackling sound during FM broadcast

–Weak signal

•

Adjust the position of the Pigtail

Continuous crackling/hiss disturbance during MW broadcast

–Electrical interference from TV, computer, fluorescent lamp, etc.

•Move set away from other electrical equipment

The alarm does not function

–

Alarm time not set and or alarm mode not selected

•Set

the alarm time and / select alarm mode

–Volume too low for RADIO

•Adjust the volume

–

Radio alarm not adjusted to radio station

•Tune to a radio station

AJ3121_79_ASDA_CCR_ENG 2008.3.6 3:58 PM Page 9

Specifications

AC Power..............................................220 – 230 V / 50 Hz

Power Consumption

Active.......................................................................≤3 W

Standby.................................................................≤1.8 W

Dimensions (w x h x d)......................177 x 48 x 123 (mm)

Weight.......................................................................0.5 kg
