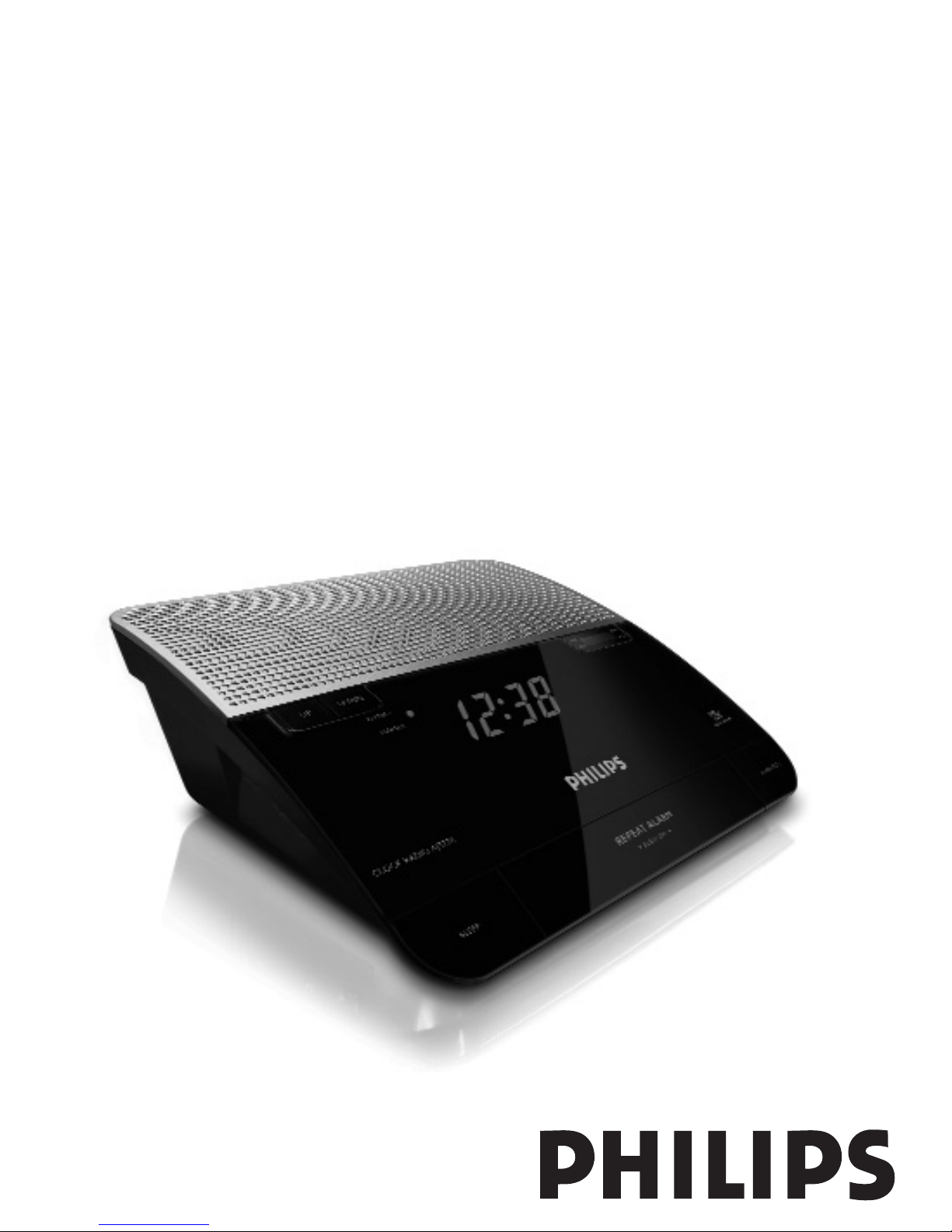

Philips AJ3226/79 Manuale utente

lock Radio

ww.philips.com/welcome

User Manual

AJ3226

IFU_AJ3226_79 2008.5.23 5:28 PM Page 1

MHz

KHz

x10

ALARM 2

ALARM 1

SLEEP

UP DOWN

ALARM RESET

REP

•SLEEP OFF•

EAT ALARM

CLOCK

SETAL 1

SET AL

SET TIME

AL 1

OFF

BUZ

RADIO

TUNING

BAND

VOL

AUX

RADIO

OFF

CLOCK RADIO AJ3226

AL 2

OFF

BUZ

RADIO

IFU_AJ3226_79 2008.5.23 5:28 PM Page 2

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your

product at www.philips.com/welcome.

English

CONTROLS (see fig. 1)

1SLEEP -

activates the radio for sleep function

adjusts the sleep period

2Clock control

- SET TIME :

sets the clock time

- SET AL 1:

sets the alarm time for alarm 1

- SET AL 2:

sets the alarm time for alarm 2

- CLOCK:

to run on clock time

3UP / DOWN:

adjusts the hours/ minutes for the clock and alarm times

4REPEAT ALARM / SLEEP OFF

switches off the active alarm for a 6-7 minute period

- switches off the sleep function

5Frequency indicator - shows the radio frequency of your selected waveband

6TUNING - tunes to radio stations

7BAND - select FM/MW waveband

8VOLUME - adjusts the sound level

9ALARM RESET -

stops the active alarm for 24 hours

0DISPLAY - show the clock/ alarm times and status of the set

!OFF • RADIO • AUX -

switches off the set or selects the radio/AUX mode.

@AL 1, AL 2

–

OFF switches off the alarm 1 or alarm 2

–

RADIO activates the radio for alarm 1 or alarm 2

–

BUZ activates the buzzer for alarm 1 or alarm 2

#Battery door -

opens to store a 9 volt 6F22 type battery (not included) for

clock memory backup

$Mains lead -

for AC mains supply

Pigtail aerial

improves FM reception

AUX

connects external audio source.

IFU_AJ3226_79 2008.5.23 5:28 PM Page 3

INSTALLATION

POWER SUPPLY

Check if the mains supply, as shown on the type plate located on the

bottom of the set, corresponds to your local mains supply. If it does not,

consult your dealer or service centre.

Connect the mains lead to the wall socket.

To disconnect the set from the mains supply completely, remove the plug from

the wall socket.

CLOCK MEMORY BACKUP

The clock memory backup allows your alarm and clock time settings to be stored

for up to a day when there is a power interruption e.g. mains failure. The com-

plete clock radio and display illumination will be switched off. As soon as the

mains supply returns, the display will indicate the correct time.

Remove the battery door to insert a 9 volt 6F22 type battery (not included) for

backup.

Replace the battery door.

NOTE:

If no backup battery is installed or the power interruption is prolonged, you

will need to set the clock and alarm times again.

Batteries contain chemical substances so should be disposed of

properly.

IFU_AJ3226_79 2008.5.23 5:28 PM Page 4

RADIO

You can use this set solely as a radio!

Adjust

OFF • RADIO • AUX

RADIO

to switch on the radio.

Select your waveband by adjusting the BAND switch

Adjust TUNING to tune to your desired station

Turn the VOLUME control to adjust the volume level

Adjust

OFF • RADIO • AUX

to OFF to switch off the radio.

To improve reception:

FM: extend and

position the pigtail for optimum reception

MW:

uses a built-in aerial inside the set. Direct the aerial by adjusting

the position of your set

SETTING THE CLOCK AND ALARM TIME

The time is displayed using the 24-hour clock

IMPORTANT!

To adjust the clock and alarm times accurately, always make sure

you press

UP / DOWN

separately and not simultaneously.

Turn the clock control to SET TIME or SET AL 1 or SET AL 2 to set the

clock or alarm time respectively.

Press

UP / DOWN

repeatedly or hold down on the respective button to adjust

the hours and minutes.

Release

UP / DOWN

when you reach the correct setting.

After you have set both the hour and minutes, turn the clock control to

CLOCK to run on clock time.

SELECTING THE ALARM MODE

GENERAL

If you wish to use the alarm, you must first set the alarm time first. You can

choose from two different alarm modes to wake you up: by radio or buzzer.

•

Select your choice of alarm mode by adjusting AL 1 or AL 2 to RADIO or

BUZ.

™

The buzzers are at a set volume and cannot be adjusted. BUZ on AL 1 is a

low tone buzzer while BUZ on AL 2 is a high tone.

IFU_AJ3226_79 2008.5.23 5:28 PM Page 5

SWITCHING OFF THE ALARM

There are three ways of switching off the alarm. Unless you cancel the alarm

completely, the 24 hour alarm reset option will be automatically selected after

59 minutes, from the time your alarm time first goes off.

24 HOUR ALARM RESET

If you want the alarm mode to be stopped immediately but also wish to retain the

same alarm setting for the following day:

•

Press ALARM RESET during the alarm call.

CANCELING THE ALARM COMPLETELY

To cancel the set alarm time before it goes off, or during the alarm call:

•

Adjust AL 1 or AL 2 to OFF position.

REPEAT ALARM

This repeats your alarm call at 6-7-minute intervals.

During the alarm call, press REPEAT ALARM/SLEEP OFF.

SLEEP

About Sleep

This set has a built-in timer which enables the set to be automatically switched

off during radio playback after a set period of time. This allows you to lie back,

listen and fall asleep. The maximum sleep time is 59 minutes.

Setting SLEEP

Check that the clock control is in CLOCK position.

Set

OFF • RADIO • AUX

OFF

position.

3To s

et the sleep function, do one of the following:

•

Press and hold

SLEEP

™

The display will begin to count down from 0:59 to 0:00 minutes.

•

Hold down

SLEEP

, and press

UP/DOWN

repeatedly to adjust sleep time from

59 minutes downward.

™

To cancel sleep, press REPEAT ALARM/SLEEP OFF.

IFU_AJ3226_79 2008.5.23 5:28 PM Page 6

CONNECTING AN EXTERNAL DEVICE

You can listen to your favourite music of the connected external device through

your AJ3226’s speakers.

Adjust

OFF • RADIO • AUX

to select AUX.

Connect the AUX-IN cable of the set to an AUDIO OUT or headphone jack on

an external device (such as MP3 player, or CD player).

IFU_AJ3226_79 2008.5.23 5:28 PM Page 7

SAFETY INFORMATION

•

Install the unit near the AC outlet and where the AC plug can be easily

reached.

•

Where the MAINS plug is used as the disconnect device, the disconnet device

shall remain readily operable.

•

Place the set on a hard and flat surface so that the system does not tilt.

•

If you do not intend to use the set for a long time, withdraw the power plug

from the wall outlet. In addition to this, it is advisable to remove the battery

from the clock radio. This will prevent any danger of leakage and the clock

radio will not be damaged.

•

Do not expose the set, batteries to humidity, rain, sand or excessive heat

caused by heating equipment or direct sunlight.

•

The apparatus shall not be exposed to dripping or splashing.

•

Adequate ventilation with a minimum gap of 15cm between the ventilation

holes and surrounding surfaces is necessary to prevent heat build-up.

•

The ventilation should not be impeded by covering the ventilation openings

with items, such as newspapers, table-cloths, curtains, etc..

•

No objects filled with liquids, such as vases, shall be placed on the appartus.

•

No naked flame sources, such as lighted candles, should be placed on the

apparatus.

•

To clean the set, use a soft, slightly dampened chamois leather. Do not use

any cleaning agents containing alcohol, ammonia, benzene or abrasives as

these may harm the housing.

•

Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION

Use of controls or adjustments or performance of procedures other than

herein may result in unsafe operation.

This set complies with the radio interference requirements of the

European Union.

IFU_AJ3226_79 2008.5.23 5:28 PM Page 8

TROUBLESHOOTING

If a fault occurs, first check the points listed below before taking the set for repair.

If you are unable to remedy a problem by following these hints, consult your dealer or

service center.

WARNING: Under no circumstances should you try to repair the set yourself, as this

will invalidate the warranty. Do not open the set as there is a risk of

electric shock.

Problem

–Possible Cause

•Remedy

No sound/power

–Volume not adjusted

•Adjust the volume

Occasional crackling sound during FM broadcast

–Weak signal

•

Adjust the position of the Pigtail

Continuous crackling/hiss disturbance during MW broadcast

–Electrical interference from TV, computer, fluorescent lamp, etc.

•Move set away from other electrical equipment

The alarm does not function

–

Alarm time not set and or alarm mode not selected

•Set

the alarm time and / select alarm mode

–Volume too low for RADIO

•Adjust the volume

–

Radio alarm not adjusted to radio station

•Tune to a radio station

IFU_AJ3226_79 2008.5.23 5:28 PM Page 9

ENVIRONMENTAL INFORMATION

We have reduced packaging to the minimum for easy separation into two

materials: paper and cardboard.

Your set consists of materials which can be recycled if disassembled by a special-

ized company. Please observe local regulations on the disposal of packing materi-

als and old equipment.

Specifications

AC Power.............................................230 – 240 V / 50 Hz

Power Consumption

Active...........................................................................5 W

Standby.....................................................................2.5 W

Dimensions (w x d x h)....................174 x 62 x 159 (mm)

Weight......................................................................0.52 kg
