Philips Senseo HD7800/7 Manuale utente

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Coffee Maker Senseo

HD7800/7

4322 277 00509

02/11

SAP coding HD7800/7

PRODUCT INFORMATION

Voltage : 220 - 230 V

Frequency : 50 Hz

Power consumption : 1650 W

Contents reservoir : 750 cc

Colour setting : Expressive blue

REPAIR INSTRUCTIONS

• Take off all lose parts

• Brew chamber

- Take off the cover brew chamber with a screwdriver

- Uncouple the hose

- Push out the brew chamber

• Boiler

- Remove back cover

- Take out the boiler compleet

• Pump / P.C.B. / Water inlet

- Remove base

- Take out the pump, P.C.B. or Water inlet

Descaling

Regular descaling will prolong the life of your appliance and

will guarantee optimal brewing results for a long time.

- Follow the steps in the section headed “Preparing the

appliance for use” see DFU (Direction For Use manual).

- In stead of only water use a mix of water and Lemon sour.

- For the best result leave the mix of water and Lemon sour

for about 30 minutes in the appliance, before you start with

ﬂushing the appliance.

- To get the best results repeat above mentioned step once

or twice.

- When ﬁnished, ﬂush the appliance twice by repeating the

above mentioned steps only use water instead.

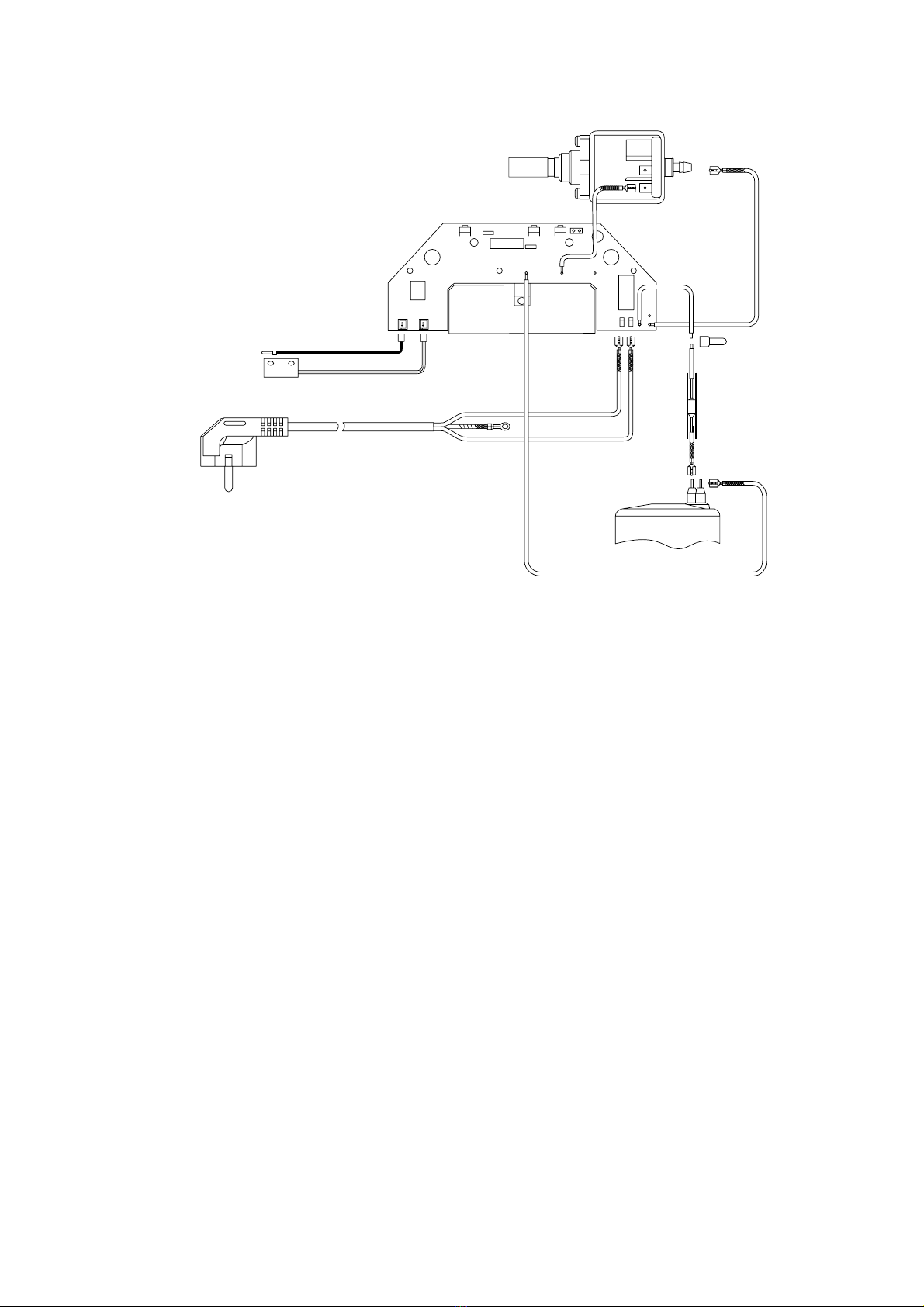

Product meets the requirements regarding interfer-

ence suppression on radio and television.

- After the product has been repaired, it should

function properly and has to meet the safety

requirements as laid down ofﬁcially established

at this moment.

2-4

HD7800/7

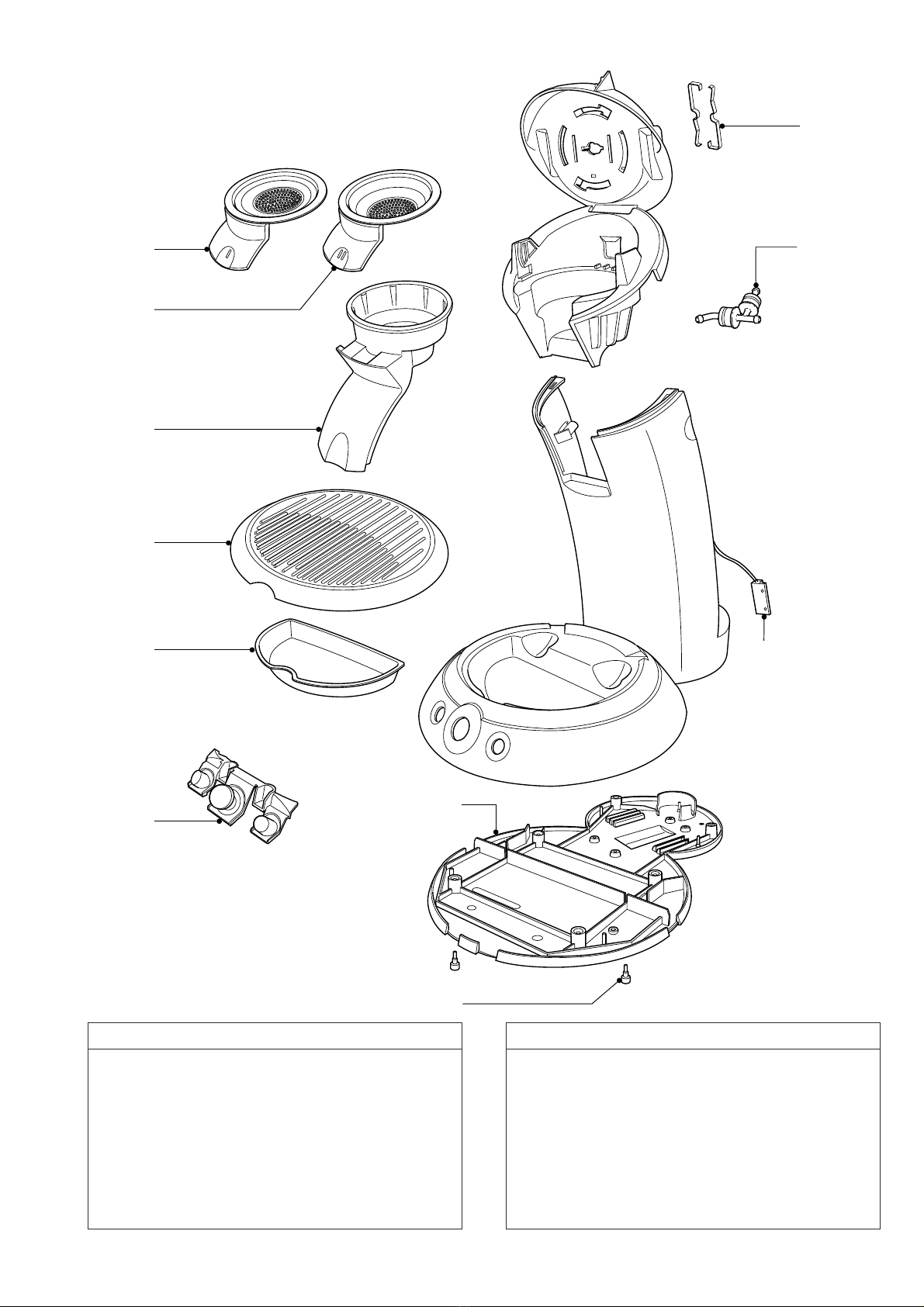

Pos Service code Description

1 9965 000 08027 Pad-holder single

2 9965 000 08028 Pad-holder double

3 9965 000 08029 Foam chamber assy

4 9965 000 07736 Drip tray cover

5 9965 000 07737 Drip tray

7 9965 000 07739 Push buttons assy inc. light and wires

8 9965 000 08030 Base

9 9965 000 07741 Foot

10 9965 000 07742 Lock ring spring

11 9965 000 07743 Thermostat

Pos Service code Description

12 9965 000 07744 Temp. sensor

13 9965 000 07745 Water level sensor

14 9965 000 07746 Boiler comp. Incl. 11, 12 and frame

15 9965 000 08031 Back cover

16 9965 000 08032 Water tank assy

17 9965 000 07749 Brew chamber radial seal

18 9965 000 13585 O-ring brew chamber

20 9965 000 08033 Cover brew chamber assy

21 9965 000 07750 O-ring pump

23 24

3-4

HD7800/7

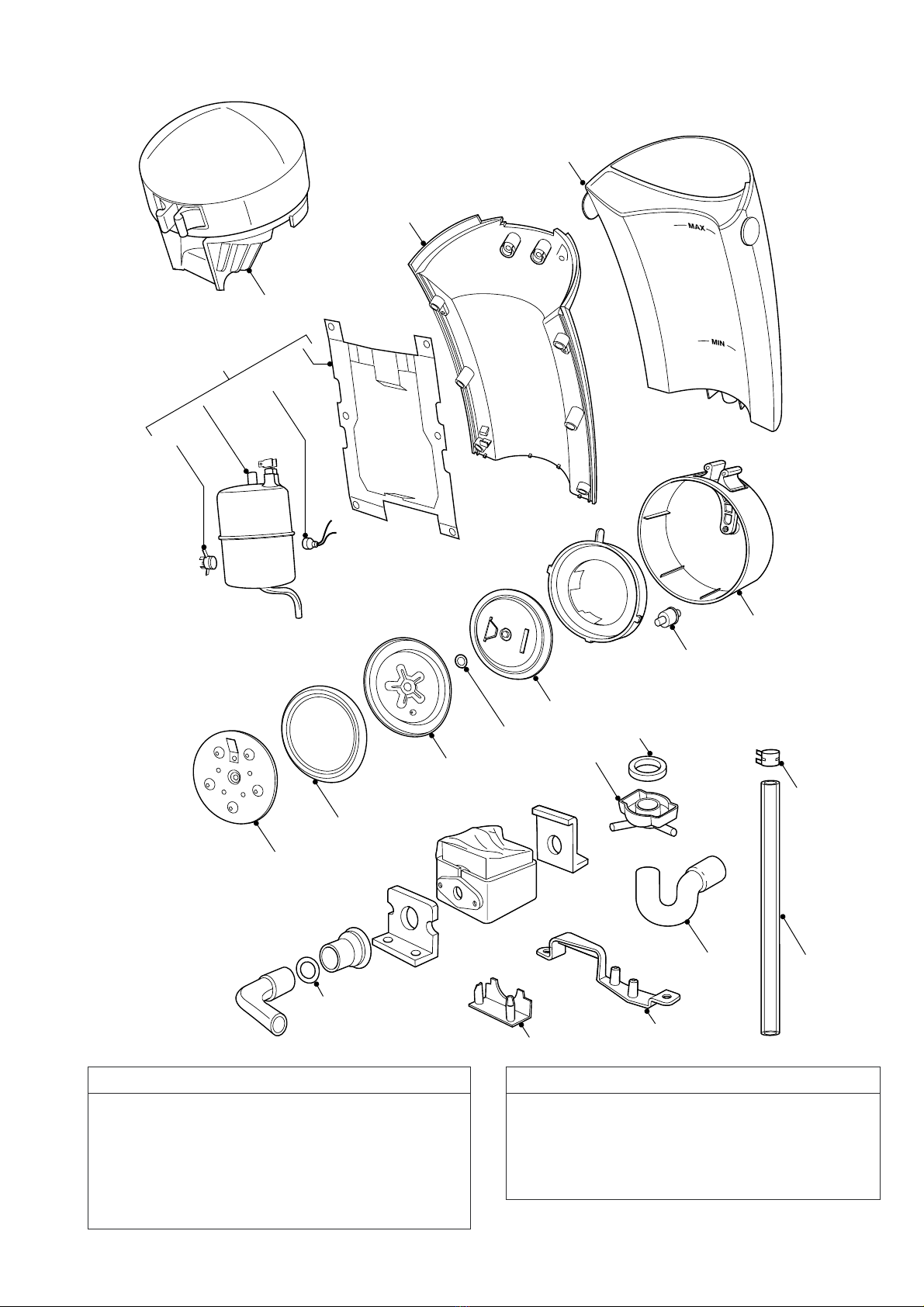

Pos Service code Description

23 9965 000 07754 Front pump outlet

24 9965 000 07755 Rear pump outlet

25 9965 000 07756 Water socket

26 9965 000 07757 Seal ring

27 9965 000 07758 Hose clamp

28 9965 000 07759 Hose 0.5 metre

29 9965 000 07761 Check valve

(not used anymore week 0135 onwards)

Pos Service code Description

30 9965 000 11409 Valve (3way)

31 9965 000 13586 S-Hose

32 9965 000 10860 Brewchamber bottom assy complete

34 9965 000 16297 Distrubution disc

35 9965 000 16298 Brewchamber lid

36 9965 000 16299 Water connection plate

4-4
