Philips 7FF1CME Manuale utente
•Packing list
•Initial setup
•Specification
Getting started
Packing List
Digital Photo Frame Photo Frame Stand
Quick start guide User manual CD
Power adaptor USB Cable to PC
(male A type plug)
What else you'll need
Power outlet Digital Photos, memory card or PC
©2005 Koninklijke Philips Electronics NV
A
ll rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance,
transmission and/or broadcasting in whole or in part is prohibited without written consent of Philips
Electronics NV
•
Packing list
•Initial setup
•Specification
Getting started
Initial setup
Philips digital Photo Frame can be placed either vertically or horizontally to fit
the photos on display. Its internal rechargeable battery provides you the
freedom to pass it around and show photos without the power cord. Or, you
can place it somewhere in the room for constant Photo Frame by connecting
it to the main.
A. Removing the protective bag/film on parts
B. Attaching the Photo Frame stand
•Place head of stand into socket
•Rotate clockwise until stand locks in-place
C. Connecting to a power source
•
Connect the supplied power cable from Photo Frame to a power outlet .
The internal battery will start charging and the battery LED turn orange.
Locate control keys
•Use your Photo Frame by pressing the control keys in the back.
RETURN TO TOP OF THE PAGE
•LCD display also shows the function icon for each key at the same position.
Previous/Left Switch view Setup
Next/ Right Show/ Hide icon Photo setting
Up Copy Confirm
Down Delete Escape
C. Turning on Photo Frame
•Slide the power switch up to the ON position.
The power LED will be green and the Startup screen will appear.
D. Choose your preferred language
•Press the key (the 3rd key from the left on the rear of Photo Frame)
A menu with general settings for Photo Frame will appear.
•Use the or key to highlight Language and press the key to
select.
•Use the or key to choose your preferred language. Press to
confirm your selection. The new setting will be effective immediately.
•Press again to leave the Language menu.
•Packing list
•Initial setup
•Specification
Getting started
Specification
Picture/Display
-Effective display area: 137 x 91 mm (5.4" x 3.6"), 6.5" diagonal
-Vertical dot pitch: 0.1905 mm
-Horizontal dot pitch: 0.1905 mm
-Resolution: 720 x 480 pixels
-Brightness: 200 nits
-Viewing angle (CR>5): Horizontal (-85°~85°), Vertical (-85°~85°)
-Backlight Half-Life time: 20,000 hours
Connectivity
- Card reader: Built-in Secure digital (SD), Multimedia card (MMC), Memory stick
(MS, MS Pro), Compact flash (CF) type I only.
Convenience
Photo format supported: Up to 12M pixels, JPEG photos following EXIF and DCF
standards
Memory size: 50 photos or more
Placement supported: Landscape, Portrait
Control buttons: 6 buttons
Display mode Automatic slideshow, Full-Screen browse, Thumbnail browse

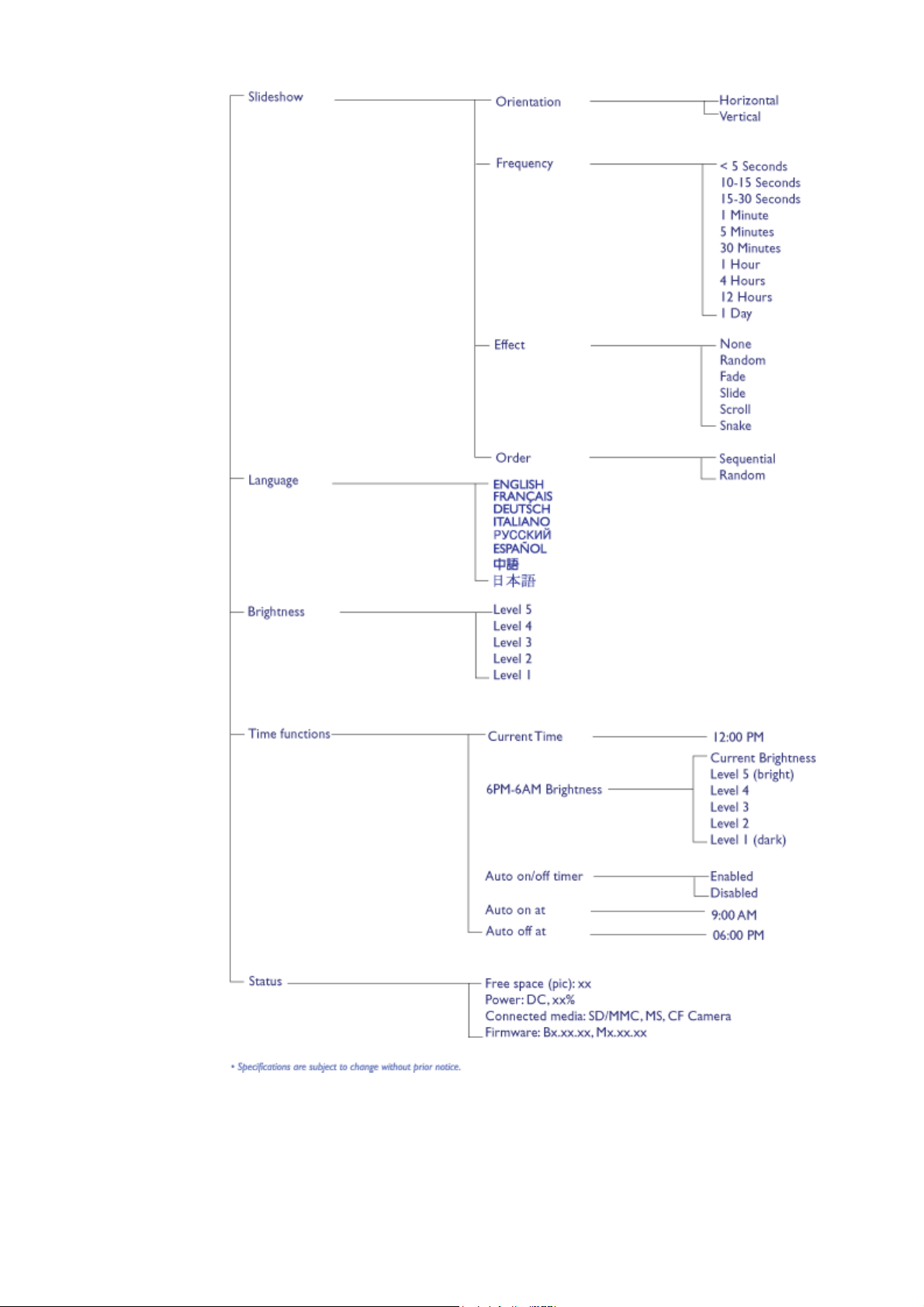

Setup menu:
Photo menu:
OSD languages: English, French, German, Italian, Spanish, Simplified Chinese,
Russian, Japanese
Plug & Play compatibility: Windows 2000/XP or later, Mac OS X or later, Linux
Accessories
-Included accessories: AC power adaptor (AC 100~240V 50/60 Hz 0.36A-->DC 5V
2.5A), USB cables, Quick start guide
-User manual: Yes (in CD-ROM)
Power
-Power LED indicator Green (power on), Off (power off)
-Battery LED indicator Orange (charging), Off (not charging)
-Power mode supported Battery powered, AC powered
•Viewing
photos
•
Copying
photos
•Viewing
slideshows
•Deleting
and
Rotating
p
hotos
Enjoying photos
Viewing Photos
When there is no memory card in photo Frame, it displays photos stored in local memor
y
When a memory card is inserted to Photo Frame, it will display photos from most recentl
y
connected media in a "Last-in, First-display" order.
You can choose from three Photo Frame viewing modes. Press ( the 1st key fro
m
the left on the rear of Photo Frame) to to
gg
le amon
g
the three viewin
g
modes; us
e
to view the previous photo and to view the next photo. ( and are the firs
t
two keys from the right on the rear of Photo Frame. )
THUMBNAIL-List of photos.
AEach icon represents the function of the corresponding
key in the rear of Photo Frame.
BSource of photos on screen
Memory stick Compact flash
SD, MMC Photo Frame
CCurrent Photo
DCurrent Photo number
ESlideshow icon
(If shown, this photo will be shown in slideshow.)
FCurrent photo number, same as D
GTotal photo count
HResolution of current photo (in pixels).
IDate current photo was taken
JSource of displayed photos.
SLIDESHOW- Automatic, Rotating display of photos.
BROWSE—Manual viewing of photos one-by-one. (Displays size and date)
Each icon represents the function of the corresponding key in the rear of Photo Frame.
AEach icon represents the function of the corresponding
key in the rear of Photo Frame.
B Source of photos on screen
Memory stick Compact flash
SD, MMC Photo Frame
C Current Photo number
D Total photo count
E Resolution of current photo (in pixels)
F Date current photo was taken
Viewing photos on Photo Frame
•Remove any memory card from photo Frame.
Photos stored in the Photo Frame will appear.
Viewing digital camera photos from a memory card
•Insert the memory card into the slot in the frame:
•For Compact Flash card, firmly slide card in the larger slot end first and face DOWN.
•For SD, MMC, or Memory Stick card, slide card in the smaller slot end first and face UP
until it locks in-place.
After a few seconds photos on the memory card will display.
How to remove a memory card:
•To remove Compact Flash card, pull out the card slowly.
•To remove SD, MMC, or Memory Stick card, push the card again to unlock and then pull
out the card.
•Viewing
photos
•
Copying
photos
•Viewing
slideshows
•Deleting
and
Rotating
p
hotos
Enjoying photos
Copying Photos
You can copy photos stored on a memory card, or PC to Photo Frame. Photo Frame will
then internally store a resized copy of the original photo. This resized copy will remain
inside Photo Frame until you delete it from Photo Frame.
Photo Frame's internal memory will store 50 or more resized photos. Please see the
Deleting and Rotating Photos section to learn how to delete photos stored in Photo Frame.
Copying from a memory card
You may copy photos one by one in Browse mode or several photos at once in Thumbnail
Mode
Copying photo one by one in Browse mode
•Change view mode to Browse.
•Insert the memory card into Photo Frame.
Photos from memory card will appear.
•With the photo for copy shown on screen, press the key (the 4th key from the left
on the rear of Photo Frame). Four different orientations of the selected photo will appear.
•Use the or key to select the desired photo orientation and then press the
key.
Do not remove the memory card before the copy screen disappears upon completion.
If a warning message shows up indicating no free space for more photos, you may need
to remove some already stored photos first before copying more photos.
•After the copy screen disappears upon completion, a resized copy of the photo is stored
inside Photo Frame.
•You may move to other photos and continue this process until all the photos you want
are copied to Photos Frame.
Copy several photos at once in Thumbnail mode
•Change view mode to Thumbnail.
•Insert the memory card into Photo Frame.
Photos from memory card will appear.
•Highlight the photo for copy in Thumbnail mode and press the key (the 4th key from
the left on the rear of Photo Frame).
A multi-photo copy screen with small photos from current thumbnail screen will appear.
