Philips CRD01/00 Manuale utente
Easy Advertiser
Quick Start Guide
Easy Advertiser (CRD01/00) English
Revision 34 | 22 December 2008 Page 1
CHECK THE PACKAGE CONTENTS
The product package includes the following:
Description
Quantity
Easy Advertiser SmartCard
1
USB Thumbdrive 1GB
1
HDMI cable
1
Easy Advertiser card cap
1
Power Supply Adapter (100-240V / 50-60 Hz)
1
Power Supply cable for UK
1
Power Supply cable for EU Continental
1
Mechanical bracket for Power Supply Adapter
1
Purse Lock (for cable management)
1
Screws
2 Pan M4x6 Torx
2 Pan M4x10 Torx
2 Pan M4x10 CrossHead
Easy Advertiser Publisher CDROM
1
Quick Start Guide (This document)
1
Warranty Card
1
English Easy Advertiser (CRD01/00)
Page 2 Revision 34 | 22 December 2008
MECHANICAL INSTALLATION
1. This card is sensitive to static electricity. Please don't touch the components while installing.
2. Before removing the device from its bubble wrap it is advised to work in an antistatic environment.
3. Alternatively touch a grounded metal like a water or heating pipe for central heating to discharge any
static electricity.
4. Open package and remove contents.
5. Remove the Easy Advertiser SmartCard from the air bubble wrap.
6. Install the Easy Advertiser SmartCard into the Easy Advertiser SmartCard slot.
a. Locate the Easy Advertiser SmartCard slot opening at the rear end of the display.
b. Unscrew the SmartCard slot cap from the Monitor. Keep the two screws for reuse. NOTE: (You
can discard the original SmartCard slot cap and replace it with the new cap included in the
package.)
c. Gently slide the Easy Advertiser SmartCard upwards into the SmartCard slot. Slide the Easy
Advertiser SmartCard upward until it is firmly secured.
Easy Advertiser (CRD01/00) English
Revision 34 | 22 December 2008 Page 3
d. Replace the original Easy Advertiser SmartCard slot cap with the new SmartCard cap included in
the package. Slide the cover over the Easy Advertiser SmartCard and screw it into place. Use the
screws removed earlier. NOTE: (Plugging in or removing the USB device without screwing on the
card cap may result in the card being pulled out of the Monitor and potentially damage the unit)
7. Connect the cables:
a. Connect the HDMI cable to the HDMI slot on the bottom right of the Easy Advertiser SmartCard.
b. Connect the other end of the HDMI cable only to Monitor HDMI 1 In slot. HDMI 2 In slot is not to
be used.
c. Connect the Power Supply cable to the Power Supply slot on the top right of the Easy Advertiser
SmartCard.
d. Connect the mains cord and switch on the Easy Advertiser SmartCard.
English Easy Advertiser (CRD01/00)
Page 4 Revision 34 | 22 December 2008
8. Mounting the Power Supply bracket
a. Mount the Power Supply bracket as illustrated with the provided screws (2 Pan M4x10 CrossHead
/ Torx).
b. Place the Power Supply Adapter into the bracket as shown.
9. Switching On:
a. Plug in the mains cord and switch on the Monitor.
b. A cold start (power on) of Easy Advertiser SmartCard may take some time, please wait.
c. Once the Easy Advertiser SmartCard is booted up and the Monitor switched on, you can begin
configuring the Monitor and Easy Advertiser SmartCard settings.
Easy Advertiser (CRD01/00) English
Revision 34 | 22 December 2008 Page 5
MANDATORY MONITOR SETTINGS
1. Set SMARTPORT Communication to SP-SPI by the following steps:
2. Set ESP Power Settings to OFF by the following steps:
3. Set PIXEL SHIFT feature to NO by the following steps:
4. Set SWITCH ON VOLUME by the following steps:
a. Press MENU DISPLAY button on the Remote Control
b. Select COMMUNICATION
c. Change SMARTPORT configuration values to SP-SPI
d. Select STORE
e. Press RIGHT ARROW to save the setting
a. Press MENU DISPLAY button on the Remote Control
b. Select CONFIGURATION
c. Select CONTROL
d. Change ESP configuration value to OFF
a. Press MENU DISPLAY button on the Remote Control
b. Select CONFIGURATION
c. Select FEATURES
d. Change PIXEL SHIFT configuration value to NO
a. Press MENU DISPLAY button on the Remote Control
b. Select CONFIGURATION
c. Select SWITCH ON / OSD
d. Change SWITCH ON VOLUME setting to either a fixed
volume level (eg. 30) or to LAST STATUS which is the last
changed volume level before standby or power off. Upon
power on or turn on from standby, the volume level will
be indicated as per the selection made.
English Easy Advertiser (CRD01/00)
Page 6 Revision 34 | 22 December 2008
5. Set SWITCH ON SOURCE by the following steps:
a. Press MENU DISPLAY button on the Remote Control
b. Select CONFIGURATION
c. Select SWITCH ON / OSD
d. Change SWITCH ON SOURCE setting to HDMI1.
Easy Advertiser (CRD01/00) English
Revision 34 | 22 December 2008 Page 7
EASY ADVERTISER VIRGIN INSTALLATION
SELECT LANGUAGE
SET TIME FORMAT
SET CURRENT TIME
SETTINGS SUMMARY
Select from English, French, German, Italian and Spanish.
Use navigation keys to highlight the different languages.
Highlight the language of your choice.
Press OK to confirm.
Select either the 12 hour or 24 hour format.
Press up/down navigation keys to highlight your choice.
The hour box will be highlighted.
Press up/down navigation keys to change the hour.
Press right navigation key to highlight the minute box and
up/down to change the minutes.
Press right navigation key to highlight the am/pm box and
up/down to change from am to pm.
Press OK to confirm the current time.
Note: You may need to periodically synchronize the time
to ensure timely schedule playback.
View the language and current time settings
Confirm your settings by pressing OK.
Note: This product is designed with an internal battery
that will maintain the clock operation up to 7 days in the
event of a power failure. You may need to reset the time
after this period.
English Easy Advertiser (CRD01/00)
Page 8 Revision 34 | 22 December 2008

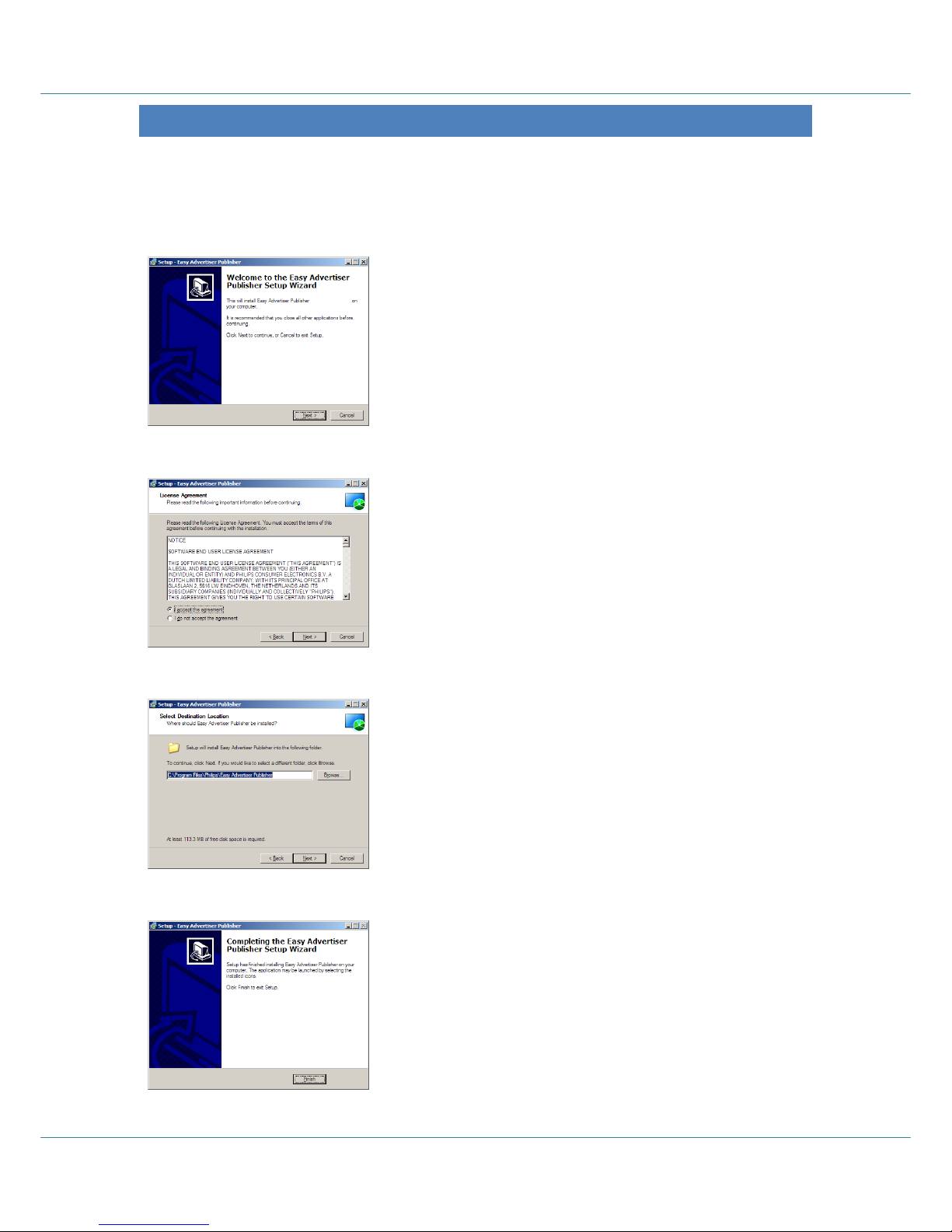

EASY ADVERTISER PUBLISHER INSTALLATION
Important: Please ensure that you are using Microsoft
Windows XP with Service Pack 2/3 and .Net Framework
Version 2.0 installed.
Insert the CDROM into your personal computer.
Refer to next section for .NET Framework Version 2.0
installation.
Select your desired language to begin installation.
You are also recommended to close all other applications
before continuing.
Press the Next button to proceed to the next step.
You will be presented with the License Agreement.
To proceed, you will need to accept the agreement by
selecting the provided option.
When finished press the Next button to proceed to the
next step.
Then select the location on the hard disk where you want
to install the software.
Please make sure you have the minimum required
available disk space of approximately 100MB.
You are recommended to keep to the default installation
path provided by the installer.
Press the Next button to proceed to the next step.
Once all the required files are successfully copied to your
personal computer, you will be informed that the setup
wizard is complete.
Press the Finish button to complete the installation
