Philips DVP3050V/37 Manuale operativo

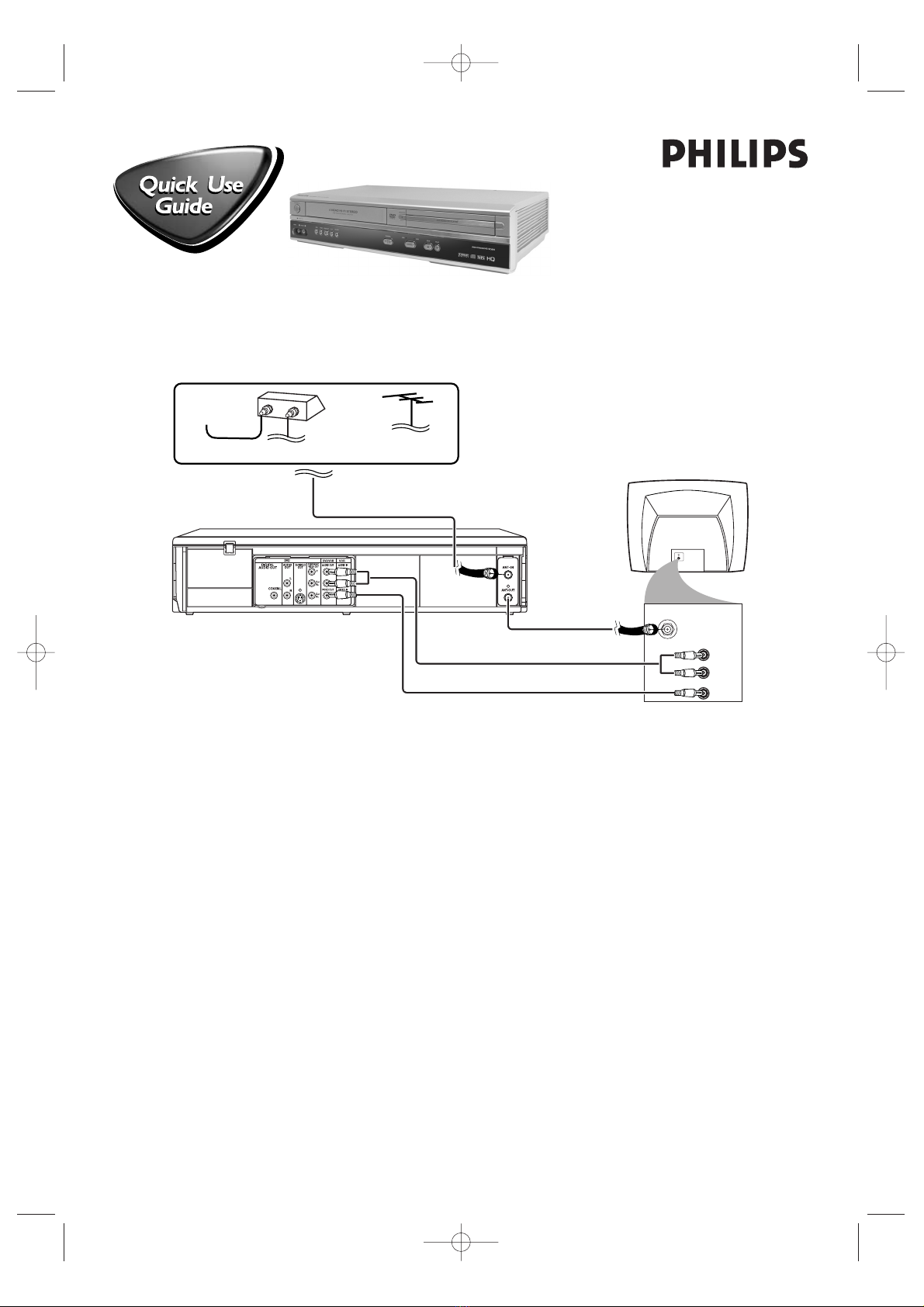

There are many ways to connect your new DVD/VCR to your Television and other equipment.This Quick-Use

Guide shows the easiest, most common connection.

Higher quality connections are explained in the accompanying owner’s manual and will provide better sound

or picture if your TV and/or audio system is compatible.

REAR OF TV

(EXAMPLE ONLY)

IN OUT

ANTENNA IN

AUDIO IN

VIDEO IN

4Audio Cables

RF COAXIAL CABLE

5Video Cable

Audio and Video IN Jacks on TV

2Antenna or Cable TV Signal to ANT-IN Jack

CABLE BOX

(Optional)

CABLE TV SIGNAL

ANTENNA or

CABLE TV SIGNAL

DVP3050R

1Disconnect all equipment from the power outlets. Connect the equipment to the power outlets only after you

have finished hooking up everything. Never make or change connections with equipment connected to the power outlet.

2Connect your Antenna TV signal or, if you have a Cable Box/Satellite Receiver, the OUT jack of your Cable

Box/Satellite Receiver to the ANT-IN jack on the rear of the DVD/VCR using the supplied RF coaxial cable.

3Connect another RF coaxial cable (not supplied) to the DVD/ VCR’s ANT-OUT jack and to your TV’s

ANTENNA IN jack.

The TV’s ANTENNA IN jack may be labelled 75-ohm,TV IN, or RF IN. Check your TV manual for details

4Connect the red and white audio cables (supplied) to the red and white DVD/VCR AUDIO OUT jacks on

the DVD/VCR and to the red and white AUDIO IN jacks on the TV.

5Connect the yellow video cable (supplied) to the DVD/VCR VIDEO OUT jack on the DVD/VCR and to

the VIDEO IN jack on the TV. The VIDEO IN jack on the TV is usually yellow and may be labelled CVBS, Composite,

or Baseband video.

6Plug the power cords of the DVD/ VCR and the TV into an active power outlet.

7Turn on the TV and set it to the correct Audio/Video In channel.

8Press STANDBY-ON yon the DVD/ VCR or its remote control to turn on the DVD/VCR. The first

time you turn on the DVD/VCR, you should complete the First-time DVD/VCR Setup. See the other side

of this Quick-Use Guide for details.

H9820UD_QUG_0112 05.1.24 8:08 PM Page 1

Playable Discs

The DVD Player of the DVD/VCR will play the following Discs.

is a trademark of DVD Format/Logo Licensing Corporation.

Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United

States and/or other countries.

DVDs must have a Region Code of ALL regions or Region 1.

ALL

STANDBY-ON

SOURCE

POWERON

VIDEO AUDIO REW F.FWD PLAY

RECORD CHANNEL VCR

OPEN/CLOSE

DVD STOP PLAY

ONETOUCH RECORDING • LONG PLAY

STOP/EJECT

STANDBY-ON

PLAY

DVD

VCR VCR/TV

MENU MENU

DISC/VCR

RETURN TITLE

A-B

CLEAR/RESET SLOW

SUBTITLE ZOOM

ANGLE

REPEAT REPEAT

AUDIO

SEARCH MODE

DISPLAY

SKIP / CH

SYSTEM

PAUSESTOP

MARKER RECORDTIMER SET

SPEED

1 2 3

890

+10

8239 300 38901

1VMN20422/H9820UD/H982AUD*****

Quick-Use Guide (cont’d)

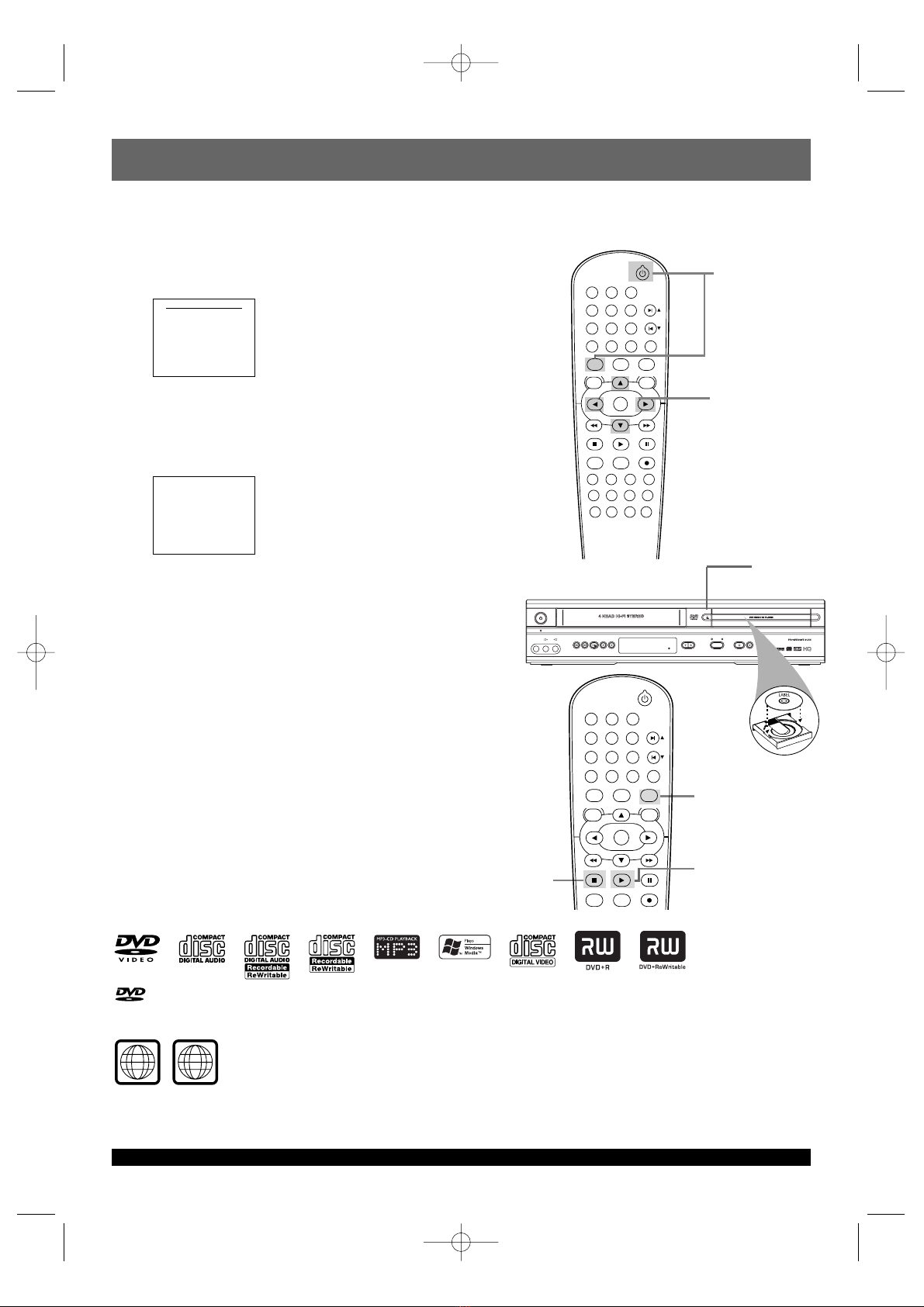

Playing a Disc

1Turn on the TV and set it to the correct Audio/Video In

channel.

2With the TV and DVD / VCR turned on, press DVD to put

the DVD / VCR in DVD mode.

3Press OPEN/ CLOSE Ato open the disc tray.

Put a Disc in the tray with the label facing up and the shiny side

facing down.

Press PLAY Bto close the disc tray.

4Playback may start automatically. If not, press PLAY B.

If a DVD Disc menu appears, use the s,B,K,L,OK, or Number

buttons to select features or start playback. Follow the instruc-

tions in the menu.

5To stop playing a Disc, press STOP C.

First-Time DVD/VCR Setup

1Turn on the TV and set it to the correct Audio/Video In

channel.

Press VCR, then press STANDBY-ON y.VCR light will appear on

the front of the DVD/VCR. The TV display shown below will appear.

3Press Kor Lto select English, French, or Spanish as the

language for VCR on-screen displays. Then, press B.

4The AUTO SET UP message will appear. Press Bto set up TV

channels for the VCR. When setup is complete, the lowest TV

channel will appear on the TV.

Turn on the TV and set it to the

correct Audio/Video In channel.

3-4

STANDBY-ON

PLAY

DVDVCR VCR/TV

MENU MENU

DISC/VCR

RETURN TITLE

A-B

CLEAR/RESET SLOW

SUBTITLE ZOOM

ANGLE

REPEAT REPEAT

AUDIO

SEARCH MODE

DISPLAY

SKIP / CH

SYSTEM

PAUSESTOP

MARKER RECORDTIMER SET

LANGUAGE SELECT

BENGLISH [ON]

FRANCAIS

ESPAÑOL

PUSH B

AUTO SET UP

PUSH B

NEED HELP! Visit our website at www.philips.com/support

DVDs must be recorded in either the NTSC or PAL color system.

Your TV must also have the NTSC or PAL color system.

H9820UD_QUG_0112 05.1.24 8:08 PM Page 2
