ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Shaver

7140XL

06/04

PRODUCT INFORMATION

General:

- Mains/rechargeable operation

- World-wide automatic voltage selection

- Electronic on/off switch

- Washable

Safety information

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Voltage : 100 - 240 Volt / 50 - 60 Hz

- Motor voltage : 1,2 Volt

- Shaving heads : HQ8 - 4222 036 05820

- SAP coding : 7140XL

DISASSEMBLY- AND RE-ASSEMBLY ADVICE

Disassembly:

- Remove shaving unit, to prevent damaging during

repairing.

- Remove the 2 screws (A) out of the hairchamber.

- Remove the hairchamber from the body.

- Remove the 2 screws (B) on the backside of the shaver.

- Remove the cover.

- Remove the side grips.

- Remove the housing by bending the hooks with a

screwdriver.

- Take out the basic body.

REPAIR INSTRUCTION

- No specific issues

OPTIONAL (accessories)

- Car cord : 4222 036 08920

7140XL

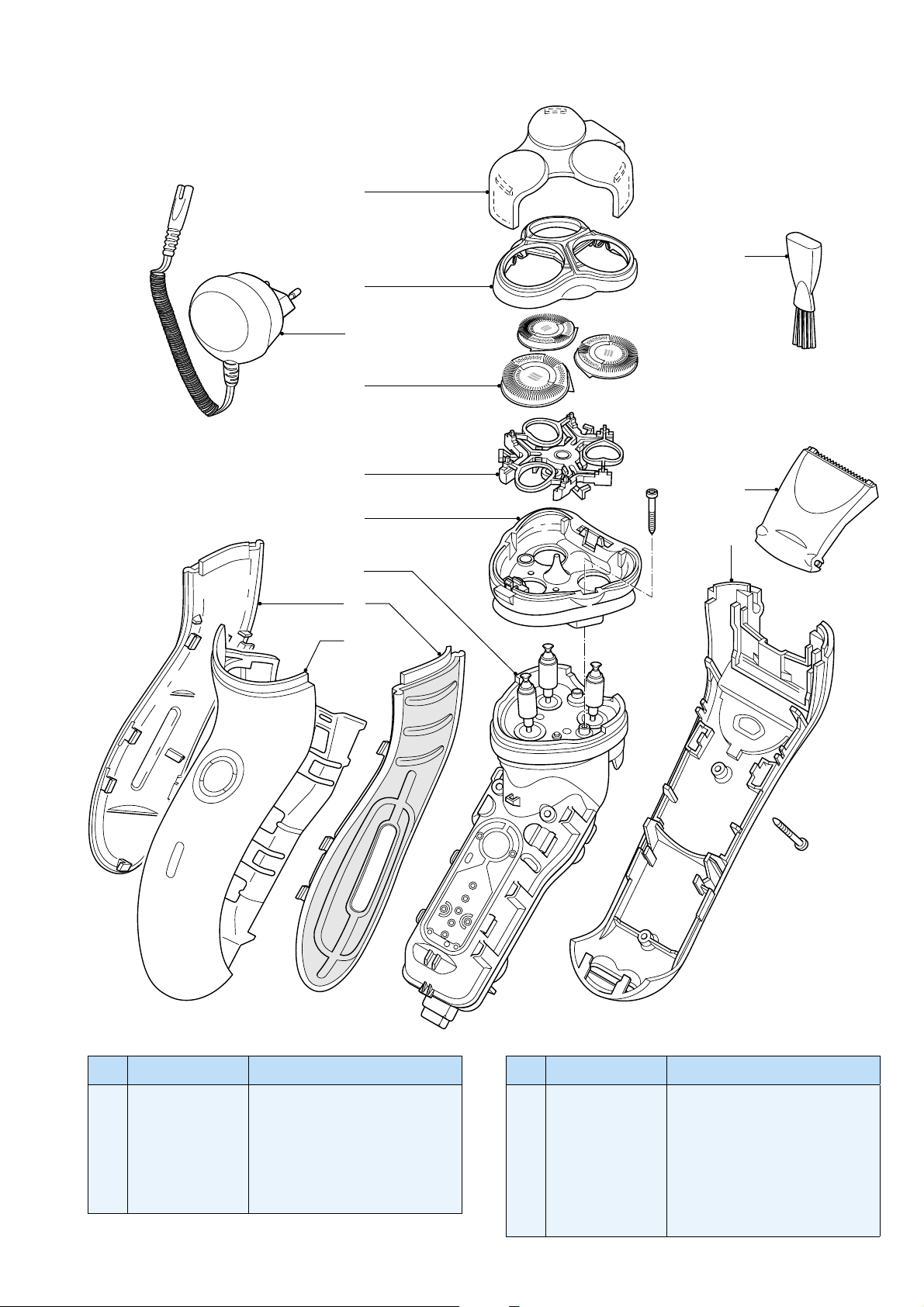

EXPLODED VIEW & PARTS LIST

Pos Service code Description

4222 036 12600

4222 036 12610

4222 036 06790

4222 036 05820

4222 036 11220

4222 036 12640

Protection cap Cheetah

Bracket-assy

Power plug NOR

Shaving heads

Holder-assy

Hairchamber

Pos Service code Description

4222 036 12800

4222 036 12570

4222 036 12850

4222 036 02770

4222 036 12220

4222 036 12710

4222 036 11480

Basic body

Grip left & right

Housing-assy

Brush

Trimmer assy

Back shell assy

Screw
