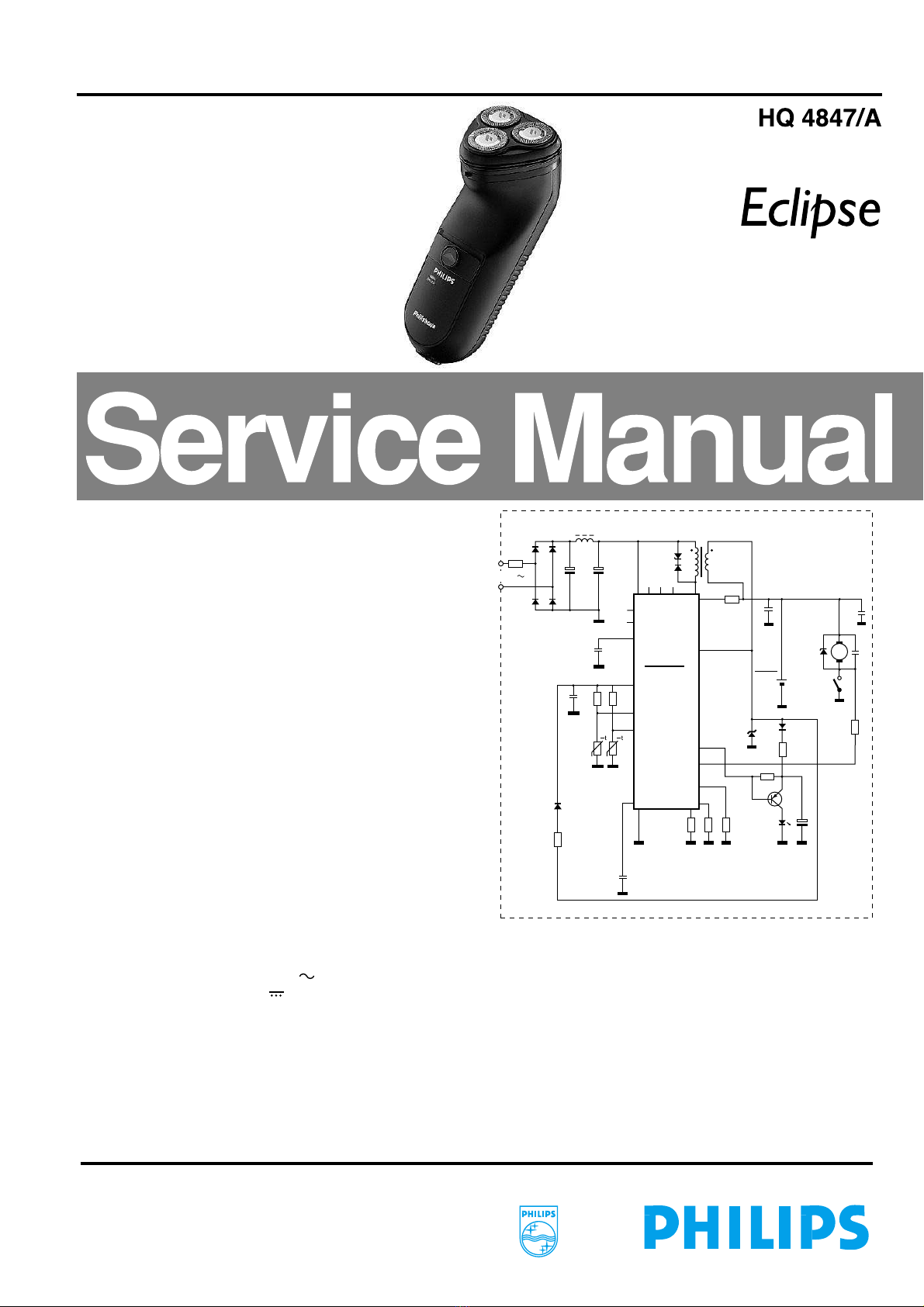

Philips Eclipse HQ 4847/A Manuale utente

Domestic Appliances and Personal Care

Service

Rechargeable shaver

Published by Philips Domestic Appliances and Personal Care Printed in The Netherlands Copyright reserved Subject to modification

00/01

4322 277 00189

R1 D1

C1 C2

17 18 20

NiMH

DrnVin

Creg

Vic

Vtacc

Vtamb

Cosc

Gnd

Vac

Vat 15

LED

Mot

Rsec

Rref

Src

IC1

TEA1402T

100-240V

816

5090

R3 R4

C4 R5

R10

R17

SK1

R16

R14

R15

TS2

GENERAL

The HQ4847 shaver can be recharged in 1 hour by

means of a ’Fly Back Self Oscillating Power supply’.

This electronic circuit enables the battery to be

charged at 100-240V, 50/60Hz.

It is possible to have a shave directly from the mains.

The green LED comes on when the shaver is

connected to the mains and will blink to indicate that

the battery is fully charged.

The electronic circuit incorporates the following

functions and controls:

- a 900 mA Quick Charge supply

- a 30 mA Trickle Charge supply

- a 1.25V Dynamic supply when shaving from

the mains.

- an open cell protection (Vbat < 2.5V)

- an inrush and surge protection (R1).

- a temperature protection of the battery.

(if Tbat - Tamb > 5°C or if Tbat > 65°C,

charging will switch-over from quick charge to

trickle charge).

TECHNICAL DATA

Input voltage : 100-240V

Motor voltage : 1.2V

Battery : 1x AA NiMH

Cell capacity : approx. 1100 mAH

Charging system : S.O.P.S./ temp. control

Charging time : approx. 60 mins

initial 4 hours

Charging current : 900/30 mA

Charging indicator : 1x LED green

Comfort control : fixed setting

Shaving heads : HQ4 - 4822 690 30468

Screwdriver T8 : 4822 395 50263

SAP Coding : HQ4847

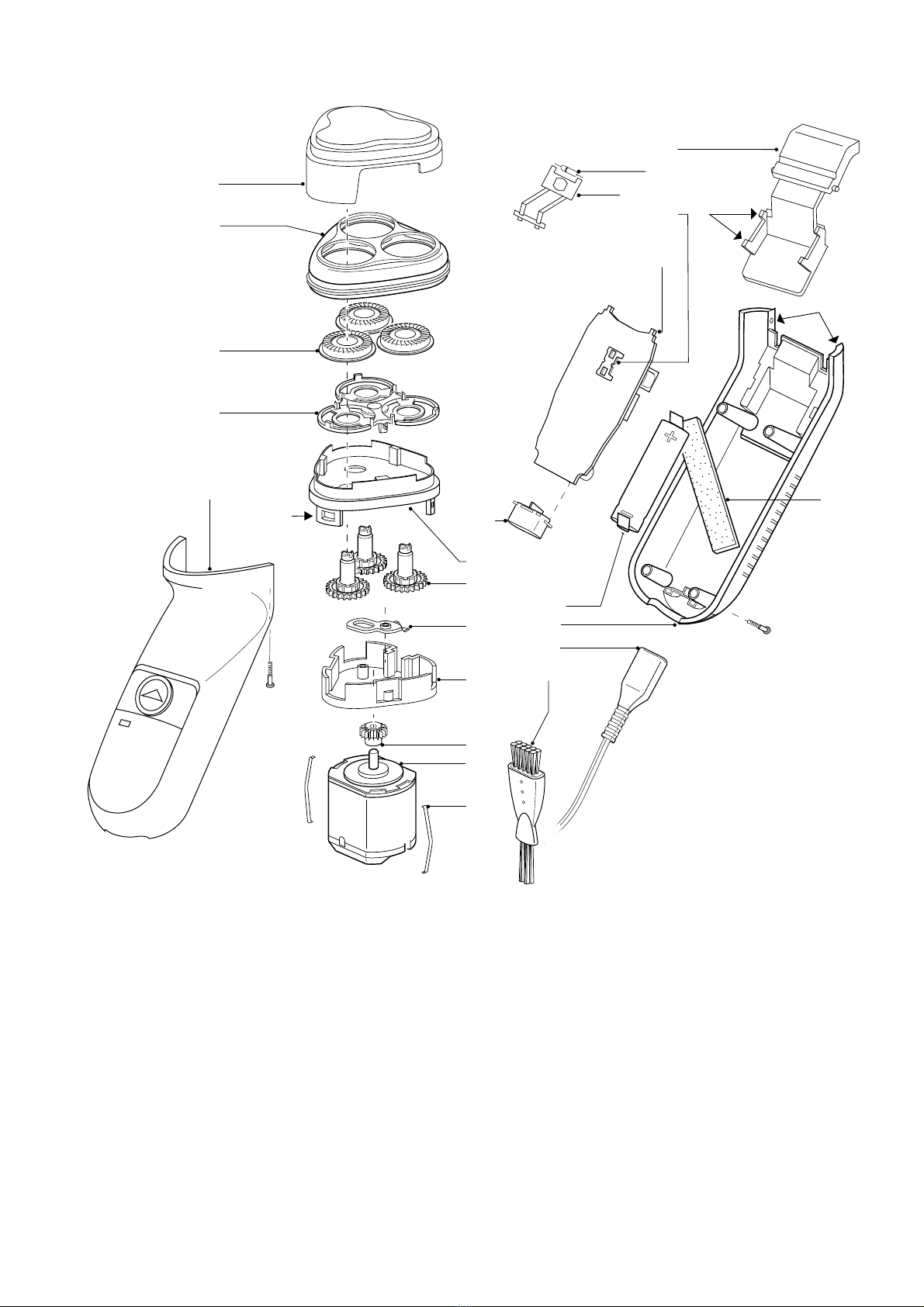

HQ 4847/A

1 4822 441 11276 Protecting cap

2 4222 036 01980 Head holder

3 4822 690 30468 HQ4 shaving head

4 4822 404 40728 Retaining bracket

5 4222 036 02550 Housing

6 4222 036 02370 Inlet

7 4222 036 02920 Hairchamber

8 4822 522 32852 Gearwheel

9 4822 404 40656 Lever

10 4822 441 11275 Frame

11 4822 522 32851 Pinion

12 4822 361 21752 Motor

13 4822 492 63165 Motor clamp

14 4822 690 10081 Trimmer

15 4822 130 34167 Zener diode

16 4222 036 02390 Motor connector

17 4822 277 21689 On/off switch

18 4222 036 02560 Power module

19 4822 138 10584 NiMH cell AA

20 4222 036 03010 Cover

21 4822 321 10095 Flex EU

- 4222 036 02480 Flex ROK

22 4822 479 30183 Cleaning brush

23 4822 466 12236 Foam plate

A 4822 502 30526 S.t. screw 1.8x10/T8

4222 036 02120 Pouch

1.8x10/T8

15+16

1.8x10/T8

NiMH
