Philips HC9490/15 Manuale utente

Always here to help you

www.philips.com/welcome

HC9490

Downloaded from www.vandenborre.be

HC9490

ENGLISH 4

DANSK 14

DEUTSCH 24

ΕΛΛΗΝΙΚΑ 34

ESPAÑOL 44

SUOMI 54

FRANÇAIS 64

ITALIANO 74

NEDERLANDS 84

NORSK 94

PORTUGUÊS 104

PORTUGUÊS DO BRASIL 114

SVENSKA 124

TÜRKÇE 134

Downloaded from www.vandenborre.be

Introduction

Congratulations on your purchase and welcome to Philips!

To fully benet from the support that Philips offers, register your product

at www.philips.com/welcome.

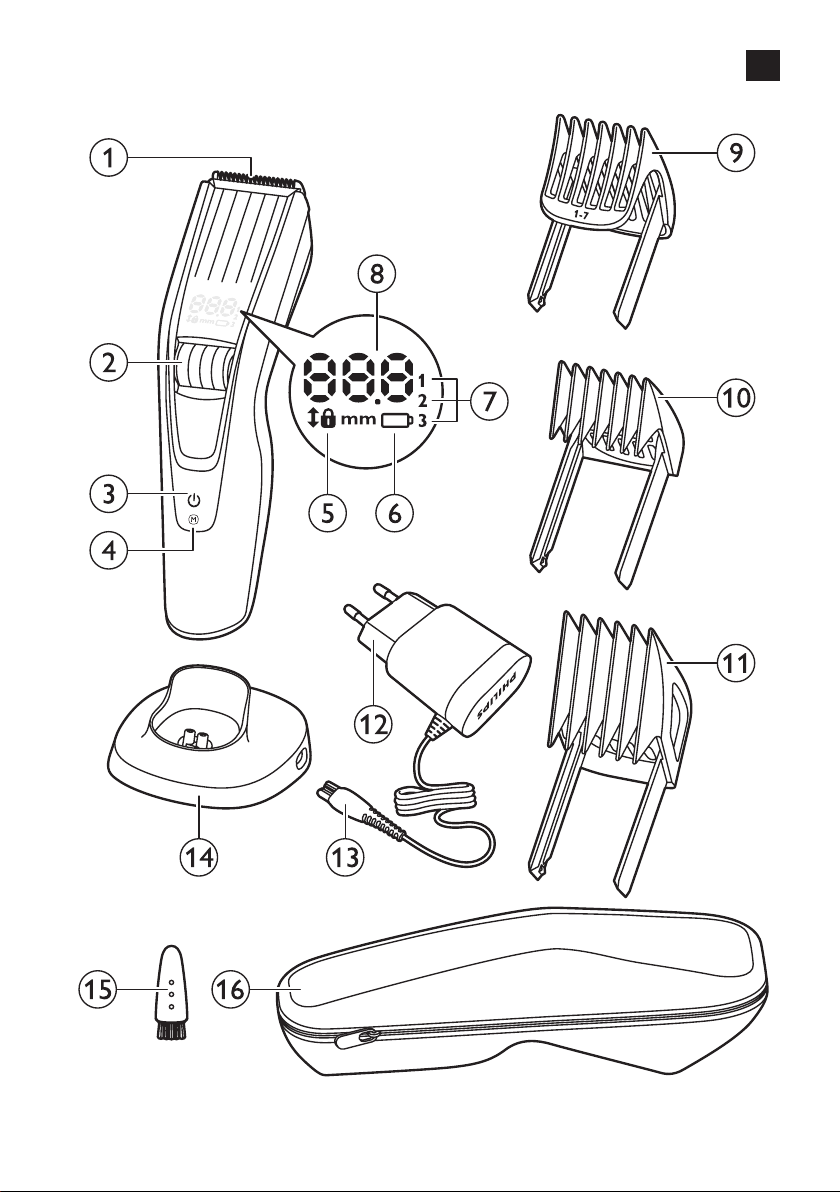

General description (Fig. 1)

1 Cutting unit

2 Flywheel

3 On/off button

4 M-symbol

5 Length setting lock

6 Charging light

7 Length settings

8 Display

9 Trimming comb 1-7 mm

10 Trimming comb 7-24 mm

11 Trimming comb 24-42 mm

12 Adapter

13 Small plug

14 Charging stand

15 Cleaning brush

16 Pouch

Important

Read this user manual carefully before you use the appliance and save it for

future reference.

Danger

- Keep the appliance, the adapter and the charging stand dry.

Warning

- The adapter contains a transformer. Do not cut off the adapter to

replace it with another plug, as this causes a hazardous situation.

- This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision

or instruction concerning use of the appliance in a safe way and if

they understand the hazards involved. Children shall not play with

the appliance. Cleaning and user maintenance shall not be made by

children without supervision..

Caution

- This appliance is not washable. Never immerse the appliance or

charging stand in water, nor rinse it under the tap.

- Always check the appliance before you use it. Do not use the appliance,

adapter, charging stand or any other part if it is damaged, as this may

cause injury. Always replace a damaged adapter, charging stand or part

with one of the original type.

- Always replace a damaged adapter or part with one of the original type.

- Only use this appliance for its intended purpose as shown in the

user manual.

- Never use compressed air, scouring pads, abrasive cleaning agents or

aggressive liquids such as petrol or acetone to clean the appliance.

ENGLISH

Downloaded from www.vandenborre.be

Electromagnetic elds (EMF)

This Philips appliance complies with all applicable standards and regulations

regarding exposure to electromagnetic elds (EMF).

General

- The appliance is equipped with an automatic voltage selector and is

suitable for mains voltages ranging from 100 to 240 volts.

- The adapter transforms 100-240 volts to a safe low voltage of less

than 24 volts.

Charging

Charge the appliance fully before you use it for the rst time or after a long

period of disuse.

When it is charged for 1 hour, the appliance has a cordless operating time

of up to 180 minutes.

Note: After charging the appliance once fully for the rst time, you can also use

the appliance directly from the mains. Simply connect the appliance to

the mains.

Charging indications

Battery low indication

- When the battery is almost empty, the charging light starts to ash

orange.

Charging

- When the appliance is charging, the charging light ashes blue.

Battery fully charged

- When the battery is fully charged, the charging light lights up blue

continuously.

Note: After 30 minutes, the charging light goes out.

ENGLISH 5

Downloaded from www.vandenborre.be

Charging in the charging stand

1 Put the small plug in the charging stand.

2 Put the adapter in the wall socket.

3 Place the appliance in the charging stand.

4 After charging, remove the adapter from the wall socket and pull the

appliance plug out of the charging stand.

Charging with the adapter

1 Make sure the appliance is switched off.

2 Insert the small plug into the appliance.

3 Put the adapter in the wall socket.

4 After charging, remove the adapter from the wall socket and pull

the small plug out of the appliance.

Optimising the lifetime of the rechargeable battery

When you have charged the appliance for the rst time, we advise you to

use it until the battery is completely empty. Continue to use the appliance

until the motor almost stops operating during a session.Then recharge the

battery. Follow this procedure at least twice a year.

Using the appliance

The hair length settings are indicated in millimeters.The settings

correspond to the remaining hair length after trimming.

Be careful when you trim for the rst time. Do not move the trimmer

too fast. Make smooth and gentle movements.

Tip: Start trimming at a high length setting and reduce the length setting

gradually until you have reached the desired hair length.

1-7

ENGLISH6

Downloaded from www.vandenborre.be

Trimming with comb

There are 3 different combs.

- 1-7mm

- 7-24mm

- 24-42mm

1 Attach one of the combs to the appliance.

2 Scroll upwards or downwards to select the desired length setting.

Note: When you trim for the rst time, start at the highest length setting to

familiarise yourself with the appliance.

3 Switch on the appliance.

4 To trim most effectively, move the trimmer against the hair growth

direction. Make sure the surface of the comb always stays in contact

with the skin.

Trimming without comb

Use the trimmer without the trimming comb to trim hair close to the skin

(0.5mm) or to contour the neckline and sideburns.

Be careful when you trim without comb because the cutting

element removes every hair it touches.

ENGLISH 7

Downloaded from www.vandenborre.be

1 Push the comb off the appliance.

2 Switch on the appliance.

3 Touch the hair lightly with the trimmer. Make well-controlled

movements

Features

Memory settings

The appliance has a memory which allows you to save three frequently

used length settings for each comb. Each comb has different length ranges.

Saving a setting

1 Scroll upwards or downwards to select the desired length setting.

2 To enter the memory, press the on/off button for 2 seconds.

,Number 1 starts to ash.

Note: If you want to save a setting as number 2 or 3 of the memory,

scroll upwards or downwards to select number 2 or 3.

ENGLISH8

Downloaded from www.vandenborre.be

3 To save a length setting as number 1,2 or 3 of the memory settings,

press the on/off button for 2 seconds.

,The display shows the word ‘SEt’ when the length setting is correctly

saved. Memory setting number 1,2 or 3 lights up continuously.

Selecting a memory setting

1 To enter the memory, press the on/off button for 2 seconds.

,Number 1 starts to ash.

Note: To select number 2 or 3 in the memory, scroll upwards or downwards

until number 2 or 3 ashes on the display.

2 Press the on/off button to conrm the selected memory setting.

,The number of the selected setting lights up continuously.

Length setting lock

This feature prevents accidental changing of the length setting during

trimming. Every time you switch on the appliance, the length setting lock

is activated.You can only change the length setting if you switch off

the appliance.

1 Scroll upwards and downwards to select the desired length setting.

2 Switch on the appliance.

,The lock symbol starts to ash. You cannot change the length setting

anymore.

Note: If you want to select a different length setting, switch off the appliance.

Scroll upwards or downwards to select the desired length setting and switch on

the appliance again.

Cleaning

Never use scouring pads, abrasive cleaning agents or aggressive liquids

such as alcohol, petrol or acetone to clean the appliance.

Never immerse the appliance or the charging stand in water or rinse it

under the tap.

1 Make sure the appliance is switched off and disconnected from

the mains.

2 Wipe the housing of the appliance with a dry cloth.

ENGLISH 9

Downloaded from www.vandenborre.be

3 Remove the comb and clean it with the cleaning brush.

4 Press the release button (1).The cutting unit comes off the

appliance (2).

5 Clean the cutting unit with the cleaning brush.

6 Clean the inside of the appliance with the cleaning brush.

7 To reattach the cutting unit, insert the lug of the cutting unit into

the guiding slot.

8 Insert the lug of the cutting unit into the guiding slot (1) and push

the cutting unit back onto the appliance (2).

9 Wipe the charging stand with a dry cloth.

Note: If the message ‘CL’ is shown on the display, too much hair has collected

between the comb and the cutting unit. Remove the comb and cutting unit and

clean them with the cleaning brush supplied. Also clean the top edge of the

handle with the cleaning brush supplied.

ENGLISH10

Downloaded from www.vandenborre.be
