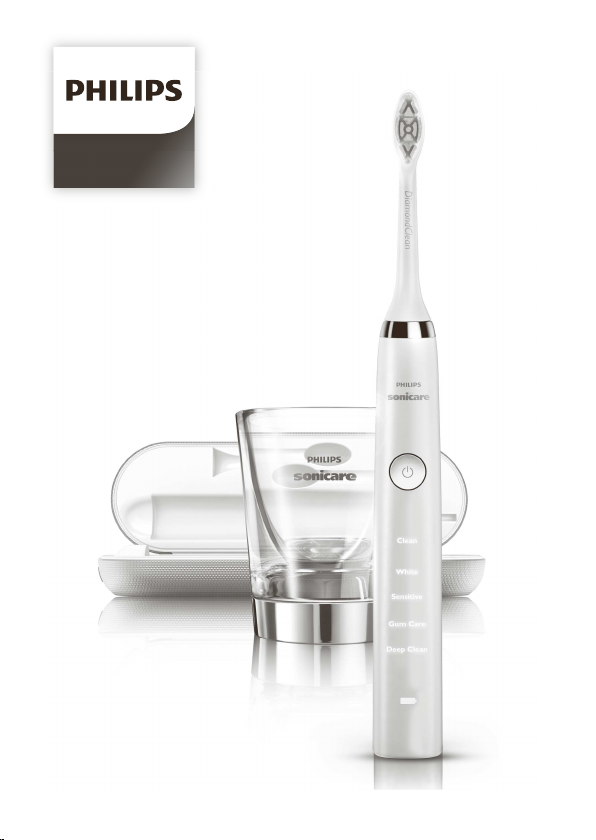

Philips DiamondClean Series Manuale utente
DiamondClean
2
1
7
9
8
3
4
5
611
10
10
1
English
Important
Read this user manual carefully before you use the appliance and
save it for future reference.
Danger
-Keep the charger away from water. Do not
place or store it over or near water
contained in a bathtub, washbasin, sink etc.
Do not immerse the charger in water or any
other liquid. After cleaning, make sure the
charger is completely dry before you
connect it to the wall socket.
Warning
-The mains cord cannot be replaced. If the
mains cord is damaged, discard the charger.
-Always have the charger replaced with one
of the original type in order to avoid a
hazard.
-Do not use the charger outdoors or near
heated surfaces.
6English
-If the appliance is damaged in any way
(brush head, toothbrush handle or charger),
stop using it. This appliance contains no
serviceable parts. If the appliance is
damaged, contact the Consumer Care
Center in your country (see chapter
'Warranty and support').
-This appliance can be used by children and
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Cleaning and user
maintenance shall not be made by children
without supervision.
-Children shall not play with the appliance.
Caution
-Do not clean the brush head, the handle or
the charger in the dishwasher.
-If you have had oral or gum surgery in the
previous 2 months, consult your dentist
before you use the toothbrush.
7
English
-Consult your dentist if excessive bleeding
occurs after using this toothbrush or if
bleeding continues to occur after 1 week of
use. Also consult your dentist if you
experience discomfort or pain when you use
the Philips Sonicare.
-The Philips Sonicare toothbrush complies
with the safety standards for
electromagnetic devices. If you have a
pacemaker or other implanted device,
contact your physician or the device
manufacturer of the implanted device prior
to use.
-If you have medical concerns, consult your
doctor before you use the Philips Sonicare.
-This appliance has only been designed for
cleaning teeth, gums and tongue. Do not
use it for any other purpose. Stop using the
appliance and contact your doctor if you
experience any discomfort or pain.
8English
-The Philips Sonicare toothbrush is a
personal care device and is not intended for
use on multiple patients in a dental practice
or institution.
-Stop using a brush head with crushed or
bent bristles. Replace the brush head every
3 months or sooner if signs of wear appear.
Do not use other brush heads than the ones
recommended by the manufacturer.
-If your toothpaste contains peroxide, baking
soda or bicarbonate (common in whitening
toothpastes), thoroughly clean the brush
head with soap and water after each use.
This prevents possible cracking of the
plastic.
Electromagnetic fields (EMF)
This Philips appliance complies with all applicable standards and
regulations regarding exposure to electromagnetic fields.
Introduction
Congratulations on your purchase and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
Your Philips Sonicare (Fig. 1)
1 Hygienic travel cap
2 Brush head
3 Handle with ergonomic shape
9
English
4 Recessed power on/off button
5 Hidden brushing mode display
6 Charge indicator
7 Charging glass
8 Charger stand
9 Charging base
10 Charging travel case
11 USB cord
Note: The content of the box may vary based on the model
purchased.
Preparing for use
Attaching the brush head
1Align the brush head so the bristles point in the same direction as
the front of the handle (Fig. 2).
2Firmly press the brush head down onto the metal shaft until it
stops.
Note: It is normal to see a slight gap between the brush head and the
handle.
Charging the appliance
1Plug the charger into an electrical outlet.
2Place the charging glass on top of the charging base and place the
handle in the glass (Fig. 3) or place the charger stand on top of the
charging base. Place the handle in the stand (Fig. 4).
-The charge indicator flashes green until fully charged.
-Rapid yellow flashing indicates charge is extremely low (fewer
than 3 uses left).
Note: It takes at least 24 hours to fully charge the battery.
This charger is designed to properly charge only one handle at a time.
This charger is not compatible with other models of Sonicare.
Using the appliance
Brushing instructions
1Wet the bristles (Fig. 5).
10 English
2Apply a small amount of toothpaste on the bristles (Fig. 6).
3Place the toothbrush bristles against the teeth at a slight angle (45
degrees), pressing firmly to make the bristles reach the gumline or
slightly beneath the gumline (Fig. 7).
Note: Keep the center of the brush in contact with the teeth at all
times.
4Press the power on/off and mode button to turn on your Philips
Sonicare (Fig. 8).
5Gently keep the bristles placed on the teeth and in the gumline.
Brush your teeth with small back and forth motion so the bristles
reach between the teeth (Fig. 9).
Note: The bristles should slightly flare. Do not scrub.
6To clean the inside surfaces of the front teeth, tilt the brush handle
semi-upright and make several vertical overlapping brushing
strokes on each tooth (Fig. 10).
7Begin brushing in section 1 (outside top teeth) and brush for 30
seconds (45 seconds in Deep Clean mode) before moving to
section 2 (inside top teeth). Continue brushing in section 3 (outside
bottom teeth) and brush for 30 seconds (45 seconds in Deep
Clean mode) before moving to section 4 (inside bottom teeth (Fig.
11)).
Note: To make sure you brush evenly throughout the mouth,
divide your mouth into 4 sections using the Quadpacer feature
(see chapter ‘Features’).
Note: After you have completed the brushing cycle, you can spend
additional time brushing the chewing surfaces of your teeth and
areas where staining occurs. You can also brush your tongue, with
the toothbrush turned on or off, as you prefer (Fig. 12).
Your Philips Sonicare is safe to use on:
- Braces (brush heads wear out sooner when used on braces).
- Dental restorations (fillings, crowns, veneers).
Brushing modes
1To toggle through modes press the on/off button twice in less
than 5 seconds.
11
English
2To turn off your Philips Sonicare press the on/off button again
after 5 seconds.
Your Philips Sonicare comes with the Clean mode activated.
Note: When the Philips Sonicare is used in clinical studies, it must be
used in the default 2-minute Clean mode or in the Deep Clean mode
with Easy Start turned off.
Clean mode
The ultimate in plaque removal (default mode). Clean mode lasts for 2
minutes and includes four 30 second Quadpacer intervals.
White mode
2 minutes to remove surface stains and 30 seconds to brighten and
polish your front teeth.
Sensitive mode
Extra gentle 2 minute mode for sensitive teeth and gums.
Gum Care mode
Complete whole mouth cleaning (2 minutes) plus gentle cleaning for
problem areas and along the gumline (1 minute).
Deep Clean mode (select models)
Provides an invigorating 3 minutes of alternating cleaning and
massaging to deliver an exceptionally clean experience.
Polish mode (select models)
Quick 1-minute mode to brighten and polish your front teeth.
Features
Quadpacer
The Quadpacer is an interval timer that has a short beep and pause
to remind you to brush the 4 sections of your mouth. Depending on
the brushing mode you have selected, the Quadpacer beeps at
different intervals during the brushing cycle. The Quadpacer works in
all 5 modes (Fig. 11).
12 English
