Philips NORELCO 2 Manuale utente

Installation guide

Telephone connectionTelephone handset

Dear Customer,

With the help of this guide you can install your fax machine quickly and easily. After you have finished

the installation press the HELP/INSTALL key for 2 seconds. Your machine will then guide you

through the main settings as well as the adjustment to your telephone line.

To connect the handset, turn your machine

upside down. Connect the handset with the

spiral cable to the fax machine.

The socket for the telephone cable is on the

bottom of the fax machine. One plug of the

telephone cable has to be connected to your fax

machine, the other plug to the line socket on the

wall.

Insert the other end of the

spiral cable into the socket

identified with a handset

symbol.

The sockets for the handset

cable and the telephone

cable are on the bottom

of the fax machine.

Connect one plug

to the line socket on the wall.

Connect the other plug of

the telephone cable to the

socket identified with LINE.

Connect the handset to the

spiral cable.

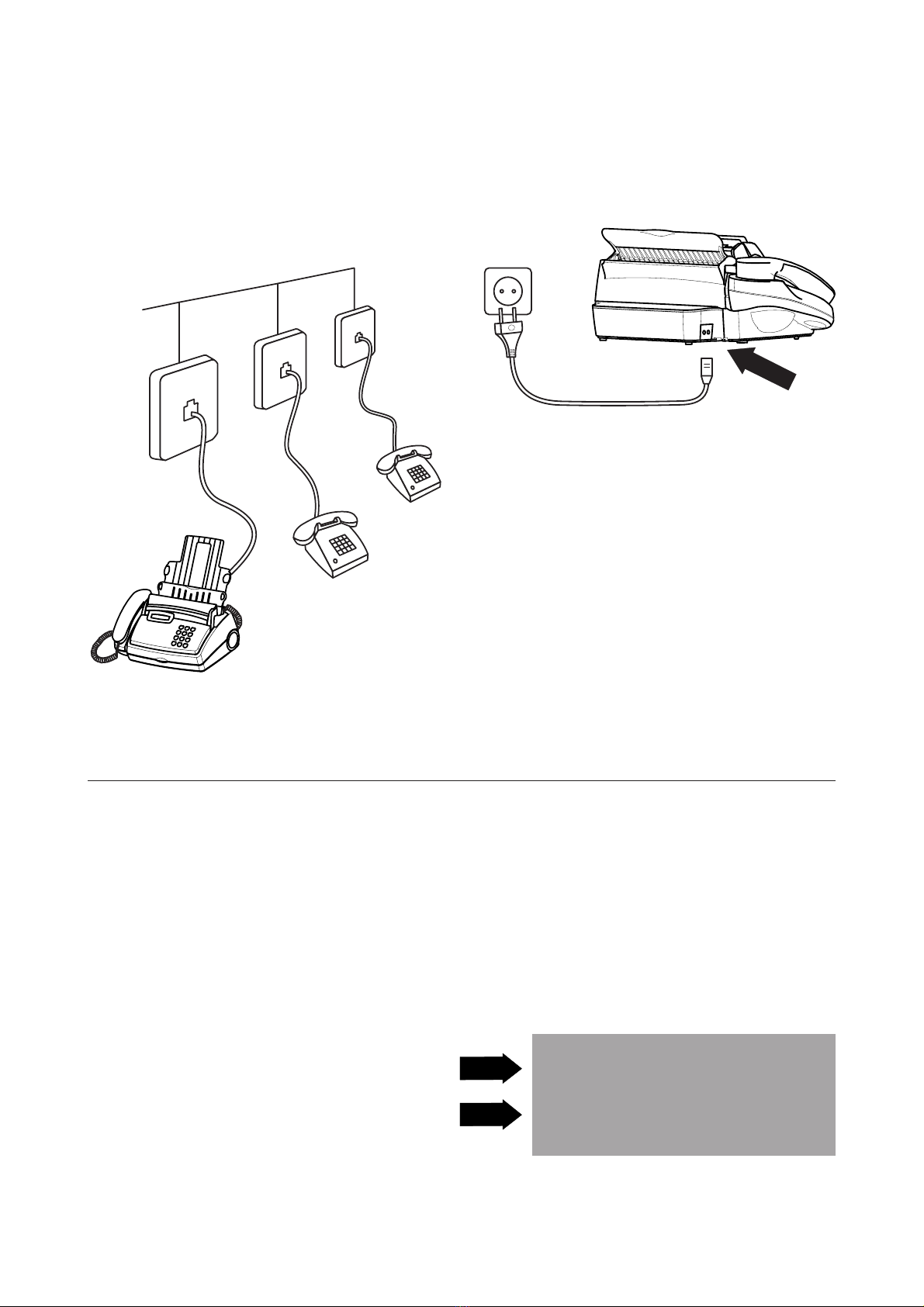

Additional devices Power supply

Time and date

1After you have connected the fax machine to the

power supply, it will prompt you to enter the

current time and date.

Use the dial pad to enter the correct time.

3Enter the correct day, month and year.

To conclude press OK.

You can connect additional devices (telephones,

cordless telephones, answering device, PC

modem) to your telephone line.

e.g. 0915 for 9:15

e.g. 150502

for 15th May 2002

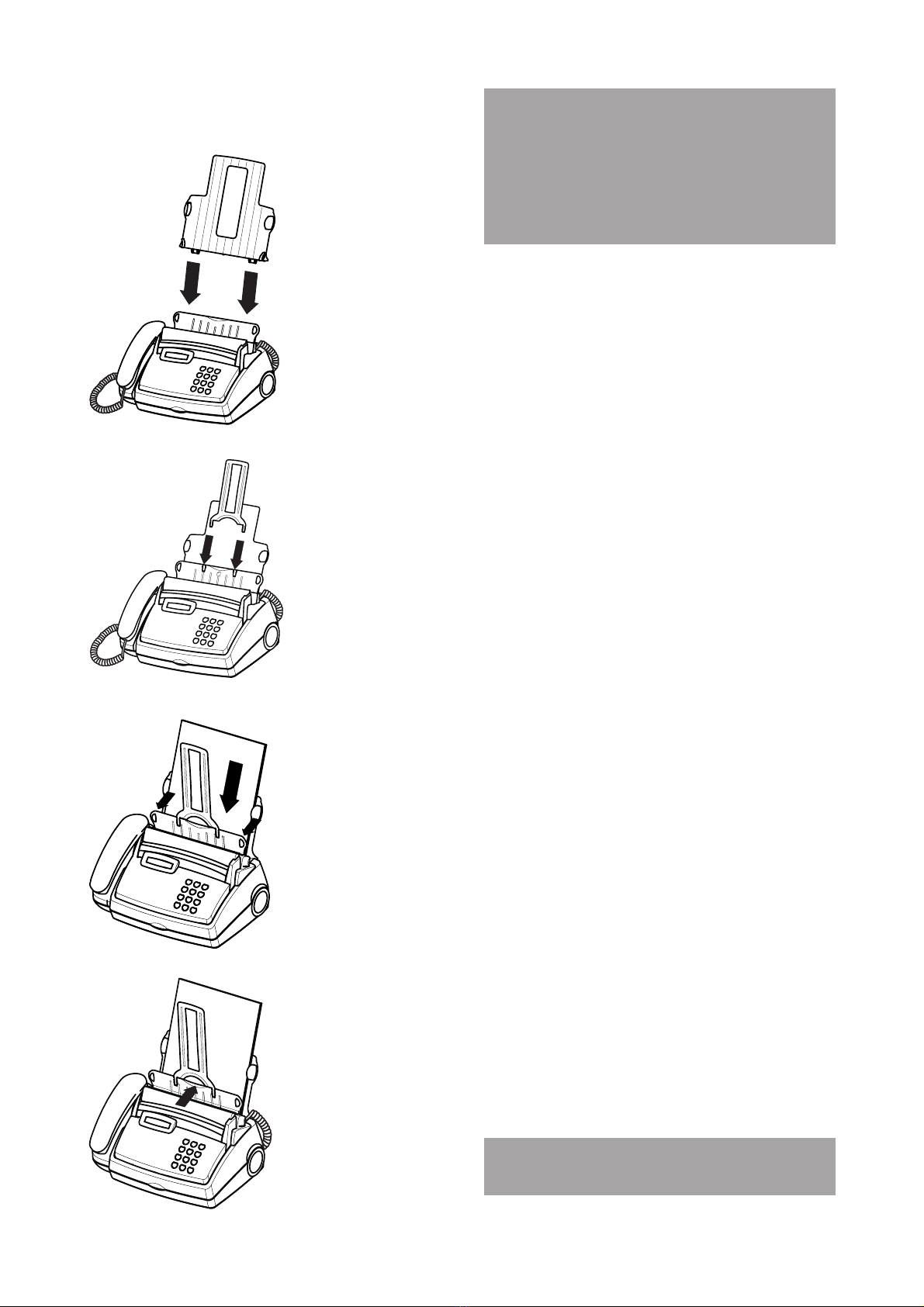

Loading paper

Insert the paper tray

in the slots provided

behind the paper

feed mechanism.

Stick the document

support insertion in

the openings

provided on the

paper feed flap.

Starting up

To finish the installation process you have to go

through some main settings (e.g. adaption of

your fax to the telephone line). Using EASY

INSTALL your fax machine will be configured

according to your local conditions.

1Press HELP/INSTALL for at least two

seconds. Your fax machine will print one page

with the header “EASY INSTALL“.

Your fax machine will then guide you on the

display through the first settings, such as your

telephone number and your name.

HELP pages

The different HELP pages are a sort of a “Quick

Reference Guide“, which describe the main

features of your fax machine.

1Press HELP/INSTALL.

Select the desired HELP page with </>.

3Confirm with OK. The page will be printed

out.

Making a call

1Dial the desired number.

Lift the handset.

You can also first lift the handset and then dial the

number.

Close the paper feed

flap.

Pull the paper feed

flap forwards until it

stops.

Insert a maximum of

50 sheets of A4

paper (210 x 297mm

80 g/m2).

Please note that inkfilm, which has limited capacity

of pages, has been installed in your machine. Be

advised that only Philips inkfilms should be used.

Your Philips guarantee does not cover damage to

your fax machine that may be caused by the use of

any other inkfilms.

Sending faxes

1Dial the number you require.

Hold your documents face up. The documents

must rest against the document guide. To

prevent several sheets being drawn into the

machine at once, please straighten the docu-

ments to the same height before inserting them

into the document feed slot. You can load up to

ten pages at once.

3If you want to improve the image quality,

press FINE/PHOTO. The display will show

the symbol Ffor PHOTO and the symbol

ffor FINE.

4Press START. Transmission now begins. In

case the connection is not successful your fax

machine will redial.

Copying

You can use your fax machine to make copies of

an original.

1Insert your documents face up into the

document feed slot (max. ten pages).

If you want to improve the image quality, press

FINE/PHOTO. The display will show the

symbol Ffor PHOTO and the symbol ffor

FINE.

3Press START.

4The document that has been pulled through will

come out on the top side of the fax machine.

To stop copying press STOP. The document and the

copy will be ejected.

Language of display

In this function you can select the language of

the display and printouts (e.g. HELP pages,

function list, etc. a.s.o).

1Press MENU, 11 and confirm with OK.

Select the desired language with </>and

confirm with OK.

Telephonebookaa

You can store names and numbers into the

telephone book.

Storing numbers

1Press a for two seconds.

Enter a name using the dial pad. By pressing

>you can move the cursor one position to

the right. Press OK to confirm.

3Enter a telephone number and confirm with

OK.

Using the telephone book

1Press a.

Select with </>. The stored name or

telephone number appears on the display.

3Pick up the handset. In case you want to send

a fax message, press START.

5103 506 3025.1 INT (SG1)

Please note that all information is subject to change without

notice.
