Service

Manual

Hairclipper

series 3000

HC3510/13

HC3510/15

HC3510/85

HC3510/13 /15 /85

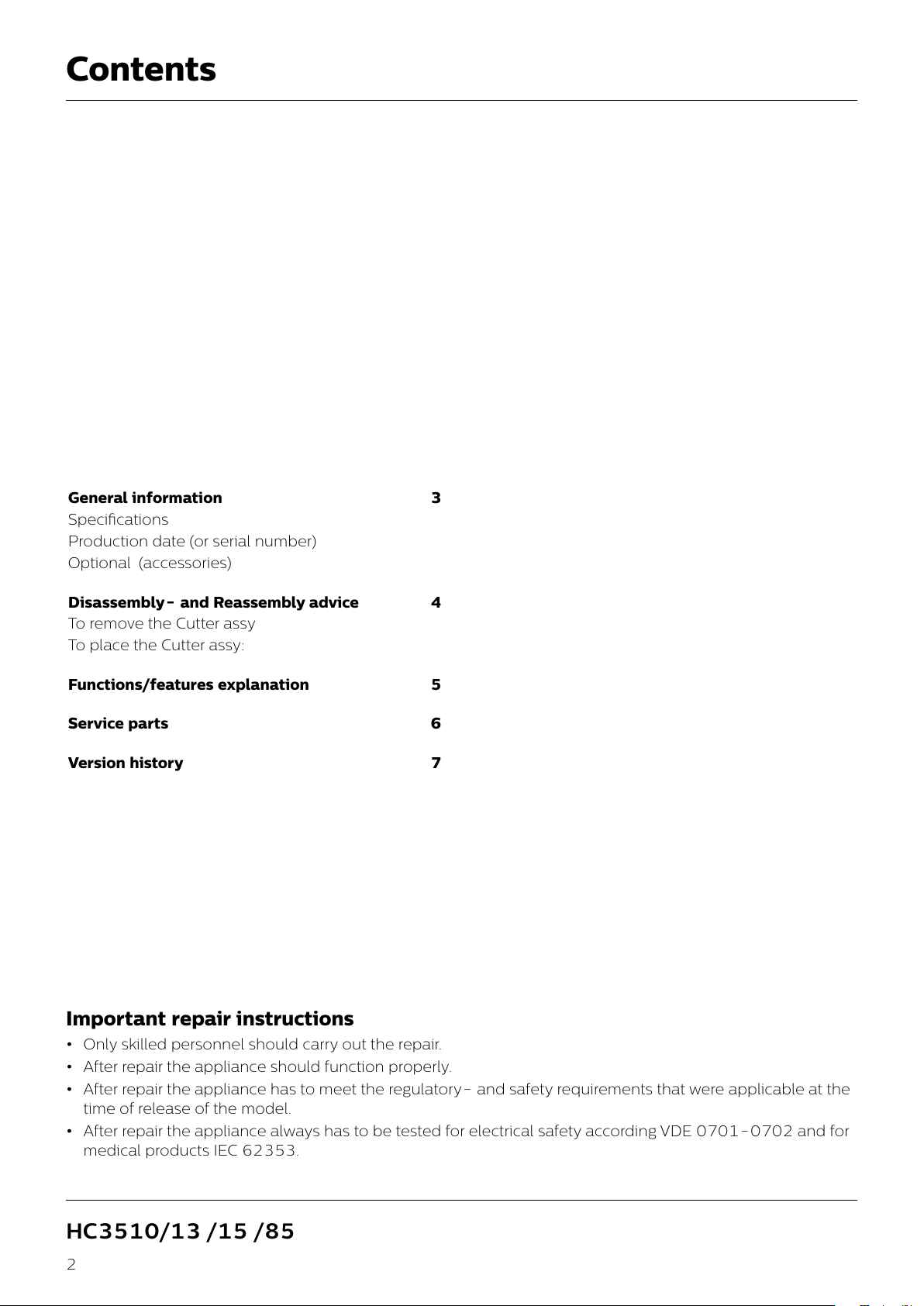

Contents

Important repair instructions

•Only skilled personnel should carry out the repair.

•After repair the appliance should function properly.

•After repair the appliance has to meet the regulatory- and safety requirements that were applicable at the

time of release of the model.

•After repair the appliance always has to be tested for electrical safety according VDE 0701-0702 and for

medical products IEC 62353.

General information 3

Specications

Production date (or serial number)

Optional (accessories)

Disassembly- and Reassembly advice 4

To remove the Cutter assy

To place the Cutter assy:

Functions/features explanation 5

Service parts 6

Version history 7

Specications

Cutting system

•Trim-n-Flow technology

•Cutter width: 41 mm

•Cutting element: Stainless steel blades

•Number of length settings: 13

•Precision (size of steps): By 2 mm

•Range of length settings: From 0.5 to 23 mm

Accessories

•Comb: Adjustable hair comb, Extra adjustable

beard comb

•Maintenance: Cleaning brush

Ease of use

•Cleaning: Removable cutter, Washable blades

•Operation: Corded only

•Maintenance free: No oil needed

Power

•Automatic voltage: 100 - 240 V

Nose trimmer model

•NT1150 only with the HC3510/85

Design

•Handle: Ergonomic grip & handling

Service

•2-year worldwide guarantee: Yes, Plus 3-years

with registration

Production date (or serial number)

Optional (accessories)

•No specic issues

YYWW

General information

HC3510/13 /15 /85

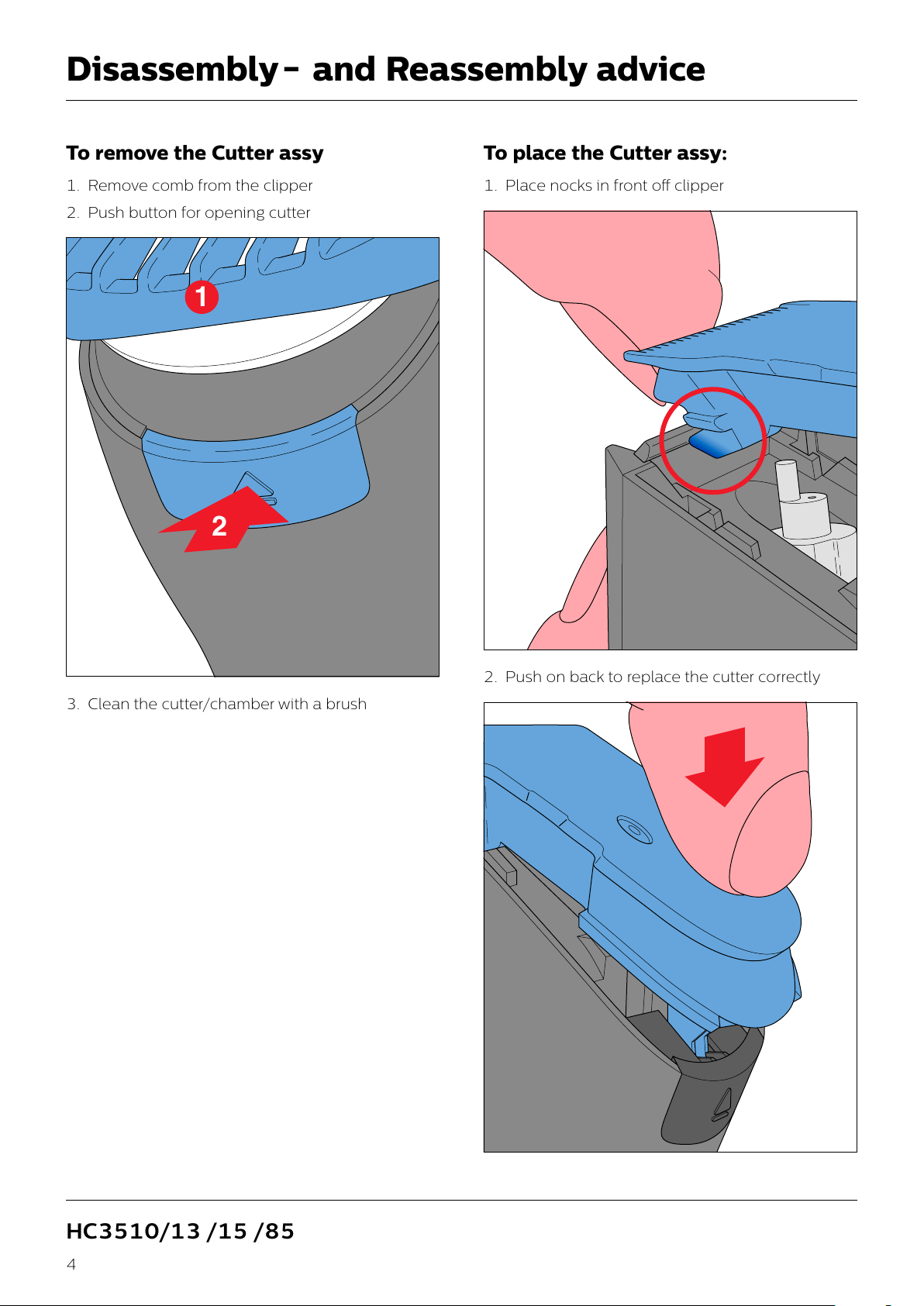

To remove the Cutter assy

1. Remove comb from the clipper

2. Push button for opening cutter

3. Clean the cutter/chamber with a brush

To place the Cutter assy:

1. Place nocks in front o clipper

2. Push on back to replace the cutter correctly

Disassembly- and Reassembly advice

Trim-n-Flow technology

Our new, innovative comb is designed to prevent

hair from getting stuck in the clipper. So you can

continue cutting your hair, from start to nish,

without interruption.

DualCut Technology

Power through any type of hair with our advanced

DualCut technology: an innovative two-sided

cutting element that cuts hair twice as fast as one-

sided blades.

Stainless steel blades

Self-sharpening stainless steel blades are

incredibly long-lasting. Even after 5 years, they cut

just like they did on day one.

13 lock-in length settings

Simply select and lock in the length you want.

The adjustable comb has 12 lock-in length

settings from 1 mm to 23 mm, with precisely 2 mm

between each length. Remove the comb entirely

for a close 0.5 mm trim.

Ecient corded use

The 1.8 m long power cord provides constant

power.

Comfortable grip

The HAIRCLIPPER Series 3000 is designed to be

comfortable to use, convenient to handle and easy

to operate. The special texture and grip allow you

to easily move the clipper and cut all around your

head.

Extra adjustable beard comb

Whether you have a beard or want the perfect

stubble, just attach the adjustable beard comb and

select one of 12 lock-in settings, from 1 to 23 mm.

There are precisely 2 mm between each length.

To get a shorter stubble, remove the comb entirely

for a close 0.5 mm trim.

Easy to clean

Simply click to release the detachable head to

quickly release and clean the blades.

Zero maintenance

No oil needed, for easy maintenance and to save

you time.

Functions/features explanation

1 2

HC3510/13 /15 /85

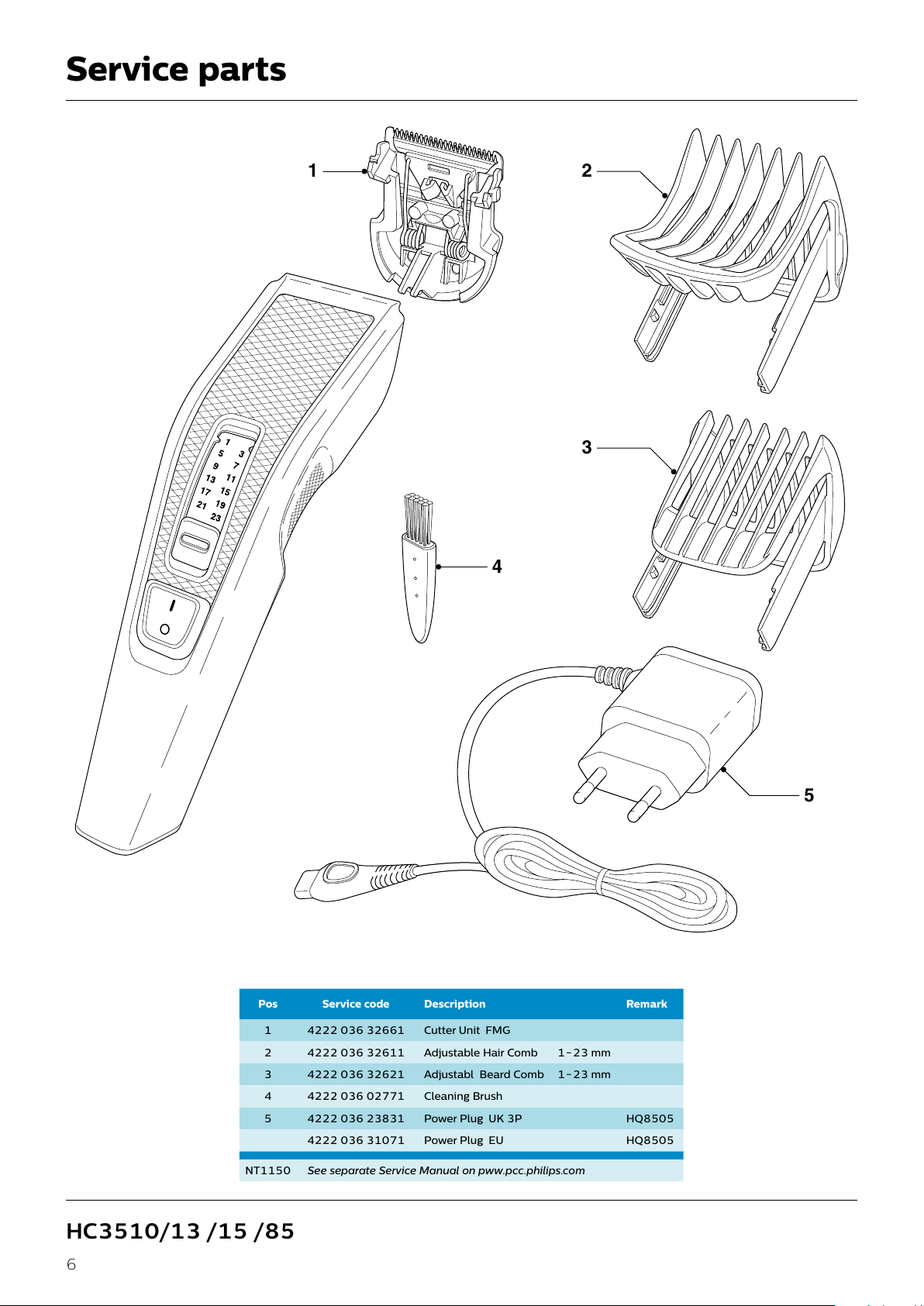

Pos Service code Description Remark

1 4222 036 32661 Cutter Unit FMG

2 4222 036 32611 Adjustable Hair Comb 1-23 mm

3 4222 036 32621 Adjustabl Beard Comb 1-23 mm

4 4222 036 02771 Cleaning Brush

5 4222 036 23831 Power Plug UK 3P HQ8505

4222 036 31071 Power Plug EU HQ8505

NT1150 See separate Service Manual on pww.pcc.philips.com

Service parts

19/01 Version 1.1 : HC3510 initial release.

Version history
