Philips HTS9800W Guida rapida

Firmware Upgrade

Introduction

The upgrade version of this software is Version 26 and can be used to upgrade Philips HTS9800W/12,

HTS9800W/37 and HTS9800W/55 to the latest status.

The upgrade allows the HTS9800W improves CDDA recognition, SCART detection and Bass/Treble.

Upgrade Procedure

Ste

1 Check your current firmware version

1 Power up the set in DISC mode and make sure there is no disc inside the set, then press <DISPLAY>

button on the remote control.

2 The software version and other information are display on the TV screen as follows:

G69M1 VXX 9800-XX X XX

Servo : XXXXXXXX Reg:X

HDCP XXXX (PASS or FAIL)

Example :

G69M1 V26 9800-12 2 08 -> Indicates Software version 26, stroke version 12, OTP version 8.

Servo : 94110000 Reg:2 -> Indicates Servo version 94110000 and Region code 2.

HDCP PASS -> Indicates HDCP pass.

Note:

Do NOT upgrade your set if the software version number is higher than V26!

The firmware information is also useful when you call Philips Customer Care Center.

Ste

2 Download Firmware upgrade

1 Check you have the following tools:

• PC (Pentium III 300MHz processor or higher)

• CD-R/RW writer and writing application software

• Blank CD-R or CD-RW disc

• Internet access (broadband or high speed)

2 Click the link to download Firmware Upgrade to your PC

3 Unzip the .zip file

i) Do not rename the filename.

ii) Visit http://www.winzip.com/ for downloads if you cannot open the .zip file.

Ste

3 Burning Upgrade on CD-R / CD-RW

1 Extract the files by unzipping the zipped file.

2 Write the extracted files – not the zip file – onto a blank CD-R or CD-RW disc, using the following settings:

- File System CD-ROM Joliet Tip: For more information on

burning software we suggest you

can refer to two popular burning

software programs

www.nero.com

www.eas

cdcreator.com

- File name length : max 31 chars (ISO Level 2)

- Mode : 2/XA

- Character set : ASCII

- Single session

- Write Speed : Low

3 Finalize the disc. (The application may do this automatically.)

Using Nero Burning Rom

Please make sure you are using Nero Burning Rom and not Nero Express. If necessary, you can start Nero

Burning Rom directly from the Nero folder in your Windows Start Menu.

1. Insert a blank CD-R or CD-RW disc

2. Open Nero Burning Rom

3. Select ‘Burn Image’ from the ‘Recorder’ menu

4. Select the unzipped file that you saved

are upgrade will now be burned onto the disc

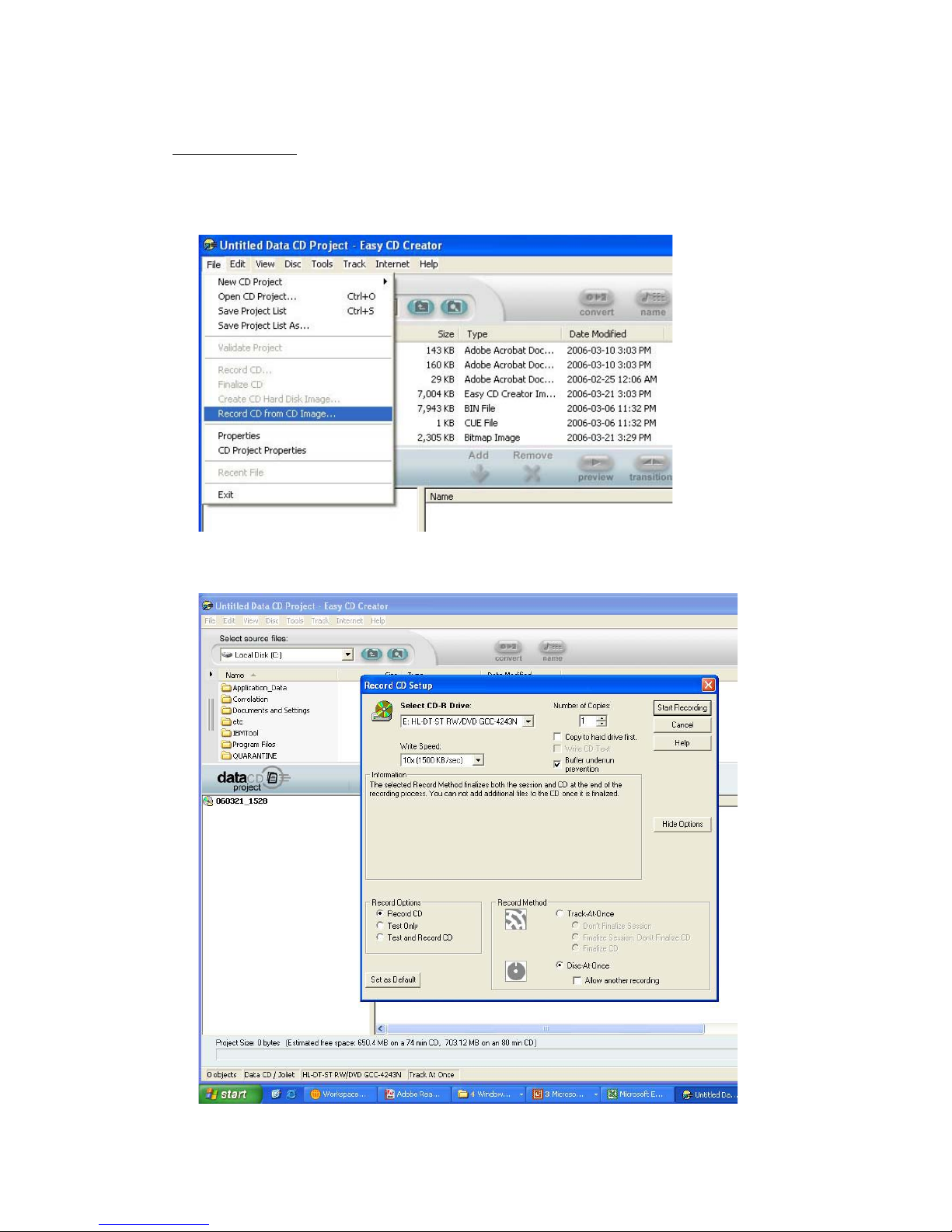

Using CD Creator

5. Click ‘Burn’

ÆThe Firmw

or CD-RW disc

a CD’D image’ in the ‘File’ menu

1. Insert a blank CD-R

2. Open CD Creator

3. Select ‘Create Dat

4. Select ‘Record CD from C

5. elect the unzipped file that you saved

will now be burned onto the disc

6. Click ‘Start Recording’

ÆThe Firmware upgrade

pply Upgrade to your Set

. Power up the set and insert the prepared Upgrade CDR.

the upgrade disc will automatically be ejected. Remove Disc

4. how WRITE -> UPG END in about 2 minutes time.

. Software upgrading is completed

our product is successfully upgraded!

erifying firmware version

To check the rmware version, see Step 1.

elpful hints: If you have any problem, see Troubleshooting.

2. The set will automatically start upgrading.

3. Set’s FTD will display ERASE. After which

from set.

FTD will s

5. The set will go to standby and wake up automatically in disc mode

Ste

5 V

Firmware upgrade history

ersion 26

de allows the HTS9800W to have improved CDDA recognition, SCART detection and

• The upgra

Bass/Treble.
