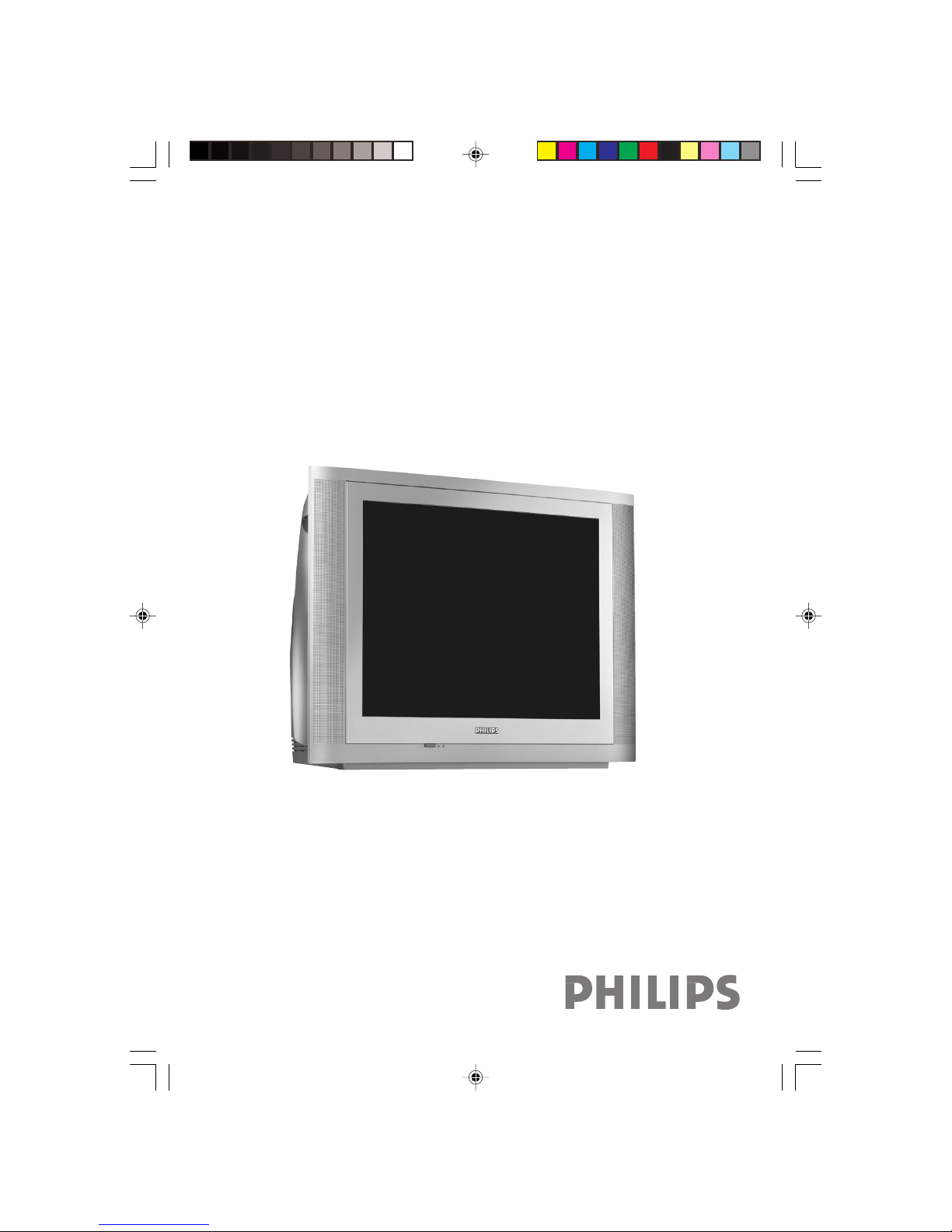

Philips 29PT7322/69R Manuale utente

Real Flat Television

29PT7325

User manual

IMPORTANT

Before you begin:

Make sure your package includes the following items:TV and mains cord,

remote control, Instruction manual, antenna cable (optional) and Coaxial

cable (optional).

Attention:

1. Read your manual first – your Philips TV comes with a well-designed

remote control and onscreen display to ensure your TV is easy to

operate.

2. The tips provided in this manual will save you time and money as

charges for TV installation and adjustments of customer controls are

not covered under the warranty.

3. For information outside of this manual, such as sales locations and

other Philips products, please visit www.philips.com which will

automatically link you to your local Philips website.

4. Please refer to the ‘Troubleshooting Tips’on page 15 before calling for

service.

5. In case of a need to call for service, we recommend you to call from

your room where your TV is located and have on hand your remote

control, warranty card,TV model and serial number.

6Do not discard packaging materials:

•without thorough inspection for parts and that accessories that may be

packed separately inside the carton.

•during the warranty period should you need to exchange the set.

Recycling:

The materials used in your set are either reusable or can be recycled.

To minimise environmental waste, specialist companies collect used

appliances and dismantle them after retrieving any materials that can be

used again (ask your dealer for further details).

Disclaimer: Graphics in this manual are for illustration purpose and may not represent the

actual product

General User Manual-29PT7325 1

Ta b le of Contents

General

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . 2

Useful Tips . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

What’s Hot

Picture Scanning mode . . . . . . . . . . . . . . . . . . . . 3

YPbPr Digital High Definition input . . . . . . . . 3

Installation

Installing your television set . . . . . . . . . . . . . . . 4

The keys on the TV set . . .. . . . . . . . . . . . . . . . . 4

Remote control keys . . . . . . . . . . . . . . . . . . . . . . 5

Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Auto Store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Manual Store. . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . 6

Sort . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Channel Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Operation

Picture settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Sound settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Features settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Timer Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Child Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Active Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Personal Zapping . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Peripherals

DVD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Video recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Other equipment . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Side connections . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Practical information

Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

p1-2_29PT7325.p65 02/07/05, 5:48 PM1

2 User manual-29PT7325 General

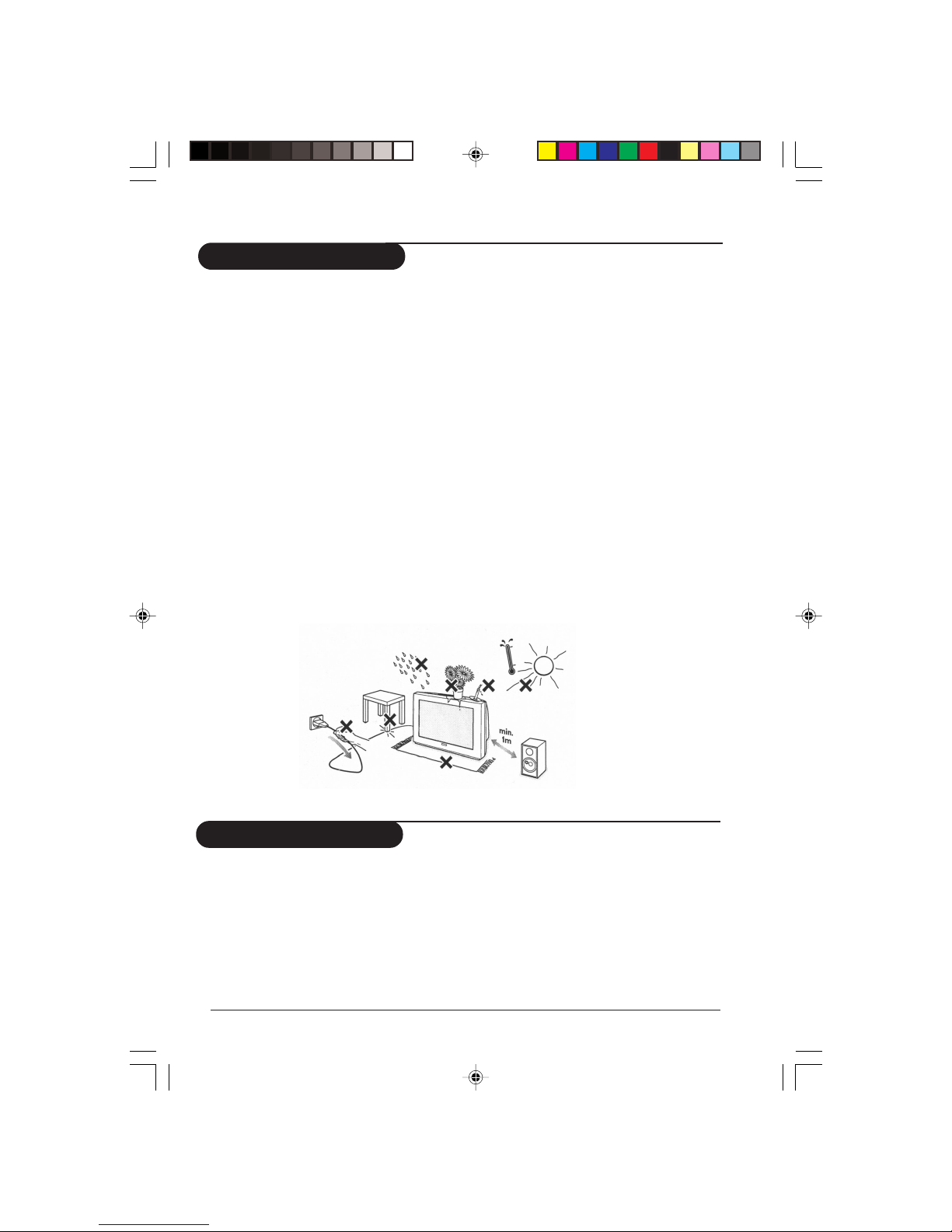

Safety information

•Disconnect mains plug when :

–the indicator light below the TV screen is flashing continuously.

–abright white line is displayed across the screen.

–there is a lightning storm.

–the set is left unattended for a prolonged period of time.

•cleaning the TV screen. Never use abrasive cleaning agents. Use a slight damp chamois

leather or soft cloth.

•No naked flame sources, such as lighted candles, should be placed on top of the TV or in

the vicinity.

• Do not place your TV set under direct sunlight or heat.

•Leave at least 10 cm around each side of TV set to allow for proper ventilation.

•Avoid placing your set (e.g. near the window) where it is likely to be exposed to rain

or water.

•No objects filled with liquids should be placed on top the TV so as to avoid dripping

or splashing of liquids on the set.

Useful information

•Do not leave your set on standby mode for a prolonged period of time. Switch off set

to allow it to be demagnetised. A demagnetised set supports good picture quality.

• Do not shift or move the set around when it is switched on. Uneveness in colour in

some parts of the screen may occur.

•Never attempt to repair a defective TV yourself.Always consult a skilled service

personnel.

p1-2_29PT7325.p65 01/24/05, 9:18 AM2

What’s hot? User manual-29PT7325 3

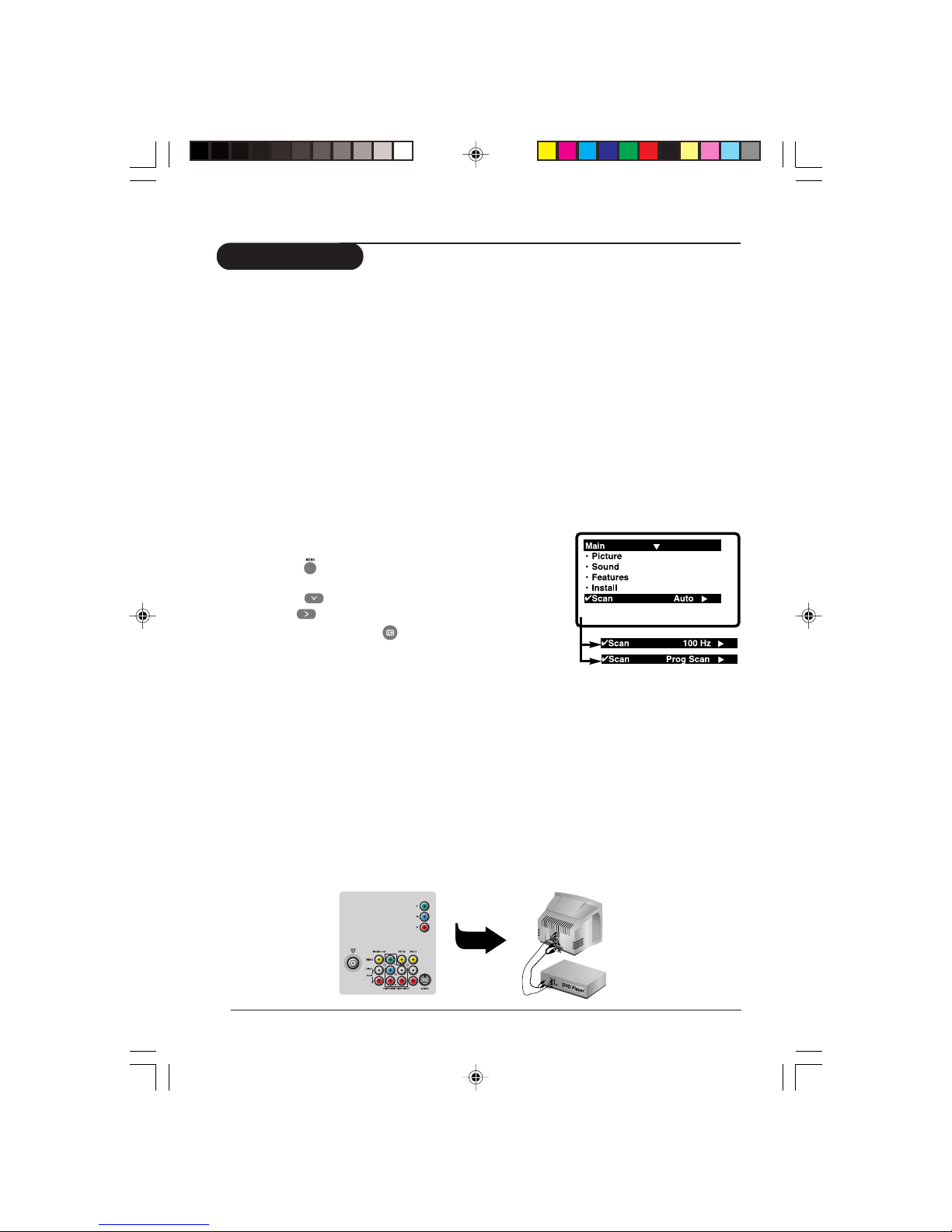

Picture scanning

Your Philips TV has been built with scanning features to enhance your TV viewing.All you

need is to select your desired mode to enjoy sharper and cleaner pictures.The description below

will help you make your choice.

Auto

If you are undecided of which mode to choose, select Auto and let your TV decide for you

automatically!

100 Hz Digital Scan (available only for PAL signal)

Working with three lines of picture information, the 3-line digital comb filter in the TV

virtually eliminates both horizontally and vertically hanging dots, as well as dot crawl.

Progressive Scan

Doubles the vertical resolution of the image to produce a noticeable sharper picture.

How to access

&Press the key.

The Main Menu will be call up.

éPress the to select the Scan mode.

“Use the key to select Auto, 100 Hz or Prog Scan.

‘To quit the menus, press .

YPbPr Digital High Definition input

When you have a digital equipment with a 480p or 1080i output (e.g. a digital set top box or

Progressive Scan DVD player), connect it to the AV3 2 Fh 480p/1080i input.

How to access

&Connect the TV’s green, blue and red Y Pb Pr (AV3 in) jacks to the corresponding

COMPONENTVIDEO OUT jacks on the equipment.

éConnect the TV’s red and white (R and L) AUDIO IN jacks from AV2 in to the

corresponding AUDIO OUT jacks on the player. Match the cable colour to the jacks’ colour.

The red jack is the Right audio channel and the white jack is the Left audio channel.

“Turn on the TV and the equipment. Set the TV to a channel named YPbPr to playback.

What’s Hot

p3_29PT7325.p65 01/24/05, 9:20 AM3

4 User manual-29PT7325 Installation

Positioning the television set

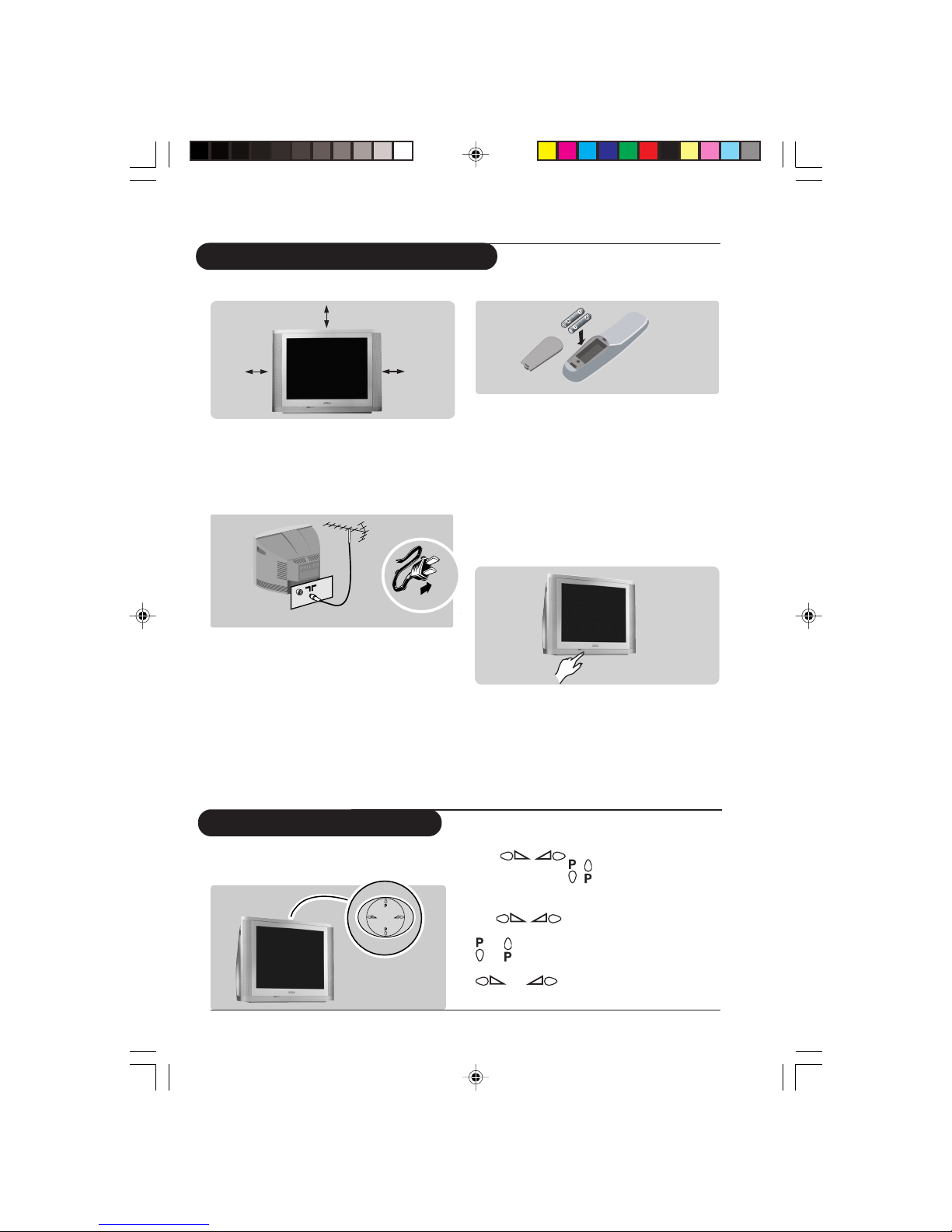

Installing your television set

Place yourTV on a solid, stable surface,

leaving a space of at least 10 cm around the

appliance.

Connections

10 cm10 cm

10 cm

•Insert the aerial plug into the xsocket

at the rear of the set.

If you are using an indoor aerial, reception

may be difficult in certain conditions. You

can improve reception by rotating the

aerial. If the reception remains poor, you

will need to use an external aerial.

•Insert the mains plug into a wall socket.

Remote control

Insert the two R6-type batteries (supplied)

making sure that they are the right way

round.

The batteries supplied with this appliance do

not contain mercury or nickel cadmium.

If you have access to a recycling facility, please do

not discard your used batteries (if in doubt,

consult your dealer).

Switching on

To switch on the set, press the on/off key.

A red indicator means that the television is on

standby mode. Refer to the next page on ‘Remote

Control keys’ for the various keys that you could

use to switch on the set.An indicator light will

flash when it is receiving signal from the remote

control.

The keys on the TV set

The television set has 4 keys which are

located at the top.

The keys are used to adjust the

sound levels.The keys are used to select

channels.

To access or exit the main menu, press down

the keys, simultaneously.

To select an item in the main menu, press the

or key.

To select an adjustment, press down the

or key.

p4-8_29PT7325.p65 01/24/05, 9:20 AM4

Installation User manual-29PT7325 5

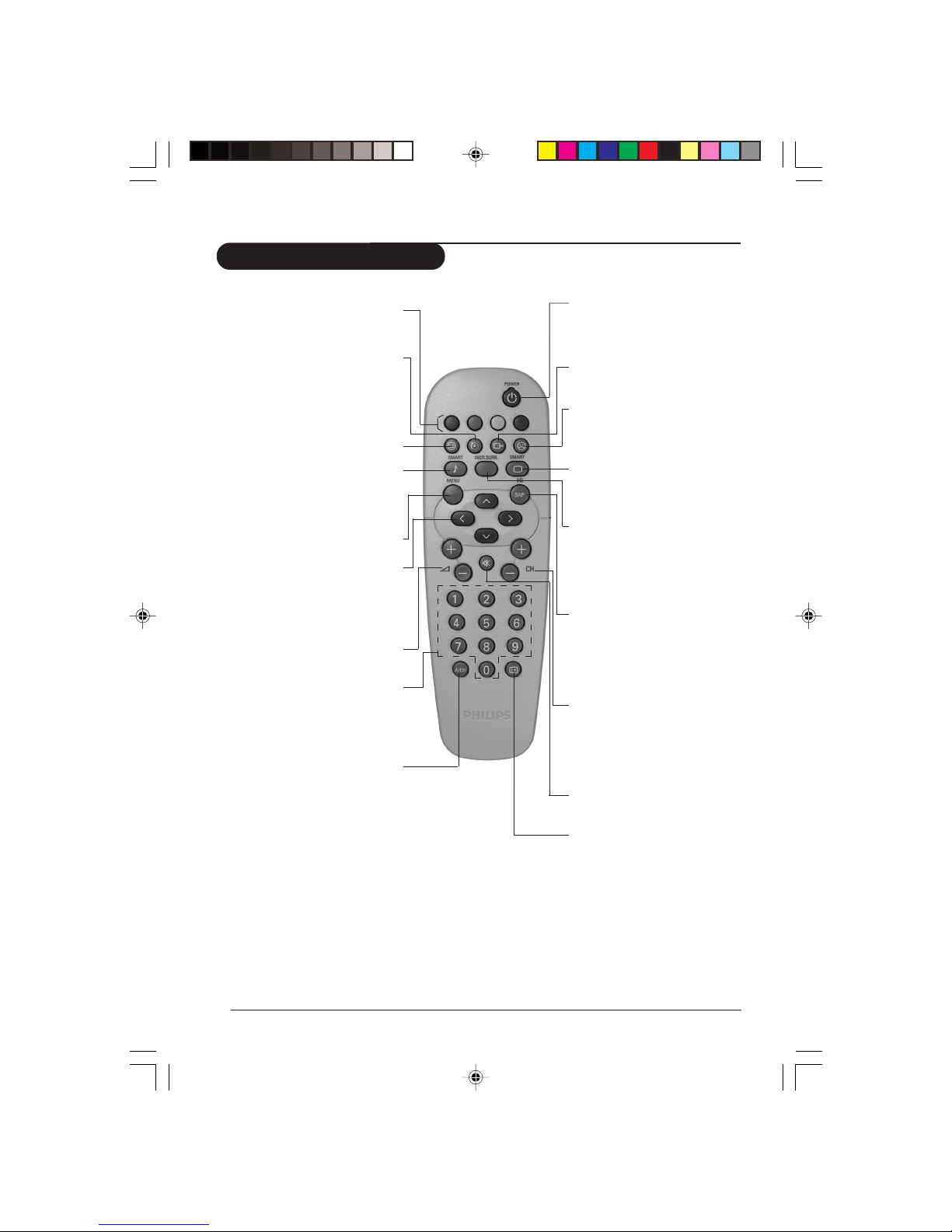

Remote control keys

Standby

Lets you place theTV set on standby.

To turn on the TV, press CH + or –,

2,AV,A/CH or digit keys.

AV channel selection

Press several times to select AV1,

CVI,AV2,YPbPr or Side.

Personal Zapping

You can surf up to 10 personal

channels for each key (p. 12)

Delete Personal Zapping list

Deletes stored channels from

Personal Zapping list (p. 12)

Smart Picture

Used to access a series of stored

settings: Rich, Natural, Soft, DVD/

VCD or Personal.

Incredible Surround

To activate/disable the Incredible

Surround feature. In stereo, the

speakers appear further apart. In

mono, a pseudo-spatial effect is

obtained.

During stereo transmission (in AV

mode), to switch from Stereo to

Mono. During dual sound

transmission, to switch betwen

language Y or Z.

Channel selection

To access the next or previous

channel.The number and sound

mode are displayed for a few

moments whenever you select a

new channel.

Mute

To mute or restore sound.

Sleeptimer

Selects a period of time after

which the TV will go into standby

mode automatically.

Add Personal Zapping list

Adds and stores channels into

Personal Zapping list (p. 12)

Smart Sound

Used to access a series of stored

settings:Theatre, Music,Voice or

Personal.

To call up or exits menus.

Cursor

These 4 keys are used to move

around the menus or provide direct

access to the different picture

formats

Volume

To adjust the sound level.

Digit keys

Direct access to the channels. For

a 2-digit channel, enter the 2nd

digit before the dash disappears.

On screen display

To display/clear the on screen

information. Press the key for 3

seconds to activate permanent

display of channel number.This key

is also used to exit from the menu.

Alternate channel

Switched between the current

and the previous channel.

p4-8_29PT7325.p65 01/28/05, 11:38 AM5

6 User manual-29PT7325 Installation

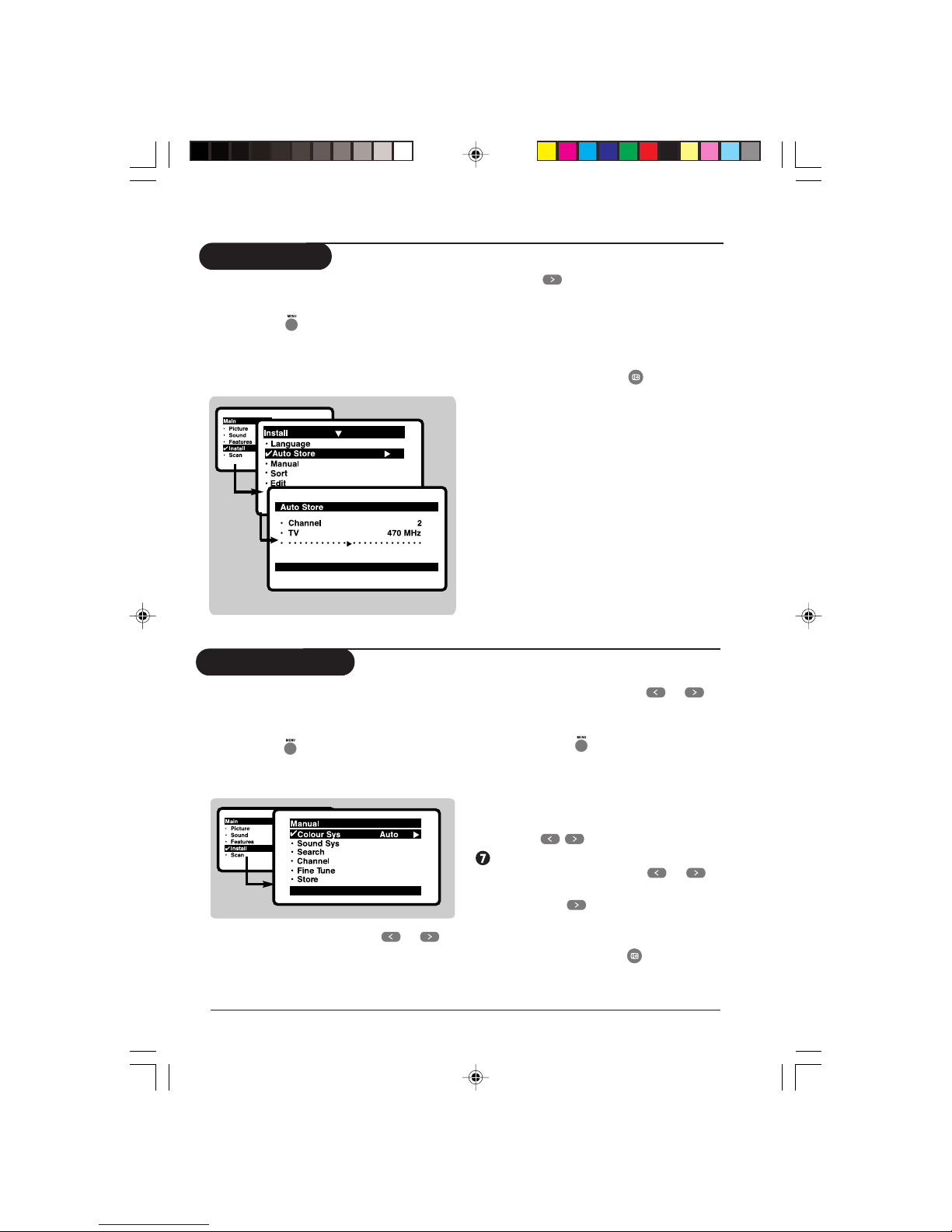

This menu is used to store all available

channels automatically.

&Press the key.

éWith the cursor, select the Install menu

and follow by the Auto Store.

“Use the key to start auto store.

All the available TV channels will be stored

automatically.

This operation takes a few minutes.The display

shows the progress of the search and the

number of channels found.

‘To quit the menus, press .

If no channels are found, consult the possible

solutions on p.15.

Auto Store

Manual Store

‘Sound Sys(tem): use the or

key to select the desired sound system;

BG, I, DK or M.

(Search: Press . The search starts.

Once a channel is found, the scanning

stops. Go to the next step.

If no picture is found, consult the possible

solutions (p.15)

§Channel: enter the required channel

with the , or digit keys.

Fine Tune: if the reception is not

satisfactory, adjust using the or

keys.

!Store: Press . The channel is stored.

çRepeat steps “to ‘for each channel

you wish to store.

0To quit the menus, press .

This menu is used to store channels one at a

time.

&Press the key.

éWith the cursor, select the Install menu

and follow by the Manual.

“Colour Sys(tem): use the or

key to select the desired colour system;

Auto, PAL,NTSC 3.58 or NTSC 4.43.

p4-8_29PT7325.p65 02/07/05, 5:47 PM6

Installation User manual-29PT7325 7

Sort

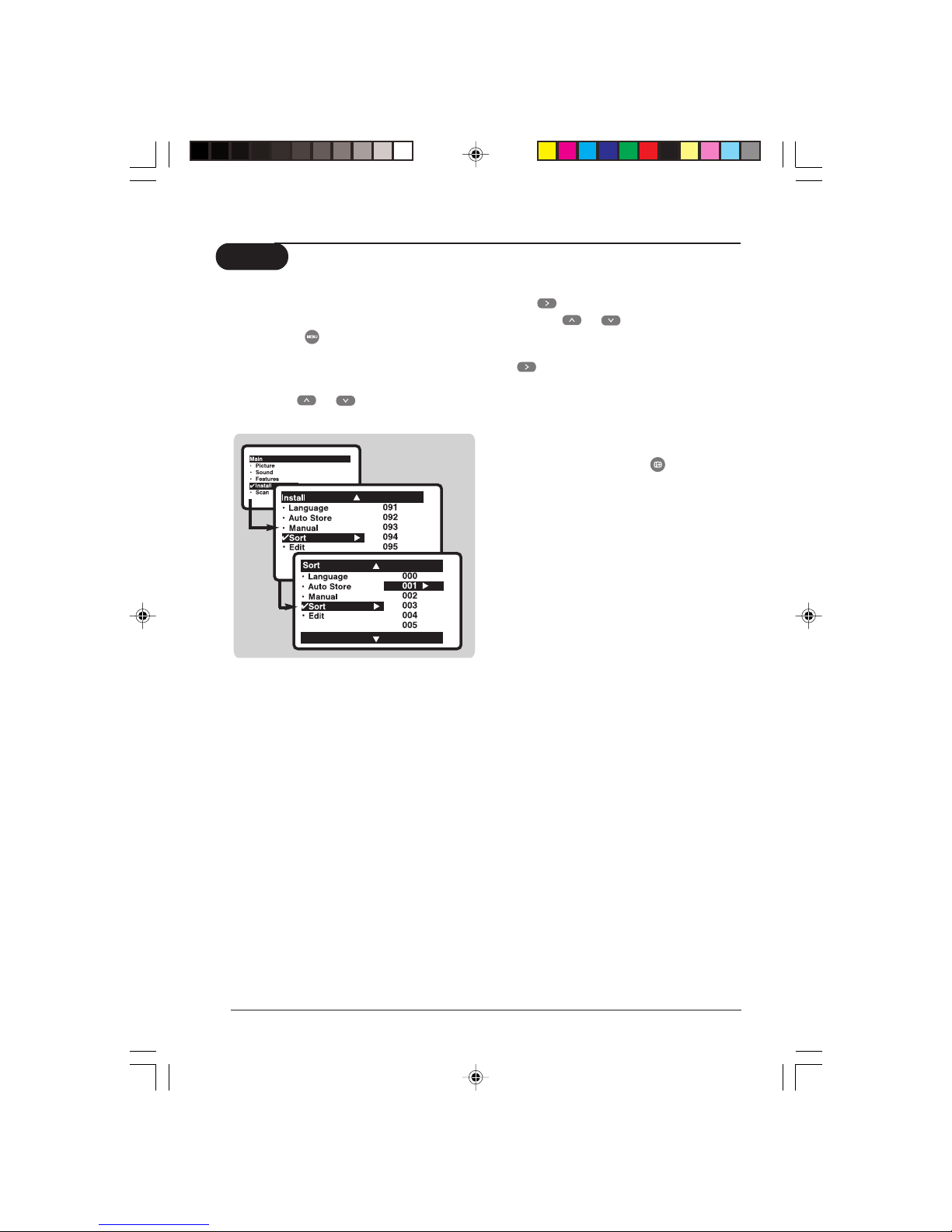

This feature allows you to rearrange channels

according to your preference.

&Press the key.The Main menu is

displayed on the screen.

éWith the cursor, select the Install menu

followed by the Sort menu.

“Use the or key to select the

channel number you want to change

from (e.g. 001) and confirm selection with

the key.

‘Use the or key to select the

channel number you want to change to

(e.g. 004) and confirm selection with the

key.

The change is done. Channel 4 will move up to

channel 3 and channel 3 will move up to channel

(Repeat steps “and ‘for each

channel you wish to change.

§To quit the menus, press .

p4-8_29PT7325.p65 02/07/05, 5:47 PM7

8 User manual-29PT7325 Installation

Channel edit

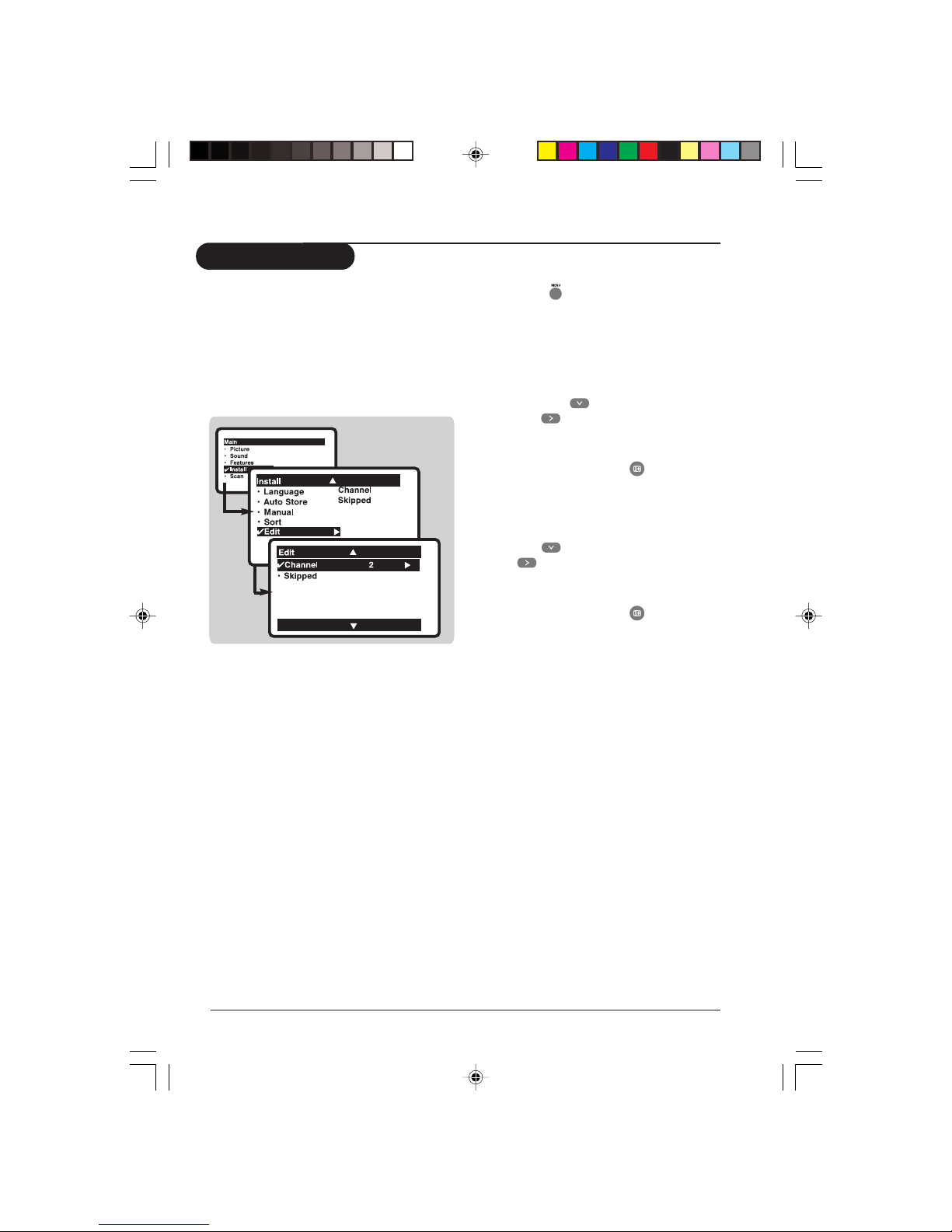

This feature allows you to skip or edit

channels which have bad or weak TV signal or

channels you do not watch often.

Once a channel is skipped, you cannot have

access to it by the Channel + or – key.You can

only access the channels by the digit (0-9) keys.

&Press the key.The Main menu is

displayed on the screen.

éWith the cursor, select the Install menu

followed by the Edit menu.

“Enter into the menu and select the

channel number you wish to skip by the

digit keys.

‘Then use the key to select Skipped.

Use the key to select On.

(Repeat steps “and ‘for each

channel you wish to skip.

§To quit the menus, press .

To restore skipped channels

&Repeat steps &to “ above.

éUse the key to select Skipped and

the key to select Off.

“Repeat steps &and é for each

channel you wish to skip.

‘To quit the menus, press .

p4-8_29PT7325.p65 02/07/05, 5:47 PM8

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Philips TV LCD

Philips

Philips PFL50x8H/12 Manuale utente

Philips

Philips 42PFL3605H Manuale utente

Philips

Philips Cineos 42PF9730/10 Manuale utente

Philips

Philips 37PFL8684H Manuale utente

Philips

Philips 15HF5234 Manuale utente

Philips

Philips 40PFL4908/F7 Manuale utente

Philips

Philips PrimeSuite 22HFL4373D/10 Manuale utente

Philips

Philips 32PFL3406S Manuale utente

Philips

Philips Magnavox 7P6030W Manuale utente

Philips

Philips 42HF9385D - annexe 1 Manuale utente

Philips

Philips 49HFL7011T/12 Manuale utente

Philips

Philips 42PFL7675H/12 Manuale utente

Philips

Philips 32PFL5237A/V7 Manuale utente

Philips

Philips 47PFL5609S Manuale utente

Philips

Philips 40PFL8605H Manuale utente

Philips

Philips 26TA2800 Manuale utente

Philips

Philips 42MD459B/F7 Manuale utente

Philips

Philips 17PF8946A Manuale utente

Philips

Philips 32PFL3321S/60 Manuale utente

Philips

Philips 32PFL4508/F8 Manuale utente

Philips

Philips 22PFL3403 Manuale utente

Philips

Philips Cineos 37PF9631D/10 Manuale utente

Philips

Philips 20PF5320 Manuale utente

Philips

Philips 50PF7320G - 1 Manuale utente

Manuali TV LCD popolari di altre marche

LG 32LC4R* Manuale utente

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manuale utente

Salora

Salora 22LED1600 Manuale utente

Samsung

Samsung LA32E420 Guida

Dell

Dell W1900 19 Istruzioni utente

Samsung

Samsung LN40C670M1F Manuale utente

Samsung

Samsung Series 4+ Manuale utente

Samsung

Samsung 5 Series Manuale utente

Grundig

Grundig 40 VLE 8230 BP Manuale utente

Sony

Sony Bravia XBR-43X830C Manuale utente

LG 32LS350 Manuale utente

VIORE

VIORE LED32VF60 Manuale utente

Toshiba

Toshiba Regza 42HL167 Manuale utente

JVC

JVC LT-32A220 Manuale utente

Sony

Sony Bravia KDL-V32XBR2 Manuale utente

Vizio

Vizio VP422HDTV10A - 42" Plasma TV Manuale utente

Dynex

Dynex DX-40L261A12 Manuale utente

JVC

JVC LT-23C50BU Manuale utente
