 InstallationManualforMediaSuiteandSignatureranges

xxHFL5010T

xxHFL7009D



Status: Release

Version:2.0

Date:  August2014

Author: GerritWeiden



1



Contents



1.Requirementsbeforestartingtheinstallation..........................................................................................................3

2.FindoutthestateoftheTV......................................................................................................................................4

3.Re‐installTV..............................................................................................................................................................5

4.Installationwizard.....................................................................................................................................................8

5.Channeloptions......................................................................................................................................................20

6.ConsumerSetupMenu............................................................................................................................................24

7.ProfessionalSettings...............................................................................................................................................25

8.WelcomeLogo........................................................................................................................................................52

7.1SmartInfo.................................................................................................................................................................52

7.1.2SmartInfoShow..............................................................................................................................................53

7.1.3SmartInfoBrowser.........................................................................................................................................53

9.Clone.......................................................................................................................................................................54

9.Featuresettings......................................................................................................................................................56

10.CSM(ConsumerSetupmenu)..................................................................................................................................61







2



Notice



2015©TPVisionNetherlandsB.V.Allrightsreserved.Specificationsaresubjecttochangewithoutnotice.

TrademarksarethepropertyofKoninklijkePhilipsElectronicsN.Vortheirrespectiveowners.TPVisionNetherlands

B.V.reservestherighttochangeproductsatanytimewithoutbeingobligedtoadjustearliersuppliesaccordingly.

TPVisionNetherlandsB.V.cannotbeheldresponsibleneitherforanyerrorsinthecontentofthisdocumentnorfor

anyproblemsasaresultofthecontentinthisdocument.ErrorsreportedtoPhilipswillbeadaptedandpublishedon

thePhilipssupportwebsiteassoonaspossible.

Help and support

VisitthePhilipssupportwebsiteatwww.philips.com/supportfor:

‐Leafletandproductdocumentation

‐DownloadaprintablePDFversionoftheusermanual

‐Contactdetailsofthehelpdesk.



Definitions,AcronymsandAbbreviations



Coldstart: UnplugtheTVfrommainspower.ConnectTVagaintothemainspower.

GuestRC: GuestRemotecontrolsuppliedwiththeTV

OSD:  OnScreenDisplay

CSM:  ConsumerSetupMenu

OOB: Outoftheboxstate–TheTVisunboxedandnooptionorfeatureswereconfigured

[]: ThevaluesbetweenbracketsarereferringtoaTVmenuitem

“ ”: Thevaluesbetweenquotationmarksarereferringtoaremotebutton



FTA: FreeToAir

DVB‐T: DigitalVideoBroadcasting–Terrestrial

DVB‐C: DigitalVideoBroadcasting–Cable

OAD: OvertheAirDownload



3



1. Requirementsbeforestartingtheinstallation



Beforestartingtheinstallation,makesurethatyouhaveeverythingyouneedathand.

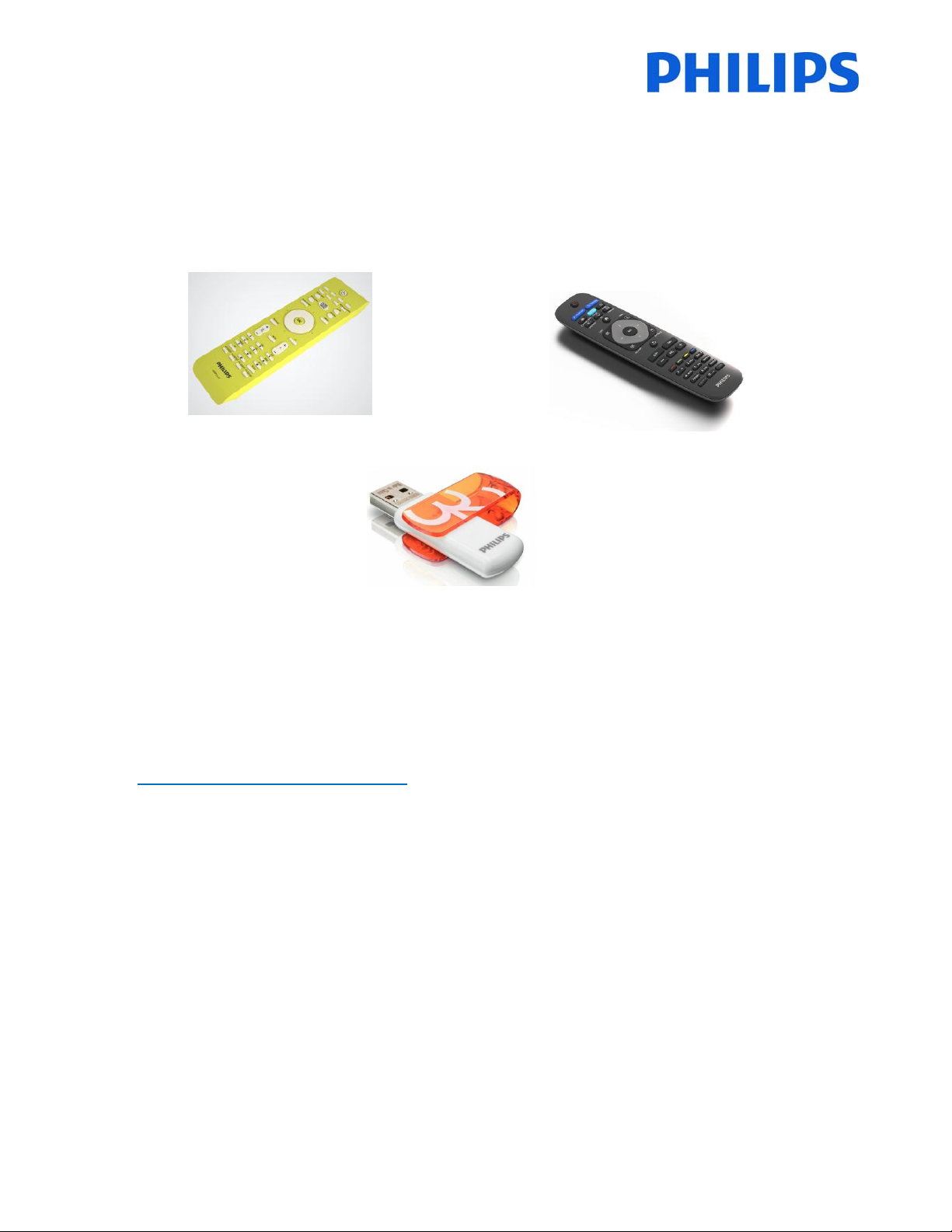

Masterremotecontrol22AV8573 or Guestremotecontrol22AV1109C





And



USBstick



Toaccessthe[ProfessionalSetup]menuwithmasterremotecontrol,pressthe“RC6SETUP”keyandthenpressthe

“Home/Menu”button.Usingtheguestremotecontrol,pressthefollowingkeyssequential:“3,1,9,7,5,3,MUTE”.

Note:Thesequence:“3,1,9,7,5,3,MUTE”willnotshowthe[ProfessionalSetupMenu]if[HighSecurity]

optionisenabled.

Forthebestguestexperienceitishighlyrecommendedtousethelatestsoftwareversionavailable.

Goto:http://www.support.philips.com/support

Enterthemodelnumberanddownloadthelatestsoftwareversionavailable.Unzipthesoftwareandfollowthe

instructionshowtoupgradethesoftwareontheTV.TheUSBflashdriveusedforsoftwareupgrademustbe

formattedasFAT32andpreferablyemptytoavoidandaccidentaluploadofwrongsettingandsoftware.It

recommendedfirsttoupgradetheTVandafterwardstoperformtheinstallation.

ThelatestsoftwareversionandcloningdatacanbestoredonthesameUSBdrivefora2in1action:software

upgradeandcloningduringtheinstantinitialcloning.





4



2. FindoutthestateoftheTV



ItisimportanttoknowifaTVisin‘virginmode’(outofthebox)orinstalledbefore.

Ifyoucanseethisscreenbelow,youknowthattheTVisin‘outofthebox’stateandyoucaninstallthesetbyusing

proceduredescribedinchapter4ofthismanual.



Ifyoupoweronthesetandthenpressthe‘Home’buttonontheguestremote,youwillseethisscreenappearifthe

TValreadyhasbeeninstalledorthewizardwasalreadyskipped.

ProfessionalSettingsONProfessionalSettingsOFF



YoucanstarttheinstallationwizardagainbyreinstallingtheTVasexplainedinchapter3ofthismanual.

DisabletheProfessionalSettings

Accessthesetupmenupressthe“RC6SETUP”key,andthenpressthe“Home/Menu”button.Withtheguest

remotecontrol,pressthefollowingkeysinsequence:“3,1,9,7,5,3,MUTE”.



Goto[ProfessionalMode]andselectthe[OFF]optionandconfirmwith“OK”.Press“HOME”andselecttheoption

StoreandRestartNow,Confirmwith“OK”.AfterrestartingtheTVthePROFESSIONALSETTINGSmodewillbesetto

OFF.





5



3. Re‐installTV

Ifyouwanttostartaninstallationfromscratchyoucanalwaysre‐installtheTV.Thiscanbedonebyusingthe

option:Re‐installTVset.TheGuestmenuisofferingaccesstooptionslikesubtitle,picturesettings,audiosettings,

alarm,sourceandTVguideisdisplayedbelow:



IftheProfessionalmodeisactiveyoucanaccessthesetupmenubypressingthe“RC6SETUP”keyandthenpress

the“Home/Menu”button.Fortheguestremotecontrol,pressthefollowingkeysinsequence:“3,1,9,7,5,3,MUTE”.

ThismenuprovidesaccesstoConsumerSetupMenuandProfessionalSetupMenu.

Selecttheoption[TVsettings]andpress“OK”toaccessthesubmenu.



6



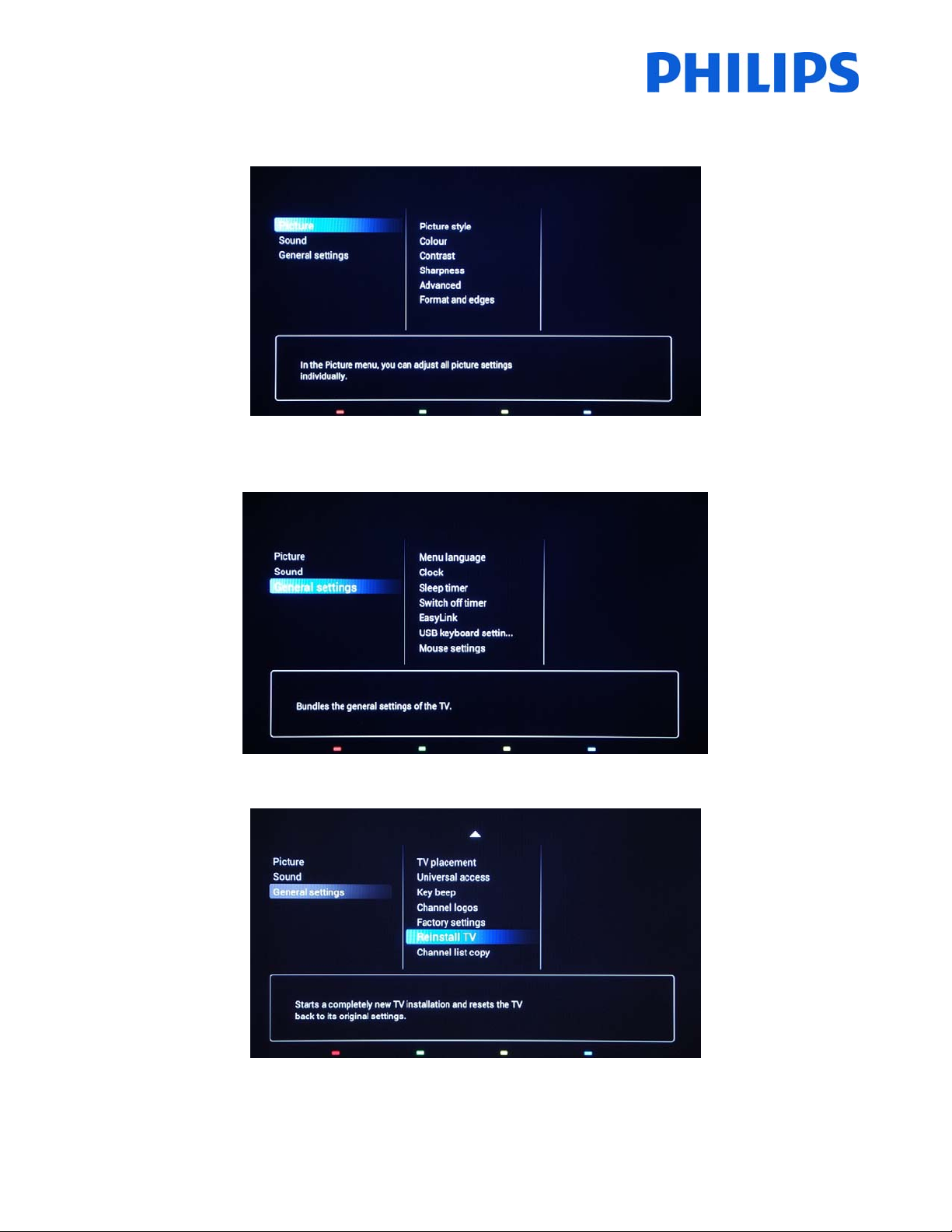

The[TVsettings]menucontains[Picture]settings,[Sound]settingand[Generalsettings].



Usingthearrowkeytonavigateto[GeneralSettings].Toaccesstheitemsfromtherightmenuusethe“right

arrow”key.

Navigatewiththe“downarrow”keytothe[ReinstallTV]option.



Press“OK”tostartthereinstallationprocedure.ToavoidanypotentialmistakestheTVwillrequestaconfirmation

tostarttheReinstallprocedure.



7



AfterthisoperationtheTVwillpoweroffandonanddisplaytheinstallationwizard.

Note:Allsettingsareatdefaultvaluesandnochannelplanisavailable.



8



4. Installationwizard

WhenyouturnontheTVforthefirsttime,oryouhavereinstalledtheTV,youshouldseethefollowingscreen.



TheTVisindicatingthatasearchingprocessforcloningdataonUSBkeyistakingplace.Ifthereisnocloningdata

availabletheprocesscanbeskipped.IftheTVdoesnotfinddataforcloningwillcontinuetothenextstep,the

installationwizard



Hereyouwillneedtoselectyourpreferredlanguage.ThelanguageselectedwillbeusedfortheConsumerSetup

menuandforsubtitleandaudiolanguagepreferences.Thelanguagecanbechangeatanymomentfromthe[TV

settings]menu.Pleaseselectwiththe“UpandDownarrow”keysandconfirmwith“OK”orpressthe“leftarrow”

key.

Afterthis,youwillneedtoselectthecountry.Dependingonthecountryselection,somepre‐definedsettingswillbe

activated,becauseoflocalbroadcastrequirements.Example:digital/analogchannelscouldbedisabled;reordering

anddeletingchannelscaninsomecasesnotbepossible.

Note:Ifyouareexperiencingsomeissuesafterselectingyourcountry,pleaseselect‘Others’inthemenu.



9



ThenextstepistoselecttheplacementoftheTV,“Hungonthewall”or“OnaTVstand”.Thisoptionwillaffect

imageandsoundsettingsbasedontheselection.



Thenextstepistochoosebetweentheoptions[Shop]and[Home].Pleaseselect[Home]optionforinstallation,if

youselect[SHOP]acommercialbannerwillbedisplayedontheTV.Thisisforcommercialpurposeonlyonshops.



Nowyoucanselectthevisualandhearingimpairedoptions.Ifyouselect[On],yourTVwillautomaticallyturnon

settingstohelpvisualandhearingimpairedpeople.THEMOSTCOMMONOPTIONISTOTURNTHISFUNCTIONOFF.


