Philips Calculite 8091CB Manuale utente

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

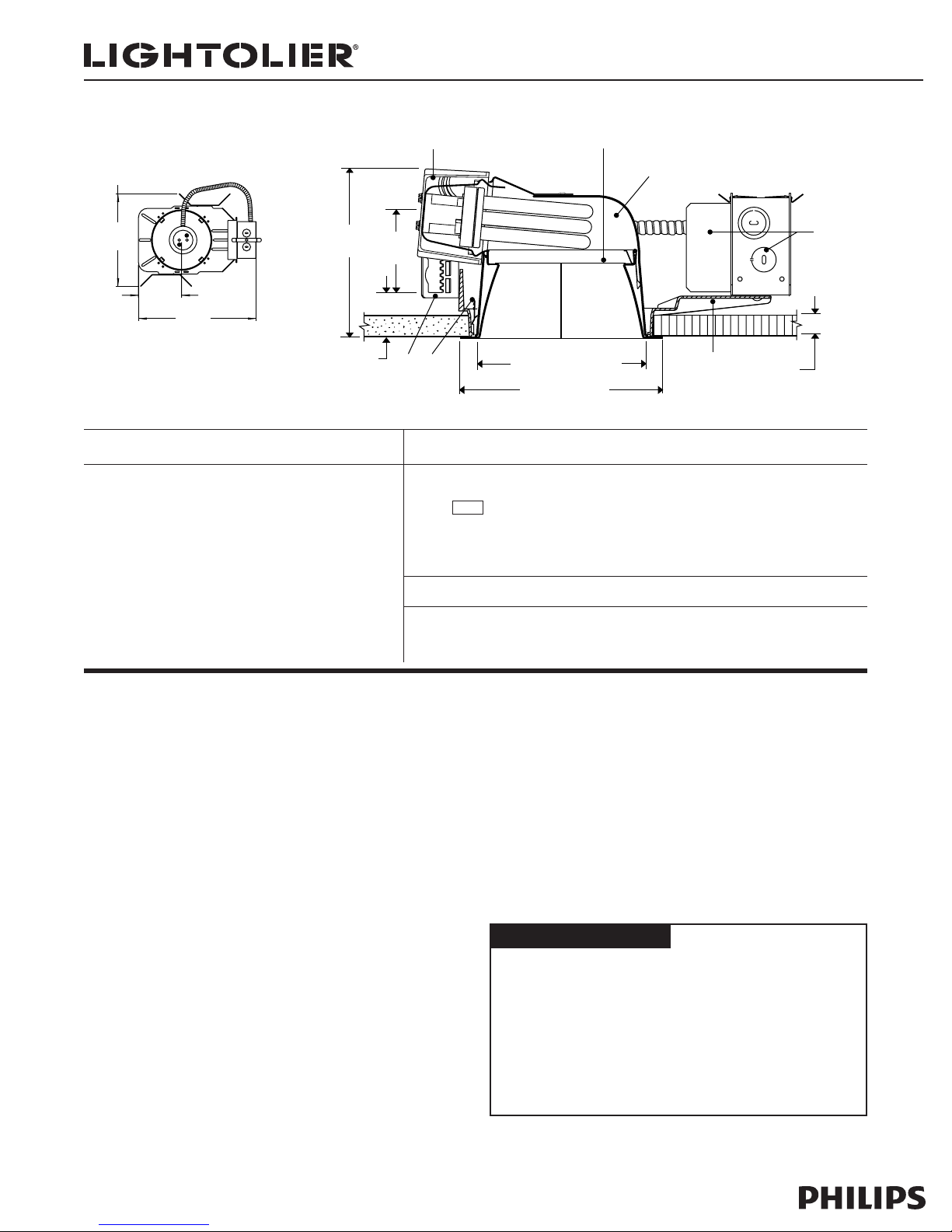

Calculite®CFL Open Downlight 8091CB

Page 1 of 2 6" Aperture Triple Tube Cross Blade Louver

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Reflector Trim Frame-In Kit

8091CBW White Cone, White Flange

8091CBA Aluminum Cone, White Flange

S6132BU 6" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

Dimming Options:

S6132B

CU3 Lightolier PowerSpec 3% Dimming (120/277V) J1LD3 Lutron 5% Dimming (120V)

J2LD3 Lutron 5% Dimming (277V) JUM7 Mark 7 Dimming (120/277V)

J1MX Mark 10 Dimming (120V) J2MX Mark 10 Dimming (277V)

Other dimming product available, please consult factory

Remodeler Frame-In Kits

6126BURM 6" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

6132BURM 6" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

Features

1. Reflector: 16 ga. Die-formed aluminum, Anobrite®finish.

2. Socket Cup: Effectively dissipates heat and positions lamp holder.

Snaps onto reflector neck to assure consistently correct optical alignment

without tools.

3. Mounting Frame: Galvanized steel for dry or plaster ceilings. Accepts other

6” Triple Tube reflectors (see S6132BU Spec Sheet).

4. Retaining Springs: Precision-tooled steel friction springs secure reflector to

mounting frame for quick, tool-less installation.

5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or

1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.

6. Ballast/J-Box: Electronic 120V-277V. UL listed for through branch circuit

wiring with max of (8) No. 12AWG, 90°c supply conductors. Outboard-

mounted to reduce heat transfer and maintain lamp efficacy and life.

Service from below without tools.

7. Cross Blade Louver: Die-formed, 16 ga. aluminum, matte white or painted

aluminum finish. Accepts lens (consult factory). 50° cutoff to lamp, medium

beam. Keyed for orientation.

Electrical

Note: For ballast electrical data and latest lamp/ballast compatibility refer to

“Ballast” specification sheet for complete electrical data.

UL Listed for through branch circuit wiring with max of (8) No 12 AWG, 90

degree C supply conductors.

Options and Accessories

Other Louver Finishes Consult Factory

Emergency Add suffix EM*

Chicago Plenum Use 6132BULC

Existing/Thk. Ceiling FA EC6*

Emergency Ltg. Kit FA EM3E*

Fuse (Slow Blow) Add Suffix F

*See Spec. Sheets: FAEC, FAEM

Mounting Bars & Accessories; see Specification Sheet MBA.

Sloped Ceiling Adapters; see Specification Sheet SCA.

IC Frame available; see C6CFL32 specification sheet.

Labels

UL listed for damp locations.

345

(152 mm)

5-7/8"" (149 mm) Dia.

7-1/4" Self-Flanged

Trim (184 mm)

1" (25 mm) min.-

2-1/8" (54 mm) max. 1-1/8" (29 mm) max.

Ceiling Thickness

(76 mm)

Top View

13-7/8"

(353 mm)

11-1/8"

(283 mm)

10"

(254 mm)

4 5/8"

(117mm)

10"

(254mm)

12 3/4"

(324mm)

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Calculite®CFL Open Downlight 8091CB

Page 2 of 2 6" Aperture Triple Tube Cross Blade Louver

** EFFICIENCY = 33.5% **** EFFICIENCY = 33.5% **

** EFFICIENCY = 33.5% **

Quick Calculator

Spacing Ratio = 1.1

CERTIFIED TEST REPORT NO. 0194FR

COMPUTED BY LSI PROGRAM **TEST-LITE**

CALCULITE 5 3/4" DIA. APERTURE RECESSED FLUORESCENT CROSS BLADE DOWNLIGHT WITH

WHITE CROSS BLADE 1-32W PL-T COMPACT FLUORESCENT LAMP.

LUMEN RATING = 2400 LMS. TESTED ACCORDING TO IES PROCEDURES. TEST DISTANCE

EXCEEDS FIVE TIMES THE GREATEST LUMINOUS OPENING OF LUMINAIRE.

10 20 30 40 50 60 70

AREA PER FIXTURE IN SQUARE FEET

2 3 4 5 6 7 8

CENTER TO CENTER DISTANCE OF FIXTURES IN FEET

This quick calculator chart determines the number and spacing of 1 It.- 32W PL-T units

with white cross blade, for any level of illumination.

Conversion Factors: 32W PLT with Aluminum Cross Blade, f.c. x 0.7; 26W PLT with white

cross blade, f.c. x 0.8; 26W with Aluminum Cross Blade, f.c. x 0.6.

INITIAL FOOTCANDLES

ROOM SURFACE REFLECTANCES:

80% Ceiling; 50% Wall; 20% Floor

2400 Lumens Per Lamp

RCR= 1 (Rm. Width= 10xMtg. Ht. above work plane)

RCR= 5 (Rm. Width= 2xMtg. Ht. above work plane)

RCR=10 (Rm. Width= Mtg. Ht. above work plane)

Coefficients Of Utilization

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50 30 10 0

% WALL REFLECTANCE

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

1 .36 .35 .34 .36 .35 .34 .34 .34 .33 .33 .32 .32 .32 .31 .31 .30

2 .33 .32 .30 .33 .31 .30 .31 .30 .29 .31 .30 .29 .30 .29 .28 .27

3 .30 .28 .27 .30 .28 .27 .29 .28 .26 .28 .27 .26 .27 .26 .25 .25

4 .28 .26 .24 .28 .26 .24 .27 .25 .24 .26 .25 .24 .26 .24 .23 .23

5 .26 .24 .22 .26 .23 .22 .25 .23 .22 .24 .23 .21 .24 .22 .21 .21

6 .24 .22 .20 .24 .22 .20 .23 .21 .20 .23 .21 .20 .22 .21 .20 .19

7 .22 .20 .18 .22 .20 .18 .21 .19 .18 .21 .19 .18 .21 .19 .18 .17

8 .21 .18 .17 .20 .18 .17 .20 .18 .17 .20 .18 .17 .19 .18 .16 .16

9 .19 .17 .15 .19 .17 .15 .19 .17 .15 .18 .16 .15 .18 .16 .15 .15

10 .18 .16 .14 ..18 .16 .14 .17 .15 .14 .17 .15 .14 .17 .15 .14 .13

20% FLOOR CAVITY REFLECTANCE

Conversion Factors: 32W PLT with Aluminum Cross Blade, C.U. x 0.7;

26W PLT with White Cross Blade, C.U. x 1.1; Aluminum Cross Blade, C.U. x 0.8.

ROOM CAVITY RATIO

CANDLEPOWER

ANGLE ALONG 22.5 45 67.5 ACROSS LUMENS

0 593 593 593 593 593

5 575 575 580 584 585 55

10 536 538 541 549 558

15 487 485 491 522 542 142

20 436 427 439 478 506

25 377 366 388 425 460 184

30 309 301 325 366 402

35 228 233 254 279 308 163

40 166 178 185 192 214

45 128 133 126 129 146 105

50 93 93 92 97 104

55 73 73 74 79 84 69

60 58 58 59 64 68

65 45 45 47 51 53 48

70 34 35 36 39 40

75 24 24 26 28 29 28

80 15 16 17 18 20

85 7 7 8 10 11 10

90 3 2 3 4 4

ZONAL LUMENS AND PERCENTAGES

ZONE LUMENS % LAMP %LUMINAIRE

0-30 380 15.86 47.31

0-40 544 22.67 67.61

0-60 718 29.93 89.28

0-90 804 33.53 100.00

40-90 260 10.86 32.39

60-90 86 3.59 10.72

90-180 0 .00 .00

0-180 804 33.53 100.00

ACROSS

ALONG

180 150 120

400

200

600
