Lytespan®Track Lighting 8108

Page 1 of 2 Ring Spot Mini HID 70W PAR38 CMH

Features

1. Track Attachment Fitting: Molded polycarbonate, rotates into track.

2. Push Tab: Molded polycarbonate. Locks and detaches unit.

3. Track Adaptor Housing: Die-cast aluminum.

4. Movable Contact: Solid brass. Extends for connection to 2nd circuit in

Advent track.

5. Ballast Housing: Extruded aluminum housing with die-cast aluminum

end caps.

6. Ballast: High Power Factor metal halide electronic ballast. Thermally

protected, 0.64A maximum input current, 77W input power.

7. Tension Pivot Mounts: Allows for 350° horizontal and 180° vertical

rotation with tensioned mounts for controlled aim.

8. Lamp Housing Ring : Die-cast aluminum with cool-grip® insulation band;

a high temperature silicone rubber which allows aiming adjustments while

fixture is on. Hold the lens and louver accessories in place. Integral color.

9. Lampholder: 5kV (600V) pulse rated glazed porcelain body socket with

plated nickel screw shell and lamp contacts; 18AWG SEW-2 leads encased in

fiberglass sleeving.

10.Socket Boot: Metal housing. Integral color.

Accessories

Holder: Integral, holds one accessory

Diffusion/ Special Filters: AF4 series

Color Filters: ADF4 series

Louver (Hex Cell): AL4HC

Mounting

All Monopoint, Multipoint, recessed track, suspension track, Basic, Advent and

Radius track systems only. Ceiling mounted only. Not compatible with suspen-

sion stems, sloped ceiling adapter and ProSpec track system.

Finish

All painted finishes are baked powder or enamel.

Markings

cCSAus Certified for dry locations only.

Catalog No. Finish Lamp

8108WH White

8108BK Black 70W PAR38 CMH (M98) E26 base

8108AL Aluminum Not Included

(178mm)

6.88"

(175mm)

6.25"

(159mm)

6.13"

(156mm) 4.63"

(117mm)

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan®Track Lighting 8108

Page 2 of 2 Ring Spot Mini HID 70W PAR38 CMH

18000 12500

Philips

CMH70PAR38/FL25 25°

42000 12500

Philips

CMH70PAR38/SP15 15°

40000 10000

GE CMH70PAR38/SP15

15°

14000 10000

GE CMH70PAR38/FL25

25°

40000 12000

Sylvania

CMH70PAR38/SP15 15°

D FC L W D C FC L W D C FC L W D C FC L W

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

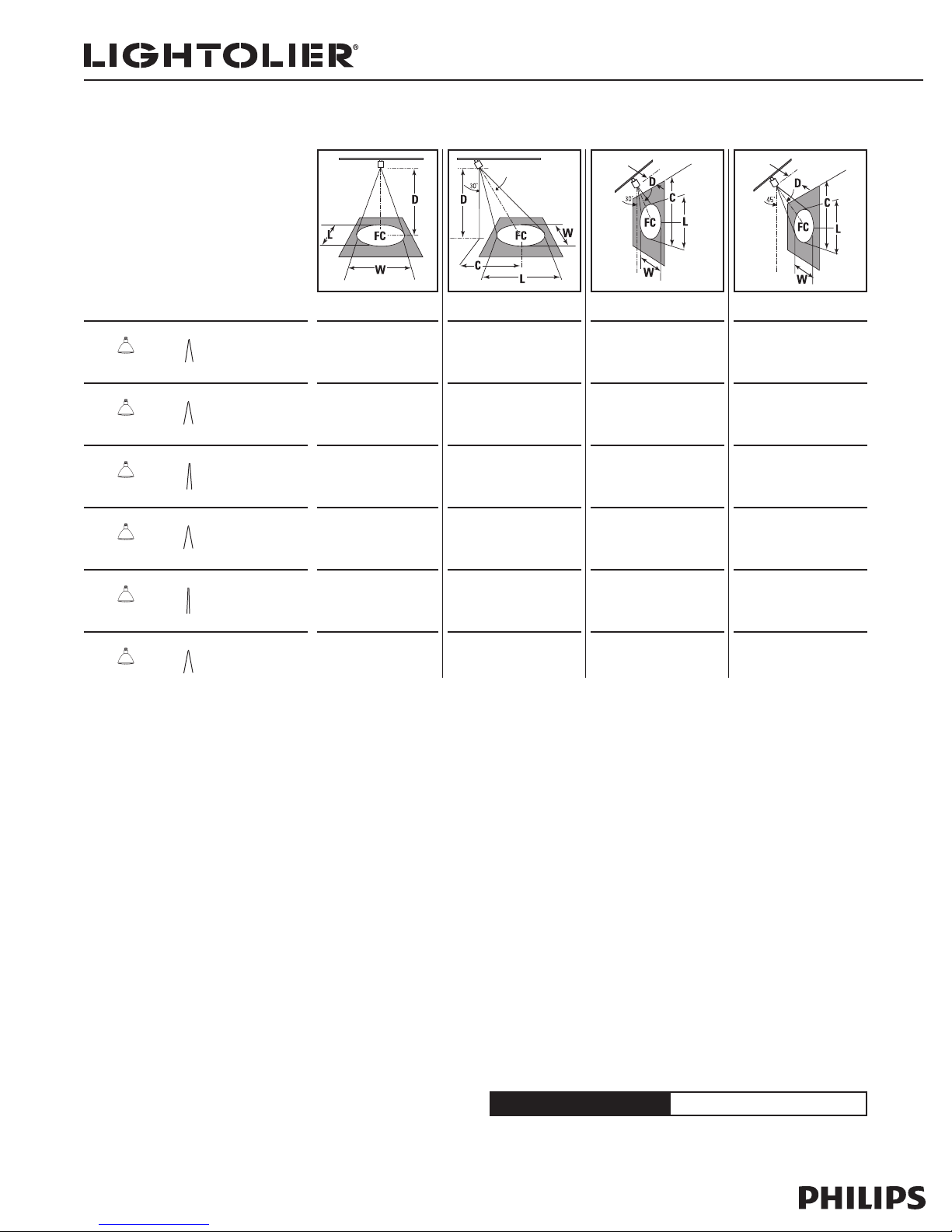

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam length DDistance

W Beam Width AAiming Angle

CDistance to center beam FC Footcandles

Land W are the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp manu-

facturers for availability and performance.

CBCP = Center Beam Candle Power.

12' 6.9' 180 4.2' 3.6'

14' 8.1' 133 4.9' 4.3'

16' 9.2' 101 5.6' 4.9'

18' 10.4' 80 6.4' 5.5'

5' 8.7' 200 5.6' 2.6'

6' 10.4' 139 6.7' 3.2'

7' 12.1' 102 7.8' 3.7'

8' 13.9' 78 8.9' 4.2'

7' 7.0' 289 3.8' 2.6'

8' 8.0' 221 4.3' 3.0'

9 9.0' 175 4.8' 3.4'

10' 10.0' 141 5.4' 3.7'

12' 278 3.2' 3.2'

14' 204 3.7' 3.7'

16' 156 4.2' 4.2'

18' 123 4.7' 4.7'

8' 4.6' 142 4.8' 4.1'

10' 5.8' 91 6.0' 5.1'

12' 6.9' 63 7.2' 6.1'

14' 8.1' 46 8.4' 7.2'

3' 5.2' 194 6.2' 2.7'

4' 6.9' 109 8.3' 3.5'

5' 8.7' 70 10.4' 4.4'

6' 10.4' 49 12.5' 5.3'

5' 5.0' 198 4.7' 3.1'

6' 6.0' 137 5.6' 3.8'

7' 7.0' 101 6.5' 4.4'

8' 8.0' 77 7.5' 5.0'

8' 219 3.5' 3.5'

10' 140 4.4' 4.4'

12' 97 5.3' 5.3'

14' 71 6.2' 6.2'

12' 6.9' 180 4.2' 3.6'

14' 8.1' 133 4.9' 4.3'

16' 9.2' 101 5.6' 4.9'

18' 10.4' 80 6.4' 5.5'

5' 8.7' 200 5.6' 2.6'

6' 10.4' 139 6.7' 3.2'

7' 12.1' 102 7.8' 3.7'

8' 13.9' 78 8.9' 4.2'

7' 7.0' 289 3.8' 2.6'

8' 8.0' 221 4.3' 3.0'

9 9.0' 175 4.8' 3.4'

10' 10.0' 141 5.4' 3.7'

12' 278 3.2' 3.2'

14' 204 3.7' 3.7'

16' 156 4.2' 4.2'

18' 123 4.7' 4.7'

16000 12000

Sylvania

CMH70PAR38/FL25 25°

8' 4.6' 162 4.8' 4.1'

10' 5.8' 104 6.0' 5.1'

12' 6.9' 72 7.2' 6.1'

14' 8.1' 53 8.4' 7.2'

3' 5.2' 222 6.2' 2.7'

4' 6.9' 125 8.3' 3.5'

5' 8.7' 80 10.4' 4.4'

6' 10.4' 56 12.5' 5.3'

5' 5.0' 226 4.7' 3.1'

6' 6.0' 157 5.6' 3.8'

7' 7.0' 115 6.5' 4.4'

8' 8.0' 88 7.5' 5.0'

8' 250 3.5' 3.5'

10' 160 4.4' 4.4'

12' 111 5.3' 5.3'

14' 82 6.2' 6.2'

12' 6.9' 189 4.2' 3.6'

14' 8.1' 139 4.9' 4.3'

16' 9.2' 107 5.6' 4.9'

18' 10.4' 84 6.4' 5.5'

5' 8.7' 210 5.6' 2.6'

6' 10.4' 146 6.7' 3.2'

7' 12.1' 107 7.8' 3.7'

8' 13.9' 82 8.9' 4.2'

7' 7.0' 303 3.8' 2.6'

8' 8.0' 232 4.3' 3.0'

9 9.0' 183 4.8' 3.4'

10' 10.0' 148 5.4' 3.7'

12' 292 3.2' 3.2'

14' 214 3.7' 3.7'

16' 164 4.2' 4.2'

18' 130 4.7' 4.7'

8' 4.6' 183 4.8' 4.1'

10' 5.8' 117 6.0' 5.1'

12' 6.9' 81 7.2' 6.1'

14' 8.1' 60 8.4' 7.2'

3' 5.2' 250 6.2' 2.7'

4' 6.9' 141 8.3' 3.5'

5' 8.7' 90 10.4' 4.4'

6' 10.4' 63 12.5' 5.3'

5' 5.0' 255 4.7' 3.1'

6' 6.0' 177 5.6' 3.8'

7' 7.0' 130 6.5' 4.4'

8' 8.0' 99 7.5' 5.0'

8' 281 3.5' 3.5'

10' 180 4.4' 4.4'

12' 125 5.3' 5.3'

14' 92 6.2' 6.2'
