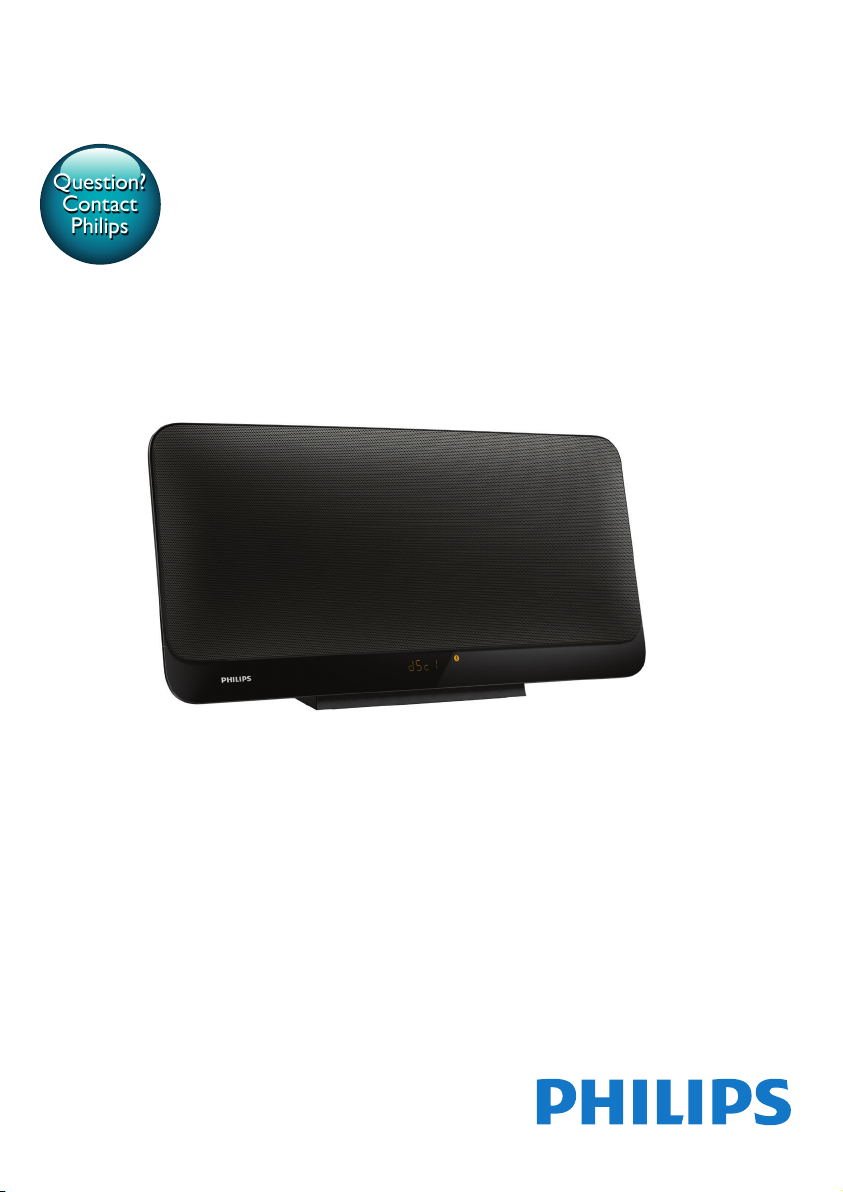

Philips BTM2460/96 Manuale utente

www.philips.com/support

User manual

Always there to help you

BTM2460

Question?

Contact

Philips

1EN

Contents

1 Important 2

Safety 2

2 Your micro system 3

Introduction 3

What's in the box 3

Overview of the main unit 4

Overview of the remote control 5

3 Get started 7

Place the speaker 7

Connect FM antenna 7

Connect power 7

Prepare the remote control 8

Set clock 8

Turn on 8

4 Play 9

Play from disc 9

Play from USB 9

Control play 9

Skip to a track 10

Program tracks 10

Play from Bluetooth-enabled devices 10

5 Listen to the radio 12

Tune to a radio station 12

Store FM radio stations automatically 12

Store FM radio stations manually 12

Select a preset radio station 12

Select stereo/mono broadcast 12

6 Adjust sound 13

Select a preset sound effect 13

Adjust volume level 13

Mute sound 13

7 Other features 14

Set the alarm timer 14

Set the sleep timer 14

Listen from an external device 14

Listen through a headphone 15

8 Product information 16

Specications 16

USB playability information 17

Supported MP3 disc formats 17

9 Troubleshooting 18

10 Notice 20

2EN

1 Important

Safety

• Make sure that there is enough free space

around the product for ventilation.

• Only use attachments or accessories

speciedbythemanufacturer.

• Battery usage CAUTION –To prevent

battery leakage which may result in bodily

injury, property damage, or damage to the

product:

• Install the battery correctly, + and - as

marked on the product.

• Remove the battery when the product

is not used for a long time.

• The battery shall not be exposed to

excessiveheatsuchassunshine,reor

the like.

• The product shall not be exposed to

dripping or splashing.

• Do not place any sources of danger on the

product(e.g.liquidlledobjects,lighted

candles).

• Where the plug of the Direct Plug-in

Adapter is used as the disconnect device,

the disconnect device shall remain readily

operable.

Warning

• Never remove the casing of this device.

• Never lubricate any part of this device.

• Never place this device on other electrical equipment.

• Keep this device away from direct sunlight, naked

amesorheat.

• Never look into the laser beam inside this device.

• Ensure that you always have easy access to the power

cord, plug, or adaptor to disconnect this device from

the power.

Hearing safety

Caution

• To avoid hearing damage, limit the time you use the

headphones at high volume and set the volume to a

safe level.The louder the volume, the shorter is the safe

listening time.

Be sure to observe the following guidelines

when using your headphones.

• Listen at reasonable volumes for

reasonable periods of time.

• Be careful not to adjust the volume as your

hearing adapts.

• Do not turn up the volume so high that

you can't hear what's around you.

• You should use caution or temporarily

discontinue use in potentially hazardous

situations.

• Excessive sound pressure from earphones

and headphones can cause hearing loss.

3EN

2 Your micro

system

Congratulations on your purchase, and

welcometoPhilips!Tofullybenetfromthe

support that Philips offers, register your product

at www.philips.com/welcome.

Introduction

With this unit, you can:

• enjoy audio from discs, Bluetooth-enabled

devices, USB storage devices, or other

external devices;

• listen to FM radio stations.

You can select one of the following sound

effects:

• DSC 1 (Powerful), DSC 2 (Balanced),

DSC 3 (Warm), DSC 4 (Bright), DSC 5

(Clear)

The unit supports these media formats:

What's in the box

Check and identify the contents of your

package:

• Main unit

• 1 x FM wire antenna

• Remote control (with one AAA battery)

• Short User Manual

• Table stand

• Wall mounting sheet (with screws)

4EN

Overview of the main unit

• Turn the unit on or off.

• Switch to standby mode or Eco

standby mode.

b SOURCE

• Press to select a source: DISC, USB,

TUNER, BT, AUDIO IN.

c /PAIRING

• Start, pause, or resume play.

• In Bluetooth mode, press and hold for

3 seconds to enter pairing mode.

• Stop play or erase a program.

abc

• USB socket.

f Disc compartment

• Open/close the disc compartment.

h /

• Skip to the previous/next track.

• Search within a track/disc/USB.

• Tune to a radio station.

• Adjust time.

i VOL+/VOL-

• Adjust volume.

j Display panel

5EN

k FM ANT

• FM antenna socket.

• Headphone socket.

m AUDIO IN

• Audio input socket(3.5mm) for an

external audio device.

n DC IN 12V 2.5A

• Power socket.

Overview of the remote

control

• Turn the unit on or off.

• Switch to standby mode or Eco power

standby mode.

b CD

• Select the DISC source.

c FM

• Press to select the FM source.

d /

• Skip to the previous/next track.

• Search within a track/disc/USB.

• Tune to a radio station.

• Adjust time.

• Play tracks randomly.

f ALBUM/PRESET /

• Select a preset radio station.

• Skip to the previous/next album.

g DISPLAY

• Adjust display brightness.

• During playback, display the play

information.

h SLEEP/TIMER

• Set sleep timer.

• Set alarm timer.

i CLOCK/SCAN

• Set the clock.

• View clock information.

• Scan FM radio stations.

j PROG

• Program tracks.

• Program radio stations.

• Mute or restore volume.

l SOUND

• Select a preset sound effect.

m +/-

• Adjust volume.

• Play a track or all tracks repeatedly.

6EN

• Stop play or erase a program.

• Start, pause, or resume play.

q USB/AUDIO IN

• Press repeatedly to select the USB or

AUDIO IN source.

r PAIRING

• Press to select the BT (Bluetooth)

source.

• In Bluetooth mode with one device

connected, press and hold for

3 seconds to enter pairing mode.

• In Bluetooth mode with two devices

connected, press and hold for

3secondstodisconnecttherst

connected device or the device

without music playback and enter

pairing mode.

7EN

3 Get started

Caution

• Use of controls or adjustments or performance of

procedures other than herein may result in hazardous

laser exposure or other unsafe operation.

Always follow the instructions in this chapter in

sequence.

If you contact Philips, you will be asked for the

model and serial number of this apparatus.The

model number and serial number are on the

back of the apparatus.Write the numbers here:

Model No. __________________________

Serial No. ___________________________

Place the speaker

Tip

• See the attached wall mounting sheet for how to

mount the speaker onto wall.

Connect FM antenna

• Connect the supplied antenna to this

device before listening to the radio.

Connect power

Caution

• Risk of product damage! Make sure that the power

supply voltage matches the voltage printed on the back

of the main unit.

• Risk of electric shock! Before you plug the AC power

adaptor, make sure that the adaptor plug converter is

xedsecurely.WhenyouunplugtheACpoweradaptor,

always pull the plug, never the cord.

• Before you connect the AC power adaptor, make sure

that you have completed all the other connections.

8EN

Prepare the remote control

Caution

• Risk of product damage! When the remote control is

not used for long periods, remove the battery.

To insert the remote control battery:

1 Open the battery compartment.

2 Insert the supplied AAA battery with

correct polarity (+/-) as indicated.

3 Close the battery compartment.

Set clock

1 In standby mode, press and hold CLOCK

on the remote control for 3 seconds.

» The [24H] or [12H] hour format is

displayed.

2 Press / to select the [24H] or

[12H] hour format.

3 Press CLOCKtoconrm.

» The hour digits are displayed and begin

to blink.

4 Press / to select hour and press

CLOCKtoconrm.

» The minute digits are displayed and

begin to blink.

5 Press / to select minute and press

CLOCKtoconrm.

Note

• If no button is pressed in 10 seconds, the system exits

clock setting mode automatically.

Tip

• You can press CLOCK to view clock information in

power-on mode.

Turn on

• Press .

» The unit switches to the last selected

source.

Switch to standby mode

• Press again to switch the unit to standby

mode.

» The clock (if set) is displayed on the

panel.

Switch to ECO standby mode:

• Press and hold for more than 3 seconds.

» The display panel is dimmed.

Note

• The unit switches to Eco Power Standby mode after

15 minutes in standby mode.
