Philips Streamium WAS7000 Manuale utente
A
B
C
Connect/Setup
Enjoy
FAQ
Quick start guide
Read Me First!
Eng
Wireless Music Station WAS7000
WAS7000
Wireless Music Station
User manual
Manuel d'utilisation
Manual del usuario
A
B
C
puteS/tcennoC
yojnE
snoitseuQdeksAyltneuqerF
Wireless Music Station WAS7000
ediugtratskciuQ
Read Me First!
Wireless Music Station WAS7000

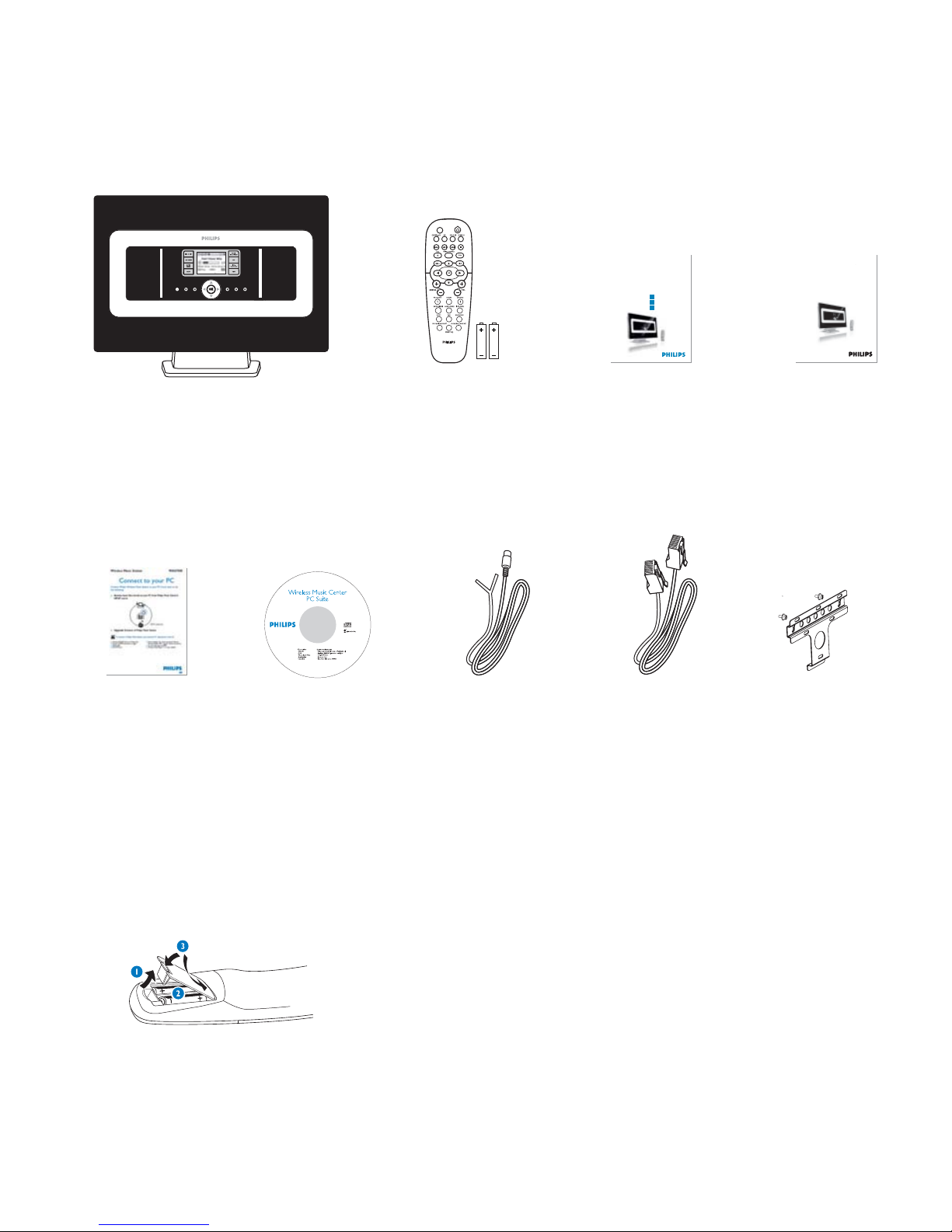

What’s in the box
User manualQuick start guide1-way remote control
2 x AA batteries
Ethernet cable Mounting kit
FM wire antennas
PC Suite CD
Connect to your PC
• Insert batteries into the remote control as shown
1-way remote control
Before using the remote control:
1
3
2
ASet up connection between the Station and
WAC7000 Center
The first time you set up a Wi-Fi connection, place the
Center and Station side by side on a flat and firm surface
Connect/Setup
Center
Station
AC
AC
Connect WACS7000 to a power supply – connect the Center
first followed by the Station
Center/Station:
• The screen lights up in a few seconds
Auto installation/connection starts
• Both the Center and Station are switched on, The HD
screen appears if the Station is connected to the Center
(it takes about 1.5 minutes).
Relocate the Center and Station as desired:
• Simply unplug the Center or Station and power them up in
your preferred rooms.
• You will be able to stream* the hard disk music between the
Center and Station
IMPORTANT!
• Avoid installing in between thick walls. Separating the Center and
Station by 2 or more walls may cause poor streaming connection.
• For better Wi-Fi reception, you can adjust the Wi-Fi antenna, or adjust
the location of the Center and Station (e.g. shorten the distance
between the Center and Station).
:indicates maximum reception; :indicates minimum reception
• For wall mounting, please refer to the User Manual, Appendix: How
to mount your Station onto walls. You may need
assistance from a qualified service personnel.
*Streaming is the process in which data (music in this case) is
transferred from one device to another device or many other devices.
1
2
4
5
6
B
3
1
REC
MENU
PROGRAM
INCR.SURR.
SLEEP
MUSIC BROADCAST
SMART EQ
MUSIC FOLLOWS ME
DIM RDS/NEWS
SCROLL VOL
VIEW
OK
1
0
6
mno
9
wxyz
7
pqrs 8
tuv
MARK/UNMARK
DBB
SEARCHCD/MP3-CD HD SOURCE
REPEAT SHUFFLE
2
abc
3
SAME GENRE SAME ARTIST
5
jkl
4
ghi
OK
OK
OK
Play music library of the Center on the Station
Enjoy
Press OK to start playback
To change your playback option,
a. Press 1once or more to enter previous option lists
b. Use the navigation controls 3 4 1 2 to select
c. Press OK or 2to confirm
To stop playback, press STOP / 9
Use the navigation controls 3 4 1 2 to select your playback
options (Demo tracks are stored under All tracks)
You can play the music library (HD) of the Center on a connected Station
To switch on the Station, press STANDBY-ON y
• The HD screen appears if the Station is connected to the Center
Check that the Center is switched on or is already in standby mode
B2
1
3
2
4
REC
MENU VIEW
OK
MARK/UNMARK
DBB
SEARCHCD/MP3-CD HD SOURCE
OK
SEARCH
Search by keywords
The keyword should be the first letter or word of the title of the track you wish
to search for. By inputting a keyword, you can quickly find all the items
containing the word (note that it is case sensitive)
Use the navigation controls 3 4 1 2 to enter the desired
option list under tracks, albums, artists or playlists
Press SEARCH on the remote control
• A text box appears
a. Press the alphanumeric keys repeatedly to input the key-
words (maximum 8 characters)
b. To delete the entry before cursor, press 4
c. Press 1or 2 to move the cursor backward / forward
Press OK to start searching
• Display shows: Searching ....Searching starts from the
beginning of the current option list
• The matched items appear at the front of the list
Search for your desired tracks/albums
B3
1
2
Stream music between the Center and Station
MUSIC FOLLOWS ME
As you move around at home, let music move with you, either from the
Center to Station or from Station to Center.
On the source unit (Center or Station) where the music is
playing
a. On HD source, select and play the album or playlist you wish to
play on the destination unit
b. Press MUSIC FOLLOWS ME to activate
• The icon appears
On the destination unit (Center or Station) where the music will
continue
a. Check that the destination unit is switched on or is already in standby
mode
b. Press MUSIC FOLLOWS ME
• Selected music continues on the destination unit
• On the source unit, the music stops. The icon disappears
c. To stop MUSIC FOLLOWS ME, press STOPÇ
Tips:
• Always press MUSIC FOLLOWS ME on the source unit before pressing
MUSIC FOLLOWS ME on the destination unit.
•MUSIC FOLLOWS ME will be automatically deactivated if you do not press
MUSIC FOLLOWS ME on the destination unit within 5 minutes
• After MUSIC FOLLOWS ME is activated on the destination unit, you can
select other tracks or source for playback on the source unit.
B4
2
1
Stream music between the Center and Station
MUSIC BROADCAST
MUSIC BROADCAST allows you to broadcast music from the Center to
the Stations.
On the Center
a. On HD source, select and play the album or playlist
you wish to broadcast to the Stations
b. Press MUSIC BROADCAST to activate
• The iicon appears on the Center and Station. a
5-second countdown starts
On the Center and all Stations
• Selected music starts to play simultaneously
Tips:
• Check that the Stations are switched on or are already in standby mode.
•To broadcast again
Before you press MUSIC BROADCAST, check if you need to
deactivate any earlier broadcasting. If the icon is still active in the Center or Station’s
display, press STOP9on the Center. Then, follow Steps 1to 2mentioned above.
• Other functions are unavailable during MUSIC BROADCAST.
• To exit MUSIC BROADCAST on a Station, press STOP9on the Station.
B5
1
2
3
4
REC
MENU
PROGRAM
INCR.SURR.
SLEEP
MUSIC BROADCAST
SMART EQ
MUSIC FOLLOWS ME
DIM RDS/NEWS
SCROLL VOL
VIEW
OK
1
0
6
mno
9
wxyz
7
pqrs 8
tuv
MARK/UNMARK
DBB
SEARCHCD/MP3-CD HD SOURCE
REPEAT SHUFFLE
2
abc
3
SAME GENRE SAME ARTIST
5
jkl
4
ghi
OK
SOURCE
Play music from USB devices
You can use USB flash memory (USB 2.0 or USB1.1) and USB flash players
(USB 2.0 or USB1.1) with the Station.
Insert the USB plug of the USB device into the socket on the
Station
Press SOURCE once or more times to select USB
• The icon appears
• List of CD tracks appears
Press OK to start playback
Use the navigation controls 3 4 1 2 to select your playback
options
B
1
2
3
4
5
6
Use UPnP
The music collection on the UPnP-enabled device can be played on the Station,
wirelessly or through an Ethernet cable (supplied).
Check that the UPnP device is switched on
Check that the Station is connected to the UPnP device's network
On the Station, press SOURCE on the remote control to select
UPnP mode
Use the navigation controls 3or 4and 2to select your desired
UPnPdevice
➜ The music library of the UPnP device appears on the
Station as it does on the UPnP device
On the Station, play UPnP device's music library in the same way as
you play Hard Disk (HD)
For details, please refer to User Manual or Connect to PC.
B7
1
2
3
4
REC
MENU
PROGRAM
INCR.SURR.
SLEEP
MUSIC BROADCAST
SMART EQ
MUSIC FOLLOWS ME
DIM RDS/NEWS
SCROLL VOL
VIEW
OK
1
0
6
mno
9
wxyz
7
pqrs 8
tuv
MARK/UNMARK
DBB
SEARCHCD/MP3-CD HD SOURCE
REPEAT SHUFFLE
2
abc
3
SAME GENRE SAME ARTIST
5
jkl
4
ghi
OK
MENU
SOURCE
Listen to FM Radio
Connect the supplied FM wire antenna to the Station (see
User manual, Installation)
Press SOURCE once or more times to select Radio
a. press MENU
b. Press 3or 4and 2to select Autostore radio
• The display shows: Autostore Please wait...
After all available stations are stored, the first autostored
preset station will play automatically
• You can store up to 60 preset radio stations in the memory
(including a maximum of 10 RDS stations).
a. press 1to enter the list of preset stations
b. Use the navigation controls 3or 4followed by 2to select
the desired station
Station
