Philips 105S Manuale utente

Large VIS (viewable image size) demonstrates a smart image

and viewable image size (VIS) up to 14 inch .

Introduction

The PHILIPS 105S colour monitor displays sharp and brilliant images

of text and graphics with a maximum resolution up to 1024x768 pixels.

It is optimal for Windows, spread sheets, and any other application.

This monitor automatically scans horizontal frequencies from 30KHz to

60KHz, and vertical frequencies from 50Hz to 120Hz. With

microprocessor based digital controlled circuit, the monitor can

automatically adjust itself to the video card’s scanning frequency and

displays an image with precise parameters you desire.The wide range

of scanning frequency supports variety of operating platforms, such as

IBM PC and compatibles, including Intel based platforms such as 386,

486, Pentium and Pentium II .

Feature Highlights

•

•Digital Control feature provides user-friendliness and ease-of-use

when operating the monitor.

•Anti-Glare and Anti-Static screen coating eliminate any bad effects

caused by the screen surface such as reflection of the room lights

and dust attraction.

•85Hz refresh rate:

The maximum display resolution is 1024 x 768 @75 hz non-interlaced

mode.The recommanded optimum resolution up to 800 x 600 pixels

non-interlaced by maximum 85Hz refresh rate.

•Green Design including automatic power saving function (NUTEK)

and low emission MPRII compliance shows our commitment in

environmental care.

•DDC1/DDC2B allows communication between the monitor and PC

system for optimal video configuration.

Note: If you experienced your monitor display is changing from color to

mono, it's possible that you are using a non-VESA-DDC-standard video

card. Please consult with your local Philips dealer for more information.

As an Energy Star Partner, PHILIPS has determined that this product

meets the Energy Star guidelines for energy efficiency.

IBM,IBM PC and Power PC are registered trademarks of International

Business Machines Corporation.

ENERGY STAR is a U.S. registered mark.

◆

End of life disposal

Your new set contains materials which can be recycled and reused.

Specialized companies can recycle your product to increase the amount

of reusable materials and to minimize the amount of materials to be

disposed of.

Please inform yourself on local regulations on disposal of your old set.

Safety precautions and maintenance

◆Disconnect the monitor from the mains supply if the monitor is not to

be used for an extended period of time.

◆Do not attempt to remove the back cover, as you will be exposed to

a shock hazard.The back cover should only be removed by qualified

service personnel.

◆Do not place objects on top of the monitor cabinet, which could fall

into vents or which could cover them and prevent proper cooling of

the monitor’s electronic devices.

Do not expose the monitor to rain or excessive moisture to avoid the

risk of shock or permanent damage to the set.

◆Do not use alcohol or ammonia based liquid to clean the monitor. If

necessary, clean with a slightly damp cloth. Disconnect the monitor

from the mains supply before cleaning.

◆Consult a service technician if the monitor does not operate normally

when operating instructions of this manual are followed.

Package

Your PHILIPS 105S package includes the following items:

• The monitor

• Pedestal

•Power cord

• Interface cable (flying-in)

• Win95 driver disk

• MAC adapter (option)

NInstallation

Important: Please refer to the user’s manuals of your computer

and video adapter to make sure these equipments are properly

installed and configured before installing the monitor.

Positioning / Ventilation

◆Avoid exposing the monitor to direct sunlight, stoves or any other

heat sources.

◆To prevent overheating, make sure that the ventilation openings of

the monitor are not covered.

◆Keep moisture and dust away.

◆Keep away from any magnetic objects, such as speakers, electric

motors, transformers, ...etc.

◆When positioning this monitor, make sure that the mains plug and

socket are easily accessible.

Pedestal

With the built-in pedestal you can tilt and / or swivel the monitor for a

most comfortable viewing angle.

To fit the pedestal, refer to the illustration on the inside front-cover of

this manual.

105

Connection

Intel Based platform: 386, 486, Pentium, or other compatibles:

•Connect the monitor to the computer using the supplied interface

cables.

Important: Please make sure the AC power to your computer is

“OFF”before connecting or disconnecting any display

peripheral. Failure to do so may cause serious personal injury

as well as permanent damage to your computer equipments.

Monitor rear view

1) IBM PC connection

2) Mains connection

3) Apple PC connection

VIDEO IN

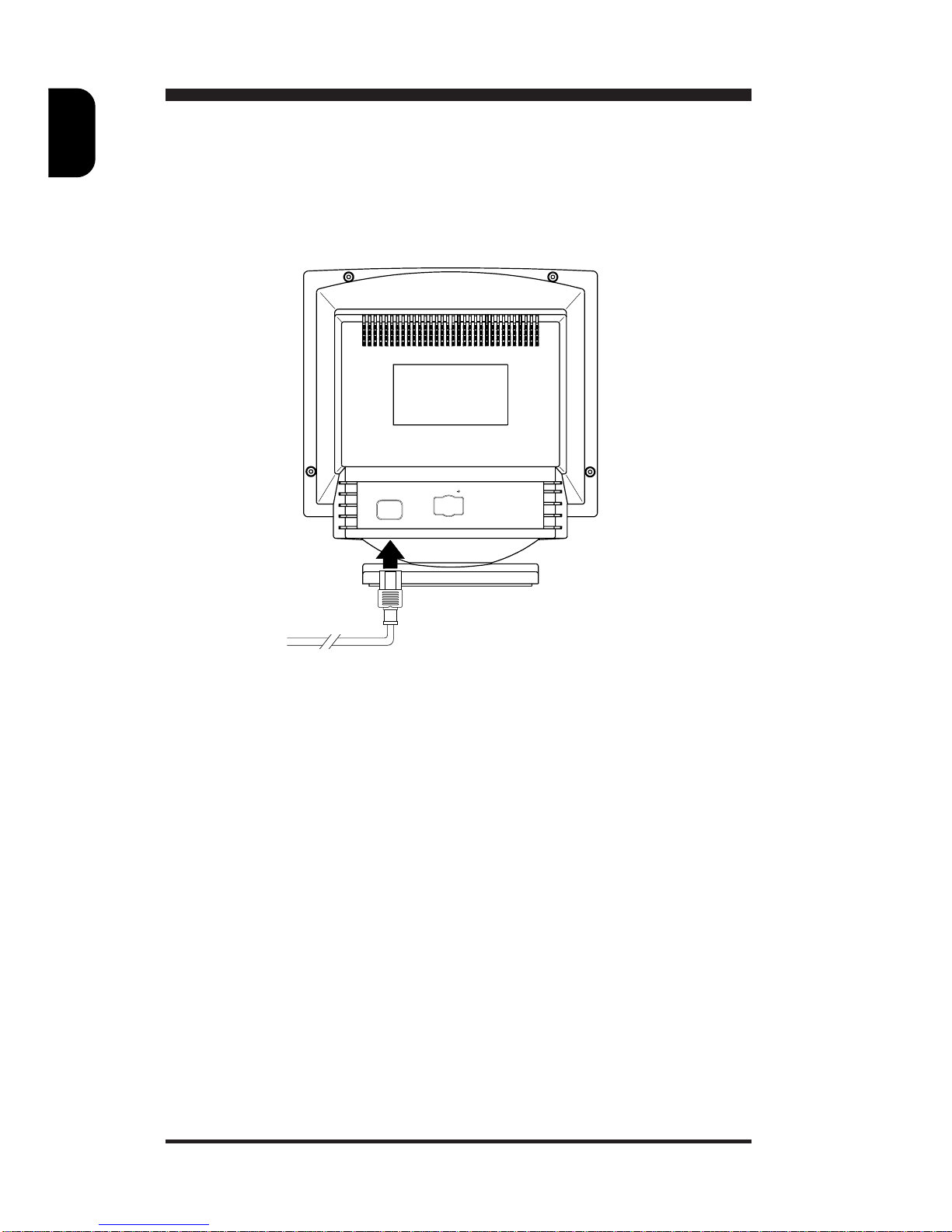

NConnection to the mains

(Rear of the monitor)

Connecting to the mains

This monitor is set to operate at a mains supply of 100-240 volts AC

(15C2320W); 220-240 volts AC (15C13205). If the mains voltage in

your home is not between this, consult your dealer.

Connect one end of the mains cord to the mains socket at the rear of

monitor, and the other end to the mains supply.

The monitor will be operating in power saving mode if you switch on

your monitor without signal input from PC. (Please refer to Power

Management Signalling instruction.)

VIDEO IN

(Mains cord)

Front Control locations and functions

For an optimized adjustment of the picture following controls are

available at the front.

POWER.

Press this knob, the green LED lights and the power is ON.

Press this knob again, the green LED disappears and the power

is OFF.

CONTRAST

Used to adjust the picture contrast level.

BRIGHTNESS

Used to adjust the overall screen brightness as a compensation

for ambient light.

"+" or "-"

Press "+" or "-" to adjust the selected function.

SHIFT key

To select the level of function.

"Shift" LED off - Control is on first level

"Shift" LED on - Control is on second level

105

NThe function pads:

H-Shift : to adjust the horizontal position of the image.

H-Size : to adjust the horizontal amplitude of the image.

V-Shift : to adjust the vertical position of the image.

V-Size : to adjust the vertical amplitude of the image.

Second level of the function pads:

Trapezoid : to correct the trapezoid distortion of the

image.

Pincushion : to correct the barrel distortion of the image

Recall : to recall original factory preset mode

Remarks:

1. When pressing any function pad, the "Shift" LED will flash

once to indicate the function has been selected.

2. Once the limit of the adjustable range has been reached,

the shift LED will flash continuously.

(A) User mode: (10 modes)

The set will save the user's setting parameters automatically.

After 10 seconds of key-pad inactivity, the LED will flash twice to

indicate the parameters being saved.

Press to recall factory preset mode. (at second level)

Adjustment

The monitor is pre-set with 6 modes for optimal display size and centering

as indicated in the following table:

Resolution Horizontal Vertical

Mode (dots x lines) Freq.(KHz) Freq.(Hz) Remark

VGA 640 x 400 31.5 70 Non-interlaced

VGA 640 x 480 31.5 60 Non-interlaced

VESA /85 640 x 480 43.3 85 Non-interlaced

VESA/75 800 x 600 46.9 75 Non-interlaced

VESA/75 800 x 600 53.7 85 Non-interlaced

VESA/75 1024 x768 60.0 75 Non-interlaced

N(B) Power Management Signalling

Power Management Definition

VESA DPMS POWER SAVING STATES

MODE VIDEO H-SYNC V-SYNC POWER USED POWER SAVING(%)

ON Active Yes Yes < 90 Watts 0 %

Stand-by Blanked No Yes < 15 Watts > 80 %

Suspend Blanked Yes No < 15 Watts > 80 %

OFF Blanked No No < 8 Watts > 90 %

Note: The video will be blanked and the power LED color will change

into following colors whenever the monitor goes into power

management status.

Green LED light - "Normal" operation

Yellow LED light - "Stand by" or "Suspend" mode

Amber LED light - "OFF" mode

This monitor is Energy Star compliant when used with

a computer equipped with DPMS.

AS AN ENERGY STAR PARTNER, PHILIPS HAS DETERMINED

THAT THIS PRODUCT MEETS THE ENERGY STAR GUIDELINES

FOR ENERGY EFFICIENCY.

Remark:

The transition time from "on" mode to any power down mode will

take around 5 seconds.

The recovery time from "stand by" or "suspend" mode to "ON"

mode will take around 5 seconds.
