Philips 107E21/25H Manuale utente

electronic user's manual

file:///D|/EDFU/crt_17/edoc/english/107E/manual.html [2003/11/3 ?? 01:11:51]

Safety and Troubleshooting Information

Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Other

Related Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments, or procedures other than those

specified in this documentation may result in exposure to shock, electrical

hazards, and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:

Disconnect the monitor from the power supply if the monitor is not to be used for an extended period

of time.

●

Do not attempt to remove the back cover, as you will be exposed to a shock hazard. The back cover

should only be removed by qualified service personnel.

●

Do not place objects on top of the monitor cabinet, objects could fall into vents or cover them and

prevent proper cooling of the monitor's electronic devices.

●

To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain or

excessive moisture.

●

Do not use alcohol or ammonia-based liquid to clean the monitor. If necessary, clean with a slightly

damp cloth. Disconnect the monitor from the power supply before cleaning.

●

When positioning the monitor, make sure the power plug and outlet are easily accessible.●

Consult a service technician if the monitor does not operate normally when operating instructions of this

manual are followed.

RETURN TO TOP OF THE PAGE

Safety & Troubleshooting

file:///D|/EDFU/crt_17/edoc/english/107E/SAFETY/SAFETY.HTM [2003/11/3 ?? 01:12:13]

About This Electronic User's Manual

About This Guide • Other Documents You May Need • Notational Descriptions

About This Guide

This electronic user's guide is intended for anyone who uses the Philips Color Monitor. It describes the

monitor's features, setup, operation and all other information, which is the same exact information described

in our printed version.

The sections are as follows:

Safety and Troubleshooting Information provides tips and solutions for common problems, and other

related information you may need.

●

About This Electronic User's Manual gives overview of what information are included as well as

notation icon descriptions and other documentation you can refer to.

●

Product Information gives an overview of the monitor's features and as well as the technical

specifications for this monitor.

●

Installing Your Monitor describes the initial setup process and gives an overview of how to use the

monitor.

●

On Screen Display provides information on adjusting the settings on your monitor.●

Customer Care and Warranty is a list of worldwide Philips consumer information centers along with

the help desk phone numbers and information on the applicable warranty of your product..

●

Glossary provides more information for technical terms.●

Download allows users to install the entire manual on their hard drive.●

Frequently Asked Questions provides answers to commonly asked questions.●

RETURN TO TOP OF THE PAGE

Other Documents You May Need

In addition to this Electronic User's Guide, you may need to refer to the following documentation:

Philips Color Monitor Quick Start Guide which summarizes the steps for setting up the monitor. This

is included with this product.

●

RETURN TO TOP OF THE PAGE

Notational Descriptions

The following subsections describe notational conventions used in this document.

About This Electronic User's Manual

file:///D|/EDFU/crt_17/edoc/english/107E/ABOUT/ABOUT.HTM (1 of 2) [2003/11/3 ?? 01:12:13]

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic

type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: This icon indicates important information and tips that help you make better

use of your computer system.

CAUTION: This icon indicates information that tells you how to avoid either potential

damage to hardware or loss of data.

WARNING: This icon indicates the potential for bodily harm and tells you how to

avoid the problem.

SMART HELP: This icon indicates helpful information when adjusting the On Screen

Display of your monitor.

Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the

specific presentation of the warning is mandated by regulatory authority.

RETURN TO TOP OF THE PAGE

part is prohibited without written consent of Philips Electronics N.V.

About This Electronic User's Manual

file:///D|/EDFU/crt_17/edoc/english/107E/ABOUT/ABOUT.HTM (2 of 2) [2003/11/3 ?? 01:12:13]

Product Information

Product Features • Technical Specifications • Automatic Power Saving • Physical

Specification • Pin Assignment • Product Views

Product Features

107E5

17-inch (16.0" VIS) color monitor with excellent front of screen performance for use with MACs and

PCs

●

Autoscan covers horizontal frequencies up to 70 kHz offering a maximum resolution of 1280 x 1024

with flicker free display of 1024 x 768 at up to 88 Hz

●

Flat square High Contrast CRT with high-resolution 0.27 mm dot pitch (0.23 hdp).● Large screen display in a small footprint: 17-inch conventional monitor with maximum depth of only

419 mm/16.5"

●

Multimedia Base and USB Hub option● sRGB for true on screen color representation.●

FCC, CE (in selected countries only) and ISO9241, ISO14001 certified ●

RETURN TO TOP OF THE PAGE

Technical Specifications*

CRT

• Size and deflection 17 inch / 41 cm ; 90° deflection angle

• Dot pitch 0.27 mm

• Horizontal pitch 0.23 mm

• Tube type Shadow mask, flat square, high contrast, anti-glare, anti-static,

anti reflection, light transmission 47%

• Phosphor P22

• Recommended display area 12.0" x 9.0" / 306 x 230 mm

• Maximum display area 12.8" x 9.6" / 325 x 244 mm

SCANNING

• Horizontal scanning 30 - 70 KHz

• Vertical scanning 50 - 160 Hz

107E Product Information

file:///D|/EDFU/crt_17/edoc/english/107E/PRODUCT/PRODUCT.HTM (1 of 4) [2003/11/3 ?? 01:12:13]

VIDEO

• Video dot rate 108 MHz

• Input impedance

- Video 75 ohm

- Sync 4.7 kOhm

• Input signal levels 0.7 Vpp

• Sync input signal Separate sync

• Sync polarities Positive and negative

WHITE COLOR TEMPERATURE

Chromaticity CIE coordinates:

• at 9300 degrees K x = 0.283 / y = 0.297

• at 6500 degrees K x = 0.313 / y = 0.329

sRGB

sRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital

cameras, monitors, printers, scanners, etc.)

Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible

device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you

can rely on the correctness of the colors shown on your screen.

Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a

predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in the

monitor's OSD.

To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down button to

go to Color temperature and press OK again. Then move the down button to go to sRGB and press OK

again.

Exit this OSD.

After this, please don't change the brightness or contrast setting of your monitor. If you change either of

these, the monitor will exit the sRGB mode and go to a color temperature setting of 6500K.

For more information on sRGB, please visit: www.srgb.com

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Automatic Power Saving

107E Product Information

file:///D|/EDFU/crt_17/edoc/english/107E/PRODUCT/PRODUCT.HTM (2 of 4) [2003/11/3 ?? 01:12:13]

If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can

automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or

other input device is detected, the monitor will automatically "wake up". The following table shows the power

consumption and signaling of this automatic power saving features:

Power Management Definition

VESA's

Mode Video H-sync V-sync Power Used Power

Saving

(%) LED color

ON Active Yes Yes Typical 64W 0 % Green

OFF Blanked No No <2W 98% Flashing

Green

This monitor is ENERGY STAR®compliant. As an ENERGY STAR®Partner, PHILIPS has

determined that this product meets the ENERGY STAR®guidelines for energy efficiency.

RETURN TO TOP OF THE PAGE

Physical Specifications

• Dimensions 15.6" x 15.1" x 16.5" / 397 x 383 x 419 mm (including base)

15.6" x 13.1" x 16.5" / 397 x 333 x 419 mm (excluding base)

• Weight 14.0 kg

• Power supply 90 - 132VAC/ 195 - 264 VAC, 50/60Hz

(Please refer to rating label)

• Temperature (operating) 0° to 40°C / 32° to 104°F

• Temperature (storage) -25° to +65°C / -13° to +149°F

• Relative humidity(storage) 5% to 95%

* Resolution 1280 x 1024, standard size, contrast max., brightness 50%, 9300°, full white pattern.

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

107E Product Information

file:///D|/EDFU/crt_17/edoc/english/107E/PRODUCT/PRODUCT.HTM (3 of 4) [2003/11/3 ?? 01:12:13]

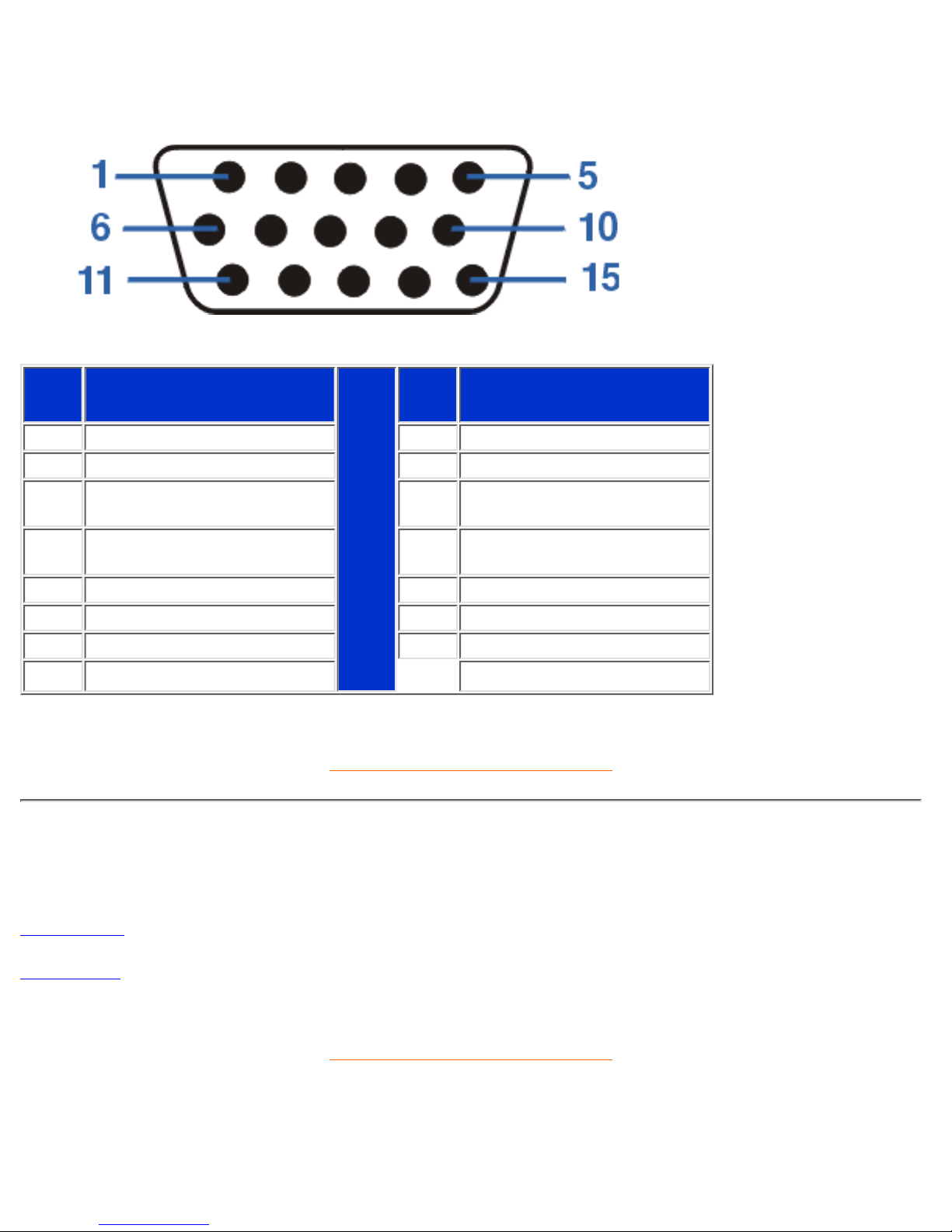

Pin Assignment

The 15-pin D-sub connector (male) of the signal cable (IBM systems):

No. Assignment

1 Red video input 9 +5V DDC supply

2 Green video input 10 Logic ground

3 Blue video input 11 Identical output - connected

to pin 10

4Identical output - connected

to pin 10 12 Serial data line (SDA)

5 Ground 13 H. Sync / H+V

6 Red video ground 14 V. Sync (VCLK for DDC)

7 Green video ground 15 Data clock line (SCL)

8 Blue video ground

RETURN TO TOP OF THE PAGE

Views

Follow the links to see various views of the monitor and its components.

Front View

Rear View

RETURN TO TOP OF THE PAGE

107E Product Information

file:///D|/EDFU/crt_17/edoc/english/107E/PRODUCT/PRODUCT.HTM (4 of 4) [2003/11/3 ?? 01:12:13]

Installing your Monitor

Front View • Rear View • 6G3B11 Multimedia Base (option)

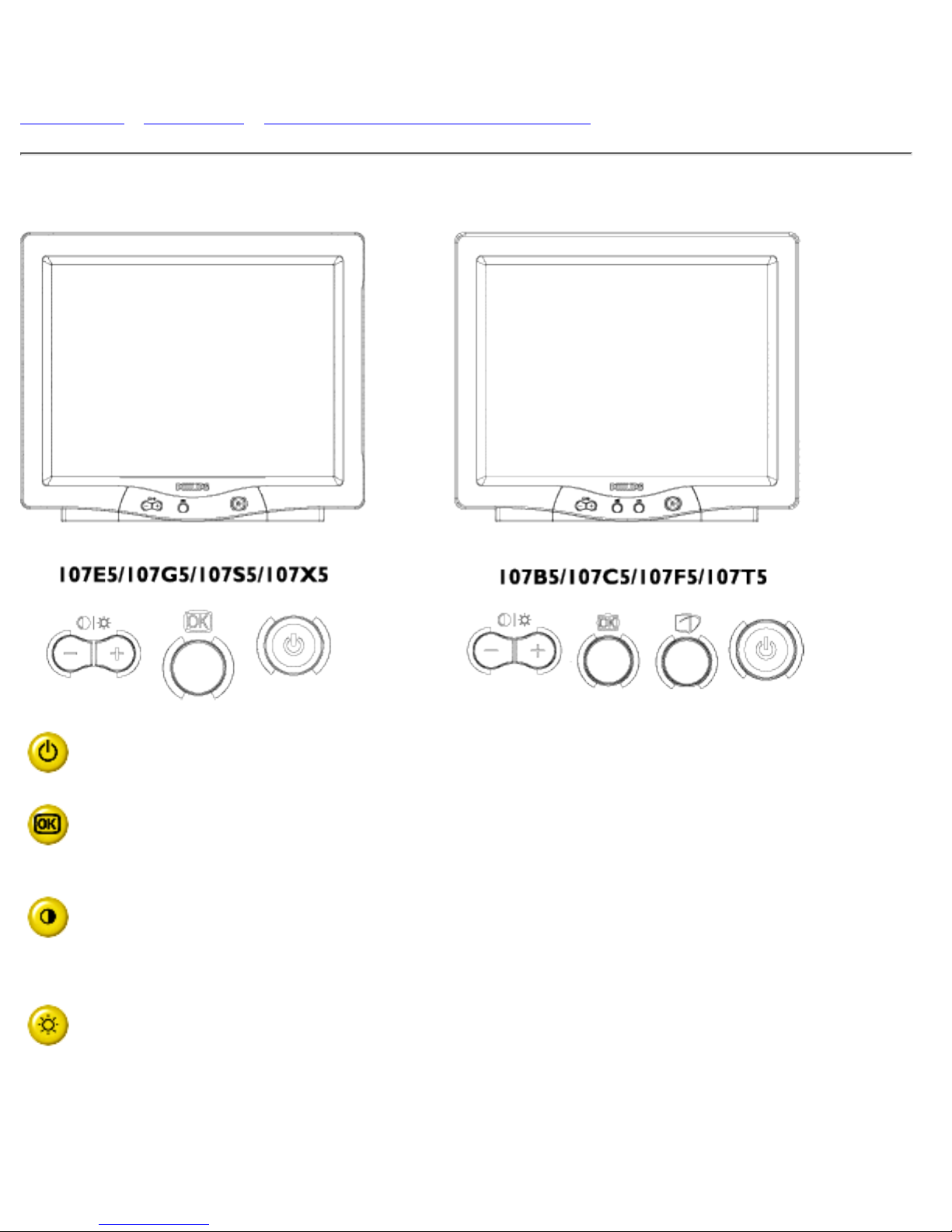

Front View

Power button switches your monitor on.

OK button which when pressed will take you to the OSD controls

Contrast hotkey. When the "-" button is pressed, the adjustment controls

for the CONTRAST will show up.

Brightness hotkey. When the "+" button is pressed, the adjustment

controls for BRIGHTNESS will show up.

Installing your Monitor

file:///D|/EDFU/crt_17/edoc/english/INSTALL_6/INSTALL.HTM (1 of 3) [2003/11/3 ?? 01:12:13]

"-" and "+" buttons, are used for adjusting the OSD of your monitor.

LightFrame™ hotkey. When the button is pressed, the high-brightness

function of LightFrame™ will show up.

RETURN TO TOP OF THE PAGE

Rear View

Installing your Monitor

file:///D|/EDFU/crt_17/edoc/english/INSTALL_6/INSTALL.HTM (2 of 3) [2003/11/3 ?? 01:12:13]
