Safety & Troubleshooting

Safety and Troubleshooting Information

Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Other

Related Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments, or procedures other than those

specified in this documentation may result in exposure to shock, electrical

hazards, and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:

●Disconnect the monitor from the power supply if the monitor is not to be used for an

extended period of time.

●Do not attempt to remove the back cover, as you will be exposed to a shock hazard. The

back cover should only be removed by qualified service personnel.

●Do not place objects on top of the monitor cabinet, objects could fall into vents or cover them

and prevent proper cooling of the monitor's electronic devices.

●To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain

or excessive moisture.

●Do not use alcohol or ammonia-based liquid to clean the monitor. If necessary, clean with a

slightly damp cloth. Disconnect the monitor from the power supply before cleaning.

●When positioning the monitor, make sure the power plug and outlet are easily accessible.

Consult a service technician if the monitor does not operate normally when operating instructions of

this manual are followed.

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/crt_17_6/edoc/english/107E/SAFETY/SAFETY.HTM2005-04-08 ¤W¤È 11:21:33

About This Electronic User's Manual

About This Guide • Other Documents You May Need • Notational Descriptions

About This Guide

This electronic user's guide is intended for anyone who uses the Philips Color Monitor. It describes

the monitor's features, setup, operation and all other information, which is the same exact

information described in our printed version.

The sections are as follows:

●Safety and Troubleshooting Information provides tips and solutions for common problems,

and other related information you may need.

●About This Electronic User's Manual gives overview of what information are included as well

as notation icon descriptions and other documentation you can refer to.

●Product Information gives an overview of the monitor's features and as well as the technical

specifications for this monitor.

●Installing Your Monitor describes the initial setup process and gives an overview of how to

use the monitor.

●On Screen Display provides information on adjusting the settings on your monitor.

●Customer Care and Warranty is a list of worldwide Philips consumer information centers

along with the help desk phone numbers and information on the applicable warranty of your

product.

●Glossary provides more information for technical terms.

●Download allows users to install the entire manual on their hard drive.

●Frequently Asked Questions provides answers to commonly asked questions.

RETURN TO TOP OF THE PAGE

Other Documents You May Need

In addition to this Electronic User's Guide, you may need to refer to the following documentation:

file:///D|/EDFU/crt_17_6/edoc/english/107E/ABOUT/ABOUT.HTM (1 of 3)2005-04-08 ¤W¤È 11:21:33

About This Electronic User's Manual

●Philips Color Monitor Quick Start Guide which summarizes the steps for setting up the

monitor. This is included with this product.

RETURN TO TOP OF THE PAGE

Notational Descriptions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in

italic type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: This icon indicates important information and tips that help you make

better use of your computer system.

CAUTION: This icon indicates information that tells you how to avoid either

potential damage to hardware or loss of data.

WARNING: This icon indicates the potential for bodily harm and tells you how

to avoid the problem.

SMART HELP: This icon indicates helpful information when adjusting the On

Screen Display of your monitor.

Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such

cases, the specific presentation of the warning is mandated by regulatory authority.

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/crt_17_6/edoc/english/107E/ABOUT/ABOUT.HTM (2 of 3)2005-04-08 ¤W¤È 11:21:33

About This Electronic User's Manual

broadcasting in whole or in part is prohibited without written consent of Philips Electronics N.V.

file:///D|/EDFU/crt_17_6/edoc/english/107E/ABOUT/ABOUT.HTM (3 of 3)2005-04-08 ¤W¤È 11:21:33

107E Product Information

Product Information

Product Features • Lead-free product • Technical Specifications • Automatic Power Saving • Physical

Specification • Pin Assignment • Product Views

Product Features

Model Regulation Color

107E60 TCO'03 Gray

107E61 MPRII Gray

107E66 MPRII Black

107E6

●17-inch (16.0" VIS) color monitor with excellent front of screen performance for use with MACs and PCs

●Autoscan covers horizontal frequencies up to 71 kHz offering a maximum resolution of 1280 x 1024 with

flicker free display of 1024 x 768 at up to 89 Hz

●Flat square High Contrast CRT with high-resolution 0.27 mm dot pitch (0.23 hdp).

●Large screen display in a small footprint: 17-inch conventional monitor with maximum depth of only 419

mm/16.5"

●Multimedia Base option

●sRGB for true on screen color representation.

●FCC, CE (in selected countries only) and ISO9241, ISO14001 certified

RETURN TO TOP OF THE PAGE

Lead-free product

Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health and

promotes environmentally sound recovery and disposal of waste from electrical and electronic equipment. Philips

complies with the European Community stringent RoHS Directive mandating restrictions on hazardous substances

in electrical and electronic equipment. With Philips, you can be confident that your display device does not harm the

environment.

file:///D|/EDFU/crt_17_6/edoc/english/107E/PRODUCT/PRODUCT.HTM (1 of 6)2005-04-08 ¤W¤È 11:21:34

107E Product Information

Technical Specifications*

CRT

• Size and deflection 17 inch / 41 cm ; 90° deflection angle

• Dot pitch 0.27 mm

• Horizontal pitch 0.23 mm

• Tube type Shadow mask, flat square, high contrast, anti-glare, anti-

static, anti reflection

• Phosphor P22

• Recommended display area 12.0" x 9.0" / 306 x 230 mm

• Maximum display area 12.8" x 9.6" / 325 x 244 mm

SCANNING

• Horizontal scanning 30 - 71 KHz

• Vertical scanning 50 - 160 Hz

VIDEO

• Video dot rate 120 MHz

• Input impedance

- Video 75 ohm

- Sync 4.7 kOhm

• Input signal levels 0.7 Vpp

• Sync input signal Separate sync

• Sync polarities Positive and negative

WHITE COLOR TEMPERATURE

Chromaticity CIE coordinates:

• at 9300 degrees K x = 0.283 / y = 0.297

• at 6500 degrees K x = 0.313 / y = 0.329

• at sRGB x = 0.313 / y = 0.329

PRESET MODES

file:///D|/EDFU/crt_17_6/edoc/english/107E/PRODUCT/PRODUCT.HTM (2 of 6)2005-04-08 ¤W¤È 11:21:34

107E Product Information

720 x 400 @ 70 Hz

640 x 480 @ 60 Hz

640 x 480 @ 85 Hz

800 x 600 @ 75 Hz

800 x 600 @ 85 Hz

1024 x 768 @ 75 Hz

1024 x 768 @ 85 Hz

1280 x 1024 @ 60 Hz

sRGB

sRGB is a standard for ensuring correct exchange of colors between different devices (e.g.

digital cameras, monitors, printers, scanners, etc.)

Using a standard unified color space, sRGB will help represent pictures taken by an sRGB

compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are

calibrated and you can rely on the correctness of the colors shown on your screen.

Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a

predefined setting as well as the color gamut. Therefore it is important to select the sRGB

setting in the monitor's OSD.

To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down

button to go to Color temperature and press OK again. Then move the down button to go to

sRGB and press OK again.

Exit this OSD.

After this, please don't change the brightness or contrast setting of your monitor. If you change

either of these, the monitor will exit the sRGB mode and go to a color temperature setting of

6500K.

* These information are subject to change without notice.

file:///D|/EDFU/crt_17_6/edoc/english/107E/PRODUCT/PRODUCT.HTM (3 of 6)2005-04-08 ¤W¤È 11:21:34

107E Product Information

RETURN TO TOP OF THE PAGE

Automatic Power Saving

If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically

reduce its power consumption when not in use. And if an input from a keyboard, mouse or other input device is

detected, the monitor will automatically "wake up". The following table shows the power consumption and signaling

of this automatic power saving features:

Power Management Definition

VESA's

Mode Video H-sync V-sync Power Used Power Saving

(%) LED color

Active ON Yes Yes Typical 64W 0 % Green

Sleep OFF No No < 1W 99% Flashing

Green

Switch Off OFF -- -- < 1W 99% Off

This monitor is ENERGY STAR®compliant. As an ENERGY STAR®Partner, PHILIPS has

determined that this product meets the ENERGY STAR®guidelines for energy efficiency.

RETURN TO TOP OF THE PAGE

Physical Specifications

• Dimensions 15.6" x 15.1" x 16.5" / 397 x 383 x 419 mm (including base)

15.6" x 13.1" x 16.5" / 397 x 333 x 419 mm (excluding base)

• Weight 13.4kg

• Power supply 100 - 240 VAC, 60-50Hz

(Please refer to rating label)

• Temperature (operating) 0° to 40°C / 32° to 104°F

file:///D|/EDFU/crt_17_6/edoc/english/107E/PRODUCT/PRODUCT.HTM (4 of 6)2005-04-08 ¤W¤È 11:21:34

107E Product Information

• Temperature (storage) -25° to +65°C / -13° to +149°F

• Relative humidity(storage) 5% to 95%

* Resolution 1280 x 1024, standard size, contrast max., brightness 50%, 9300°, full white pattern.

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

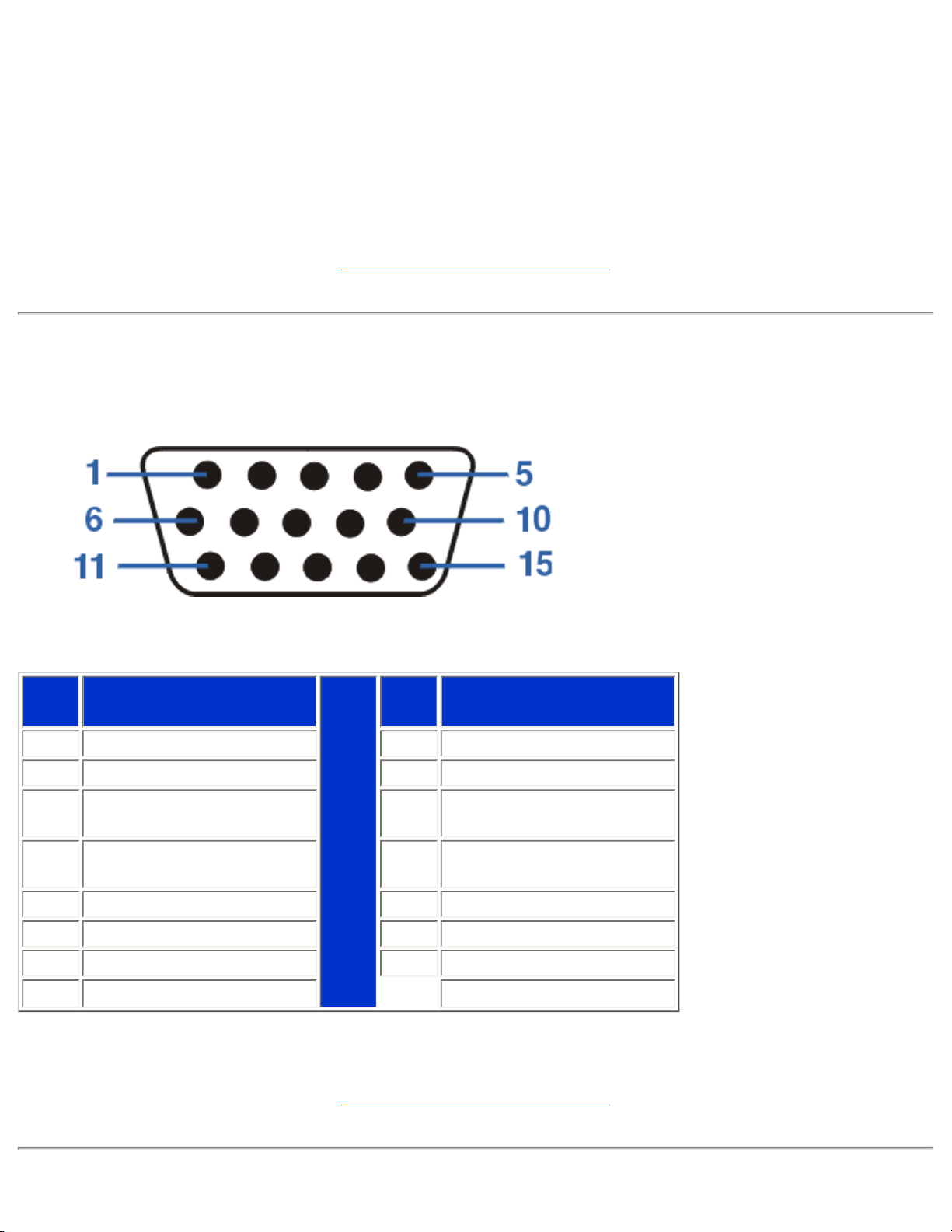

Pin Assignment

The 15-pin D-sub connector (male) of the signal cable (IBM systems):

No. Assignment

1 Red video input 9 +5V DDC supply

2 Green video input 10 Logic ground

3 Blue video input 11 Identical output - connected

to pin 10

4Identical output - connected

to pin 10 12 Serial data line (SDA)

5 Ground 13 H. Sync / H+V

6 Red video ground 14 V. Sync (VCLK for DDC)

7 Green video ground 15 Data clock line (SCL)

8 Blue video ground

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/crt_17_6/edoc/english/107E/PRODUCT/PRODUCT.HTM (5 of 6)2005-04-08 ¤W¤È 11:21:34
