Philips 170B4MG Manuale utente

Product Information

Product Features • Technical Specifications • Resolution & Preset Modes •

Philips Pixel Defect Policy • Automatic Power Saving • Physical Specification •

Pin Assignment • Product Views • Physical Function

Product Features

170B4MG

z17-inch color LCD monitor with excellent display performance

zDual input - accepts DVI-D digital and VGA analog inputs

zEmbedded AC power supply

zFront firing speakers with 2x2W RMS stereo sound output

zAdvanced AUTO adjustment optimizes picture quality

zRotation for both portrait and landscape display

zLiner height adjustment for best viewing position

zAdjustable tilt and swivel function

zOptional self-powered USB hub

RETURN TO TOP OF THE PAGE

Technical Specifications*

LCD PANEL

• Type TFT LCD

• Screen size 17" / 43.2cm diagonal

• Pixel Pitch 0.264 x 0.264mm

• LCD Panel type 1280 x 1024 pixels

R.G.B. vertical stripe

Anti-glare polarizer, hard coated

• Effective viewing area 337.9 x 270.3 mm

• Display Colors 16M colors

SCANNING

Vertical refresh rate 56Hz-76Hz

Horizontal Frequency 30kHz-82kHz

VIDEO

• Video dot rate 135MHz

• Input impedance

- Video 75 ohm

Installstion and Operating Instructions

Exhibit 3

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Resolution & Preset Modes

- Sync 2.2K ohm

• Input signal levels 0.7 Vpp

• Sync input signal Separate sync

Composite sync

Sync on green

• Sync polarities Positive and negative

• Video interface Dual input: D-Sub (analog) and DVI-D (digital) are

available and user selectable

AUDIO

• Input signal level 0.7 Vpp

• Headphone out signal level 32 ohm 20+20mW

• Input signal connector 3.5mm mini jack

• Loudspeaker 4W Stereo Audio (2W/channel RMS x2, 200 Hz-12 kHz, 8

ohm, THD=10%)

MICROPHONE

• Sensitivity -55dB re 1V/ubar at 1kHz

• Output impedance 2.2K ohm max.

• Directivity -5dB at 180°

• Frequency range 300Hz-3kHz

Optical characteristics

• Contrast ratio: 400 (typ.)

• Brightness: 260 cd/m2(typ.)

• Peak contrast angle 6 o'clock

• White Chromatcity: x: 0.283 y: 0.297 (at 9300°K)

x: 0.313 y: 0.329 (at 6500°K)

• Viewing Angle:

(C/R>5)

Upper >80° (typ.)

Lower >80° (typ.)

Left >80 ° (typ.)

Right >80 ° (typ.)

• Response time <25ms (typ.)

• Maximum 1280 x 1024 at 75Hz

• Recommended 1280 x 1024 at 60Hz

RETURN TO TOP OF THE PAGE

Automatic Power Saving

If you have VESA's DPMS compliance display card or software installed in your PC, the

monitor can automatically reduce its power consumption when not in use. And if an input from

a keyboard, mouse or other input device is detected, the monitor will automatically "wake up".

The following table shows the power consumption and signaling of this automatic power saving

features:

33 user definable modes

15 factory preset modes:

H. freq (kHz) Resolution V. freq (Hz)

31.5 640*350 70

31.5 720*400 70

31.5 640*480 60

35.0 640*480 67

37.5 640*480 75

35.2 800*600 56

37.9 800*600 60

46.9 800*600 75

49.7 832*624 75

48.4 1024*768 60

60.0 1024*768 75

69.0 1152*870 75

71.8 1152*900 76

63.9 1280*1024 60

80 1280*1024 75

Power Management Definition

VESA Mode Video H-sync V-sync Power

Used LED

color

ON Active Yes Yes < 40 W

(typ.) Green

OFF Blanked No No < 1 W Amber

This monitor is ENERGY STAR®compliant. As an ENERGY STAR®Partner, PHILIPS

has determined that this product meets the ENERGY STAR®guidelines for energy

RETURN TO TOP OF THE PAGE

Physical Specifications

* These information are subject to change without notice.

* Resolution 1280x1024, standard size, contrast max., brightness 50%, 9300° K, full white

pattern, without audio/USB.

RETURN TO TOP OF THE PAGE

Pin Assignment

1. The digital only connector contains 24 signal contacts organized in three rows of eight

contacts. Signal pin assignments are listed in the following table:

efficiency.

• Dimension (WxHxD) 375 x 413 x 184 mm (incl. Pedestal)

• Weight 6.3 Kg

• Tilt / Swivel 0° ~ 35° / + - 175°

• Height adjustment rang 50mm

• Portrait display 90° rotation counter clockwise

• Power supply 100 — 240 VAC, 50/60 Hz

• Power consumption 40 W* (typ.)

• Temperature 5° C to 35° C (operating)

-20° C to 60° C (storage)

• Relative humidity 20% to 80%

• System MTBF 50K hrs (including CCFL 40K hrs)

No. Signal

Assignment

No. Signal

Assignment

No. Signal

Assignment

1T.M.D.S. Data2- 9T.M.D.S. Data1- 17 T.M.D.S. Data0-

2T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+

3T.M.D.S. Data2/4

Shield 11 T.M.D.S. Data1/3

Shield 19 T.M.D.S. Data0/5

Shield

4No connect 12 No connect 20 No connect

5No connect 13 No connect 21 No connect

6DDC Clock 14 +5V Power 22 T.M.D.S. Clock

Shield

7DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+

2. The 15-pin D-sub connector (male) of the signal cable:

RETURN TO TOP OF THE PAGE

Product Views

Follow the links to see various views of the monitor and its components.

Front View Product Description

8No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-

No. Assignment

1Red video input 9+5V

2Green video input/SOG 10 Logic ground

3Blue video input 11 Identical output -

connected to pin 10

4Sense (GND) 12 Serial data line (SDA)

5Not connected 13 H. Sync / H+V

6Red video ground 14 V. Sync (VCLK for DDC)

7Green video ground 15 Data clock line (SCL)

8Blue video ground

RETURN TO TOP OF THE PAGE

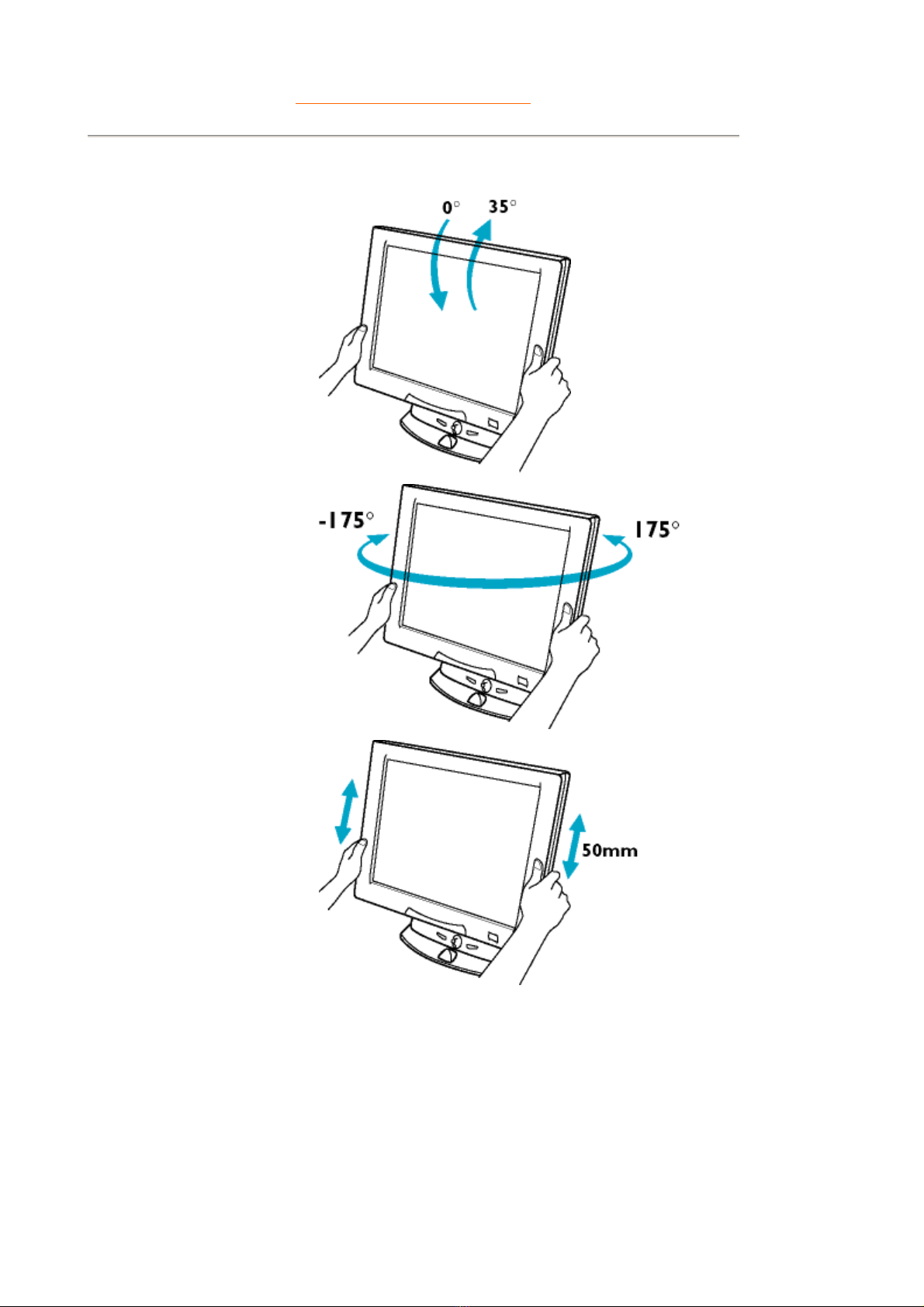

Physical Function

1) Tilt

2) Swivel

3) Height adjustment

4) Portrait display

Turn monitor from landscape view to portrait view

4.1) Tilt the monitor body at an angle

4.2) Rotate the monitor body 90 degrees counter clockwise.

Installing your LCD Monitor

Your LCD Monitor : Front View Product Description • Connecting to Your PC •

Remove and re-install the base • Getting Started • Optimizing Performance •

Accessories (optional)

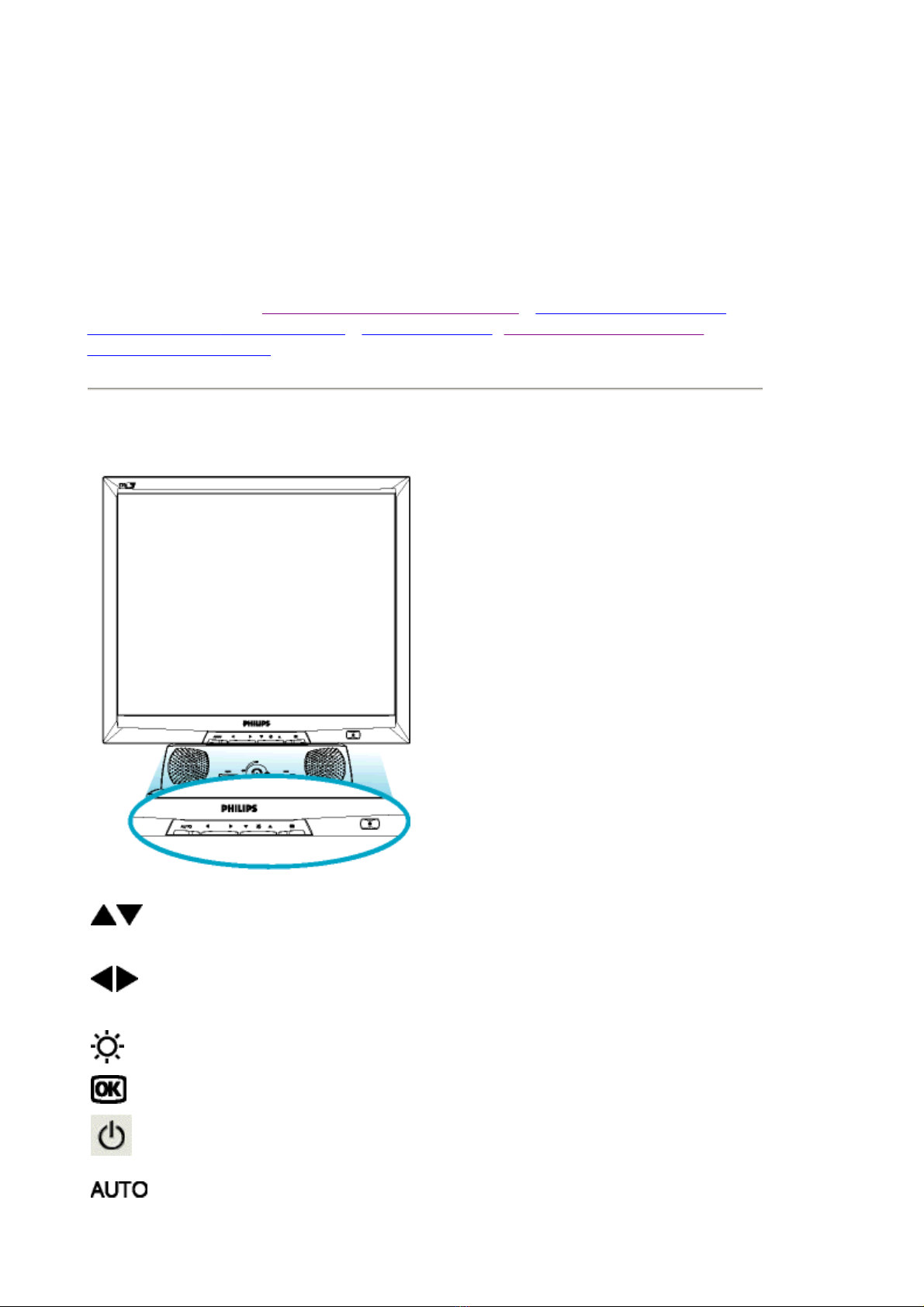

Front View Product Description

UP and DOWN buttons are used when adjusting the OSD of your

monitor

LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used

in adjusting the OSD of your monitor.

Signal inputs selective hotkeys. Allows user to switch between two video

connectors (D-Sub & DVI-D)

BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are

pressed, the adjustment controls for the BRIGHTNESS will show up.

OK button which when pressed will take you to the OSD controls

POWER button switches your monitor on

Automatically adjust the horizontal position, vertical position, phase and

clock setting.

RETURN TO TOP OF THE PAGE

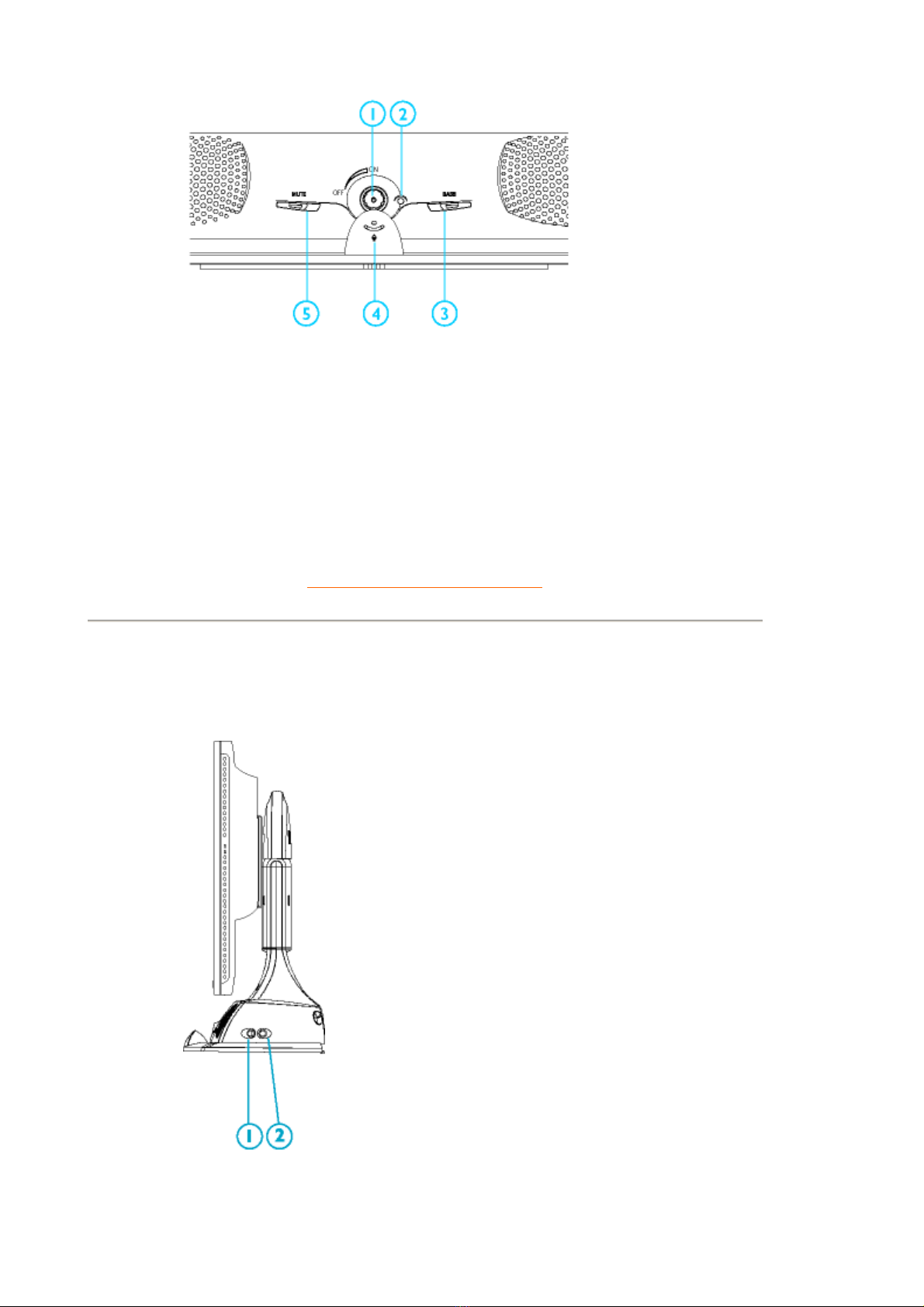

Side View

1. Audio power on/off and volulme adjustment

2. Audio power LED

3. BASS on/off

4. Built-in Mic

5. Mute on/off

1. Headphone Jack

2. Microphone Jack

RETURN TO TOP OF THE PAGE

Rear View

1. Audio in

2. Mic out

3. DC 12V in

1. DC 12V out for Philips Multimedia Base only
