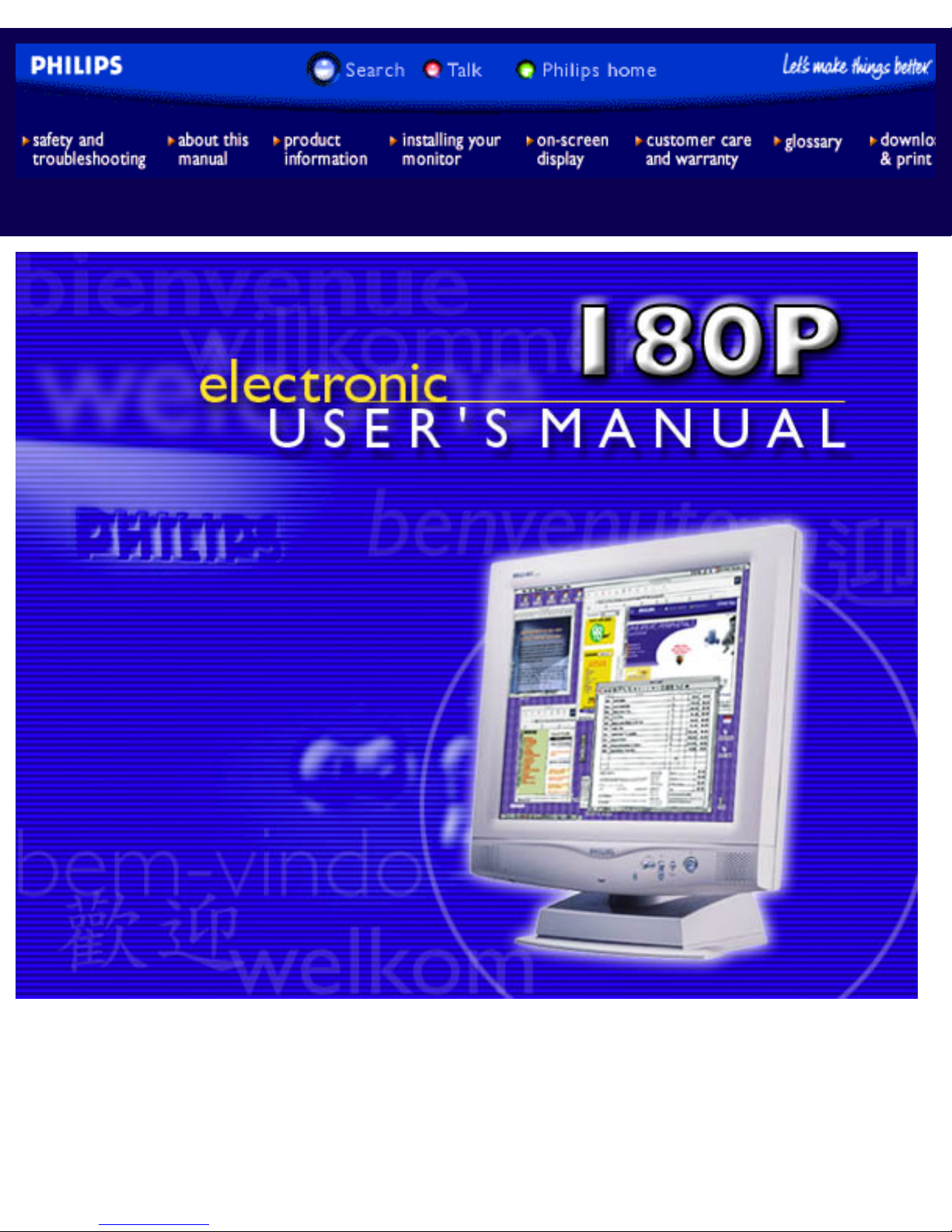

Philips 180P Electronic User's Manual

file:///F|/180P/180p/index.htm [2000/7/17 11:46:32 AM]

Safety and Troubleshooting Information

Safety Precautions and Maintenance • Installation Locations • Correct Handling of the LCD

Monitor • FAQs • Troubleshooting • Regulatory Information • Other Related Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments, or procedures other than those

specified in this documentation may result in exposure to shock, electrical

hazards, and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:

Unplug the monitor, if you are not going to use it for an extensive period of time.● Unplug the monitor, if you need to clean it with a slightly damp cloth. Wiping the screen with a dry

cloth is possible when the power is off. However, never use alcohol, solvents, or ammonia-based

liquids.

●

Consult a service technician if the monitor does not operate normally when following the instructions

in this manual.

●

The casing cover should be opened only by qualified service personnel.● Keep the monitor out of direct sunlight and away from stoves or any other heat source.● Remove any object that could fall into the vents or prevent proper cooling of the monitor’s electronics.● Do not block the ventilation holes on the cabinet.● Keep the monitor dry. To avoid electric shock, do not expose it to rain or excessive moisture.● When positioning the monitor, make sure the power plug and outlet are easily accessible.● If turning off the monitor by detaching power cable or DC power cord, wait for 6 seconds, then attach

the power cable or DC power cord for normal operation.

●

To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain or

excessive moisture.

●

Consult a service technician if the monitor does not operate normally when operating instructions of this

manual are followed.

RETURN TO TOP OF THE PAGE

Installation Locations

Avoid Heat and Extreme Cold● Do not store or use the LCD monitor in locations exposed to heat, direct sunlight, or extreme cold.● Avoid moving the LCD monitor between locations with large temperature differences. Choose a site

falling within the following temperature and humidity ranges.

●

Safety & Troubleshooting

file:///F|/180P/180p/safety/safety.htm (1 of 3) [2000/7/17 11:46:54 AM]

Temperature: 5-35°C 41-95°F❍ Humidity: 20-80% RH❍

Do not subject the LCD monitor to severe vibration or high impact conditions. Do not place the LCD

monitor inside a car trunk.

●

Take care not to mishandle this product by either knocking or dropping during operation or

transportation.

●

Do not store or use the LCD monitor in locations exposed to high humidity or a dusty environment.

Also do not allow water or other liquids to spill on or into the LCD monitor.

●

RETURN TO TOP OF THE PAGE

Correct handling of the monitor

When handling the monitor, grip the bottom firmly with both hands and ensure that the front panel

faces outward before lifting. Please refer to the diagram on the right.

Handling the monitor with care prevents scratching and damage. If the monitor becomes damaged,

immediately disconnect the power from the unit and have it checked by a qualified service person

before using it again.

To prevent fire or electrical shock, do not drop the monitor.3. When moving the monitor, be sure to unplug all power cords in order to avoid injury or damage to the4.

Safety & Troubleshooting

file:///F|/180P/180p/safety/safety.htm (2 of 3) [2000/7/17 11:46:54 AM]

equipment.

RETURN TO TOP OF THE PAGE

Safety & Troubleshooting

file:///F|/180P/180p/safety/safety.htm (3 of 3) [2000/7/17 11:46:54 AM]

About This Electronic User's Manual

About This Guide • Other Documents You May Need • Notational Descriptions

About This Guide

This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It describes the LCD

monitor's features, setup, operation and other pertinent information. Its contents are identical to the

information in our printed version.

Sections are as follows:

Safety and Troubleshooting Information provides tips and solutions for common problems as well as

other related information you may need.

●

About This Electronic User's Manual gives an overview of information included, along with notation

icon descriptions and other documentation for your reference.

●

Product Information gives an overview of the monitor's features and as well as the technical

specifications for this monitor.

●

Installing Your Monitor describes the initial setup process and gives an overview of how to use the

monitor.

●

On Screen Display provides information on adjusting the settings on your monitor.●

Customer Care and Warranty contains a list of worldwide Philips Consumer Information Centers along

with help desk phone numbers and information on the warranty applicable to your product.

●

Glossary defines technical terms.●

Download and Print Option transfers this entire manual to your hard drive for easy reference.●

RETURN TO TOP OF THE PAGE

Other Documents You May Need

In addition to this Electronic User's Guide, you may need to refer to the following documentation:

Philips LCD Monitor Quick Start Guide which summarizes the steps for setting up the monitor. This is

included with this product.

●

RETURN TO TOP OF THE PAGE

Notational Descriptions

The following subsections describe notational conventions used in this document.

About This Electronic User's Manual

file:///F|/180P/180p/about/about.htm (1 of 2) [2000/7/17 11:46:55 AM]

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic type. These

blocks contain notes, cautions, or warnings. They are used as follows:

NOTE: This icon indicates important information and tips that help you make better

use of your computer system.

CAUTION: This icon indicates information that tells you how to avoid either potential

damage to hardware or loss of data.

WARNING: This icon indicates the potential for bodily harm and tells you how to

avoid the problem.

SMART HELP: This icon indicates helpful information when adjusting the On Screen

Display of your monitor.

Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the

specific presentation of the warning is mandated by regulatory authority.

RETURN TO TOP OF THE PAGE

part is prohibited without written consent of Philips Electronics N.V.

About This Electronic User's Manual

file:///F|/180P/180p/about/about.htm (2 of 2) [2000/7/17 11:46:55 AM]

Product Information

Product Features • Technical Specifications • Resolution & Preset Modes • Philips Pixel

Defect Policy • Automatic Power Saving • Physical Specification • Pin Assignment • Product

Views • Attention Signals

Product Features

Brilliance 180P

18.1" color LCD monitor with excellent display performance, and same viewing size as a 19" CRT

monitor.

●

Dual input-accepts both DVI Digital and VGA Analog input.● Advanced AUTO adjustment automatically optimizes picture quality.● Built-in, front-firing stereo speakers and microphone for video conferencing and multimedia

applications.

●

Wide viewing angle technology.● 7.1 (181mm) small footpring with full detachable cables.● USB Bay for upgrade to USB Hub.● Optional protective cover to prevent LCD panel damage.● Standard VESA mounting holes and optional tilt/swivel Wall Mount Kit.●

RETURN TO TOP OF THE PAGE

Technical Specifications*

LCD PANEL

• Type TFT LCD

• Screen size 18.1"/45.9cm diagonal

• Pixel Pitch 0.280 x 0.280mm

• LCD Panel type 1280 x 1024 pixels

R.G.B. vertical stripe

Anti-glare polarizer, hard coated

• Effective viewing area 359 x 287.2 mm

• Display Colors 8 bits interface (16M colors)

SCANNING

Vertical refresh rate 56Hz-76Hz

180P Product Information

file:///F|/180P/180p/product/product.htm (1 of 11) [2000/7/17 11:46:57 AM]

Horizontal Frequency 30KHz-82KHz

VIDEO

• Video dot rate 135MHz

• Input impedance

- Video 75 ohm

- Sync 2 KOhm

• Input signal levels 0.7 Vpp

• Sync input signal Separate sync

Composite sync

Sync on green

• Sync polarities Positive and negative

• Video interface Dual input : Both Analog (D-Sub) and DVI-D (Digital) are

available It can be switching via OSD selection.

AUDIO

• Input signal levels 0.7Vpp

• Headphone out signal level 32 ohm 20 + 20 mW

• Input signal connector 3.5mm mini jack

• Loudspeakers 1 + 1 W stereo front firing (PMPO:24W)

MICROPHONE

• Sensitivity -51dB re 1V/ubar

• Output impedance 2.2KOhm max

• Directivity -5dB at 180°

• Frequency range 300Hz~3KHz

OPTICAL CHARACTERISTICS

• Contrast ratio 250 (typ.)

• Brightness 200 nits (typ.)

• White Chromacity x: 0.281 y: 0.311 (at 9300° K) x: 0.312 y: 0.338 (at 6500° K)

• Viewing Angle (C/R >5)

Upper >80 ° (min.)

Lower >80° (min.)

Left >80 ° (min.)

Right >80 ° (min.)

180P Product Information

file:///F|/180P/180p/product/product.htm (2 of 11) [2000/7/17 11:46:57 AM]

• Response time <=50ms (typ.)

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Resolution & Preset Modes

• Maximum 1280x 1024 at 75Hz

• Recommended 1280x1024 at 60Hz

32USER DEFINABLE MODES

15 factory preset modes:

H. freq (KHz) Resolution V. freq (KHz)

31.5 640*350 70

31.5 720*400 70

31.5 640*480 60

35.0 640*480 67

37.5 640*480 75

35.2 800*600 56

37.9 800*600 60

46.9 800*600 75

49.7 832*624 75

48.4 1024*768 60

60 1024*768 75

69.0 1152*870 75

80.0 1152*900 75

63.9 1280*1024 60

80 1280*1024 75

RETURN TO TOP OF THE PAGE

180P Product Information

file:///F|/180P/180p/product/product.htm (3 of 11) [2000/7/17 11:46:57 AM]

Automatic Power Saving

If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can

automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or

other input device is detected, the monitor will automatically "wake up". The following table shows the

power consumption and signaling of this automatic power saving features:

Power Management Definition

VESA Mode Video H-sync V-sync Power Used LED color

ON Active Yes Yes < 60W Green

Stand-by Blanked No Yes < 3W Amber

Suspend Blanked Yes No < 3W Amber

OFF Blanked No No < 3W Amber

This monitor is ENERGY STAR®compliant. As an ENERGY STAR®Partner, PHILIPS has

determined that this product meets the ENERGY STAR®guidelines for energy efficiency.

RETURN TO TOP OF THE PAGE

Physical Specifications

• Dimension (WxHxD) 451 x 476x 181 mm (incl. Pedestal)

• Weight 8.5 Kg

• Tilt / Swivel 0° - 27° / ±40°

• Power supply 100 — 240 VAC, 50/60 Hz

• Power consumption 48 W*

• Temperature +5° C to +35° C (operating)

-20° C to +60° C (storage)

• Relative humidity 20% to 80%

• System MTBF 50K hrs (excluding LCD panel, CCFL)

* These information are subject to change without notice.

* Resolution 1280x1024, standard size, contrast max., brightness 50%, 6500° K,

full white pattern, without audio/USB.

180P Product Information

file:///F|/180P/180p/product/product.htm (4 of 11) [2000/7/17 11:46:57 AM]
