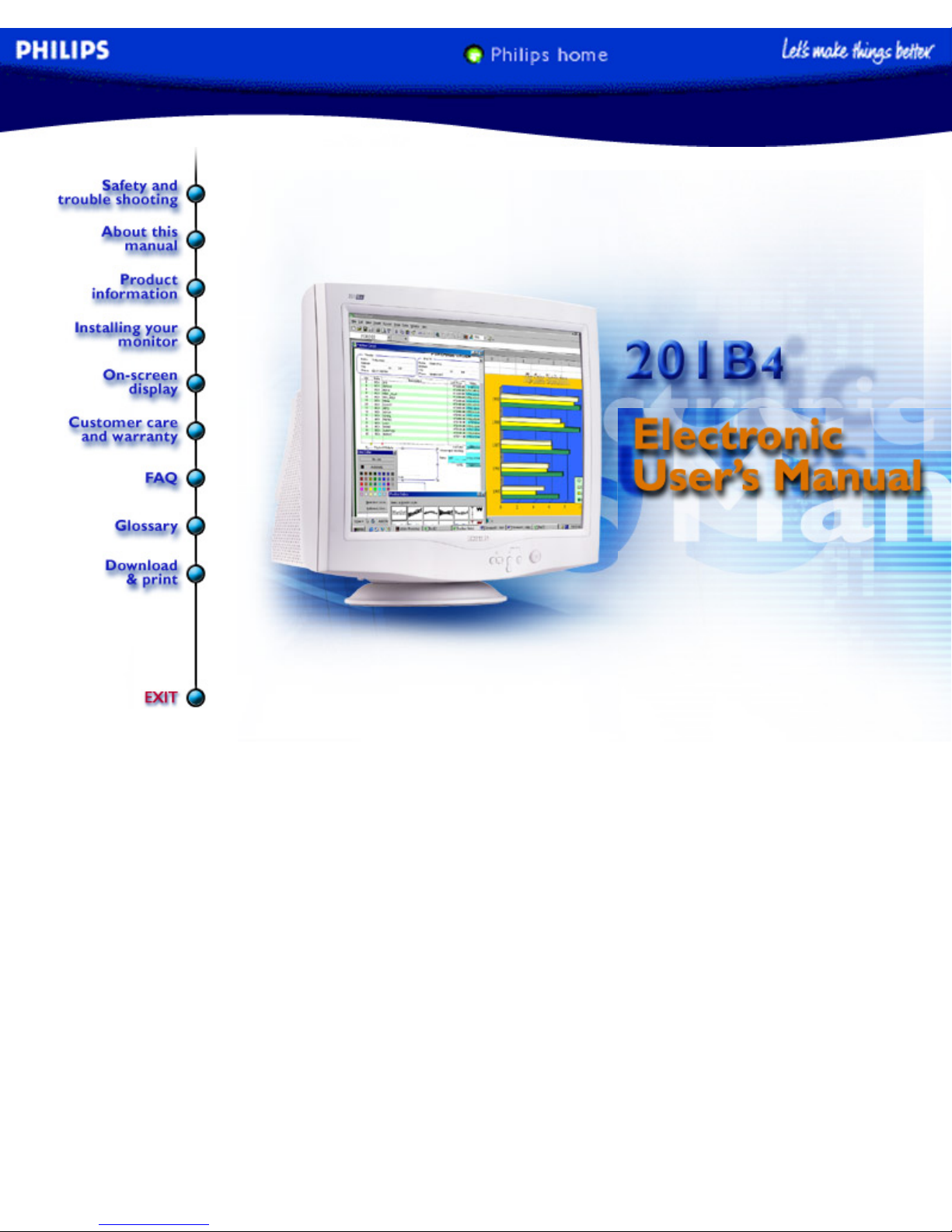

Philips 201B40 Manuale utente

electronic user's manual

file:///D|/rita/LF2/LF2/highendnew/multi_manual/english/201B/manual.html [1/7/2002 10:28:29 AM]

Safety and Troubleshooting Information

Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Other

Related Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments, or procedures other than those

specified in this documentation may result in exposure to shock, electrical

hazards, and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:

Disconnect the monitor from the power supply if the monitor is not to be used for an extended period

of time.

●

Do not attempt to remove the back cover, as you will be exposed to a shock hazard. The back cover

should only be removed by qualified service personnel.

●

Do not place objects on top of the monitor cabinet, objects could fall into vents or cover them and

prevent proper cooling of the monitor's electronic devices.

●

To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain or

excessive moisture.

●

Do not use alcohol or ammonia-based liquid to clean the monitor. If necessary, clean with a slightly

damp cloth. Disconnect the monitor from the power supply before cleaning.

●

When positioning the monitor, make sure the power plug and outlet are easily accessible.●

Consult a service technician if the monitor does not operate normally when operating instructions of this

manual are followed.

RETURN TO TOP OF THE PAGE

Safety & Troubleshooting

file:///D|/rita/LF2/LF2/highendnew/multi_manual/english/201B/SAFETY/SAFETY.HTM [1/7/2002 10:28:50 AM]

About This Electronic User's Manual

About This Guide • Other Documents You May Need • Notational Descriptions

About This Guide

This electronic user's guide is intended for anyone who uses the Philips Color Monitor. It describes the

monitor's features, setup, operation and all other information, which is the same exact information described

in our printed version.

The sections are as follows:

Safety and Troubleshooting Information provides tips and solutions for common problems, and other

related information you may need.

●

About This Electronic User's Manual gives overview of what information are included as well as

notation icon descriptions and other documentation you can refer to.

●

Product Information gives an overview of the monitor's features and as well as the technical

specifications for this monitor.

●

Installing Your Monitor describes the initial setup process and gives an overview of how to use the

monitor.

●

On Screen Display provides information on adjusting the settings on your monitor.●

Customer Care and Warranty is a list of worldwide Philips consumer information centers along with

the help desk phone numbers and information on the applicable warranty of your product..

●

Glossary provides more information for technical terms.●

Download allows users to install the entire manual on their hard drive.●

Frequently Asked Questions provides answers to commonly asked questions.●

RETURN TO TOP OF THE PAGE

Other Documents You May Need

In addition to this Electronic User's Guide, you may need to refer to the following documentation:

Philips Color Monitor Quick Start Guide which summarizes the steps for setting up the monitor. This is

included with this product.

●

RETURN TO TOP OF THE PAGE

Notational Descriptions

About This Electronic User's Manual

file:///D|/rita/LF2/LF2/highendnew/multi_manual/english/201B/ABOUT/ABOUT.HTM (1 of 2) [1/7/2002 10:28:50 AM]

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type.

These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: This icon indicates important information and tips that help you make better

use of your computer system.

CAUTION: This icon indicates information that tells you how to avoid either potential

damage to hardware or loss of data.

WARNING: This icon indicates the potential for bodily harm and tells you how to

avoid the problem.

SMART HELP: This icon indicates helpful information when adjusting the On Screen

Display of your monitor.

Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the

specific presentation of the warning is mandated by regulatory authority.

RETURN TO TOP OF THE PAGE

part is prohibited without written consent of Philips Electronics N.V.

About This Electronic User's Manual

file:///D|/rita/LF2/LF2/highendnew/multi_manual/english/201B/ABOUT/ABOUT.HTM (2 of 2) [1/7/2002 10:28:50 AM]

Product Information

Product Features • Technical Specifications • Automatic Power Saving • Physical Specification • Pin

Assignment • Product Views

Product Features

201B40:

21-inch (20.0" VIS) color monitor with excellent front of screen performance for use with MACs, PCs or

Workstations

●

Autoscan covers horizontal frequencies up to 115 kHz offering a maximum resolution of 1920 x 1440 with flicker

free display of 1600 x 1200 at up to 86 Hz

●

Flat square Super High Contrast CRT with high-resolution 0.25 mm pitch (0.21 hdp)● Auto Calibrate extends the useful life of the monitor by automatically adjusting color and luminance to original

values.

●

XSD-Xtra Space Design for large screen display in a small footprint: World's shortest 21-inch monitor with

maximum depth of only 467 mm/18.4"

●

sRGB for true on screen color representation.●

FCC, CE (in selected countries only) and ISO9241, ISO14001 certified●

RETURN TO TOP OF THE PAGE

Technical Specifications*

CRT

• Size and

deflection 21 inch / 51 cm ; 201B10 - 90° deflection angle

• Dot pitch / Grille

pitch 0.25 mm

• Horizontal pitch 0.21 mm

• Tube type Shadow mask, flat square, super high contrast, anti-glare, anti-static, anti reflection,

light transmission 43%

• Phosphor P22

• Recommended

display area 15.4" x 11.6" / 392 x 294 mm

• Maximum display

area 16.0" x 12.0" / 406 x 305 mm

SCANNING

• Horizontal

scanning 30 - 115 KHz

• Vertical scanning 50 - 160 Hz

VIDEO

201B Product Information

file:///D|/rita/LF2/LF2/highendnew/multi_manual/english/201B/PRODUCT/PRODUCT.HTM (1 of 4) [1/7/2002 10:28:50 AM]

• Video dot rate 261 MHz

• Input impedance

- Video 75 ohm

- Sync 2.2 kOhm

• Input signal

levels 0.7 Vpp

• Sync input signal Separate sync

Composite sync

• Sync polarities Positive and negative

WHITE COLOR TEMPERATURE

Chromaticity CIE coordinates:

• at 9300 K

degrees x = 0.283 / y = 0.297

• at 6500 K

degrees x = 0.313 / y = 0.329

• at 5500 K

degrees x = 0.332 / y = 0.347

sRGB

sRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital cameras,

monitors, printers, scanners, etc.)

Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible

device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can

rely on the correctness of the colors shown on your screen.

Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a predefined

setting as well as the color gamut. Therefore it is important to select the sRGB setting in the monitor's OSD.

To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down button to go

to Color temperature and press OK again. Then move the down button to go to sRGB and press OK again.

Exit this OSD.

After this, please don't change the brightness or contrast setting of your monitor. If you change either of

these, the monitor will exit the sRGB mode and go to a color temperature setting of 9300K.

For more information on sRGB, please visit: www.srgb.com

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Automatic Power Saving

201B Product Information

file:///D|/rita/LF2/LF2/highendnew/multi_manual/english/201B/PRODUCT/PRODUCT.HTM (2 of 4) [1/7/2002 10:28:50 AM]

If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce

its power consumption when not in use. And if an input from a keyboard, mouse or other input device is detected, the

monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic

power saving features:

201B10:

Power Management Definition

VESA's Mode Video H-sync V-sync Power Used Power

Saving (%) LED color

ON Active Yes Yes < 112W 0 % Green

Stand-by Blanked No Yes < 2W 97% Yellow

Suspend Blanked Yes No < 2W 97% Yellow

OFF Blanked No No < 2W 97% Yellow

This monitor is ENERGY STAR®compliant. As an ENERGY STAR®Partner, PHILIPS has

determined that this product meets the ENERGY STAR®guidelines for energy efficiency.

RETURN TO TOP OF THE PAGE

Physical Specifications

• Dimensions 19.0" x 18.7" x 18.4" / 482 x 476 x 467 mm (including base)

19.0" x 17.2" x 18.4" / 482 x 437 x 467 mm (excluding base)

• Weight 23.5 kg

• Power supply 90 - 264 VAC, 50/60Hz

• Temperature

(operating) 0° to 35°C / 32° to 95°F

• Temperature

(storage) -25° to +65°C / -13° to +149°F

• Relative humidity 5% to 95%

* Resolution 1280 x 1024, standard size, contrast max., brightness 50%, 9300°, full white pattern.

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

201B Product Information

file:///D|/rita/LF2/LF2/highendnew/multi_manual/english/201B/PRODUCT/PRODUCT.HTM (3 of 4) [1/7/2002 10:28:50 AM]

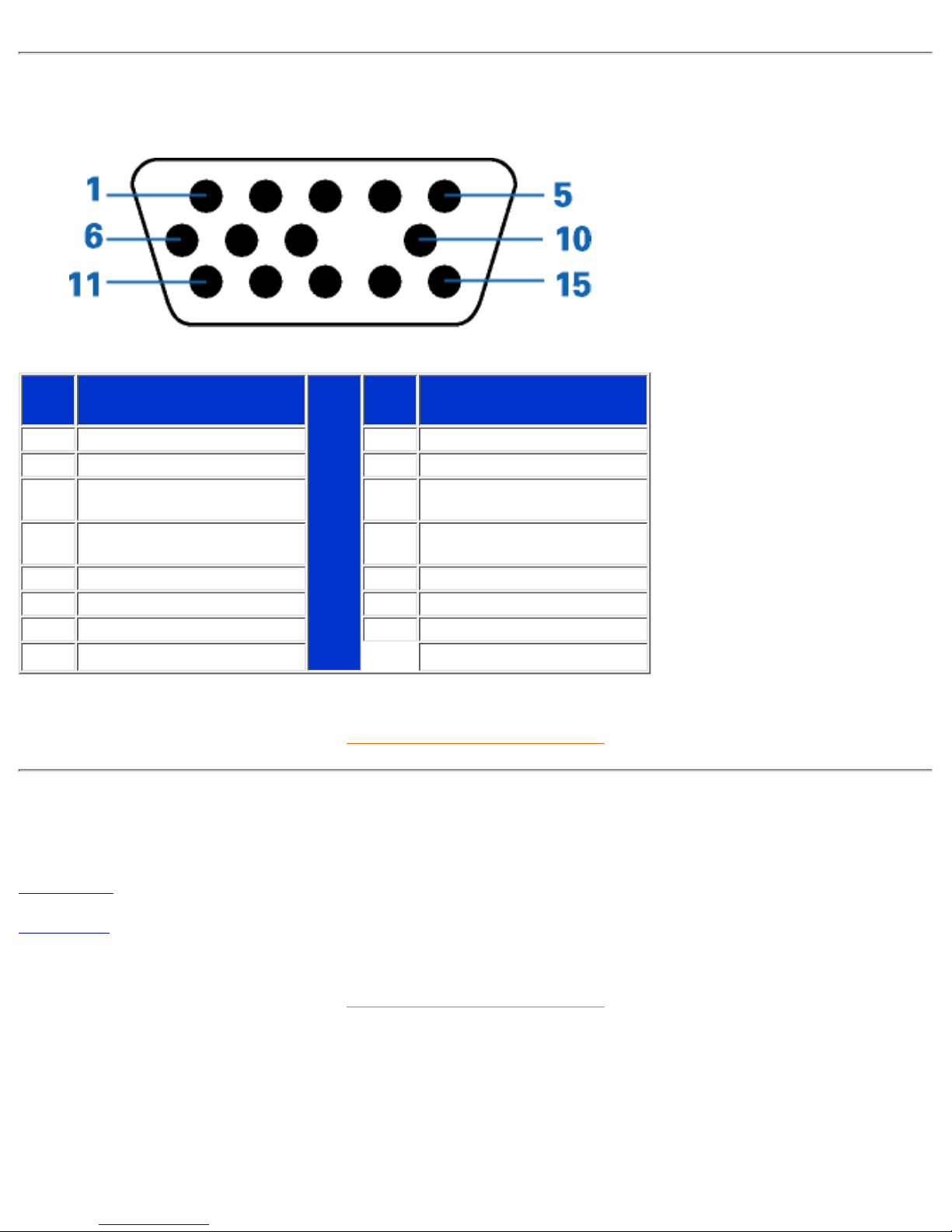

Pin Assignment

The 15-pin D-sub connector (male) of the signal cable (IBM systems):

No. Assignment

1 Red video input 9 +5V

2 Green video input 10 Logic ground

3 Blue video input 11 Identical output - connected

to pin 10

4Identical output - connected

to pin 10 12 Serial data line (SDA)

5 Ground 13 H. Sync / H+V

6 Red video ground 14 V. Sync (VCLK for DDC)

7 Green video ground 15 Data clock line (SCL)

8 Blue video ground

RETURN TO TOP OF THE PAGE

Views

Follow the links to see various views of the monitor and its components.

Front View

Rear View

RETURN TO TOP OF THE PAGE

201B Product Information

file:///D|/rita/LF2/LF2/highendnew/multi_manual/english/201B/PRODUCT/PRODUCT.HTM (4 of 4) [1/7/2002 10:28:50 AM]

Installing your Monitor

Front View • Rear View

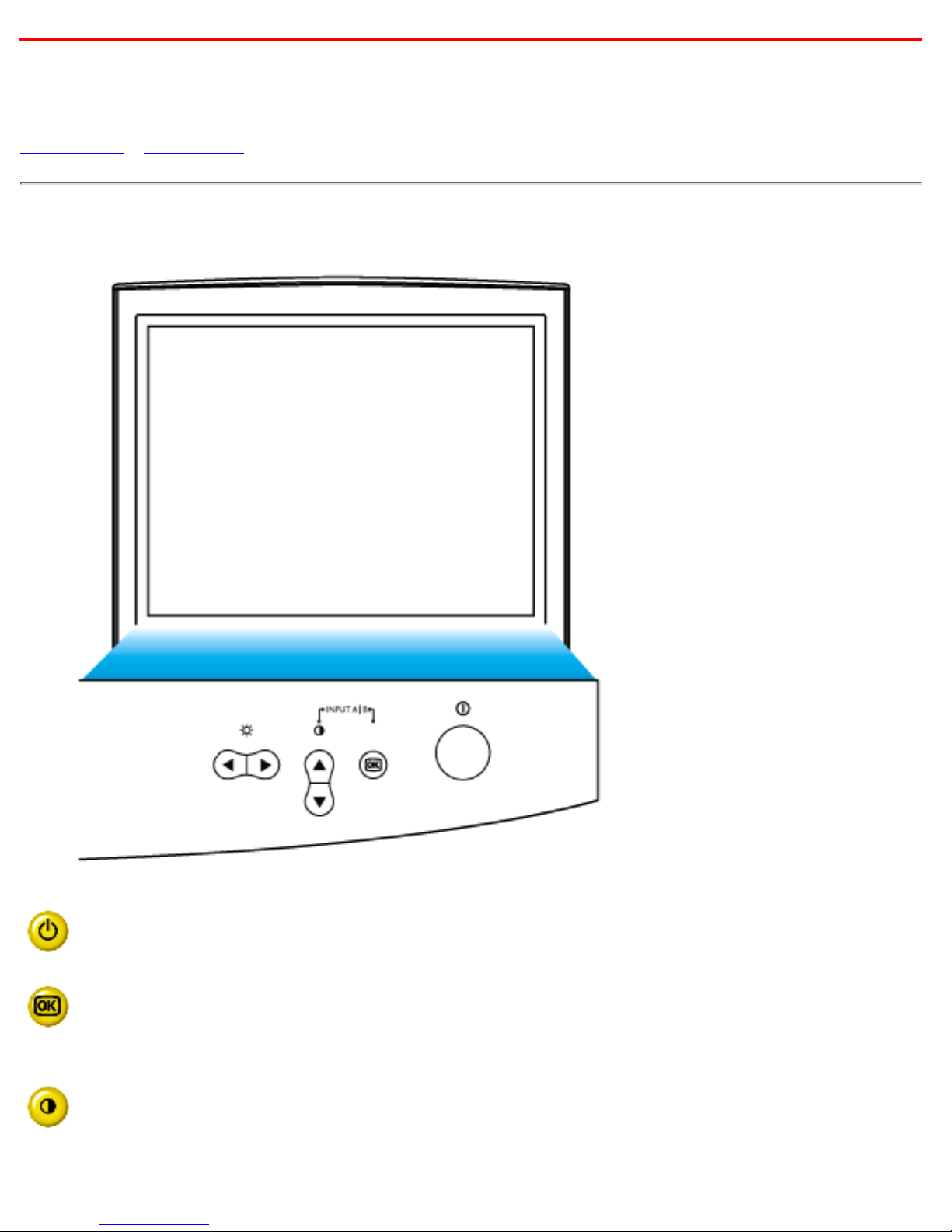

Front View

Power button switches your monitor on.

OK button which when pressed will take you to the OSD controls

Contrast hotkey. When the UP arrow is pressed, the adjustment controls

for the CONTRAST will show up.

Installing your Monitor

file:///D|/rita/LF2/LF2/highendnew/multi_manual/english/INSTALL_4/INSTALL.HTM (1 of 4) [1/7/2002 10:28:51 AM]

UP and DOWN buttons are used when adjusting the OSD of your monitor

Brightness hotkey. When the RIGHT arrow is pressed ,the adjustment

controls for BRIGHTNESS will show up.

LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used

in adjusting the OSD of your monitor.

By pressing both the UP and OK buttons, you can easily access the Input

Signals A and/or B.

RETURN TO TOP OF THE PAGE

Rear View

Installing your Monitor

file:///D|/rita/LF2/LF2/highendnew/multi_manual/english/INSTALL_4/INSTALL.HTM (2 of 4) [1/7/2002 10:28:51 AM]
